Kenmore
Washer

Model # 79641362910 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 79641362910 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

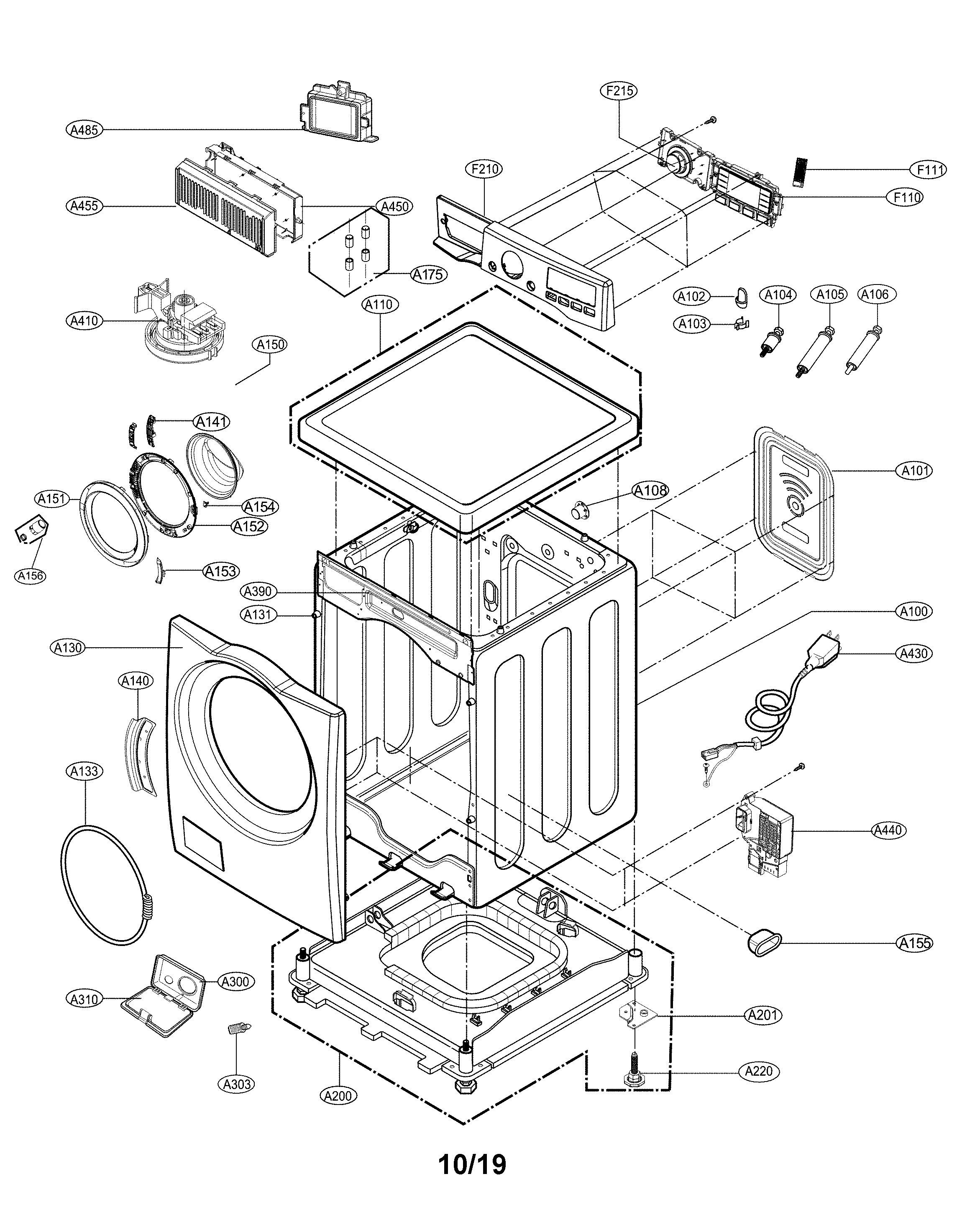

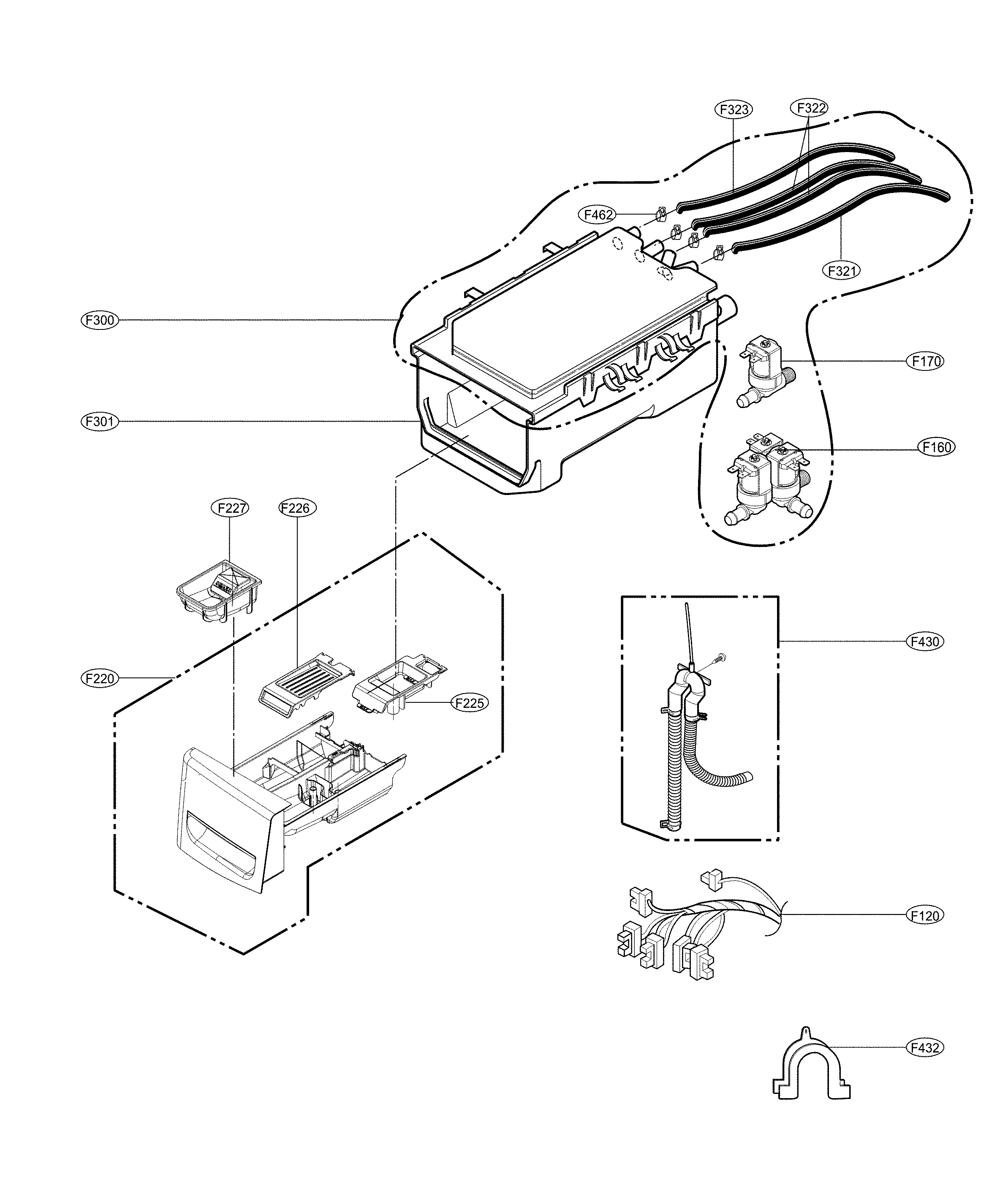

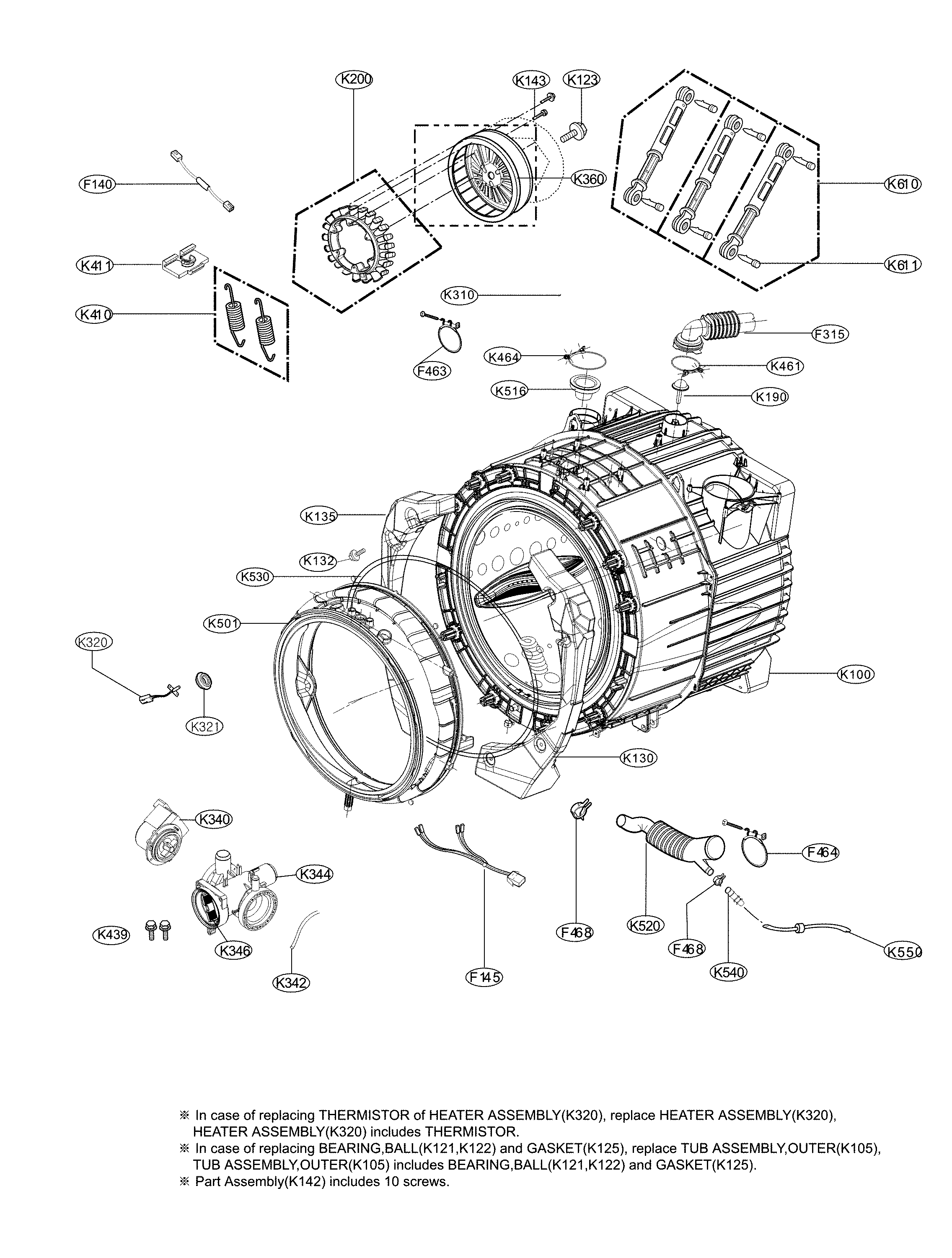

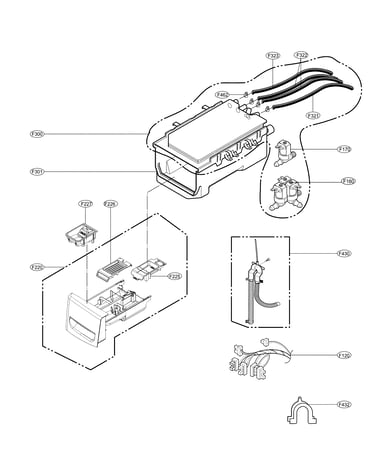

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Washer Door Lock EBF61315802

#A440

All parts diagram

Washer door lock

Part #EBF61315802

BEST SELLER
$114.54 |
8% OFF Phone Price : $124.54
In Stock
Washer Shock Absorber (replaces Acv72909501) ACV72909503

#K610

All parts diagram

Washer shock absorber (replaces acv72909501)

Part #ACV72909503

BEST SELLER
$39.07 |
11% OFF Phone Price : $44.07
In Stock
Washer Door Boot Spring Clamp (replaces 4861en3004l, Aca56078802) ACA56078801

#A133

All parts diagram

Washer door boot spring clamp (replaces 4861en3004l, aca56078802)

Part #ACA56078801

BEST SELLER
$16.61 |
11% OFF Phone Price : $18.61
In Stock
Washer Dispenser Hose 4738ER1004B

#K310

All parts diagram

Washer dispenser hose

Part #4738ER1004B

BEST SELLER
$27.20 |
16% OFF Phone Price : $32.20
In Stock
Washer Drain Pump Filter Drain Hose (replaces Agf78240572) 5214FR4006G

#K342

All parts diagram

Washer drain pump filter drain hose (replaces agf78240572)

Part #5214FR4006G

BEST SELLER
This item is not returnable
$6.14 |
14% OFF Phone Price : $7.14
In Stock
Washer Tub-to-pump Hose 4738ER1002A

#K520

All parts diagram

Washer tub-to-pump hose

Part #4738ER1002A

BEST SELLER
$43.07 |
10% OFF Phone Price : $48.07
In Stock
Washer Drain Pump Filter Drain Hose Plug (replaces 5006er3009a) 5006EN3015A

#A303

All parts diagram

Washer drain pump filter drain hose plug (replaces 5006er3009a)

Part #5006EN3015A

BEST SELLER
This item is not returnable
$5.71 |
15% OFF Phone Price : $6.71
In Stock
Washer Thermistor (replaces 6322fr2046f) 6322FR2046C

#K320

All parts diagram

Washer thermistor (replaces 6322fr2046f)

Part #6322FR2046C

BEST SELLER
$19.41 |
9% OFF Phone Price : $21.41
In Stock
Cap,hole AHL72914410

#K360

All parts diagram

Cap,hole

Part #AHL72914410

Replaced by #AHL72914401

?
Manufacturer substitution
This part replaces AHL72914410. Substitute parts can look different from the original.
BEST SELLER
$183.00 |
5% OFF Phone Price : $193.00
In Stock
Washer Water Inlet Valve 5220FR2006Z

#F160

All parts diagram

Washer water inlet valve

Part #5220FR2006Z

BEST SELLER
$38.73 |
11% OFF Phone Price : $43.73
In Stock
