Model #106855300 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Kenmore 106855300 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 92 parts

Appliance Screw#20

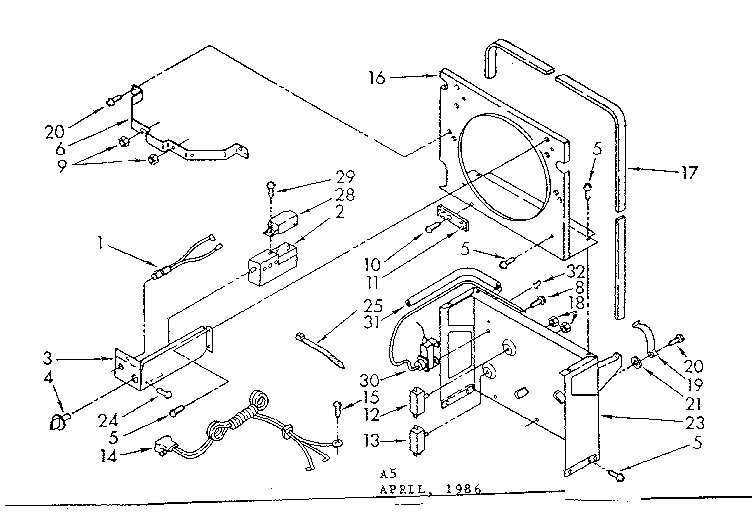

Frame and control parts Diagram

Screw, 8 x 1

Part #488480
Replaced by #WP489069
?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Washer#21A

Frame and control parts Diagram

Washer

Part #489083

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Service Valve

#NI

All parts Diagram

Valve kit

Part #978026
Replaced by #978026
?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
In Stock
$34.19 |
13% OFF
Phone Price: $39.19
Nut#9

Frame and control parts Diagram

Nut

Part #488130

The manufacturer no longer makes this part, and there's no substitute part

Screw

See All Related Diagrams

Screw

Part #488234
Replaced by #WP488234
?
Manufacturer substitution
This part replaces 488234. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.20
Refrigerator Service Valve, 3/4-in

#NI

All parts Diagram

Valve kit

Part #978030
Replaced by #978030
?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
In Stock
$40.49 |
11% OFF
Phone Price: $45.49
Appliance Screw#8

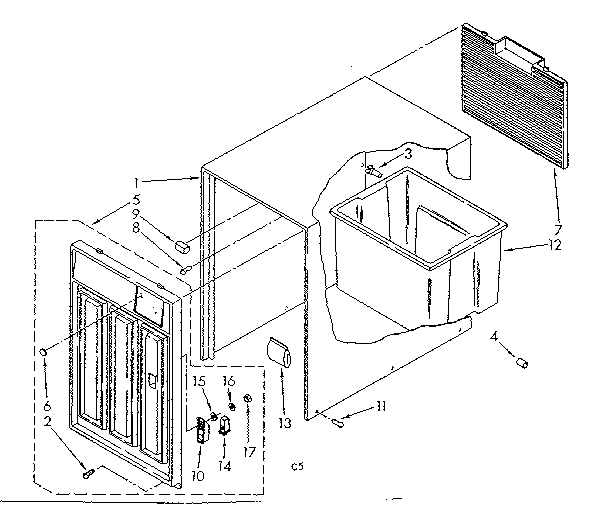

Cabinet parts Diagram

Screw

Part #489073
Replaced by #WP488729
?
Manufacturer substitution
This part replaces 489073. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Screw#2

Cabinet parts Diagram

Screw

Part #489120

The manufacturer no longer makes this part, and there's no substitute part

Nut#17

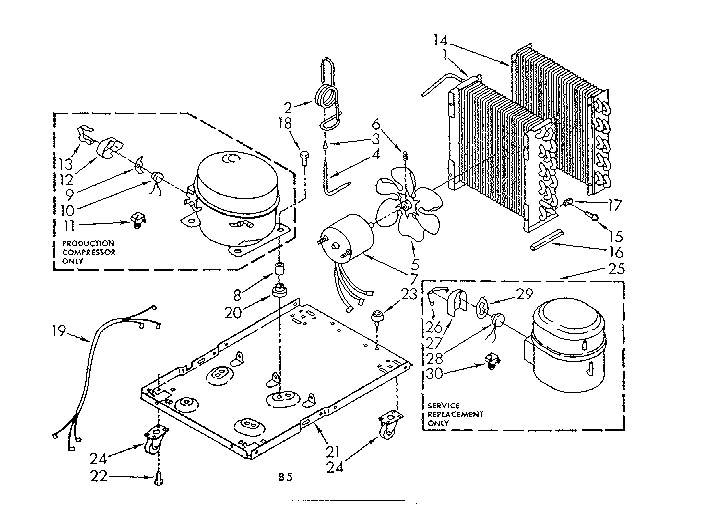

Unit parts Diagram
