Whirlpool
Upright Freezer

Model #WZF34X20DW01 Whirlpool freezer

Here are the diagrams and repair parts for Whirlpool WZF34X20DW01 freezer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

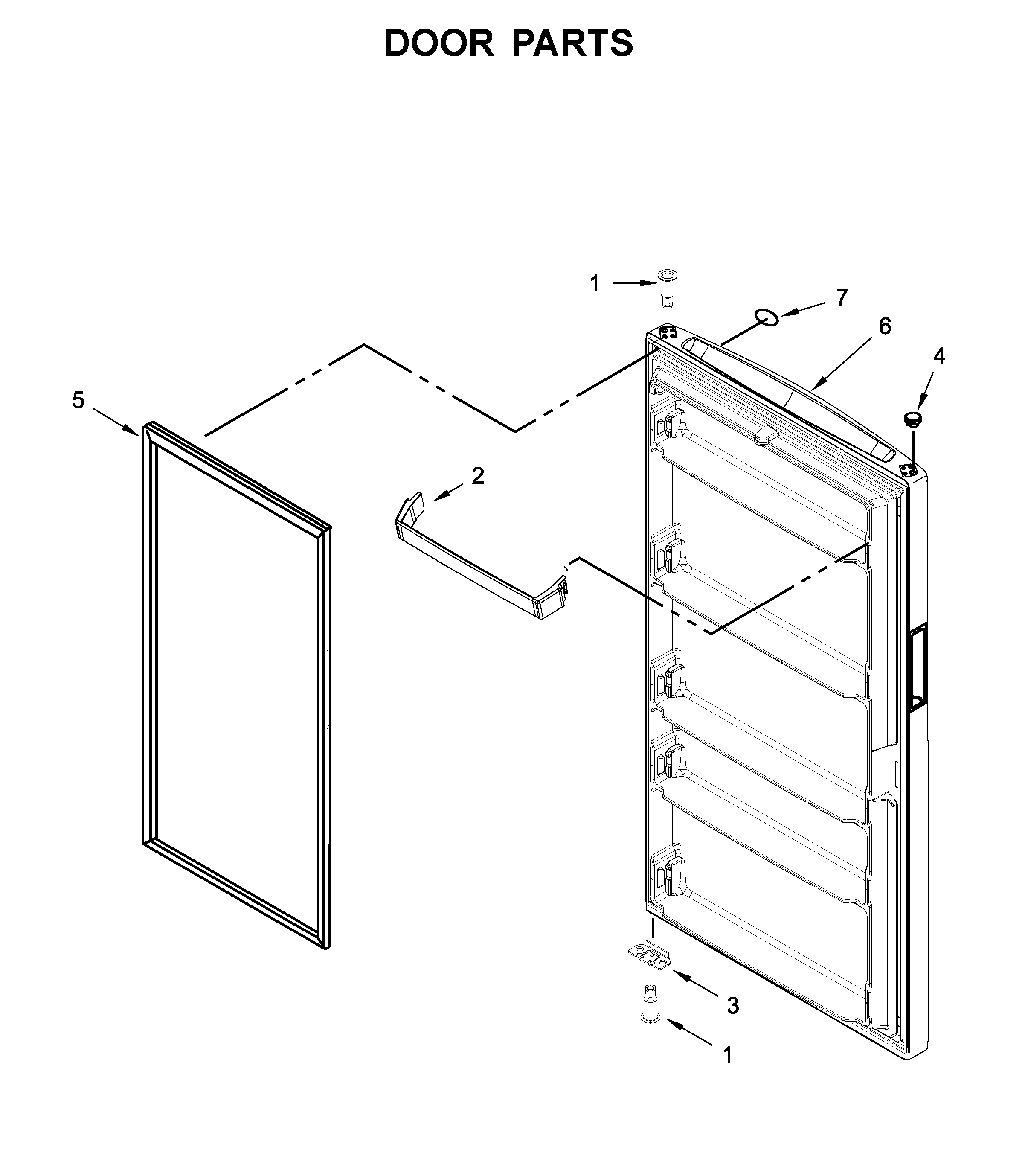

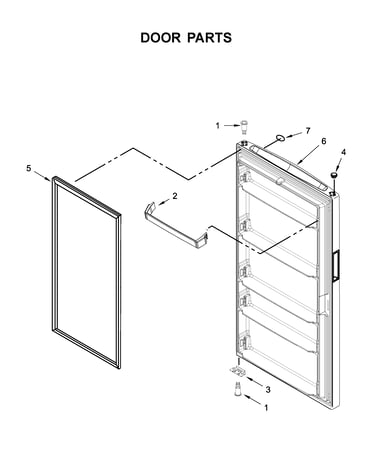

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 88 parts

    Refrigerator Permagum Sealer

    #NI

    Optional parts (not included) Diagram

    $28.32 |
    23% OFF MSRP:$37.00

    In Stock

    Hinge Pin

    #13

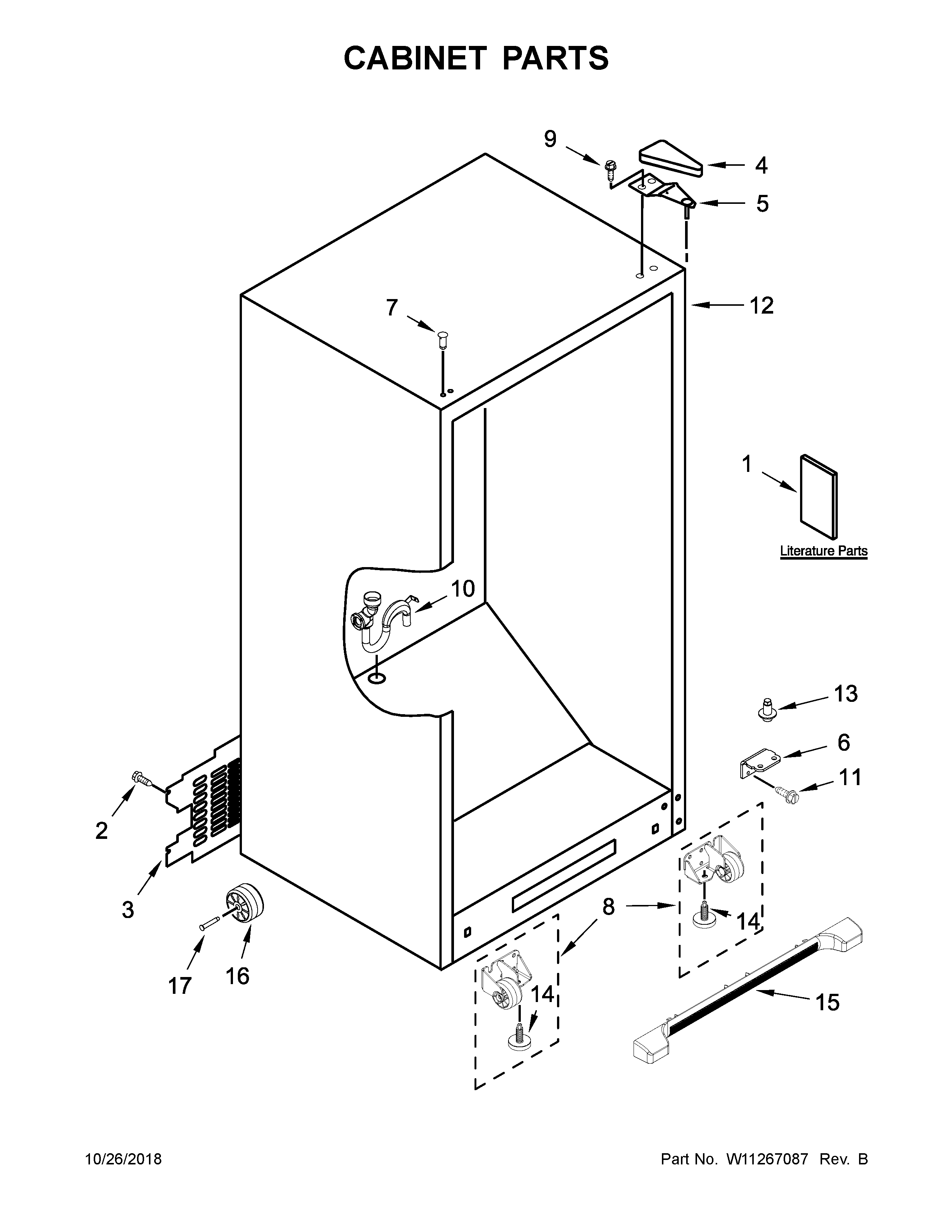

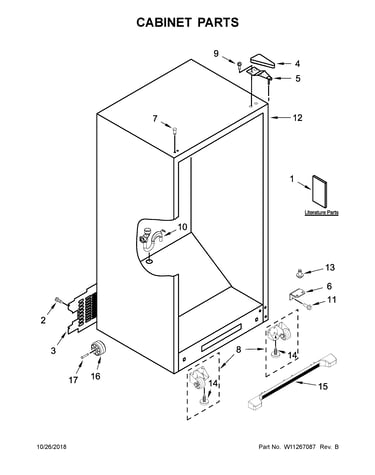

    Cabinet parts Diagram

    Hinge pin

    Part #W10574325
    $10.75

    In Stock

    Wire Shelf

    #11

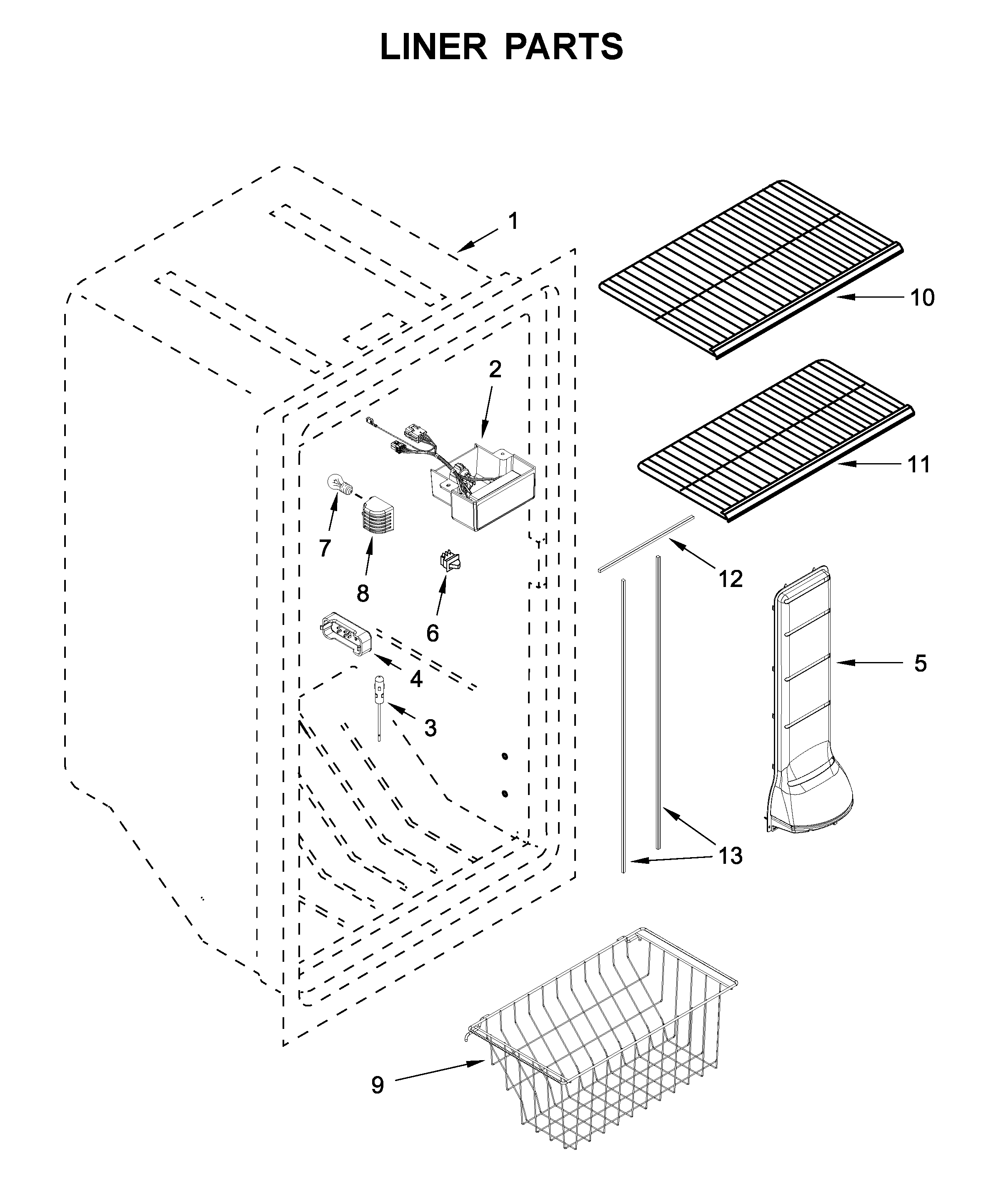

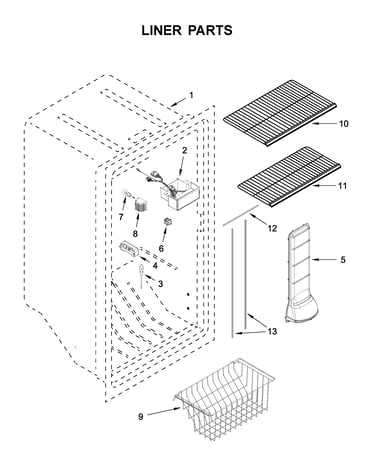

    Liner parts Diagram

    Wire shelf

    Part #W10581581
    $49.03 |
    11% OFF MSRP:$55.00

    In Stock

    Appliance Porcelain Touch-Up Paint, 1-qt (White)

    #NI

    Optional parts (not included) Diagram

    $88.11 |
    9% OFF MSRP:$96.48

    In Stock

    Refrigerator Evaporator Fan Motor Grommet

    #13

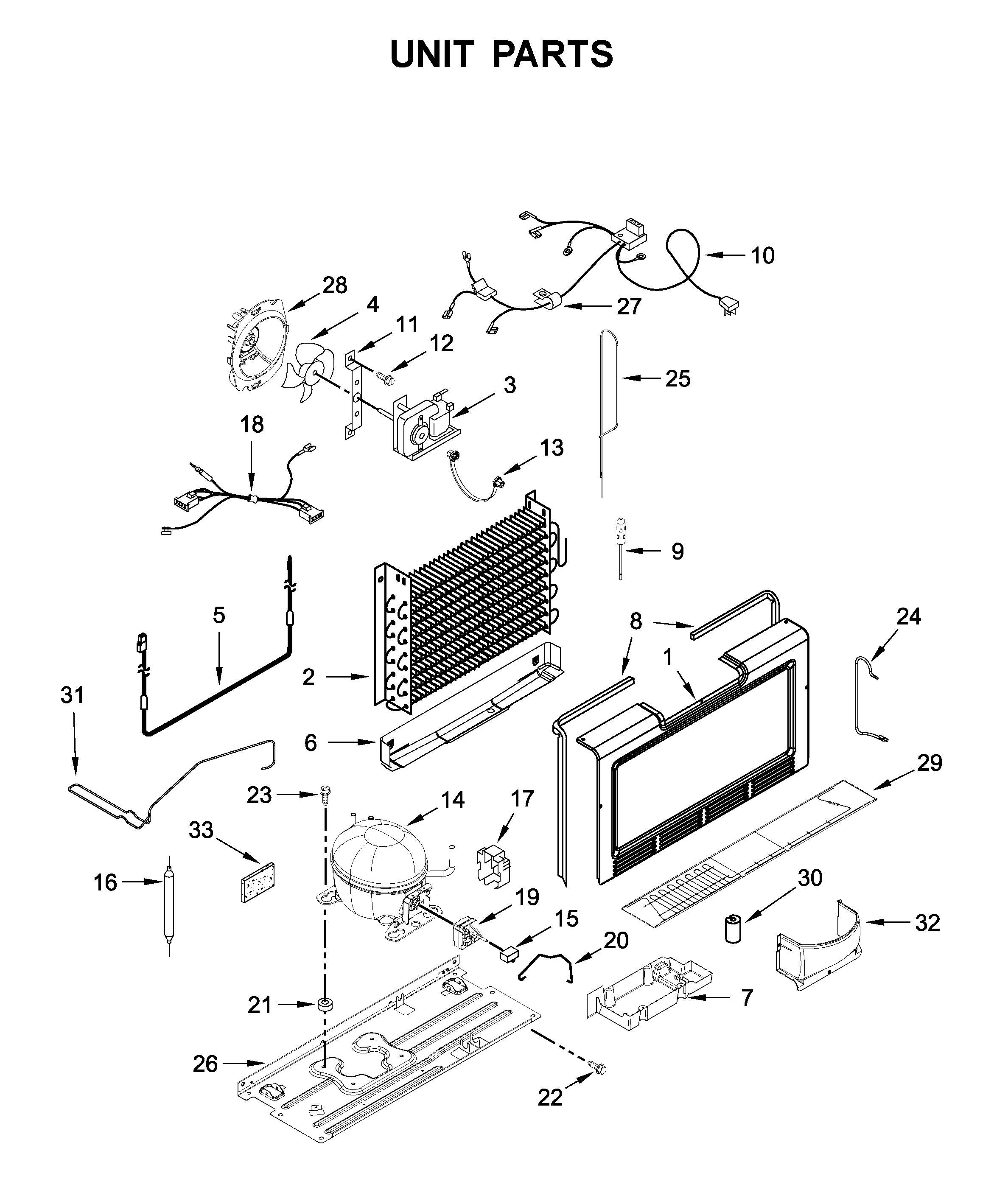

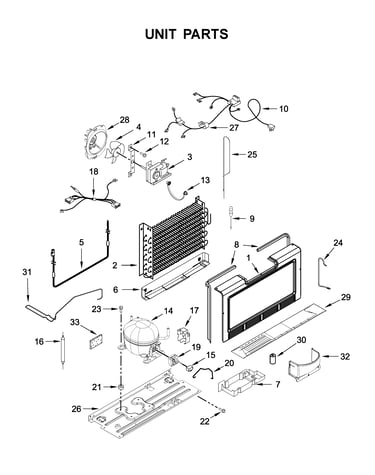

    Unit parts Diagram

    $17.53 |
    33% OFF MSRP:$26.00

    In Stock

    WIRE HARNESS (INCLUDES POWER CORD)

    #10

    Unit parts Diagram

    $54.19

    In Stock

    Suction Tube

    #24

    Unit parts Diagram

    Suction tube

    Part #W10861955
    $27.80

    In Stock

    Air Tower

    #5

    Liner parts Diagram

    Air tower

    Part #W10574272
    $49.02

    In Stock

    Evaporator Cover

    #1

    Unit parts Diagram

    Evaporator cover

    Part #W10574307
    $75.35

    In Stock

    Drain Tube Assembly

    #10

    Cabinet parts Diagram

    Drain tube assembly

    Part #W10717194
    $41.62 |
    10% OFF MSRP:$46.00

    In Stock

    Symptoms common to all freestanding freezers

    Choose a symptom to see related freezer repairs.

    Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
    Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
    Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
    Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
    Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
    Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
    Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
    Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems

    Repair guides for upright freezers

    February 20, 2015
    By Lyle Weischwill
    How to replace a freezer thermistor

    When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follow these step-by-step instructions to replace a defective freezer thermistor.

    Repair difficulty
    Time required
     45 minutes or less
    February 20, 2015
    By Lyle Weischwill
    How to replace a freezer defrost heater

    If frost builds up on the freezer evaporator because the defrost heater isn’t working, follow these step-by-step instructions to replace the freezer defrost heater.

    Repair difficulty
    Time required
     45 minutes or less
    February 20, 2015
    By Lyle Weischwill
    How to replace a freezer control panel

    A freezer control panel that doesn’t show the temperature or respond when you press the buttons could be broken. This DIY repair guide and video show how to replace a freezer control panel in less than 15 minutes.

    Repair difficulty
    Time required
     15 minutes or less

    Articles and videos common to all freestanding freezers

    Use the advice and tips in these articles and videos to get the most out of your freezer.

    October 26, 2016

    How to repair broken or damaged wires video

    By Sears PartsDirect staff

    Learn how to repair broken, frayed or damaged wires in your appliances.

    January 18, 2016

    How to use a multimeter to test electrical parts video

    By Sears PartsDirect staff

    Learn how to use a multimeter to check for wiring problems in an appliance that's not working

    November 1, 2014

    Freezer common questions

    By Sears PartsDirect staff

    Benefit from other people's experience by checking on these frequently asked questions about freezers.
