Model # 15560 Official TNT air compressor

Here are the diagrams and repair parts for Official TNT 15560 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 34 parts |

#24

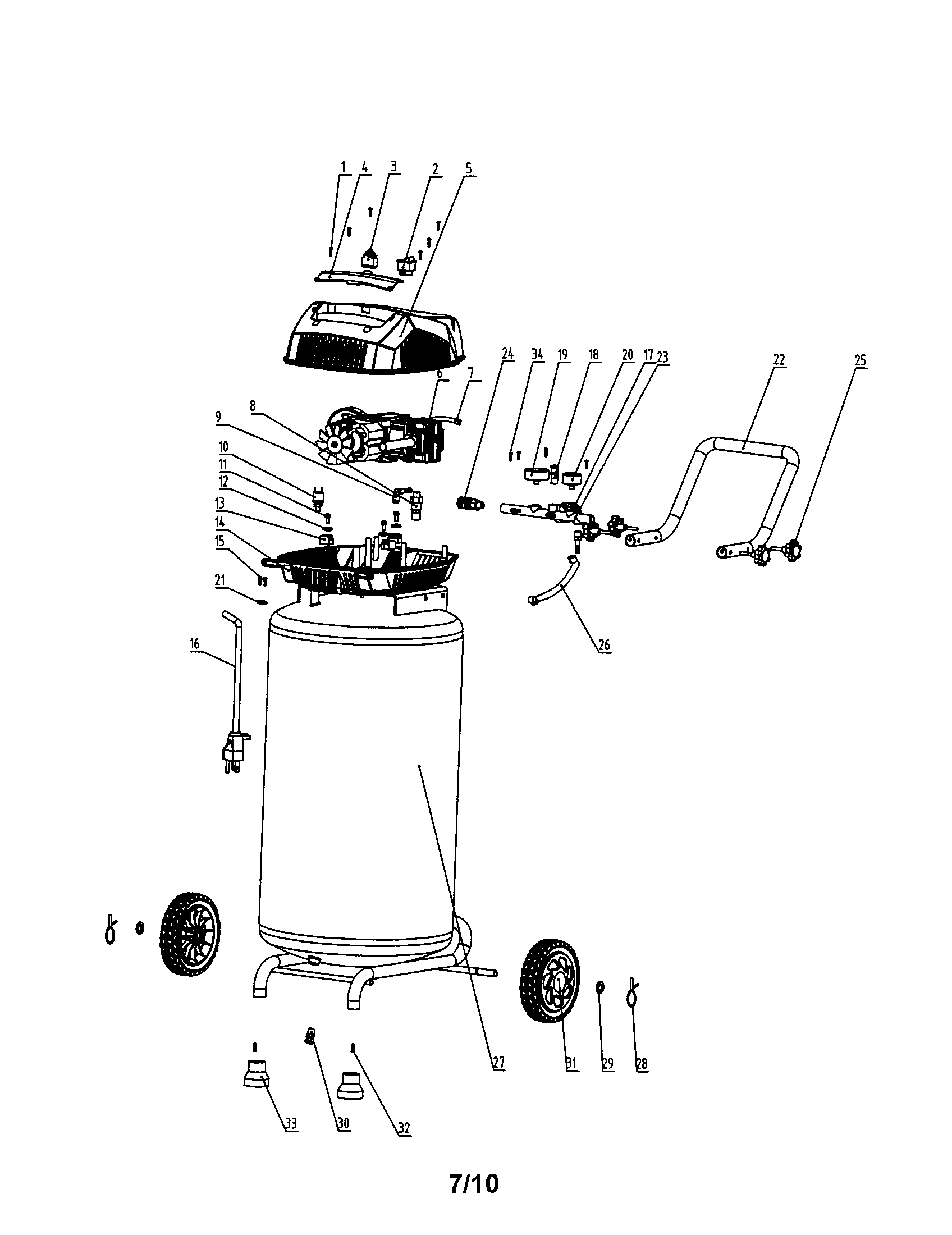

Air compressor diagram

Qiuck conn

Part #3321175

The manufacturer no longer makes this part, and there's no substitute part

#34

Air compressor diagram

Screw

Part #3220101

The manufacturer no longer makes this part, and there's no substitute part

#23

Air compressor diagram

Press valve

Part #3110283-1

The manufacturer no longer makes this part, and there's no substitute part

#14

Air compressor diagram

Cvr bottom

Part #3410283

The manufacturer no longer makes this part, and there's no substitute part

#20

Air compressor diagram

Tank gauge

Part #3290183-1

The manufacturer no longer makes this part, and there's no substitute part

#30

Air compressor diagram

Air compressor drain valve

Part #3290275

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram

Motor assembly

Part #3110551

The manufacturer no longer makes this part, and there's no substitute part

#17

Air compressor diagram

Turncap reg

Part #31103119

The manufacturer no longer makes this part, and there's no substitute part

#21

Air compressor diagram

Wire clip

Part #3411535

The manufacturer no longer makes this part, and there's no substitute part

#15

Air compressor diagram

Screw

Part #3220106

The manufacturer no longer makes this part, and there's no substitute part
