Kenmore Elite 79097502002 electric range Parts

To reset your Kenmore Elite electric range model 79097502002, first try a simple power reset: turn the range off, then restore power to clear a temporary control glitch. For model-specific control steps and settings, follow the reset and control instructions in the 79097502002 owner's manual.

• Power reset (recommended first): switch the range breaker OFF for about 1 minute, then switch it ON.
• Cancel/clear reset: press Cancel/Clear once to stop an active bake, broil, or self-clean cycle.
• After a self-clean issue: allow the oven to cool fully; some functions stay locked out until temperatures drop.
• If the display is blank: confirm the house breaker is fully seated (some breakers look on when tripped).

• Turn surface elements to OFF.
• If you must pull the range out, verify the anti-tip bracket is engaged when you put it back.
• Keep children away from the range while you restore power.

A reset will not correct a failed heating or sensing component. These checks narrow it down:

• If the oven heats erratically or shows temperature-related faults, test the range oven temperature sensor 5304504897.
• If the oven light works but the oven will not heat, check for error codes and confirm bake/broil settings in the manual.
• If the range was recently moved, re-check power connection and that the range is level and properly installed.

Resetting clears temporary electronic faults, but repeated lockups or heating problems usually point to a sensor, control, or wiring issue that needs diagnosis.

Last updated: January 2026

The most common issues we see on the Kenmore Elite electric range model 79097502002 involve heating performance (oven not reaching temp or uneven baking), surface elements not heating correctly, and electrical or control symptoms like intermittent operation. Your owner's manual helps confirm normal operation and basic checks.

• Oven temperature is off (too hot, too cool, long preheat): often tied to a failing sensor or calibration setting; see range oven temperature sensor 5304504897.
• Bake or broil not heating: a failed heating element or a control relay issue; see oven element 318601604.
• Convection fan not running or noisy: fan motor or blade problems; see range convection fan motor 5304463302 and range convection fan blade 318398302.

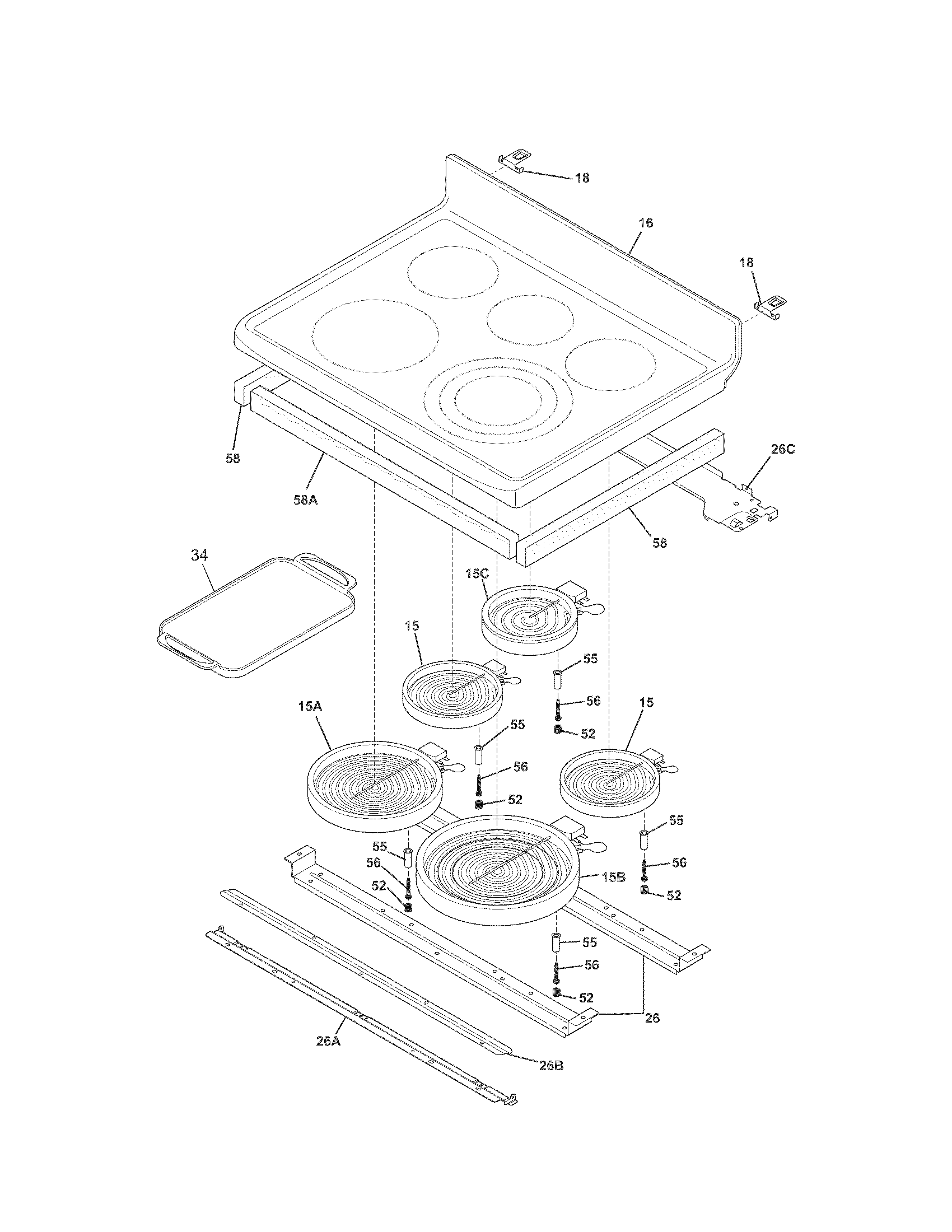

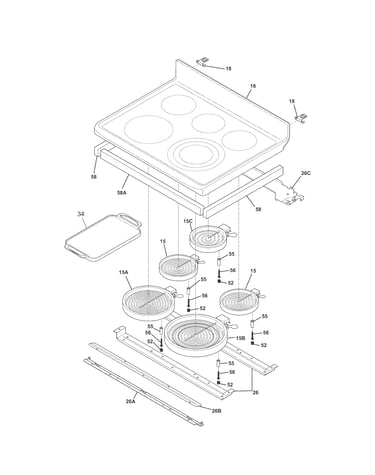

• Cooktop element not heating or cycling oddly: radiant element or surface-element control/relay issues; see range radiant surface element 8583165300010 and frigidaire range surface unit power relay board 316442119.
• Oven light not working: bulb, socket, or lens issues; see appliance light bulb, 40-watt 316538904 and range oven light socket 316116400.
• Range is dead, trips breaker, or shows burn marks at power cord connection: wiring connection problems at the power input; see terminal block 5304409888.

• Confirm the range is getting proper power at the outlet and the breaker is fully reset.
• For oven temp complaints, run a simple temperature check with an oven thermometer and compare results.
• Inspect the bake element for visible blisters, cracks, or burn spots.
• For cooktop issues, swap a similar-size element (if your cooktop design allows) to see if the problem follows the element.
• If you smell burning or see discoloration at the cord connection, stop using the range and inspect the terminal block and wiring.

Catching the right failure early protects the control board, wiring harness, and terminal connections from heat damage and prevents repeat breakdowns. Using model-matched parts also restores proper fit and safe electrical connections.

Last updated: March 2026

ER FF is a refrigerator error code for an evaporator (freezer) fan problem, not a Kenmore Elite 79097502002 electric range code. For your range, use the error-code and troubleshooting section in the 79097502002 installation guide (and the use and care information it references) to match the exact code shown on the display.

On Kenmore Elite refrigerators, ER FF commonly points to an evaporator fan issue in the freezer section. When that fan cannot move cold air properly, the refrigerator side may warm up and temperatures can become uneven.

Common causes include:

• Ice buildup blocking the fan blade
• Fan motor failure
• Loose or damaged wiring at the fan
• Control board not powering the fan
• Door left ajar leading to frost and airflow restriction

Range error codes are different from refrigerator codes. Start with safe basics, then narrow it down to the system involved (oven temperature sensing, cooling airflow, or power connection).

• Turn off power at the breaker for 1 minute, then restore power (resets many control faults)
• Confirm the range is installed with proper clearances and ventilation (overheating can trigger faults)
• If the oven temperature is inaccurate or the code relates to temperature, inspect the range oven temperature sensor 5304504897
• If the display is dead or you smell heat at the cord connection, inspect the terminal block 5304409888

Using the wrong code chart can lead to replacing the wrong part. Refrigerator codes like ER FF do not apply to electric ranges, and range diagnostics focus on heating circuits, sensors, and power supply.

Last updated: January 2026
