KitchenAid KWVU205YBA2 range hood Parts
Here are the diagrams and repair parts for KitchenAid KWVU205YBA2 range hood, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM

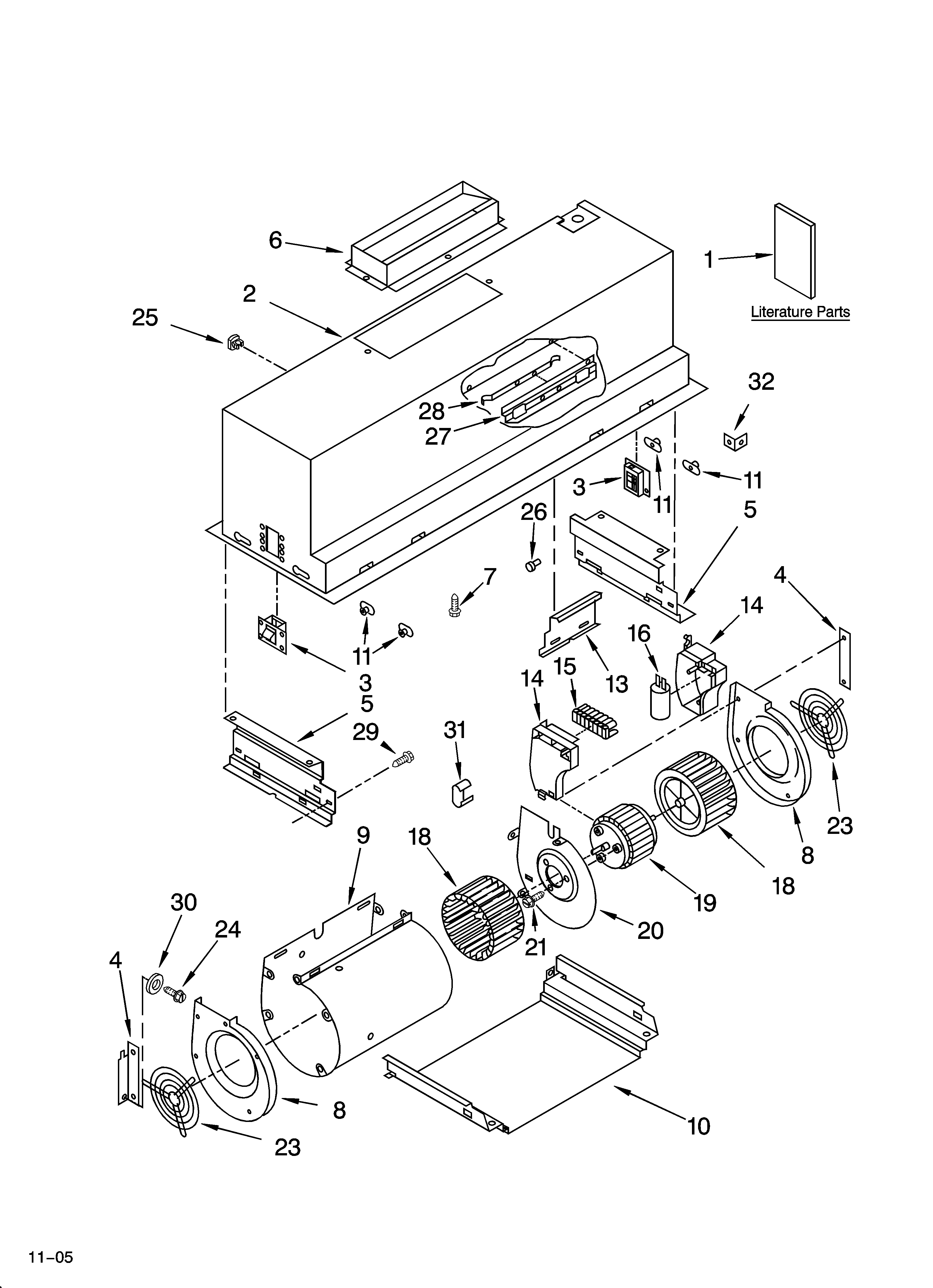

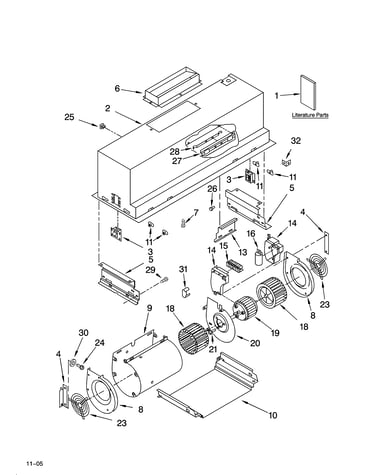

Browse Parts for KWVU205YBA2 Range Hood

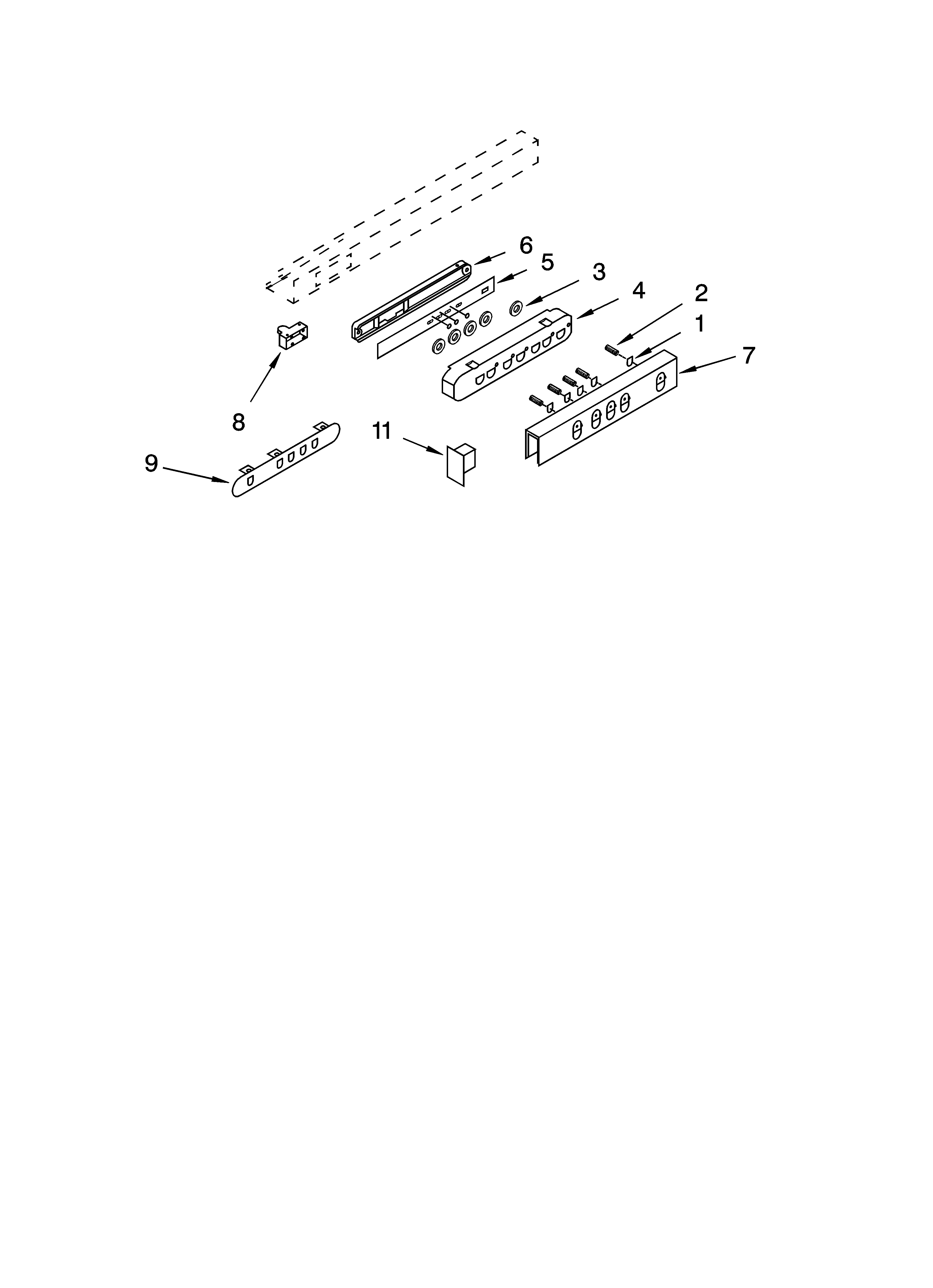

Control panel parts diagram
Spring
Part #4360107Replaced by #WPW10370009
Manufacturer substitutionThis part replaces 4360107. Substitute parts can look different from the original.In Stock$348.91$12.00 OFF Phone Price : $360.91
Qty
Control panel parts diagram
Frame Switch
Part #4360111Replaced by #WPW10370009
Manufacturer substitutionThis part replaces 4360111. Substitute parts can look different from the original.In Stock$348.91$12.00 OFF Phone Price : $360.91QtyControl panel parts diagram
Housing Panel
Part #4360109Replaced by #WPW10370009
Manufacturer substitutionThis part replaces 4360109. Substitute parts can look different from the original.In Stock$348.91$12.00 OFF Phone Price : $360.91QtyControl panel parts diagram
Control Knob
Part #4360106Replaced by #WPW10370009
Manufacturer substitutionThis part replaces 4360106. Substitute parts can look different from the original.In Stock$348.91$12.00 OFF Phone Price : $360.91QtyControl panel parts diagram
Switch
Part #4360110Replaced by #WPW10370009
Manufacturer substitutionThis part replaces 4360110. Substitute parts can look different from the original.In Stock$348.91$12.00 OFF Phone Price : $360.91QtyDoor and control parts diagram

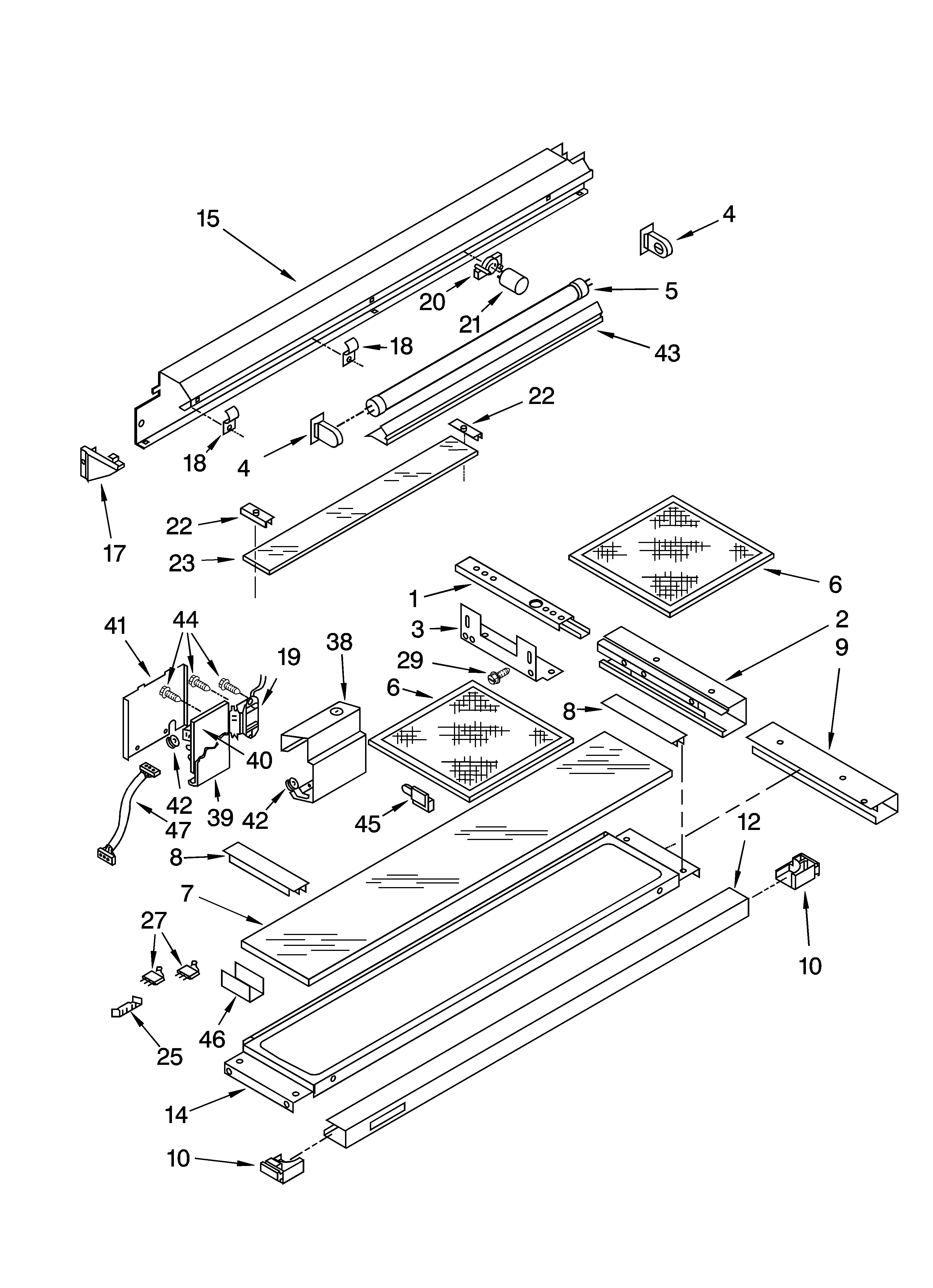

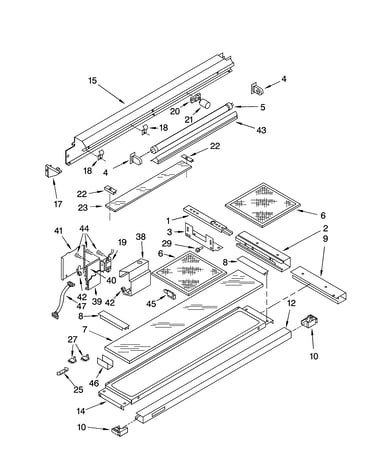

Hand Door
In Stock$188.28QtyDoor and control parts diagram
Grease Filter
Part #4360015Replaced by #WPW10370046
Manufacturer substitutionThis part replaces 4360015. Substitute parts can look different from the original.In Stock$136.708% OFF Phone Price : $148.70QtyDoor and control parts diagram
Receptacle
Part #4360047Replaced by #W10565470
Manufacturer substitutionThis part replaces 4360047. Substitute parts can look different from the original.In Stock$105.45QtyControl panel parts diagram
Washer
Part #4360108Replaced by #WPW10370009
Manufacturer substitutionThis part replaces 4360108. Substitute parts can look different from the original.In Stock$348.91$12.00 OFF Phone Price : $360.91QtyDoor and control parts diagram
Switch
Part #4360035Replaced by #WPW10240604
Manufacturer substitutionThis part replaces 4360035. Substitute parts can look different from the original.In Stock$110.9321% OFF Was : $140.16Qty
Most common symptoms to help you fix your range hoods
Choose a symptom to see related range hood repairs.
Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…
Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…
Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…
Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…
Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…
Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…
Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…
Most common repair guides to help fix your range hoods
These step-by-step repair guides will help you safely fix what’s broken on your range hood.
How to replace a range hood fan motor
If the fan on the range hood won’t run, it’s likely that the fan motor has failed. Follow the steps in this guide to rep…
Repair time and Difficulty
30 minutes or less
How to replace a range hood fan switch
The fan switch activates the fan motor in the range hood. If the fan switch is defective, replace it using the detailed …
Repair time and Difficulty
15 minutes or less
How to replace a range hood light socket
When you replace a light bulb and it still won’t work, the socket is likely defective. Use the detailed steps in this re…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your range hoods
Use the advice and tips in these articles and videos to get the most out of your range hood.
Learn about a new feature added to the Search Bar on Sears PartsDirect…
See the most common replacement parts needed for your range hood.…
Find out what’s wrong with your appliance by following a circuit.…
