Why is my Kenmore oven not igniting?
If your Kenmore gas range model 79071313708 oven is not igniting, the most common causes are a weak or failed oven igniter, a gas supply or regulator issue, or a control setting or power problem that prevents the ignition system from operating. Use the troubleshooting checklist in the 79071313708 owner's manual to narrow it down safely.
Quick checks we recommend first
- Confirm the range has power (clock/display on); electric ignition needs power to light.
- Make sure the gas supply shutoff valve is fully open.
- Verify the range pressure regulator is set to ON (the manual calls this out for “oven does not operate”).
- Set the clock/time of day; some models will not run the oven until time is set.
- Try Bake again and listen: repeated clicking with no flame points to ignition or gas flow.
Most common part-related causes
1) Oven igniter is weak or cracked
A weak igniter can glow but still not pull enough current to open the oven gas valve.
- If the igniter does not glow at all, suspect the igniter, wiring, or control.
- If it glows but ignition is delayed or never happens, the igniter is often the fix.
Relevant part for this model: Range oven burner igniter 5304509706
2) Gas flow issue to the oven burner
If the igniter is working but there is no gas to the burner, check supply and regulator first. If those are correct, the oven gas valve can be the next suspect.
What you hear/see vs. what it usually means
| Symptom | Most likely cause | What to do next |
|---|---|---|
| No glow from igniter | No power, control issue, broken igniter, wiring | Check power, settings, then inspect/test igniter |
| Igniter glows, no flame | Weak igniter or gas valve not opening | Replace igniter first; then evaluate gas valve |
| Delayed ignition “whoosh” | Dirty burner, weak igniter | Inspect burner, replace igniter if slow |
| Surface burners work, oven won’t | Oven ignition circuit/igniter | Focus on oven igniter and related wiring |
Why it matters
A gas oven that will not ignite is often a simple ignition failure, but delayed ignition can cause a sudden flare-up when gas finally lights. Fixing the igniter and confirming proper gas supply helps restore safe, consistent baking and broiling.
Last updated: January 2026
What are the parts of a gas oven?

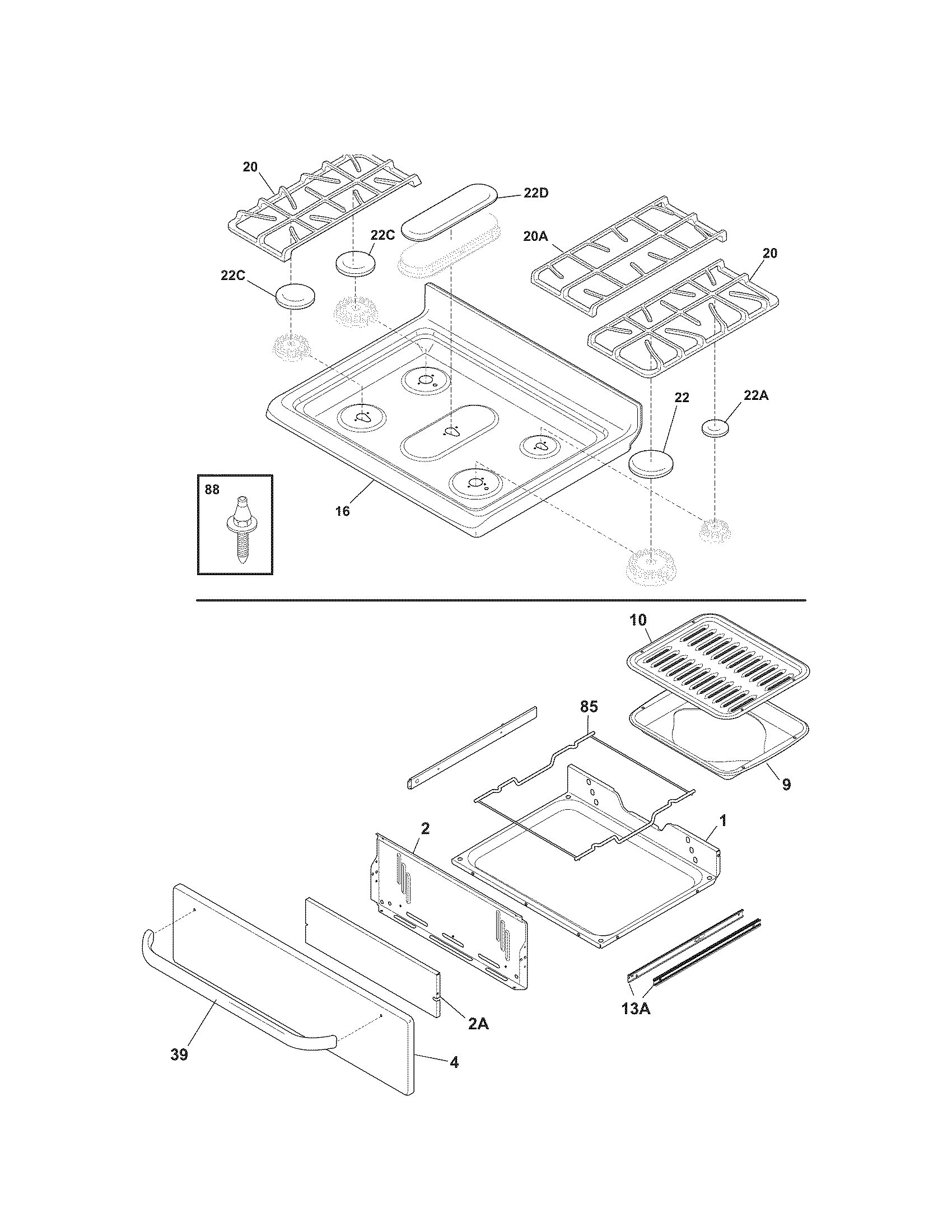

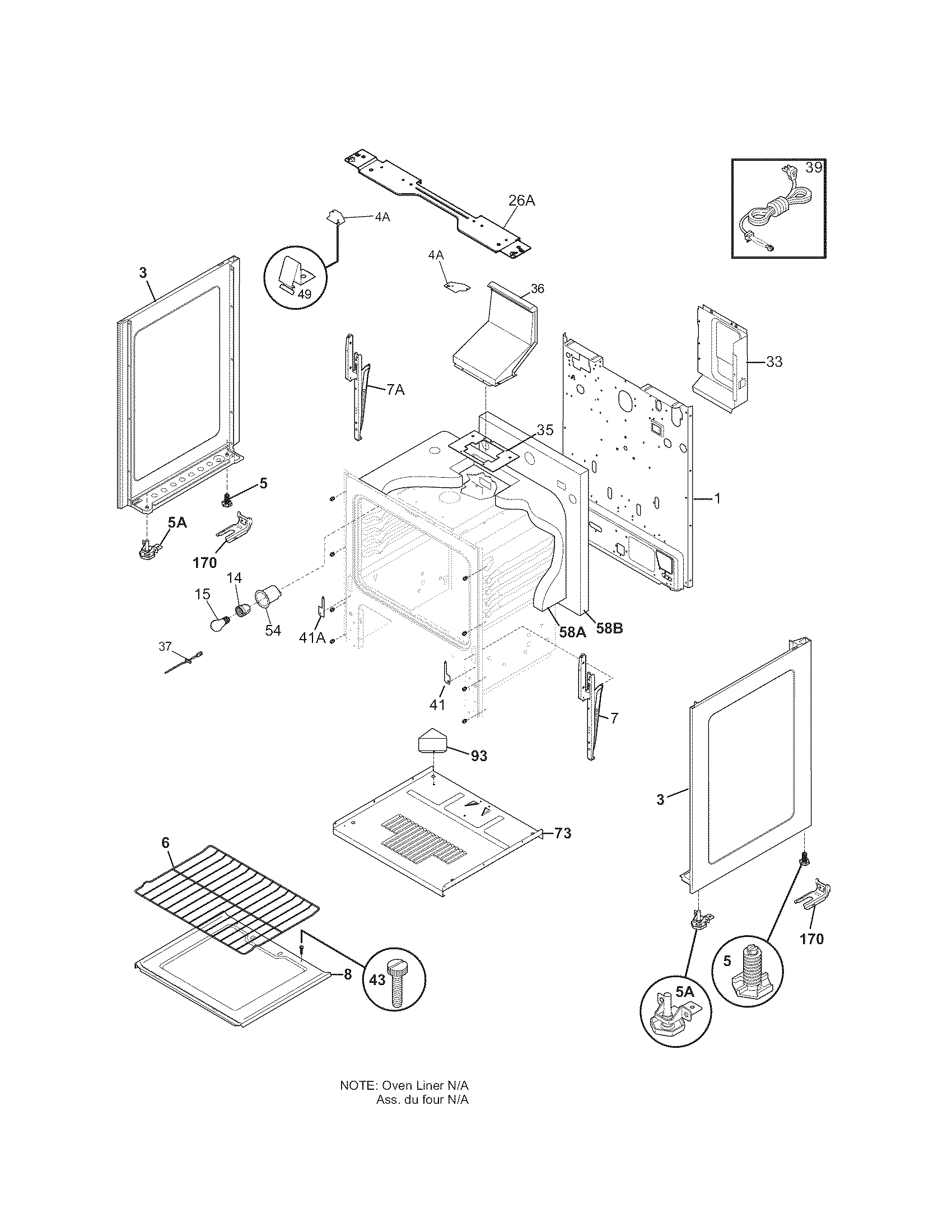

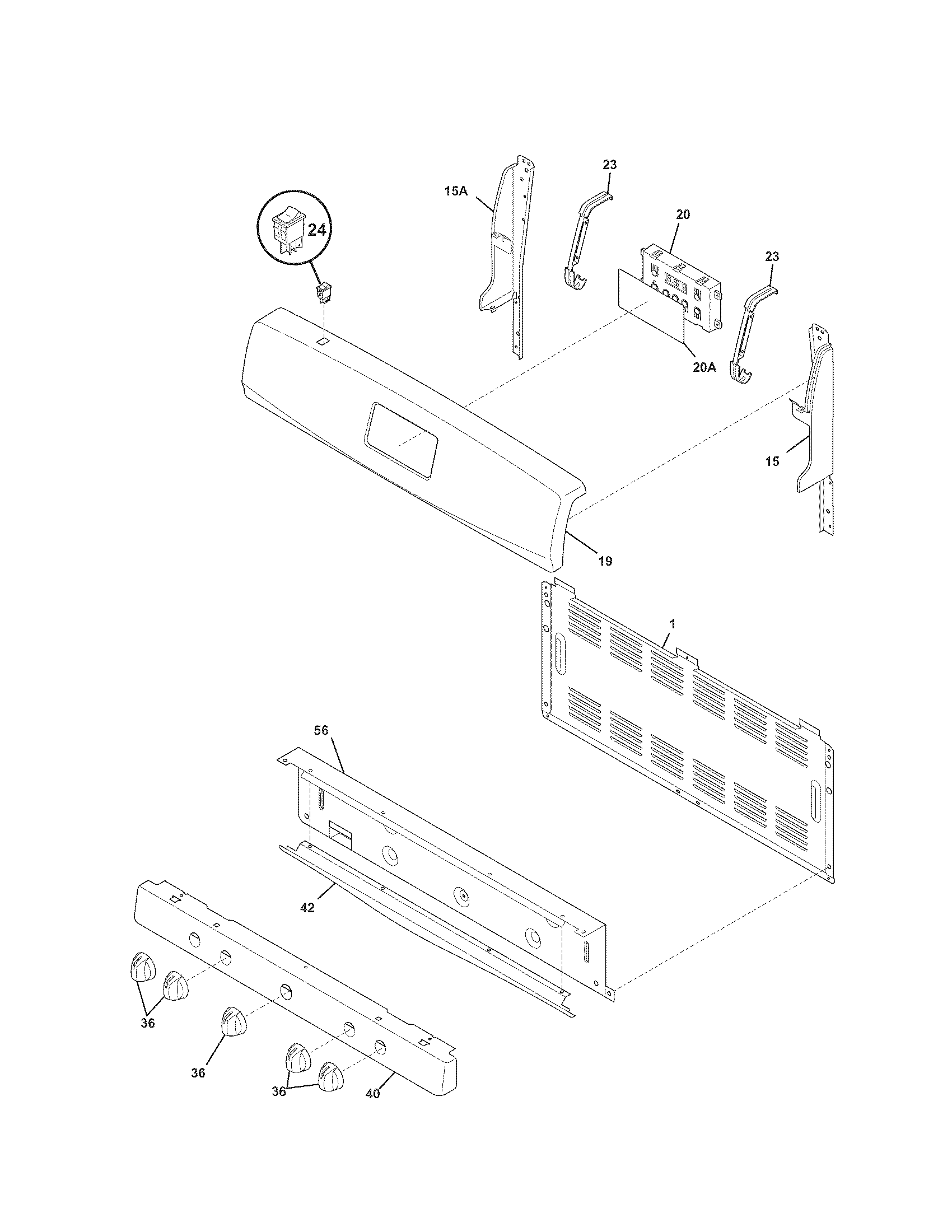

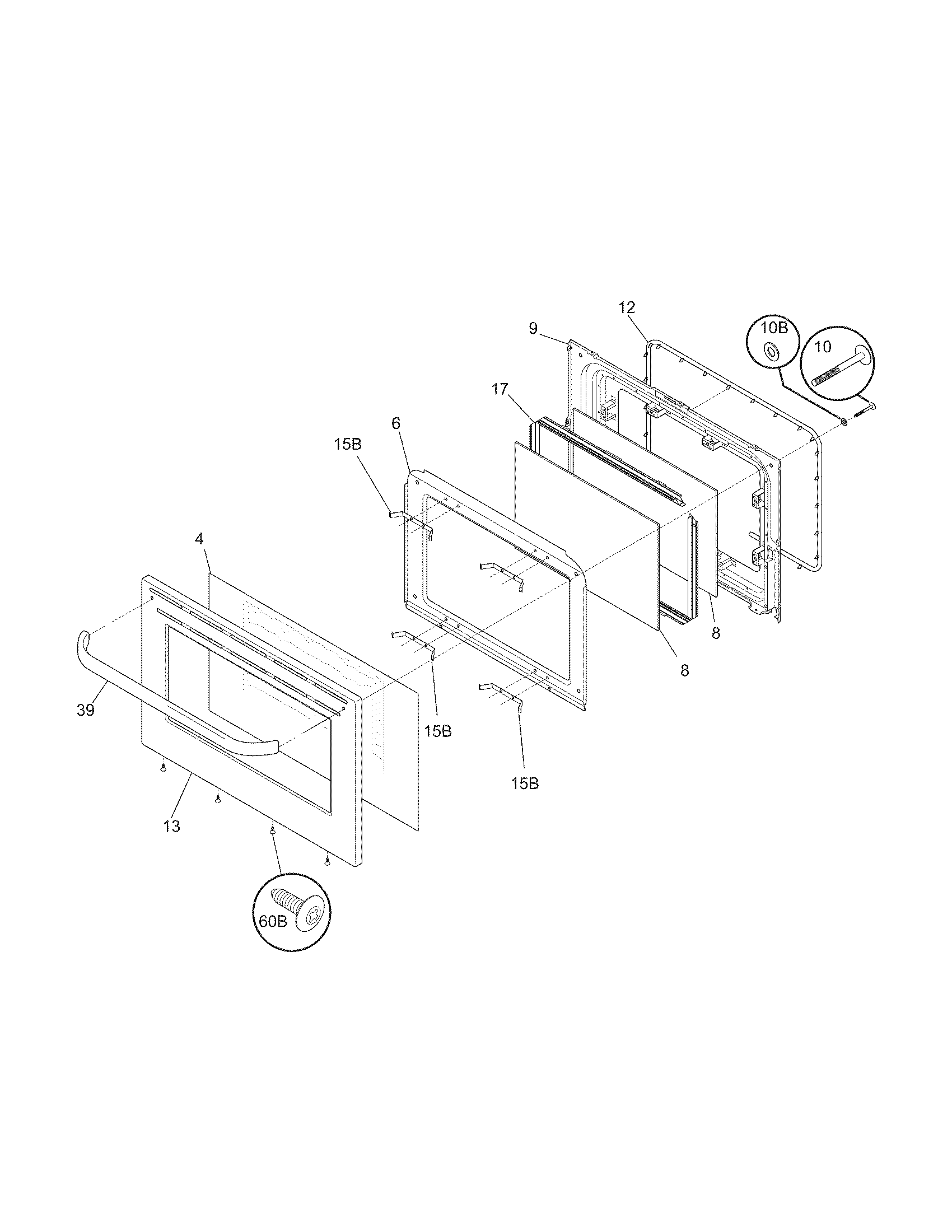

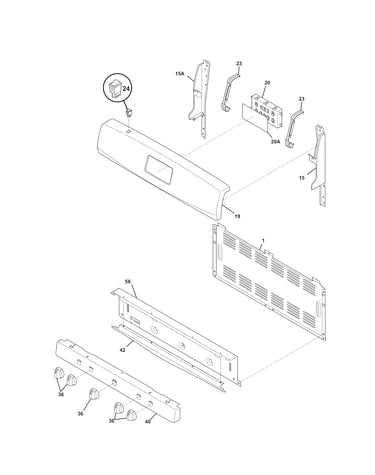

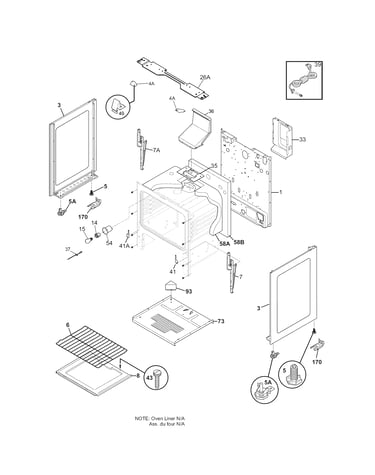

A Kenmore gas range like model 79071313708 combines gas-burning components (burners, igniters, valves, orifices) with temperature control and safety parts (sensor, regulator, controls), plus the oven cavity hardware (door, seal, racks, light). For diagrams and names, use the 79071313708 owner's manual.
Main parts you will find on a gas oven

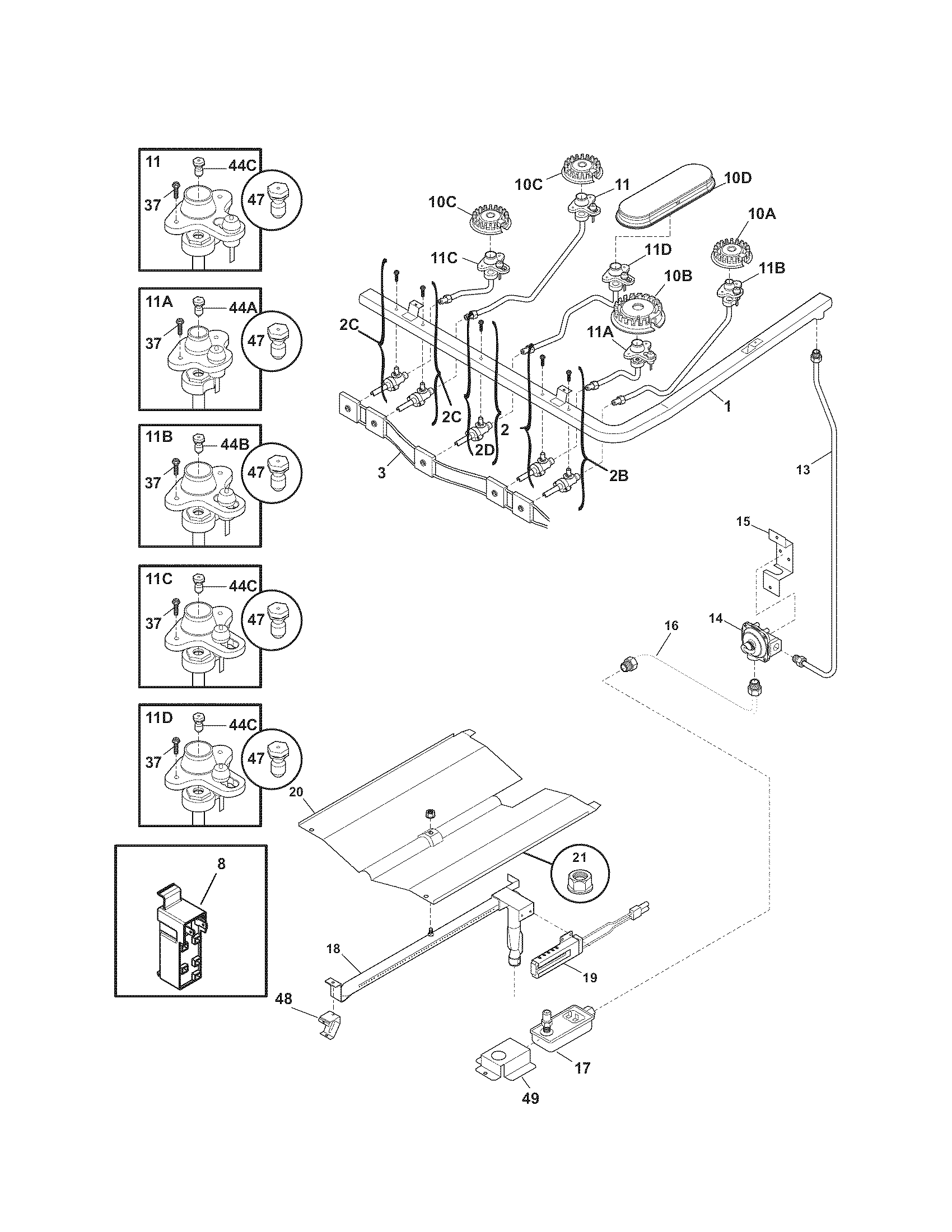

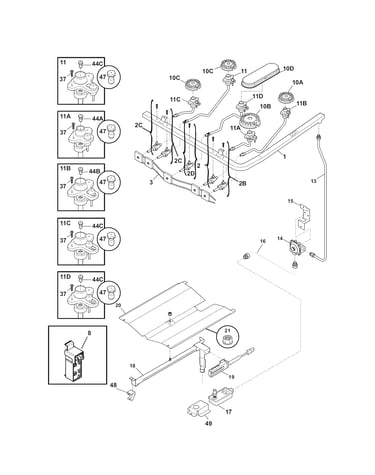

- Oven burner: the tube burner that produces the bake flame under the oven bottom
- Ignition system: igniter and related wiring that lights the gas
- Gas valve and regulator: controls and stabilizes gas flow and pressure
- Orifices and orifice holders: meter gas into surface and oven burners
- Temperature sensing and control: sensor and control board that regulate heat
- Oven cavity parts: oven bottom, baffle, racks, door, and door seal
- Oven light system: bulb and socket
Model 79071313708 examples of common replacement parts
| What it does | Part name (model-matched example) | Part ID |
|---|---|---|
| Lights the oven burner | Range Oven Burner Igniter | 5304509706 |
| Measures oven temperature | Range Oven Temperature Sensor | 316233903 |
| Provides oven light | Appliance Light Bulb, 40-watt | 316538904 |
| Seals heat in at the door | Frigidaire Range Oven Door Seal | 316239700 |
| Regulates incoming gas pressure | Range Pressure Regulator | 5304521339 |
Why it matters
Knowing the part groups helps you troubleshoot faster. For example, a weak bake flame often points to the burner, igniter, or gas valve, while uneven temperatures more often involve the sensor or control.
Helpful tip for identifying parts correctly
- Match parts by model number 79071313708, not just by brand
- Use the manual diagrams to confirm the part’s location and name
- For burner-related parts, keep burner heads and caps seated correctly for proper ignition and flame size
Last updated: January 2026
Where to find Kenmore gas range model number?
On Kenmore gas range model 79071313708, the model and serial number are printed on the serial plate located on the right side of the oven front frame, inside the storage drawer or warmer/broiler drawer compartment. Open the drawer fully to see the label.
How to find it on model 79071313708
- Turn the range off and make sure it is cool.
- Pull out and open the storage drawer (or warmer/broiler drawer, depending on your range).
- Look along the right side of the oven front frame for the serial plate.
- Write down both the model number and serial number exactly as shown.
- Use a flashlight; the plate is often small and easy to overlook.
Quick location guide
| Drawer type you open | Serial plate location | What you record |
|---|---|---|
| Storage drawer | Right side of oven front frame | Model and serial number |
| Warmer/broiler drawer | Right side of oven front frame | Model and serial number |
Why it matters
We use the exact model number and serial number to match the correct Kenmore parts and diagrams for your range, especially when similar-looking models use different burners, igniters, or controls.
For the illustration and wording used by Kenmore for this model, see the 79071313708 owner's manual.
Last updated: January 2026
