To hard reset the dryer in your Frigidaire laundry center model FEX831FS4, unplug the unit (or switch the breaker OFF) for 1 minute, then restore power and try a normal start. This clears most control glitches and restores normal operation.

Reset steps (safe and effective)

• Turn the cycle selector to OFF.
• Unplug the laundry center; if it is hardwired, switch the dryer circuit breaker OFF.
• Wait 60 seconds.
• Restore power.
• Close the dryer door fully.
• Select a timed cycle and start the dryer (many models start by turning the Start control to ON, holding 1 to 2 seconds, then releasing; see the FEX831FS4 owner's manual).

If the dryer still will not start after a reset

A reset will not fix a failed safety device or a power supply problem. Check these common causes first:

• Outlet power and a tight plug connection
• Tripped breaker or blown fuse (some electric dryers use two fuses; one can blow and the drum may still turn)
• Door not fully closed or door switch issue
• Overheating protection tripped (thermal limiter)

Symptom after reset	Most common cause	What to do next
No lights, no response	No power	Check breaker/fuses and outlet
Runs but no heat	One fuse blown, airflow restriction, or heater circuit issue	Verify fuses; check venting
Stops mid-cycle, smells hot	Restricted exhaust duct	Clean lint screen and vent path

Why it matters

Resetting restores the control to a known state, but the dryer will still shut down or refuse to start if a safety condition exists (door open, power issue, or overheating protection). Fixing the root cause prevents repeat shutdowns and protects the heater and motor.

Related help

• Use the Frigidaire laundry center -dryer error codes guide if your console shows an error.

Last updated: February 2026

Frigidaire is a solid, mainstream brand overall, and many customers get years of dependable use from Frigidaire washers. For the Frigidaire FEX831FS4 stacked laundry center specifically, long life comes down to correct loading, proper detergent use, and routine care as outlined in the FEX831FS4 owner's manual.

What “good” means for a washer

A “good” washer is one that cleans well, runs reliably, and is economical to maintain. For a stacked laundry center like the FEX831FS4, the most important factors are load balance and not overfilling.

Habits that improve reliability

• Do not overload; keep the dry load below the top of the agitator vanes.
• Load items evenly; mix large and small items.
• When washing one heavy item, add 1 to 2 towels to balance the load.
• Follow fabric care labels and detergent directions.
• Never mix chlorine bleach with ammonia or acids (such as vinegar).

Quick brand comparison (what to expect)

What you care about	What you typically get with Frigidaire	What helps most
Cleaning performance	Strong everyday cleaning	Correct cycle and water temp selection
Reliability	Good with proper use and maintenance	Avoid overloading and keep loads balanced
Repairability	Common parts and straightforward service	Use model-specific parts for FEX831FS4

Why it matters

Most washer complaints that look like “brand problems” are actually use and care issues (overloading, unbalanced loads, or incorrect chemical use). Following the operating and safety guidance reduces wear on the drive system, tub components, and lid lock.

When to look at parts or service

If your washer starts slipping, squealing, or struggling to spin, the drive system is a common place to check. On this model, a worn belt can contribute to poor agitation or spin; the washer drive belt 134511600 is one of the model-matched parts we list for the FEX831FS4.

Last updated: February 2026

To get your Frigidaire FEX831FS4 washer to drain, we first stop the cycle, then run a Spin setting so the pump can remove water. If it drains slowly or not at all, the most common cause is a kinked or clogged drain hose.

Quick steps to force a drain

• Push in the cycle selector knob to stop the washer.
• Wait 2 to 3 minutes if the lid is locked after spinning; do not force the lid.
• Set the cycle selector knob to a Spin setting.
• Close the lid, then pull out the knob to start the spin and drain.
• If the tub still will not drain, unplug the laundry center before checking the drain path.

For control locations and cycle details specific to your unit, follow the FEX831FS4 owner's manual.

What to check if it will not drain (most common causes)

• Drain hose kinked or crushed behind the unit.
• Drain hose clogged with lint, coins, or debris.
• Standpipe height too low; most installations need a standpipe at least 33 inches high to prevent siphoning.
• House drain partially blocked; slow drains can back up and stop proper draining.
• Oversudsing from too much detergent; excess suds can slow draining.

Drain setup checklist

Item to check	What “good” looks like	What happens if it is not right
Drain hose routing	Smooth curve, not pinched	Slow drain or no drain
Standpipe height	33 in. minimum	Siphoning, odd fill and drain behavior
Detergent amount	Low-sudsing, correct dose	Suds, slow drain, poor rinse

Part to consider if the hose is damaged

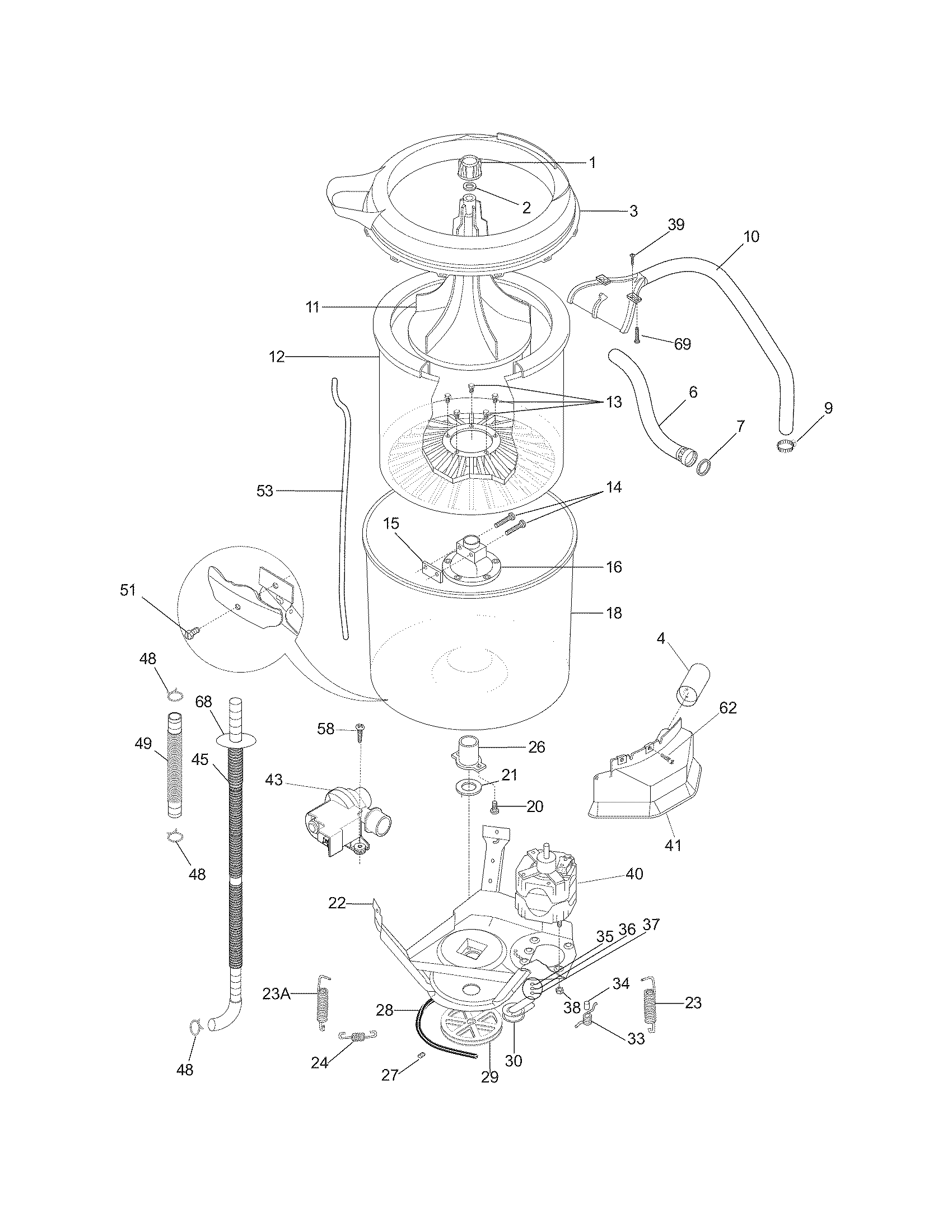

If the drain hose is split, brittle, or leaking, replacement is the right fix. For this model, we use the washer drain hose 134592700.

Why it matters

A washer that cannot drain will not complete the cycle, can leave clothes soaking wet, and can trigger lid-lock delays after spinning. Correct drain hose routing and a proper standpipe height prevent repeat problems.

Last updated: February 2026

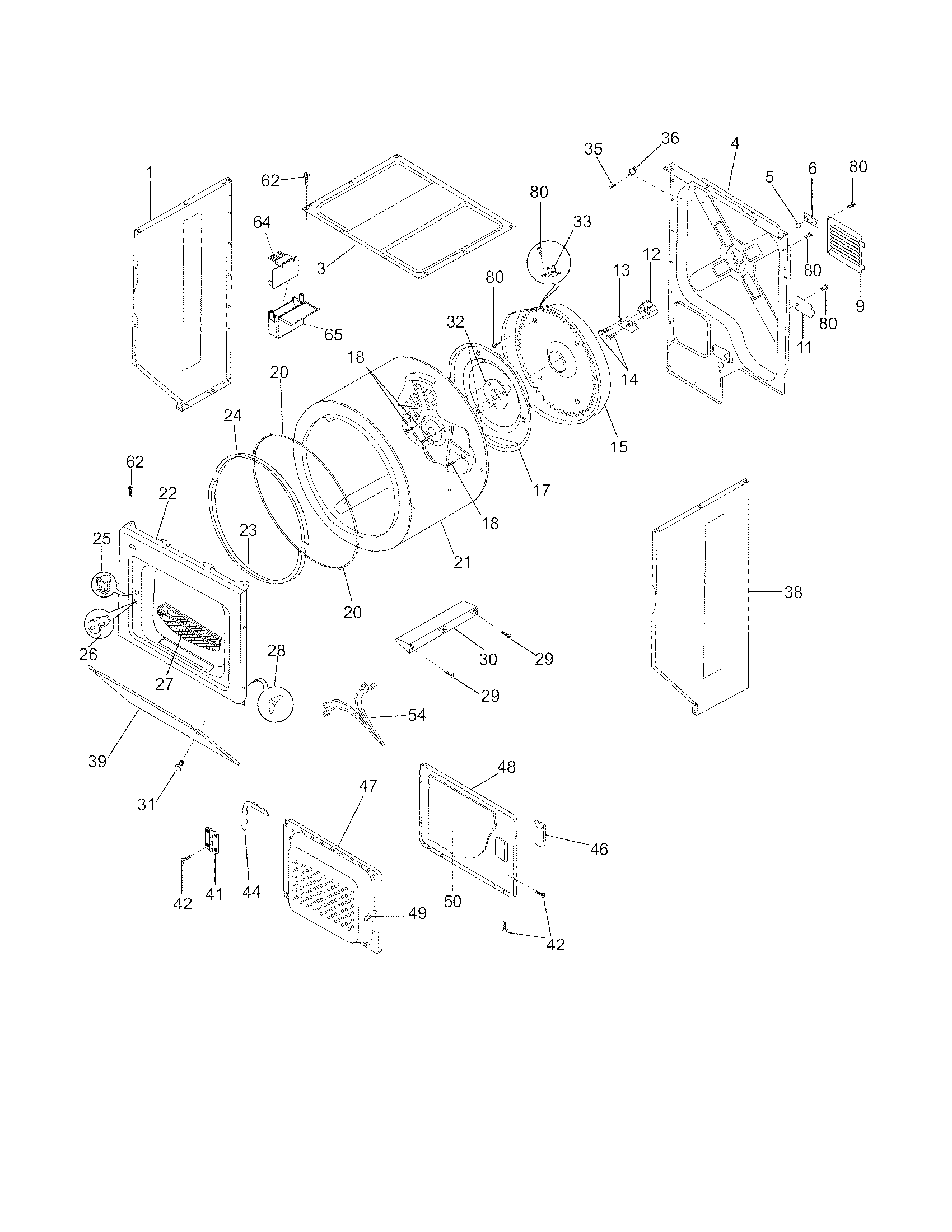

For the Frigidaire FEX831FS4 stacked laundry center, the total cost to replace the dryer heating element depends on the exact heater assembly your unit uses and whether you do the repair yourself or pay for labor. Use the FEX831FS4 owner's manual to confirm your dryer type and basic no-heat checks before buying parts.

Typical cost ranges (parts and labor)

These are the standard price ranges we see for electric dryer heater repairs:

• Heating element or heater assembly: $40 to $200
• Service call or diagnostic fee: $75 to $150
• Labor (about 1 to 2 hours): $120 to $300
• Typical total with a technician: $200 to $600

Confirm it is the heater before you replace it

The FEX831FS4 manual notes several common causes of “runs but won’t heat” that are not a bad element.

• Check the home power supply; many electric dryers can tumble with one blown fuse or a tripped breaker
• Clean the lint screen and confirm strong airflow at the outside vent
• Inspect the exhaust duct for crushing, clogs, or too many bends
• If the dryer overheats or stops heating, a safety device may have opened

Parts that commonly affect “no heat”

If a safety device opened, replacing only the heater can lead to repeat failures until airflow and overheating causes are corrected.

Symptom	Common cause	Example part on this model
Runs but won’t heat	Thermal safety device opened	Dryer thermal limiter 134120900
Long dry times, cabinet hot	Restricted venting	Vent cleaning or duct repair
Heat cuts in and out	Temperature control issue	High-limit thermostat (varies by configuration)

Why it matters

A dryer heater often fails because of restricted airflow. Fixing venting and replacing any failed safety components helps your Frigidaire laundry center dry faster, run cooler, and avoid repeat breakdowns.
