Hoover
Canister Vacuum

Model #S3567 Hoover vacuum cleaner

Here are the diagrams and repair parts for Hoover S3567 vacuum cleaner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 105 parts

Vacuum Beater Bar Bearing

#2

Agitator 48414049 Diagram

Vacuum beater bar bearing

Part #43267002

The manufacturer no longer makes this part, and there's no substitute part

Field Coil

#19

Motor Diagram

Field coil

Part #45311048

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/Off Switch Pedal (Gloss Black)

#49

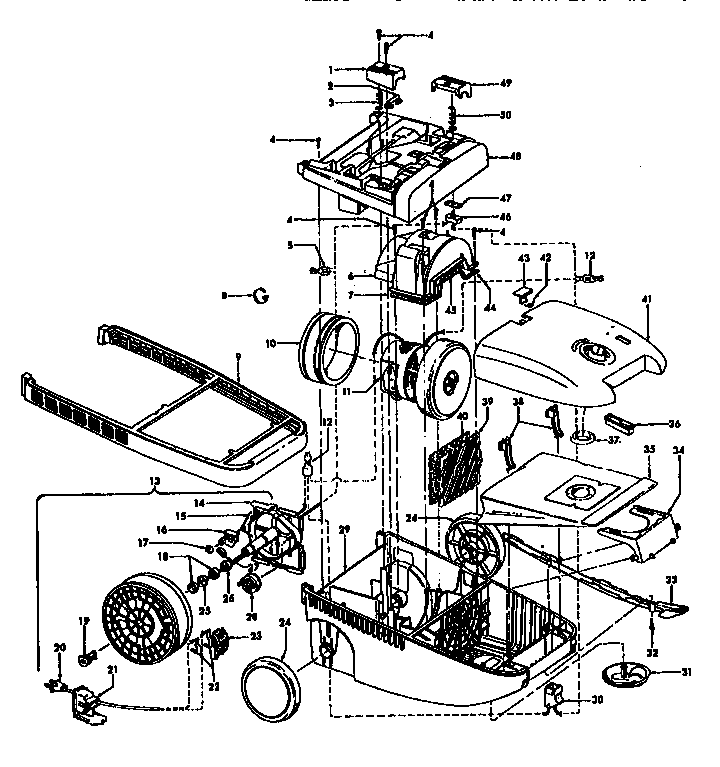

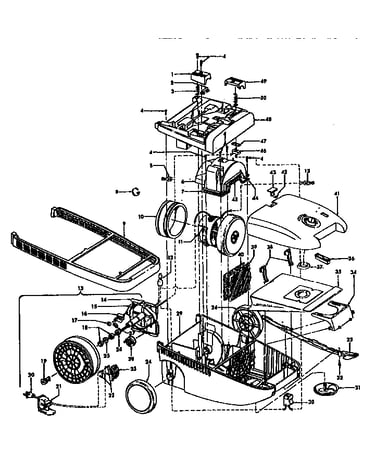

Unit parts Diagram

Vacuum on/off switch pedal (gloss black)

Part #38422184

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb

#27

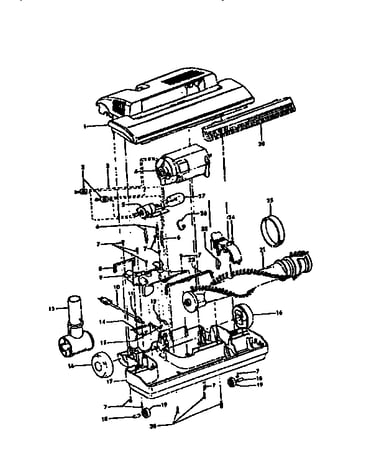

Nozzle Diagram

Vacuum light bulb

Part #27317307

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag Level Indicator

#36

Unit parts Diagram

Vacuum bag level indicator

Part #51151010

The manufacturer no longer makes this part, and there's no substitute part

Insulated Terminal

#2

Nozzle Diagram

Insulated terminal

Part #18972

The manufacturer no longer makes this part, and there's no substitute part

Lid Hinge Bag

#38

Unit parts Diagram

Lid hinge bag

Part #36151027

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Left

#7

Agitator 48414049 Diagram

Vacuum beater bar housing end cap, left

Part #36423017

The manufacturer no longer makes this part, and there's no substitute part

Screw

#10

Motor Diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

Wire Tie

#8

Unit parts Diagram

Wire tie

Part #27479307

The manufacturer no longer makes this part, and there's no substitute part
