Model #DPXH46GA0WW Official GE gas dryer

Here are the diagrams and repair parts for GE DPXH46GA0WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

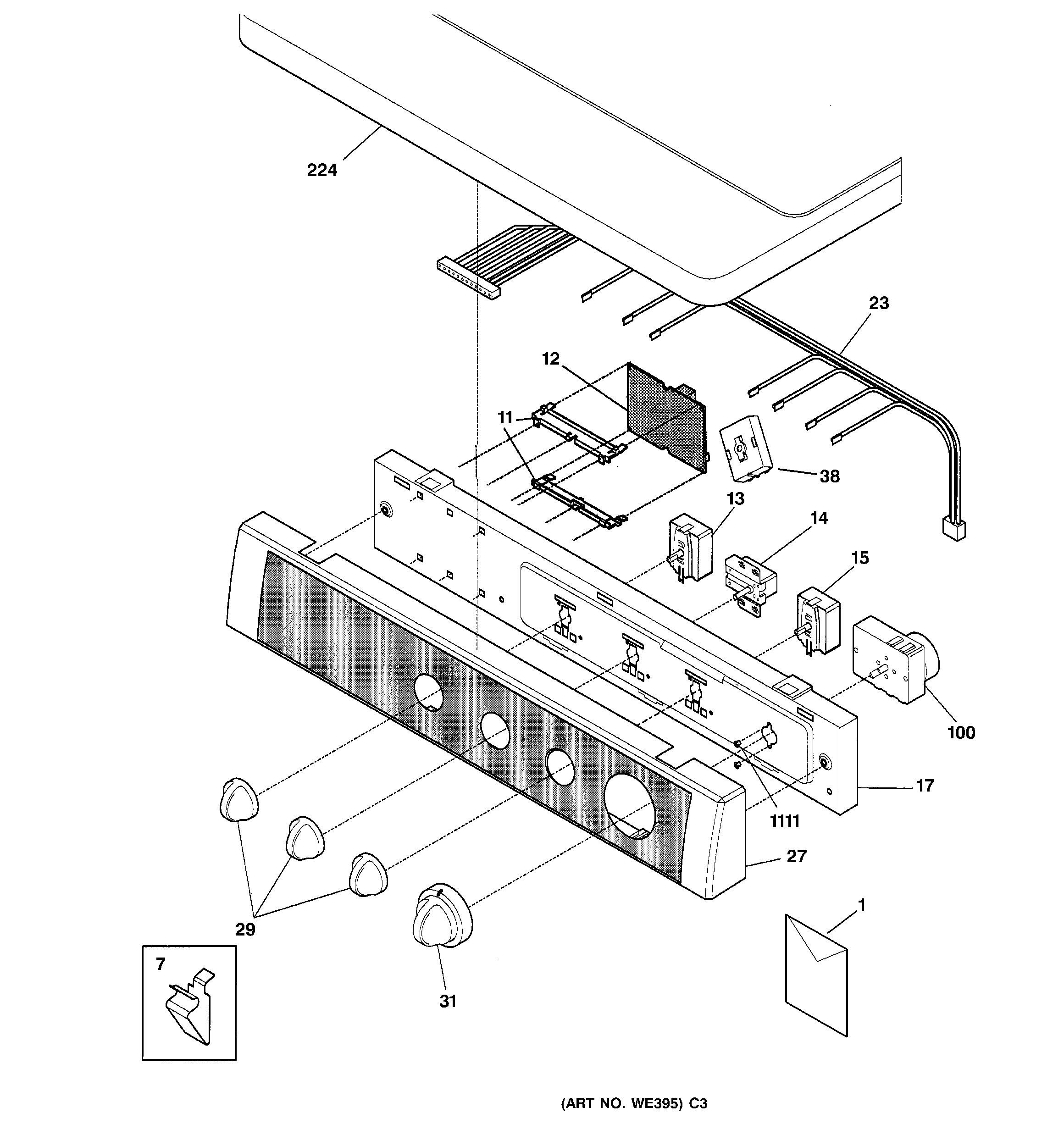

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 109 parts

Dryer Drum Felt Seal, Lower#1221

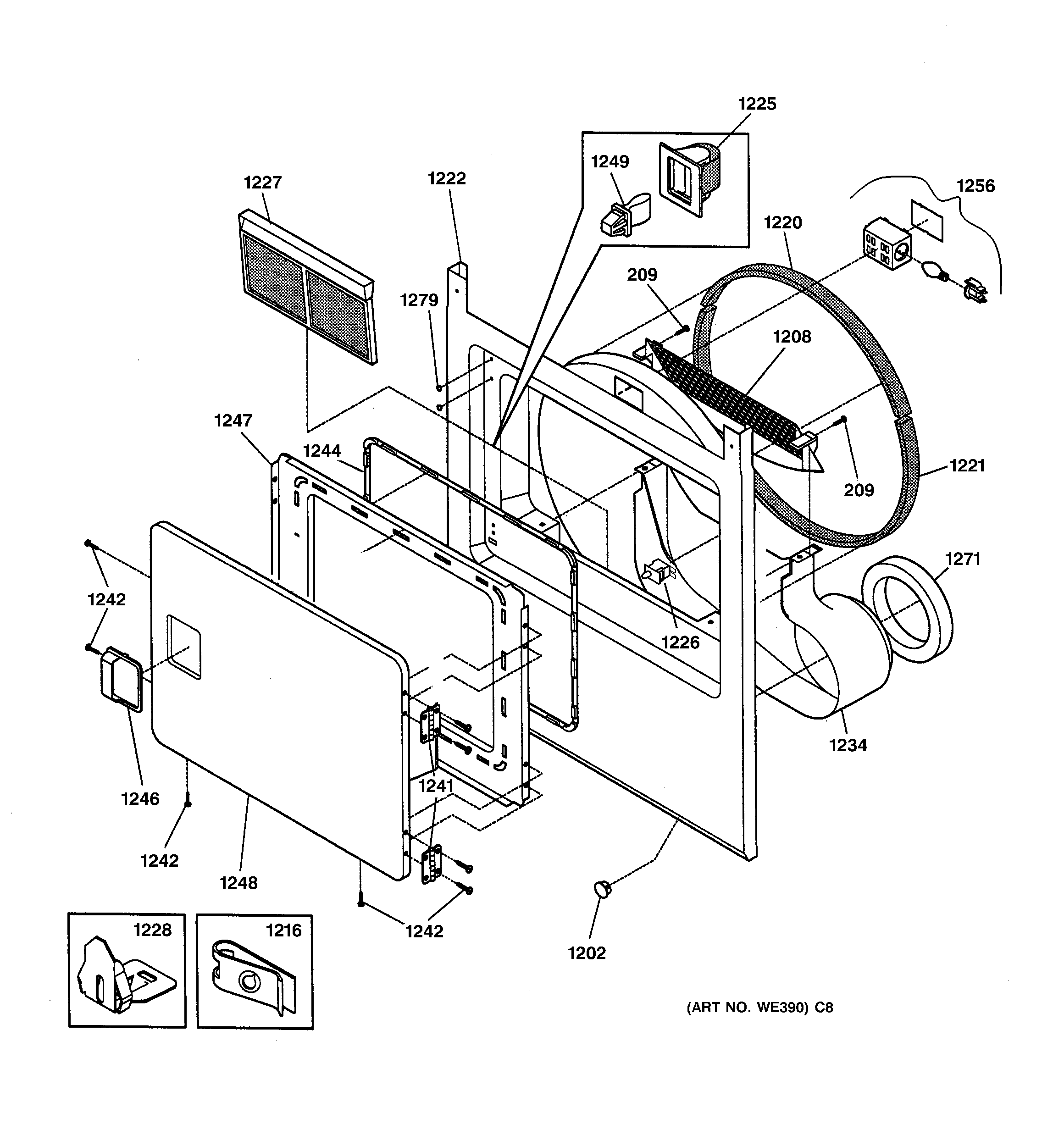

Front panel & door Diagram

Lower felt

Part #WE09X0105
Replaced by #WE9X105
?
Manufacturer substitution
This part replaces WE09X0105. Substitute parts can look different from the original.
This item is not returnable
In Stock
$27.69 |
15% OFF
Phone Price: $32.69
Dryer Drum Ball Hitch#1232

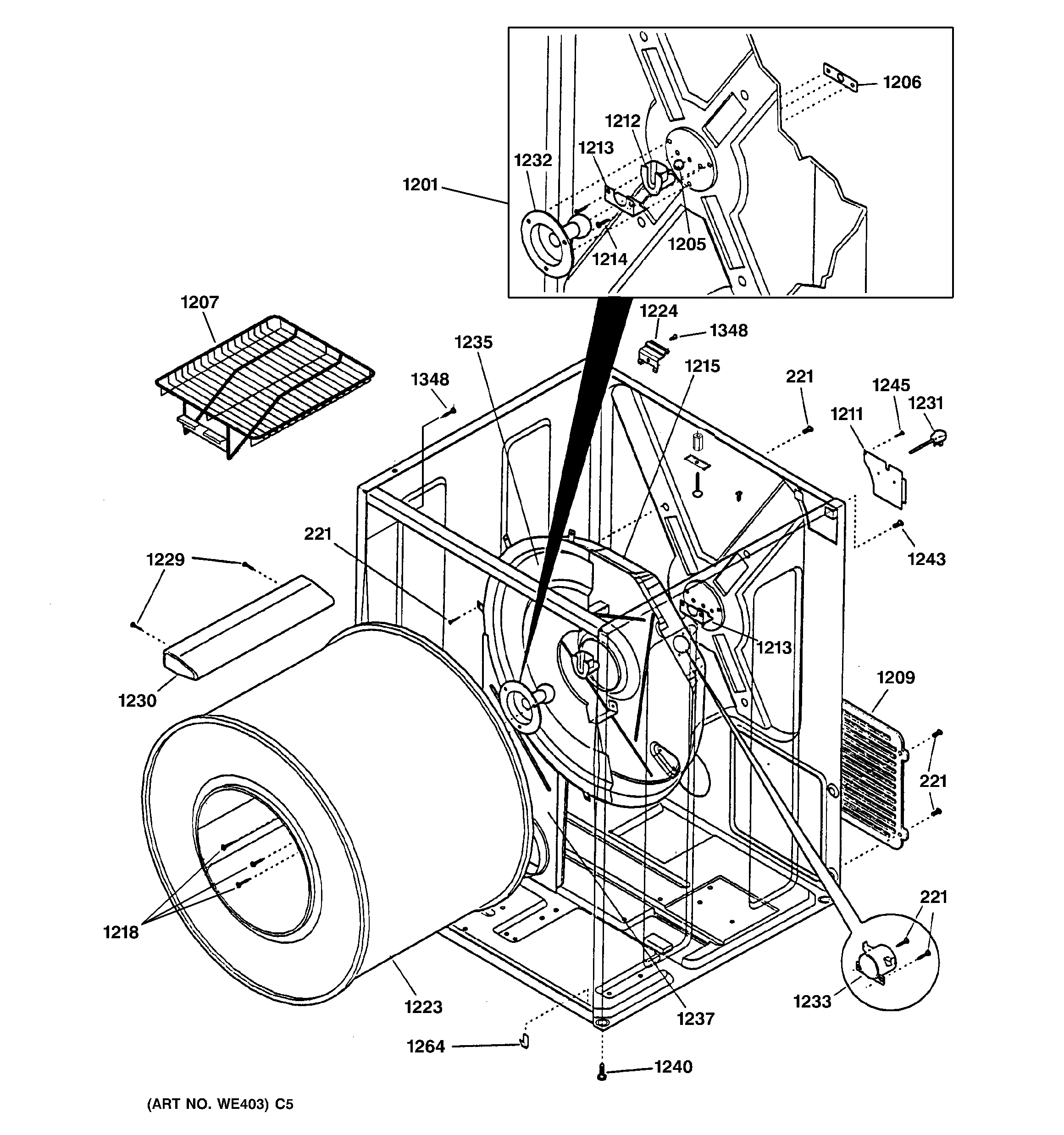

Cabinet & drum Diagram

Dryer drum ball hitch

Part #WE13X10011
In Stock
$85.79 |
6% OFF
Phone Price: $90.79
Dryer Exhaust Duct Seal#1271

Front panel & door Diagram

Air duct seal

Part #WE09X10002
Replaced by #WE09X10004
?
Manufacturer substitution
This part replaces WE09X10002. Substitute parts can look different from the original.
In Stock
$58.19 |
8% OFF
Phone Price: $63.19
Dryer Burner Igniter#1374

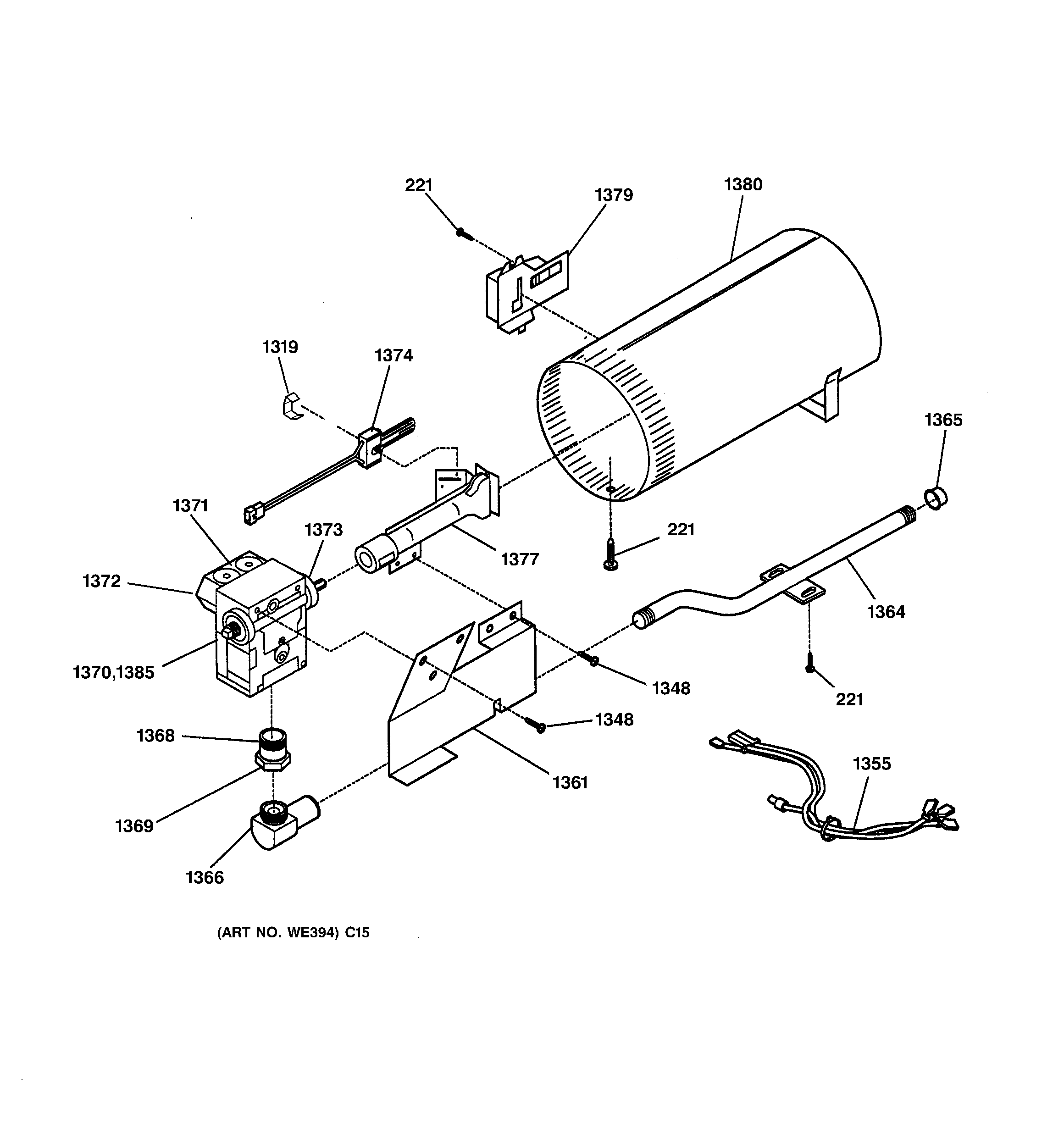

Burner Diagram

Igniter

Part #WE04X0750
Replaced by #WE4X750
?
Manufacturer substitution
This part replaces WE04X0750. Substitute parts can look different from the original.
This item is not returnable
In Stock
$25.79 |
16% OFF
Phone Price: $30.79
Plug Wh#1279

Front panel & door Diagram

Plug wh

Part #WE01X10011
In Stock
$16.89 |
11% OFF
Phone Price: $18.89
Dryer Blower Wheel#1310

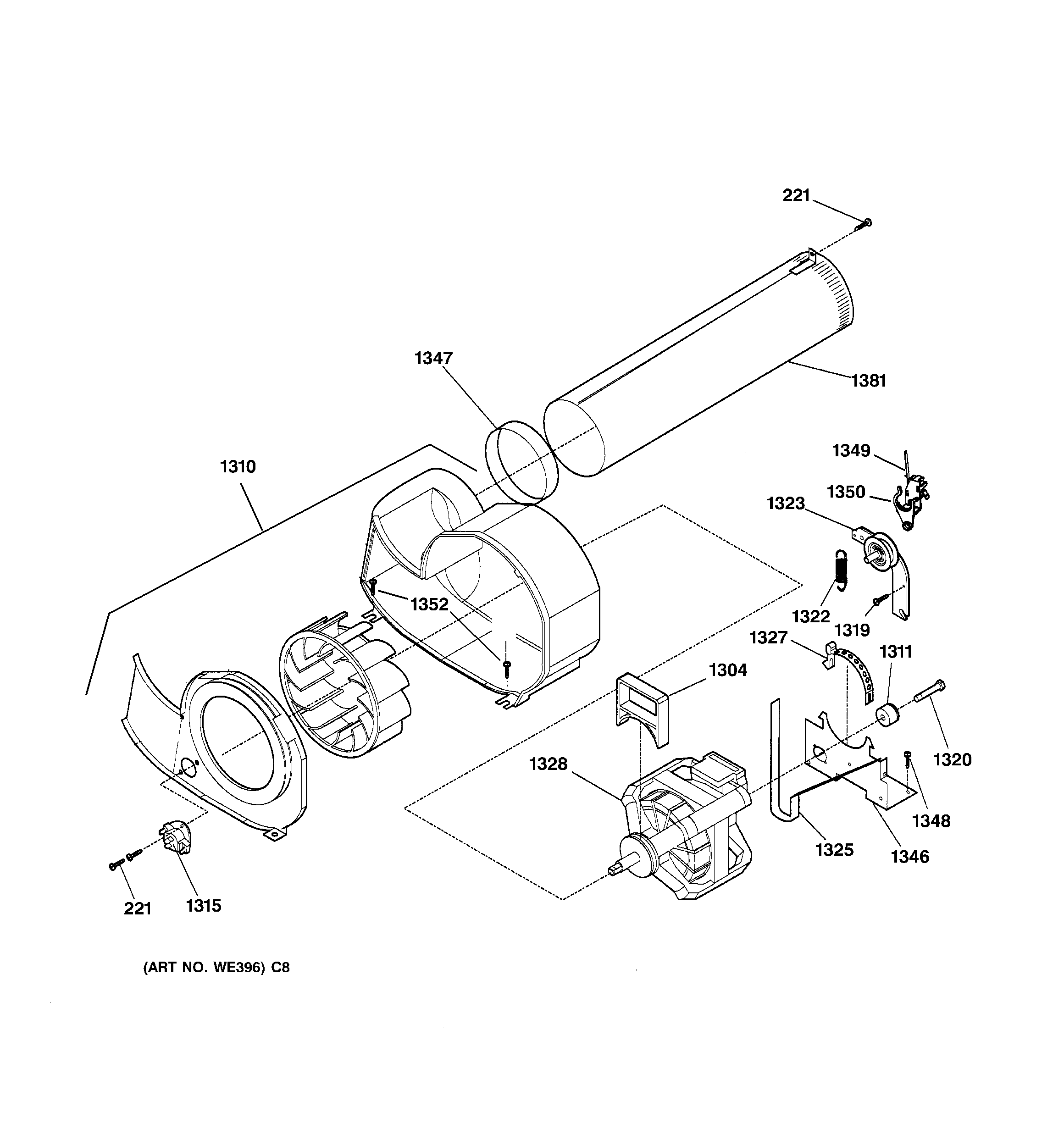

Motor Diagram

Dryer blower wheel

Part #WE14X10025
In Stock
$151.40 |
6% OFF
Phone Price: $161.40
Screw#1245

Cabinet & drum Diagram

Screw

Part #WE02X10011
In Stock
$14.62
Dryer Drive Motor#1328

Motor Diagram

Dryer drive motor

Part #WE17X10001
In Stock
$502.22
Lamp Assembly#1256

Front panel & door Diagram

Lamp assembly

Part #WE04X10058
In Stock
$55.55
Dryer Rear Bearing Kit#1201

Cabinet & drum Diagram

Dryer rear bearing kit

Part #WE25X10001
In Stock
$87.26 |
5% OFF
Phone Price: $92.26
