Whirlpool ET1CHMXKB03 refrigerator Parts

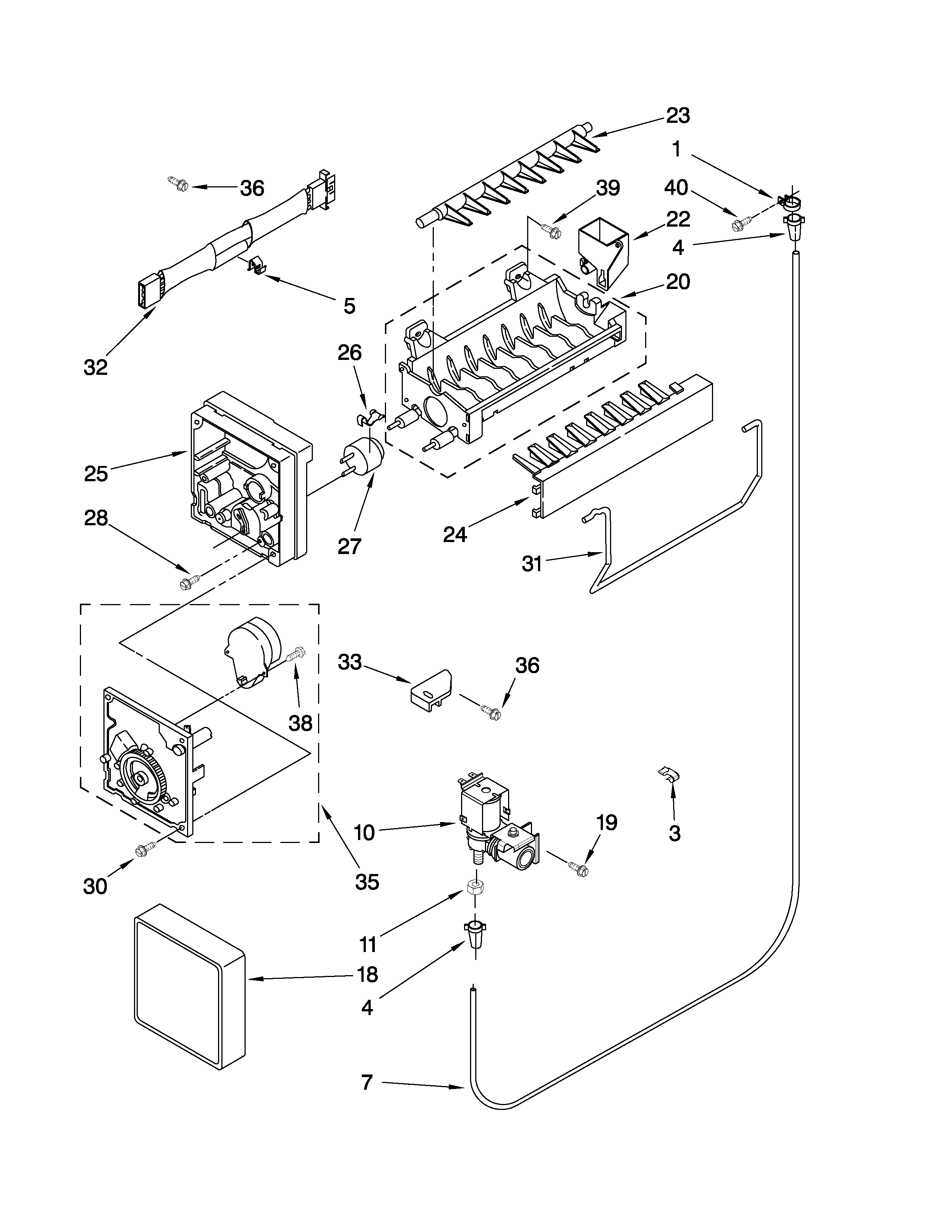

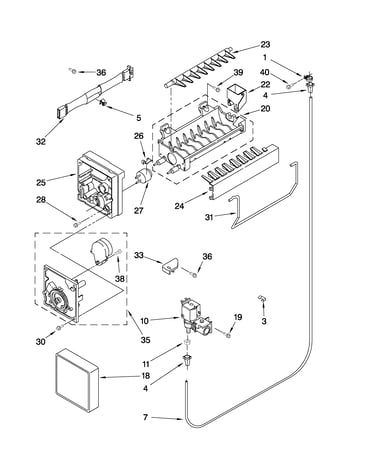

For the Whirlpool ET1CHMXKB03 top-mount refrigerator, mount the ice maker box where it stays level, is easy to reach, and does not interfere with door swing or airflow. If your setup includes an ice maker water line, leave extra clearance behind the refrigerator for the tubing connection (and avoid kinks).

Best mounting location guidelines

We recommend choosing a spot that meets these basics:

• Level and stable so the ice maker and bin sit squarely
• Clear of moving parts (door hinges, shelves, and the wire shutoff arm)
• Good access for turning the ice maker on and off and removing the ice bin
• Room for the water line at the back if the unit is plumbed for ice
• Not blocking ventilation around the cabinet

For model-specific placement notes and any included mounting templates or bracket details, use the ET1CHMXKB03 owner's manual.

Water line clearance and routing (if your ice maker is connected)

If your ice maker box ties into a household water supply, the water line routing matters as much as the mounting spot.

• Leave extra space behind the refrigerator for the water line connection
• Use copper tubing and secure it with the rear tube clamp so it does not get pinched when you push the refrigerator back
• Keep the line straight and unkinked; kinks reduce water flow and ice production
• Confirm water pressure is in the typical operating range of 30 to 120 psi

Quick check table

What you are checking	What “good” looks like	What happens if it is not
Box position	Level, accessible	Ice bin fit issues, harder service
Door clearance	Door swings freely	Door won’t close, warm air leaks
Water line routing	No kinks, protected	Low ice output, leaks

Why it matters

A properly mounted ice maker box helps the ice maker shutoff system work normally, keeps the door sealing correctly, and prevents water line damage that can cause leaks or low ice production.

If you are replacing the ice maker itself, the correct replacement for this model is the ice maker assembly - refrigerator ice maker by Whirlpool 4317943. You can also order parts for ET1CHMXKB03 from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

A top-mount refrigerator like the Whirlpool ET1CHMXKB03 is better when you want lower cost, strong energy efficiency, and easy access to the freezer; a bottom-mount is better when you want fresh-food items at eye level and wider refrigerator drawers. “Better” depends on how you use the fridge day to day.

Top-mount vs bottom-mount: what changes most

• Freezer access: Top-mount puts frozen foods at chest/eye level; bottom-mount requires bending less for fresh food.
• Fresh-food access: Bottom-mount keeps the refrigerator section higher, which many people prefer for daily items.
• Organization: Bottom-mount designs often have larger, easier-to-sort refrigerator drawers.
• Energy use: Many top-mount models are typically efficient because of simpler layouts and fewer features.
• Upfront cost and repairs: Top-mount models are often less expensive and simpler to service.

Quick comparison

Feature	Top-mount (like ET1CHMXKB03)	Bottom-mount
Most-used section height	Refrigerator lower	Refrigerator higher
Best for	Frozen-food users, budget, simplicity	Fresh-food users, convenience
Typical layout	Simple shelves and bins	More drawer-focused storage
Common “comfort” tradeoff	More bending for fridge items	More bending for freezer items

How to decide for your kitchen and habits

Use these practical checks before choosing a style:

• If you cook often with fresh ingredients, prioritize refrigerator-at-eye-level (bottom-mount).
• If you use the freezer daily, prioritize freezer-at-eye-level (top-mount).
• If you want fewer features to maintain, top-mount is usually the simpler choice.

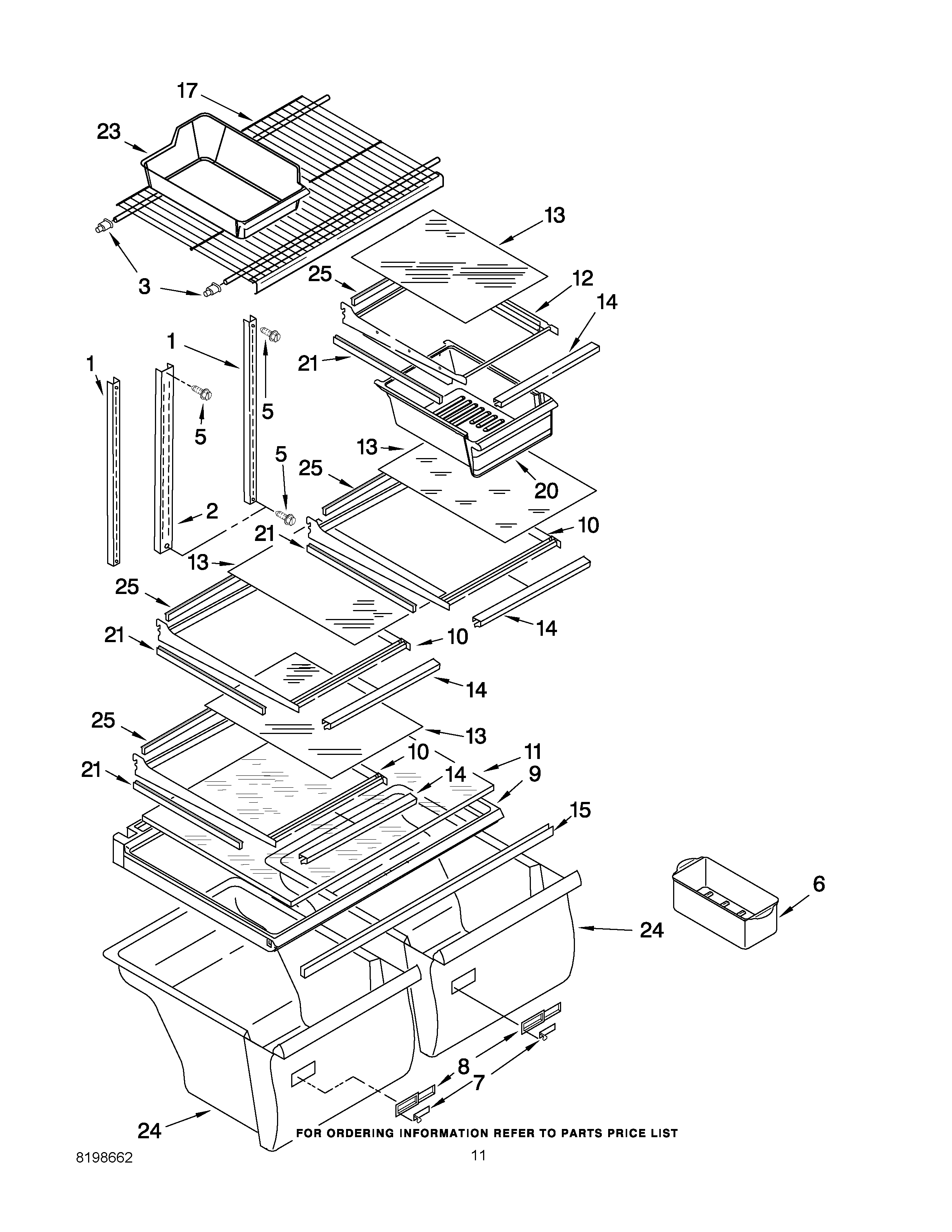

• If you need better produce organization, look for models with larger crispers (your ET1CHMXKB03 uses a crisper drawer design; see refrigerator crisper drawer W10854037 for an example replacement part).
• If you are tight on installation space, confirm clearances; our ET1CHMXKB03 guidance calls for about 1/2 inch on the sides and top, and about 2 inches by a fixed wall for door swing (details in the owner's manual).

Why it matters

Choosing the right mount style reduces daily bending and door-open time, which helps food stay at safe temperatures and can reduce wear on components like door gaskets and fans.

You can also shop replacement parts for the Whirlpool ET1CHMXKB03 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Top-mount refrigerators like the Whirlpool ET1CHMXKB03 are reliable and space-efficient, but the main disadvantages are less convenient fresh-food access (you bend more), fewer organization features than many bottom-freezer designs, and fewer built-in dispenser options. For model-specific setup details, use the ET1CHMXKB03 owner's manual.

Common disadvantages (what most owners notice)

• Fresh-food section is lower: you reach down more often for produce, drinks, and leftovers.
• Freezer is at eye level: great for frozen items, but it can make daily fridge use less ergonomic.
• Typically fewer premium storage features: fewer full-width pantry drawers, adjustable bins, and divider systems compared with many bottom-mount models.
• Less common to have external water/ice dispensing: many top-mounts are built as simpler, non-dispenser units.
• Door swing and clearance can be limiting: you may need extra side clearance to fully open doors, especially next to a wall.

What to check on your ET1CHMXKB03 before deciding

Use these quick checks to see whether the typical drawbacks will matter in your kitchen:

Concern	What to look for	Practical workaround
Bending for fresh food	How often you access produce and drinks	Store daily items on upper shelves; use bins for grab-and-go
Door clearance	Space beside the hinge side	Allow clearance so doors swing fully; adjust placement/leveling
Ice needs	Whether you want automatic ice	Add/repair an ice maker if your unit is equipped
Organization	Shelf and drawer layout	Replace worn drawers and keep shelves adjusted

Why it matters

Most “disadvantages” come down to ergonomics and kitchen layout. If your refrigerator sits tight to a wall or you access fresh food far more than frozen food, a top-mount design can feel less convenient day to day.

Helpful parts and resources

• For ice production issues or adding automatic ice (when your refrigerator is equipped), we use the ice maker assembly - refrigerator ice maker by Whirlpool 4317943.
• For ordering the right replacement parts by model number, we use the parts list for ET1CHMXKB03 on this page, or search by model on Sears PartsDirect.

Last updated: February 2026

The most common Whirlpool refrigerator problem is cooling performance (fresh food too warm, freezer too warm, or temperature swings). On Whirlpool model ET1CHMXKB03, the most frequent root causes are airflow restrictions (dirty condenser coils or blocked vents), door seal leaks, and defrost-system issues that let frost build up and choke airflow; see the owner's manual for control and cooling checks.

Most common symptoms and what they usually mean

• Fridge warm, freezer OK: restricted airflow into the refrigerator section, door left ajar, or a weak evaporator fan.
• Freezer warm, fridge warm: dirty condenser coils, condenser fan problem, or sealed-system/compressor issue.
• Frost on freezer back wall: defrost problem (timer, heater circuit, defrost thermostat).
• Water puddles inside or under unit: clogged/iced defrost drain or door seal leak.
• Ice maker not making ice or bad ice: water supply issue, inlet valve issue, or ice maker failure.

Quick checks we recommend first (ET1CHMXKB03)

1. Confirm controls are on and give a new setup 24 hours to cool fully (the manual notes that setting “coldest” will not cool faster).
2. Check door closing and gasket contact all the way around.
3. Clean condenser coils and make sure the unit has airflow around it.
4. Look for freezer frost buildup that blocks vents and the evaporator fan area.
5. If you hear buzzing when the water valve opens, that can be normal; persistent no-ice points to a water/ice component.

Common parts involved (when symptoms match)

Symptom	Likely system	Example part for ET1CHMXKB03
Frost buildup, warm temps	Defrost system	Refrigerator defrost timer W10822278, defrost bi-metal WP4387503
No ice	Ice maker / water fill	Ice maker assembly 4317943, refrigerator inlet valve WP2315576
Warm temps, noisy airflow	Fan motors	Evaporator motor WPW10189703, refrigerator motor W10124096

Why it matters

Cooling issues usually start small (long run times, mild warming) and then turn into food-spoilage problems. Catching airflow, defrost, or door-seal issues early helps the compressor run less and keeps temperatures stable.

If you need to order a replacement part for ET1CHMXKB03, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026
