Model # EFDE210TIW01 Official Electrolux dryer

Here are the diagrams and repair parts for Official Electrolux EFDE210TIW01 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

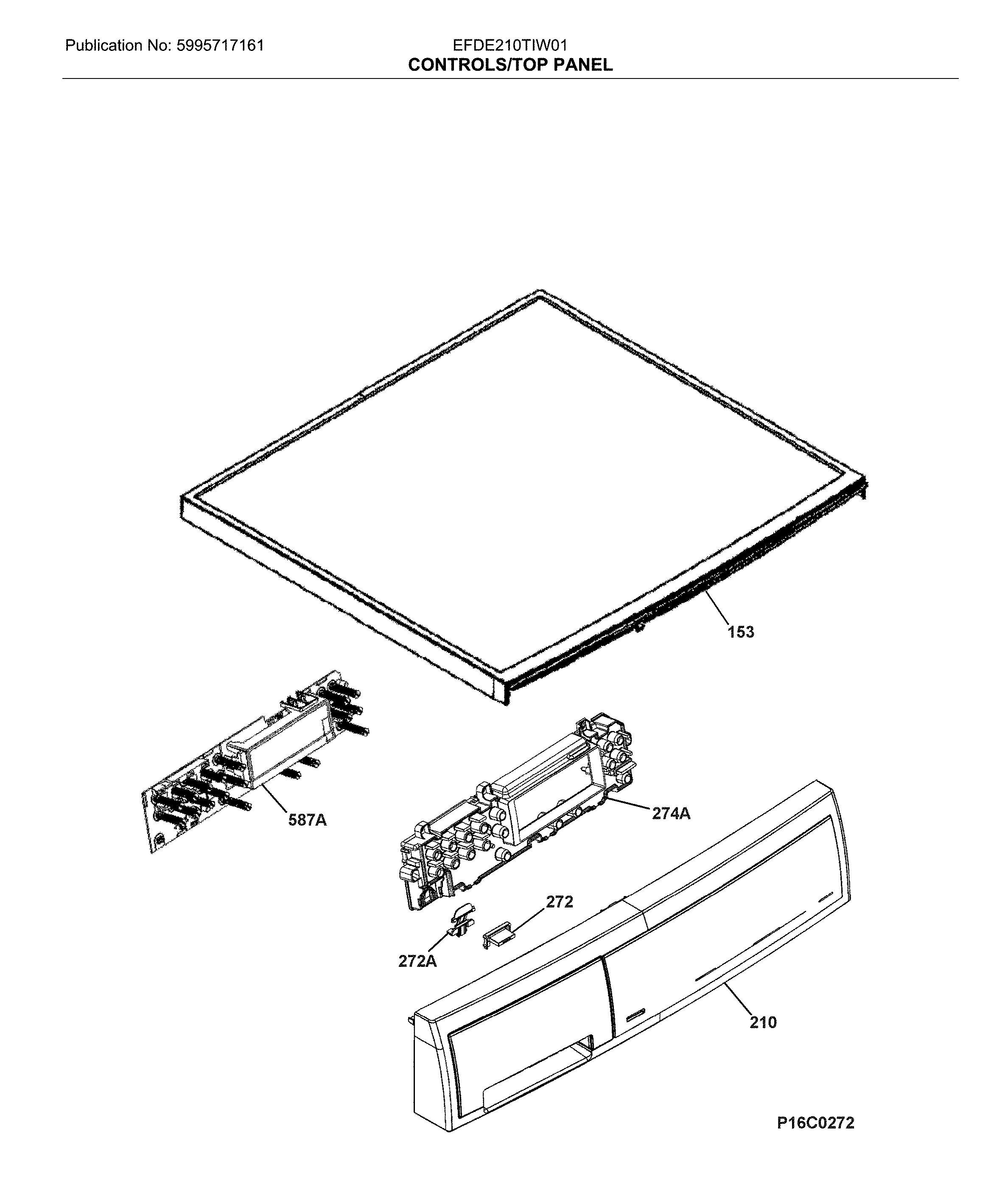

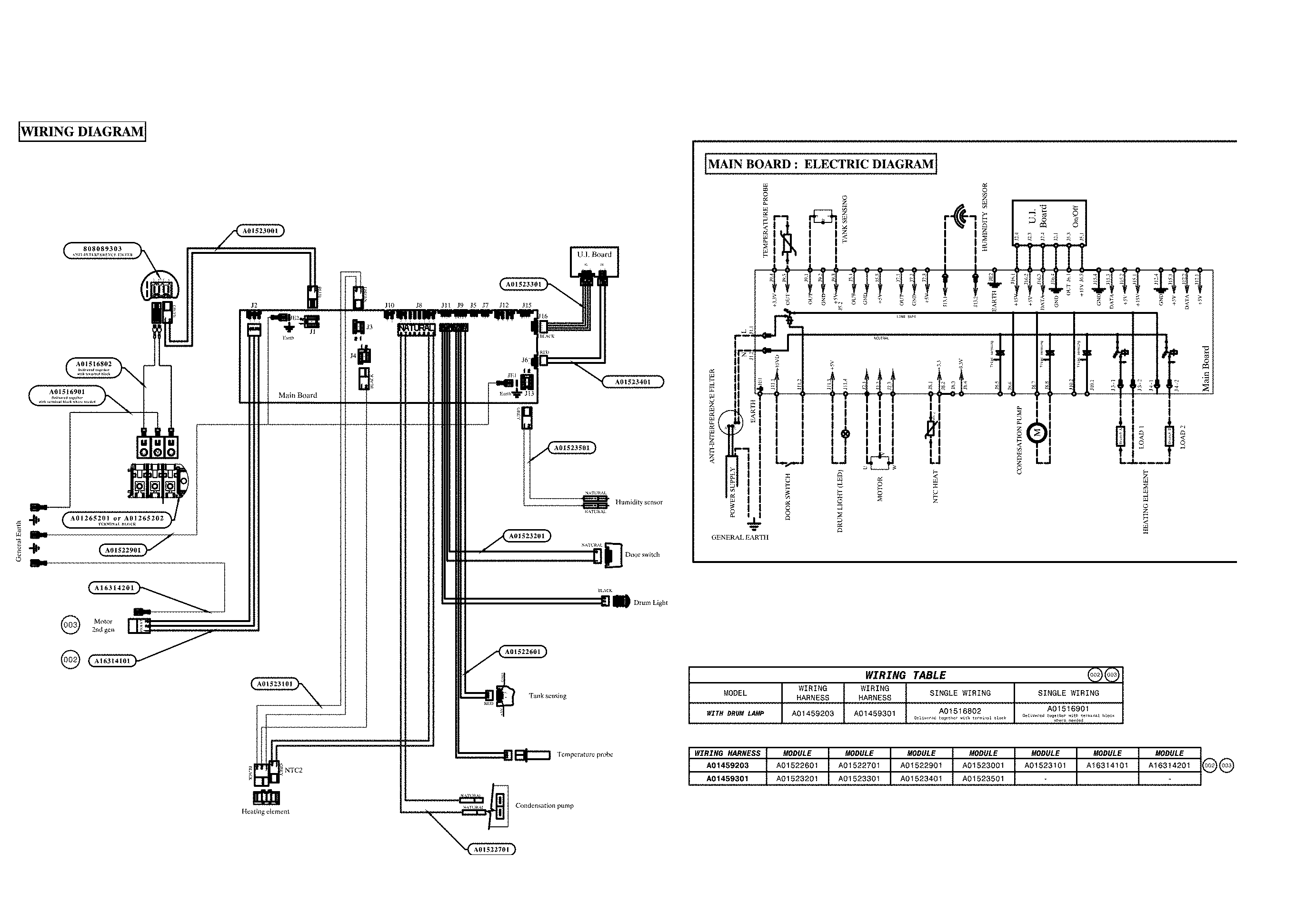

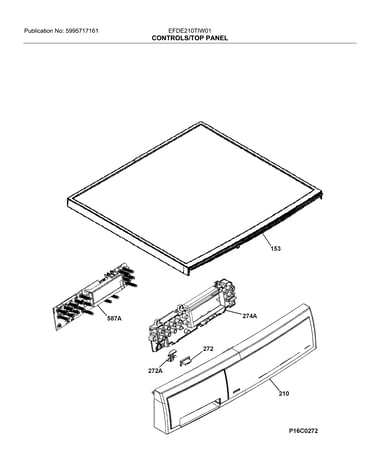

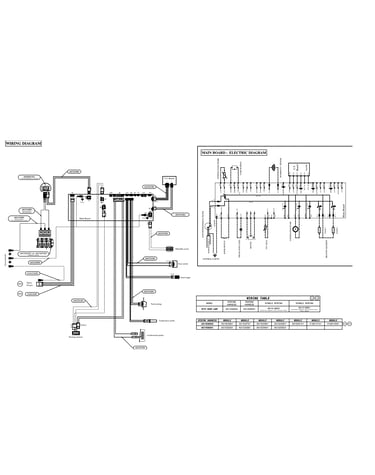

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |

Dryer Heating Element Assembly 136611032
#510

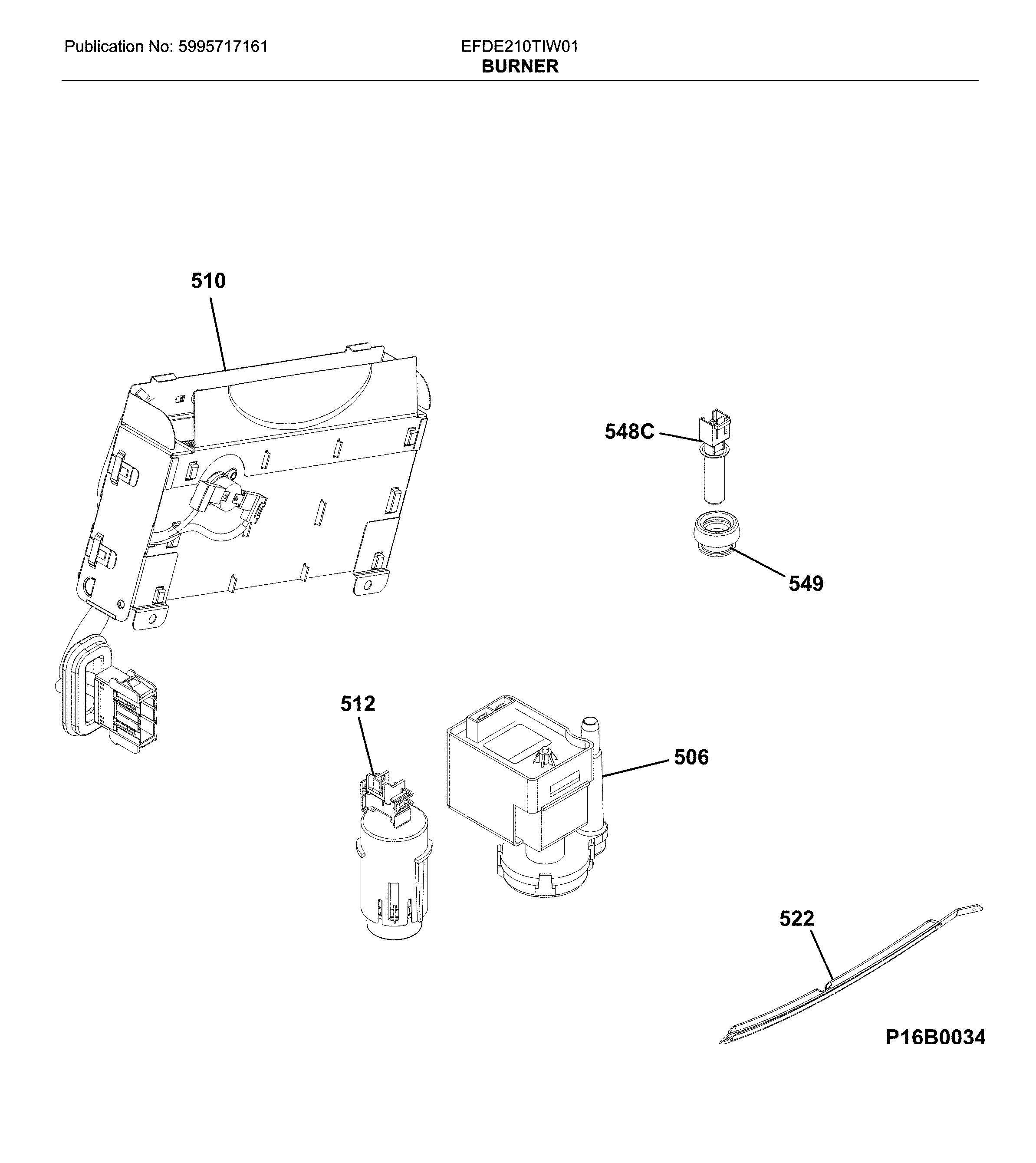

Burner diagram

Dryer heating element assembly

Part #136611032

BEST SELLER
$100.43
11% OFF Phone Price : $112.43
In Stock
Dryer Water Pump 136402403
#506

Burner diagram

Dryer water pump

Part #136402403

$67.56
8% OFF Phone Price : $73.56
In Stock
Dryer Lint Screen 136601901
#607

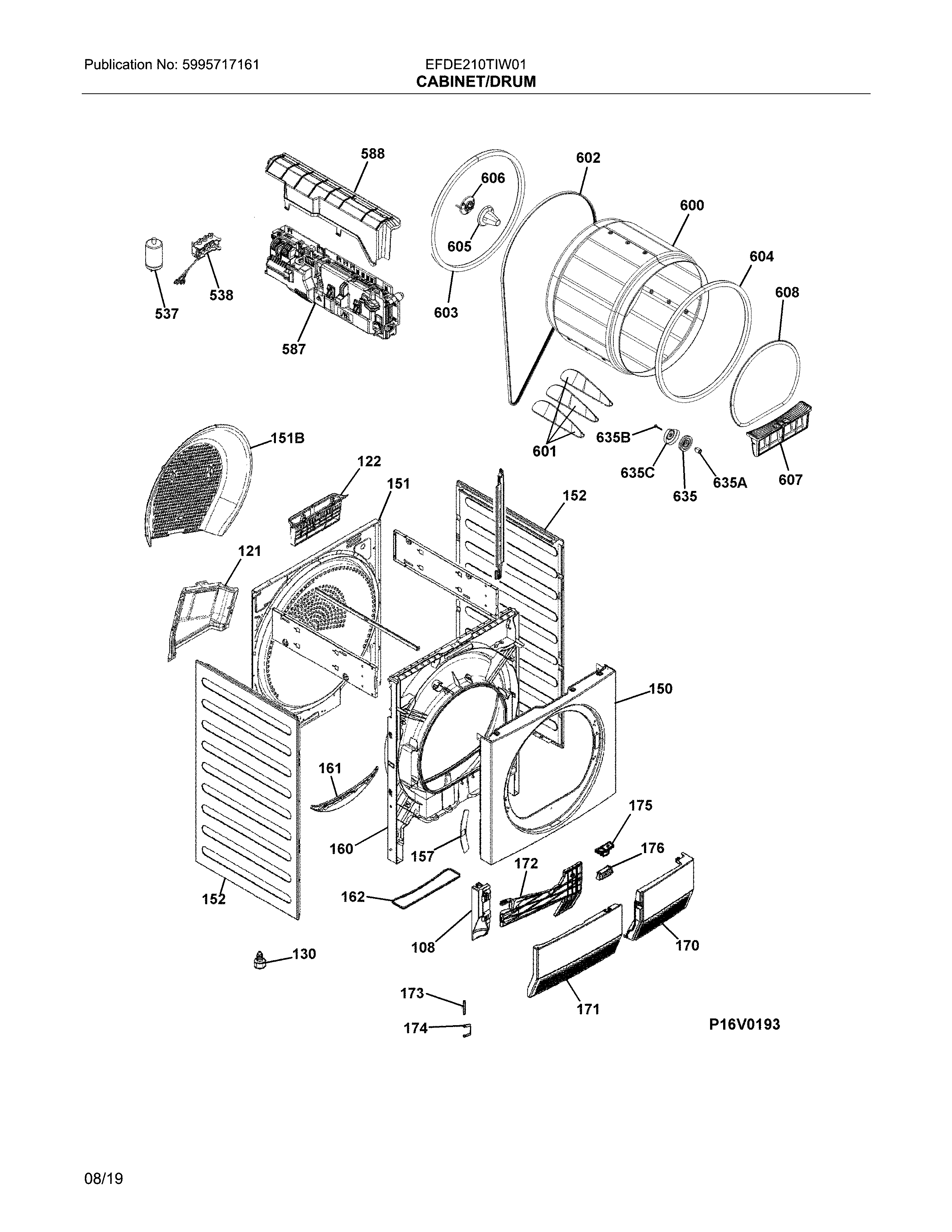

Cabinet diagram

Dryer lint screen

Part #136601901

$134.28
8% OFF Phone Price : $146.28
In Stock
Dryer Door Seal 136606311
#608

Cabinet diagram

Dryer door seal

Part #136606311

$65.79
8% OFF Phone Price : $71.79
In Stock
Dryer Door Inner Window A01265506
#362

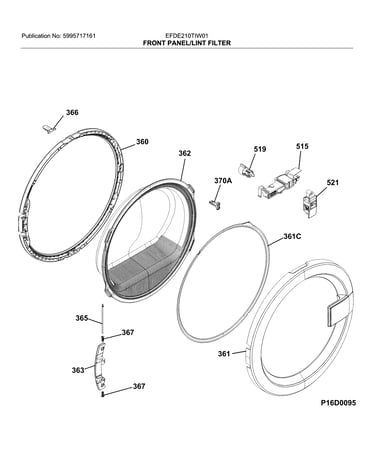

Door diagram

Dryer door inner window

Part #A01265506

Replaced by #5304531893

?
Manufacturer substitution
This part replaces A01265506. Substitute parts can look different from the original.
In Stock
Dryer Drum Seal 136424300
#603

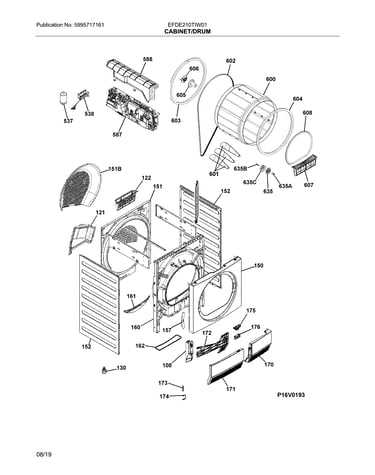

Cabinet diagram

Dryer drum seal

Part #136424300

$120.49
9% OFF Phone Price : $132.49
In Stock
Strike,glass Door 808681110
#370

Door diagram

Strike,glass door

Part #808681110

Replaced by #808681114

?
Manufacturer substitution
This part replaces 808681110. Substitute parts can look different from the original.
$11.71
15% OFF Phone Price : $13.71
In Stock
Damper 125106000
#504

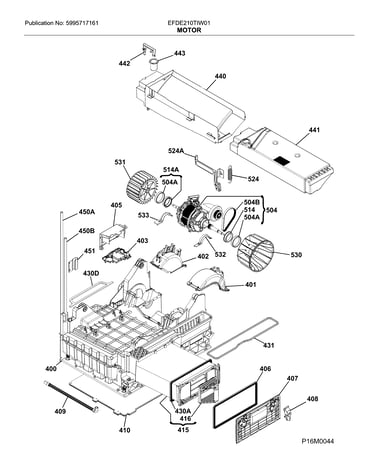

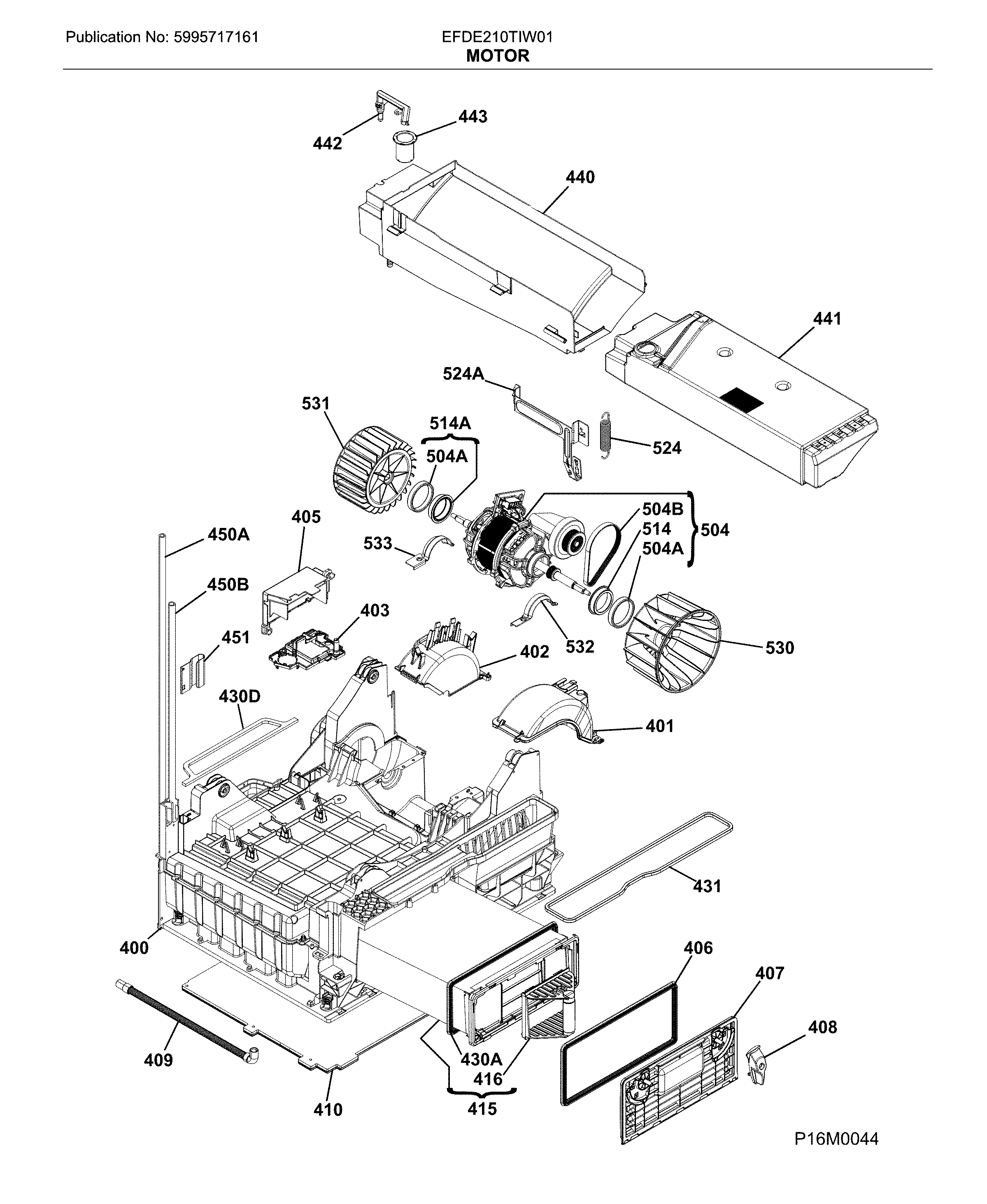

Motor diagram

Damper

Part #125106000

Replaced by #405549614

?
Manufacturer substitution
This part replaces 125106000. Substitute parts can look different from the original.
In Stock
Wheel 136609301
#530

Motor diagram

Wheel

Part #136609301

Replaced by #136609300

?
Manufacturer substitution
This part replaces 136609301. Substitute parts can look different from the original.
$45.49
12% OFF Phone Price : $51.49
In Stock
Bushing 125106100
#514

Motor diagram

Bushing

Part #125106100

Replaced by #405549614

?
Manufacturer substitution
This part replaces 125106100. Substitute parts can look different from the original.
In Stock
