Whirlpool DU8400XB1 dishwasher Parts

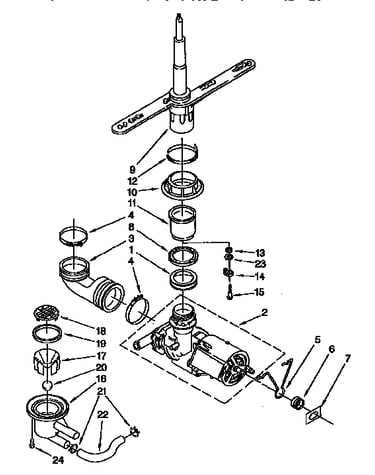

On the Whirlpool DU8400XB1 dishwasher, the filter area is in the bottom of the tub under the lower rack, typically around the base of the lower spray arm and sump. Pull the lower rack out and look for a screen or grate that covers the intake area.

1. Turn the dishwasher off.
2. Slide the lower rack out.
3. Inspect the bottom center area around the spray arm base.
4. Look for a screen, grate, or cover that protects the pump intake.

• A flat screen or grate in the tub bottom
• Debris collected near the sump intake
• Food particles around the spray arm base
• Standing water that suggests restricted flow
• Loose items (labels, glass, bones) that can block the intake

• Remove visible debris by hand first.
• Rinse the screen or grate with warm water.
• Use a soft brush to clear fine particles.
• Wipe the tub bottom clean before reinstalling racks.
• Run a short rinse cycle to confirm normal circulation.

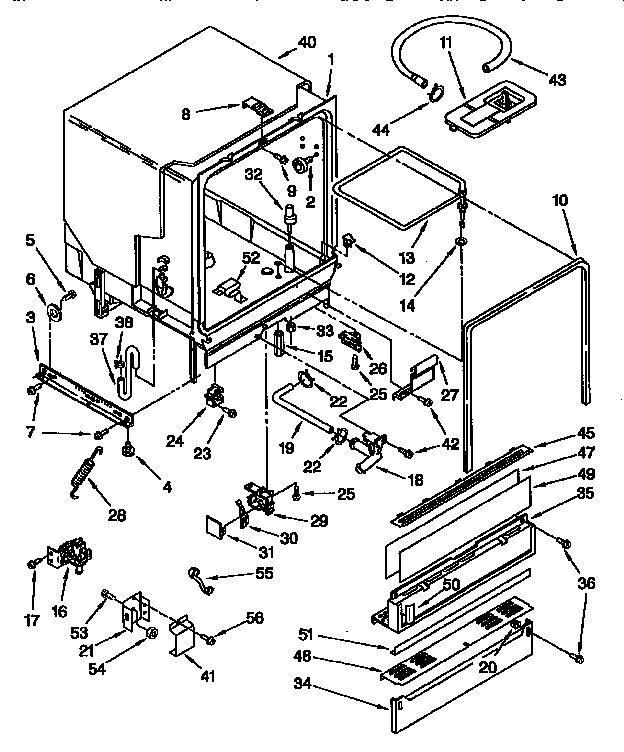

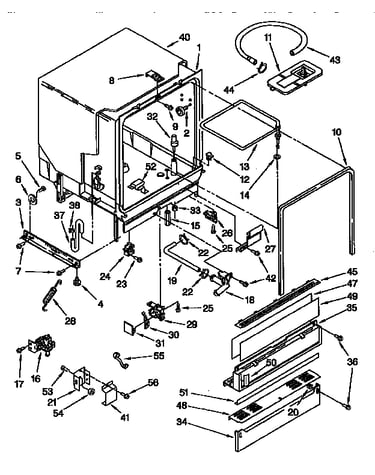

On older dishwashers, leaks or poor wash performance can be related to seals and baffles near the tub corners and pump area. If you see water tracking at the corners or a warped baffle, check the deflector WP8528862.

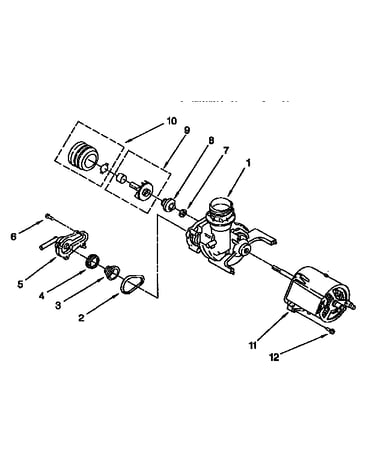

A clear filter and sump intake lets the wash pump move water at full pressure, which improves cleaning, helps draining, and reduces strain on components like the motor and heater.

For more troubleshooting steps if performance issues continue, use our dishwasher not cleaning dishes video.

Last updated: February 2026

To reset your Whirlpool DU8400XB1 dishwasher, we recommend doing a simple control reset first (power cycle). If the control is still unresponsive, run the built-in keypad reset sequence used on many Whirlpool dishwashers to clear a stuck cycle and restore normal operation.

• Power reset: Turn the dishwasher off at the breaker for 1 minute, then turn it back on.
• Door reset: Close the door fully, wait 10 seconds, then try starting a normal cycle.
• Keypad reset sequence (common Whirlpool method): Press any 3 keys (choose 3 buttons next to each other if possible) in this pattern:
  • 1-2-3
  • 1-2-3
  • 1-2-3 Then close the door and let the dishwasher run the short reset or drain sequence.

These checks fix most “won’t start” or “stuck” situations on the DU8400XB1:

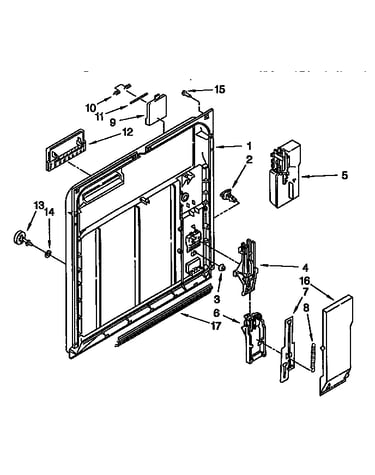

• Make sure the door is closing and latching firmly (a weak latch can prevent any response).
• Confirm the breaker is on and the dishwasher has power.
• If buttons feel inconsistent, press each key once; a stuck key can block operation.
• If the dishwasher is dead or resets randomly, inspect the thermal fuse circuit; a failed fuse can stop the control.

• Door latch WP3380854
• Fuse WP3368928

A reset clears a paused or confused control state, which is common after a power flicker, an interrupted cycle, or a door that was opened mid-cycle. If resets do not work, the problem is usually power delivery, door-latch sensing, or control protection (thermal fuse).

For step-by-step troubleshooting that matches Whirlpool dishwashers, use our DIY guide: how to reset a Whirlpool dishwasher.

Last updated: February 2026

The most common Whirlpool dishwasher problems are poor cleaning and draining issues caused by food debris buildup, restricted water flow, or a weak drain path. On the Whirlpool DU8400XB1, we see the same patterns: clogs, worn wash components, and door-latch related no-start symptoms.

• Not cleaning well: clogged spray paths, overloaded racks, low water temperature, or circulation issues
• Not draining: blocked drain hose, debris in the sump area, or drain pump housing restrictions
• Leaking: door sealing surfaces not closing evenly, corner baffle/deflector issues, or loose hose connections
• Won’t start: door not latching fully, blown thermal fuse, or power interruption
• Not drying: heater circuit problems, rinse-aid issues, or short cycles

1. Cancel the cycle and try a reset sequence using our guide: how to reset a Whirlpool dishwasher.
2. Check the bottom of the tub for standing water and clear visible debris.
3. Inspect the drain path for kinks or restrictions; the DU8400XB1 uses a dedicated drain line such as the drain hose WP3374077.
4. Confirm the door closes firmly; a worn latch can prevent the motor from running.
5. If the unit is completely dead, check the thermal fuse circuit.

Most “big” dishwasher failures start as simple restrictions or wear items. Catching a drain slowdown, weak heating, or a door latch that is not engaging helps prevent repeat cycle stoppages, odors, and water left in the tub.

Last updated: February 2026

On a Whirlpool dishwasher, an F8 code is most often tied to a water or draining issue. On your Whirlpool DU8400XB1, clear the code by correcting the cause (standing water, a leak into the base, or a float problem), then resetting the control using the steps in how to reset a Whirlpool dishwasher.

• Cancel the cycle and let the unit drain; remove any standing water in the tub.
• Check the sink drain and garbage disposal inlet (if connected) for a clog.
• Inspect the drain hose for kinks, crushing, or a low spot that traps water.
• Look for excessive suds (hand soap or too much detergent can trigger errors).
• Make sure the float moves freely (it should lift and drop without sticking).

1. Power reset: Turn off power at the breaker for 1 minute, then restore power.
2. Drain reset: Start a Cancel or Drain function (if your control panel has it) and listen for the drain pump.
3. Fix the root cause:
   • If it will not drain, clear the hose and drain path; replace a damaged hose with drain hose WP3374077.
   • If you find water in the base area, dry it out and correct the leak source (door seal area, hose connections, pump seals).
4. Run a short cycle and confirm the dishwasher fills, washes, and drains normally.

When the dishwasher cannot drain correctly or senses an abnormal water condition, it protects the kitchen by stopping the cycle and showing an error. Clearing the code without fixing the drain, suds, or leak usually makes the error return.

Last updated: February 2026
