Kenmore
Washer

Model # 11024642300 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 11024642300 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

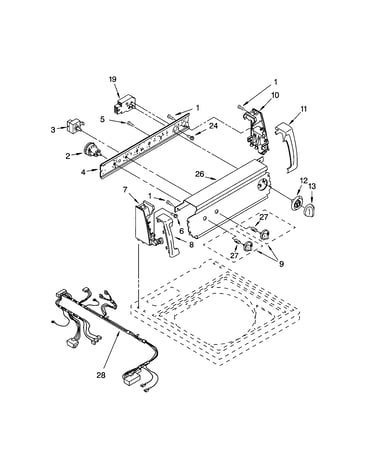

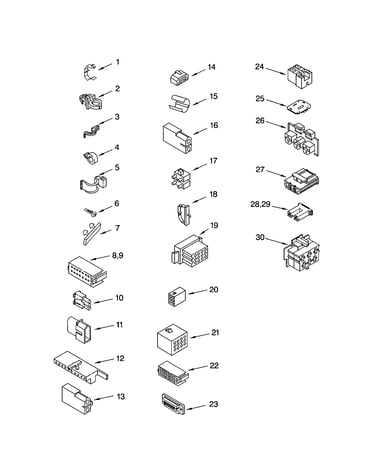

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |

Agitator Dog 3366877
#5

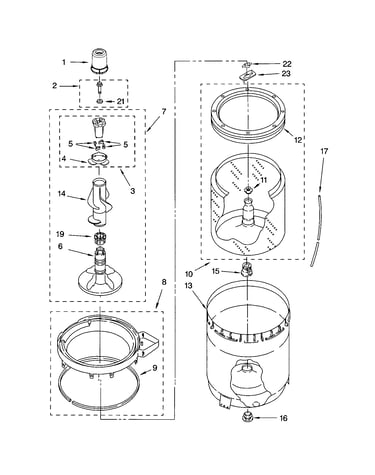

Agitator, basket and tub diagram

Agitator dog

Part #3366877

Replaced by #80040

?
Manufacturer substitution
This part replaces 3366877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.35
19% OFF Phone Price : $5.35
In Stock
Washer Motor Coupling 285753
#13

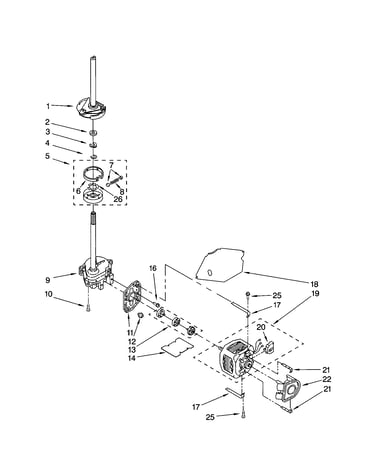

Brake/clutch/gearcase/motor/pump diagram

Washer motor coupling

Part #285753

Replaced by #285753A

?
Manufacturer substitution
This part replaces 285753. Substitute parts can look different from the original.
BEST SELLER
$25.50
16% OFF Phone Price : $30.50
In Stock
Washer Lid Switch 3949238
#11

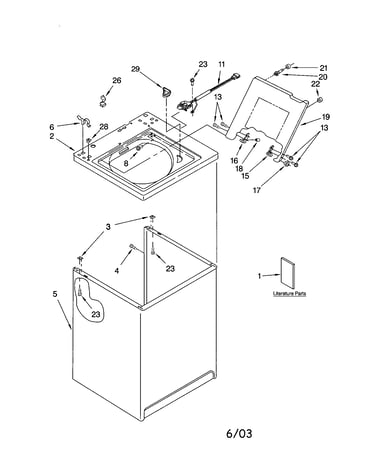

Top and cabinet diagram

Washer lid switch

Part #3949238

Replaced by #WP3949238

?
Manufacturer substitution
This part replaces 3949238. Substitute parts can look different from the original.
BEST SELLER
$30.98
34% OFF MSRP : $47.00
In Stock
Washer Drain Pump 3363394
#22

Brake/clutch/gearcase/motor/pump diagram

Washer drain pump

Part #3363394

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
$37.32
20% OFF MSRP : $46.50
In Stock
Washer Agitator Bolt 358237
#2

Agitator, basket and tub diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.76
59% OFF MSRP : $14.00
In Stock
Clutch 3951311
#5

Brake/clutch/gearcase/motor/pump diagram

Clutch

Part #3951311

Replaced by #285785

?
Manufacturer substitution
This part replaces 3951311. Substitute parts can look different from the original.
BEST SELLER
$30.32
14% OFF Phone Price : $35.32
In Stock
Washer Inlet Valve 3952164
#26

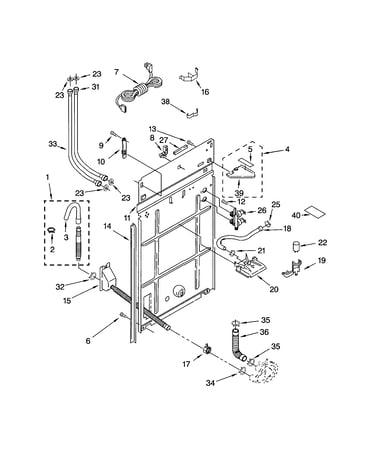

Rear panel diagram

Washer inlet valve

Part #3952164

Replaced by #285805

?
Manufacturer substitution
This part replaces 3952164. Substitute parts can look different from the original.
BEST SELLER
$26.67
17% OFF MSRP : $32.00
In Stock
Counterweight Spring (red) 388492
#15

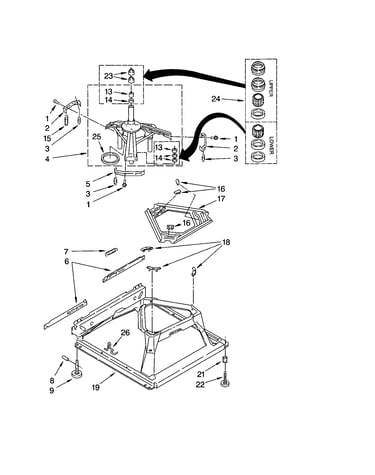

Machine base diagram

Counterweight spring (red)

Part #388492

Replaced by #WPW10250667

?
Manufacturer substitution
This part replaces 388492. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.81
73% OFF MSRP : $14.00
In Stock
Gear Case 3360630
#9

Brake/clutch/gearcase/motor/pump diagram

Gear case

Part #3360630

Replaced by #3360629

?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
BEST SELLER
$255.74
$10.00 OFF Phone Price : $265.74
In Stock
Washer 3350389
#19

Agitator, basket and tub diagram

Washer

Part #3350389

Replaced by #285587

?
Manufacturer substitution
This part replaces 3350389. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.69
13% OFF Phone Price : $7.69
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
