Whirlpool EC510WXV0 ice cube maker Parts
Here are the diagrams and repair parts for Whirlpool EC510WXV0 ice cube maker, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

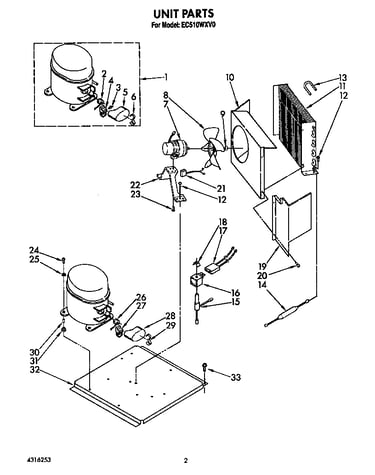

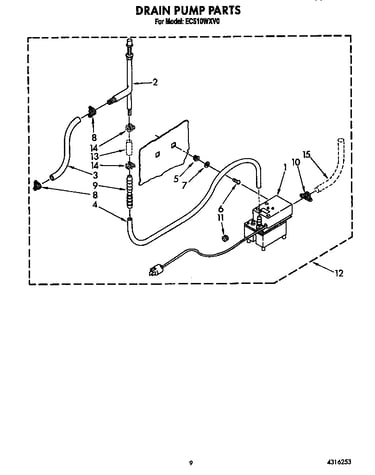

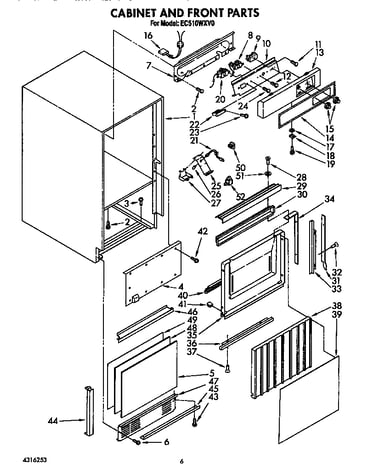

Browse Parts for EC510WXV0 Ice Cube Maker

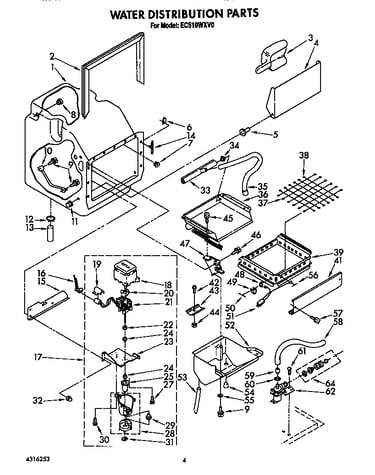

Water distribution diagram
Tube
Part #758037Replaced by #W10823511
Manufacturer substitutionThis part replaces 758037. Substitute parts can look different from the original.In Stock$37.4812% OFF Phone Price : $42.39
Qty

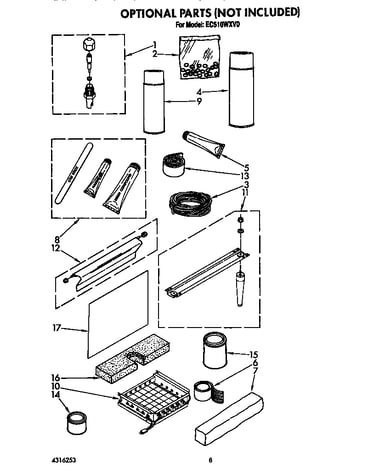

Optional parts diagram
Cement
Part #279368Replaced by #WP279368
Manufacturer substitutionThis part replaces 279368. Substitute parts can look different from the original.In Stock$52.1810% OFF Phone Price : $58.18QtyScrew
Part #681167Replaced by #WP90767
Manufacturer substitutionThis part replaces 681167. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyWater distribution diagram
Insert
Part #841707Replaced by #4387491
Manufacturer substitutionThis part replaces 841707. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyOptional parts diagram
Paint (almond)
Part #350956Replaced by #350956
Manufacturer substitutionThis part replaces 350956. Substitute parts can look different from the original.This item is not returnableIn Stock$31.0216% OFF Phone Price : $37.02QtyWater distribution diagram
Scoop
Part #585158Replaced by #W11420408
Manufacturer substitutionThis part replaces 585158. Substitute parts can look different from the original.This item is not returnableIn Stock$15.0812% OFF Phone Price : $17.08QtyOptional parts diagram
Sears Refrigerator Service Valve
In Stock$37.2514% OFF Phone Price : $43.25QtyOptional parts diagram
Sears Refrigerator Permagum Sealer
Part #212643This item is not returnableIn Stock$28.0336% OFF Was : $43.86QtyWater distribution diagram
Ice Maker Pump Mounting Screw
In Stock$18.0710% OFF Phone Price : $20.07QtyOptional parts diagram
Sears Refrigerator Service Valve, 3/4-in
In Stock$36.2033% OFF Was : $54.08Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Sears Refrigerator Permagum Sealer
Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86
Qty
