Model # 28-283 Official Delta 14" wood cutting band saw

Here are the diagrams and repair parts for Official Delta 28-283 14" wood cutting band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |

Carriage Bolt 901-11-023-1476
Carriage bolt

Part #901-11-023-1476

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt 901-11-020-0834
Carriage bolt

Part #901-11-020-0834

The manufacturer no longer makes this part, and there's no substitute part

Screw 901-01-060-0607
#336

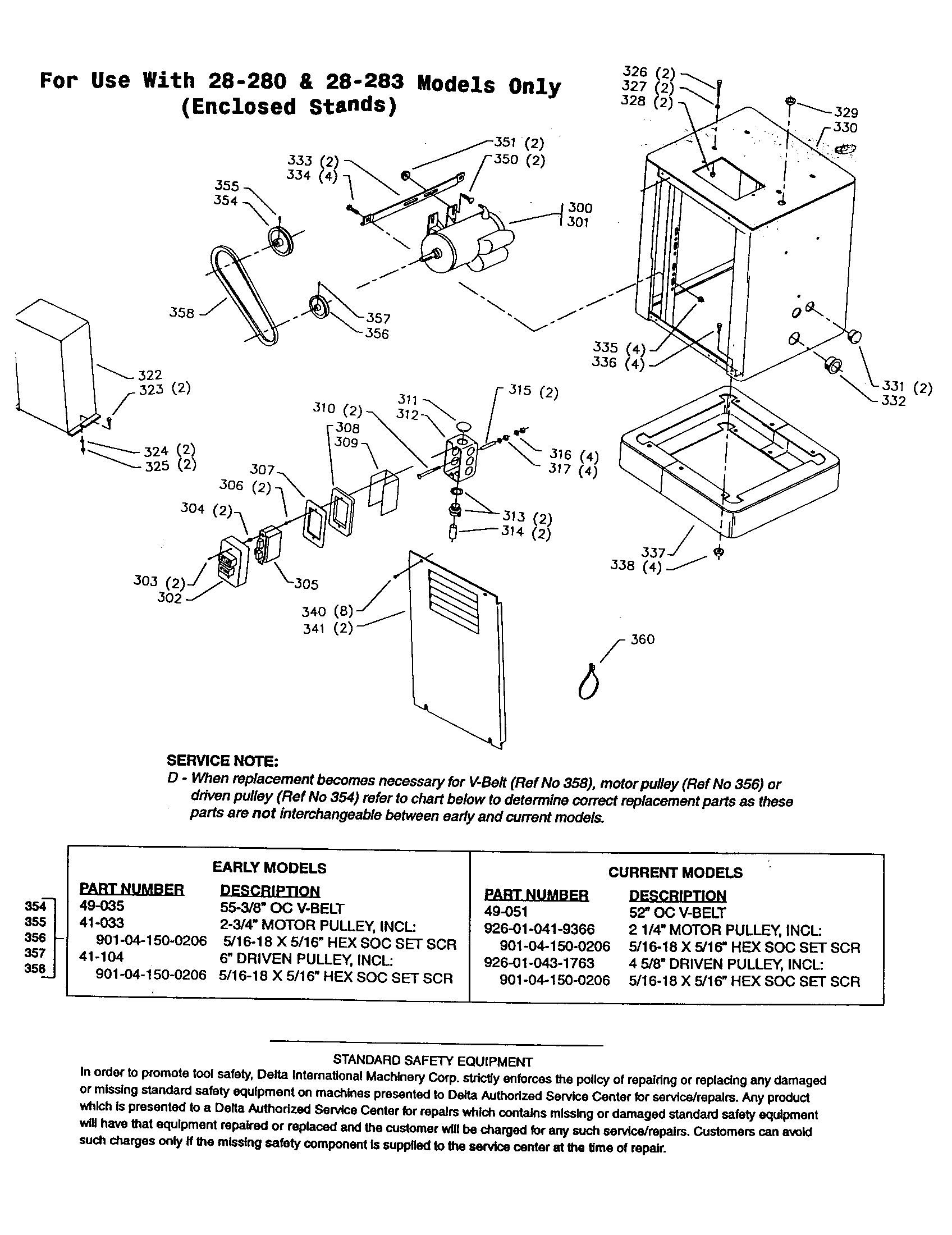

Cabinet assembly diagram

Screw

Part #901-01-060-0607

The manufacturer no longer makes this part, and there's no substitute part

Adapter 49-220
#85

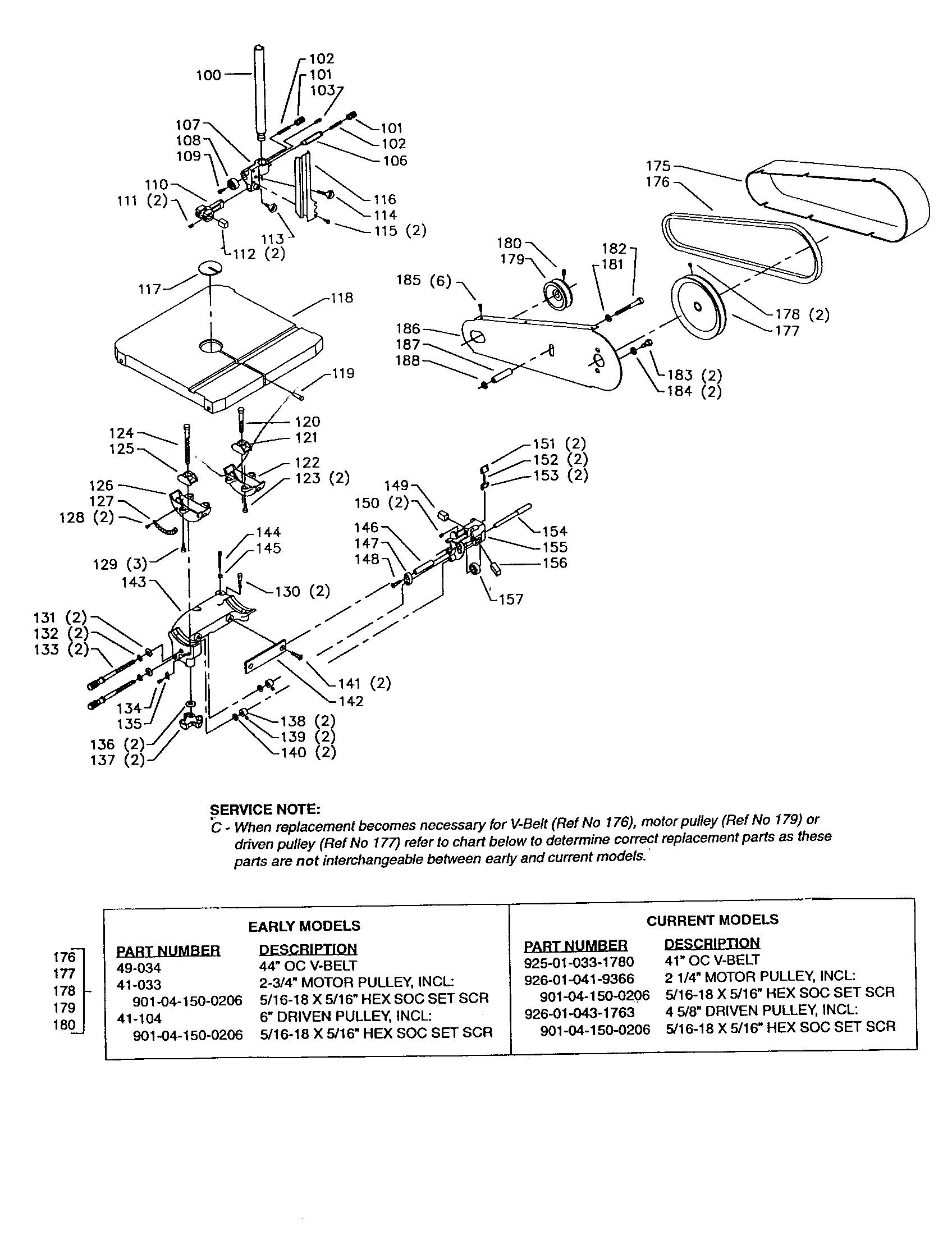

14" wood cutting bandsaw diagram

Adapter

Part #49-220

The manufacturer no longer makes this part, and there's no substitute part

Rivit 1087794
Rivit

Part #1087794

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 1087640
#145

Table/guard diagram

Lock nut

Part #1087640

The manufacturer no longer makes this part, and there's no substitute part

Nut 1087737
#203A

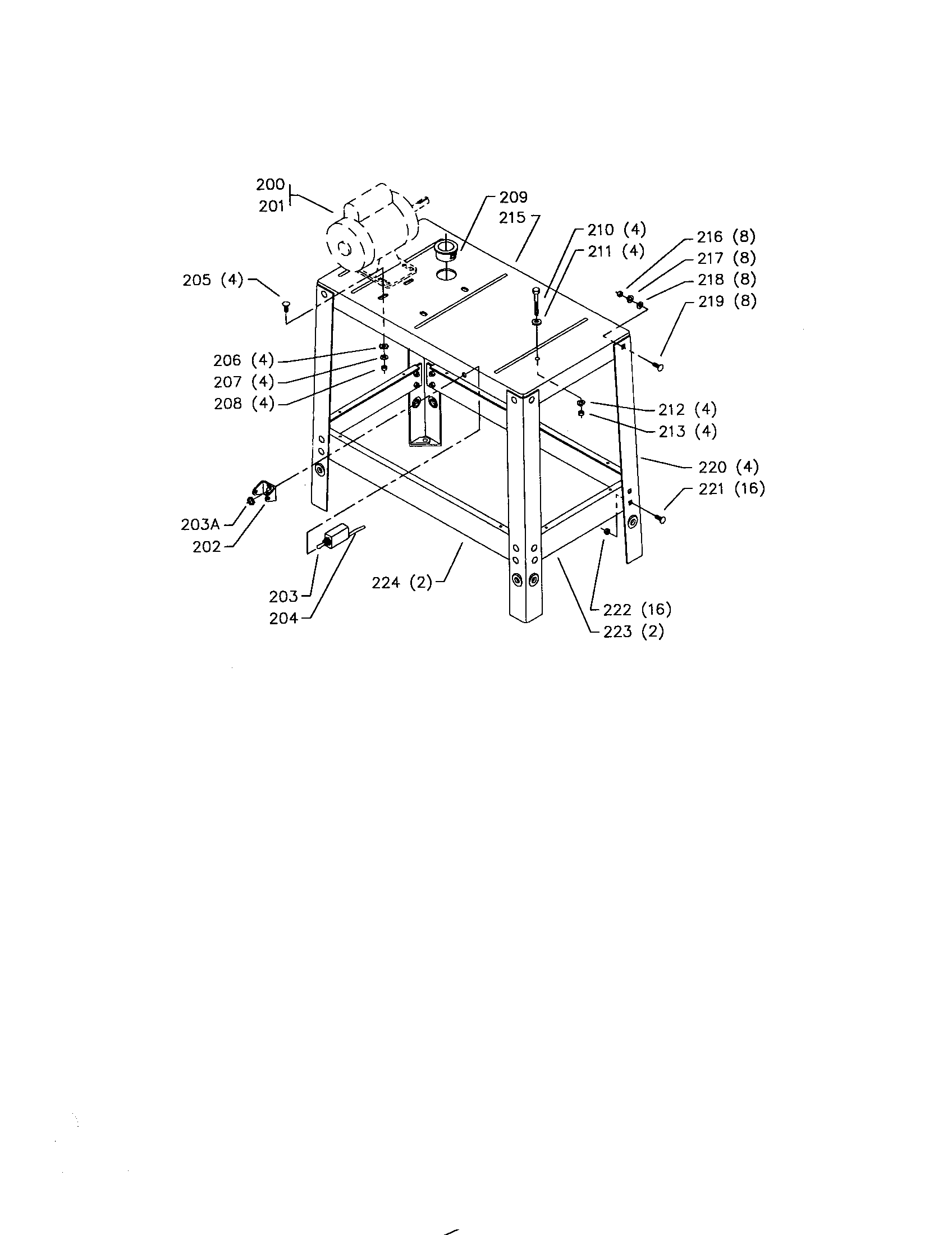

Cable and stand assembly diagram

Nut

Part #1087737

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 62-246
#0

Cabinet assembly diagram

Motor assembly

Part #62-246

The manufacturer no longer makes this part, and there's no substitute part

Shaft 426-02-106-0004
#26

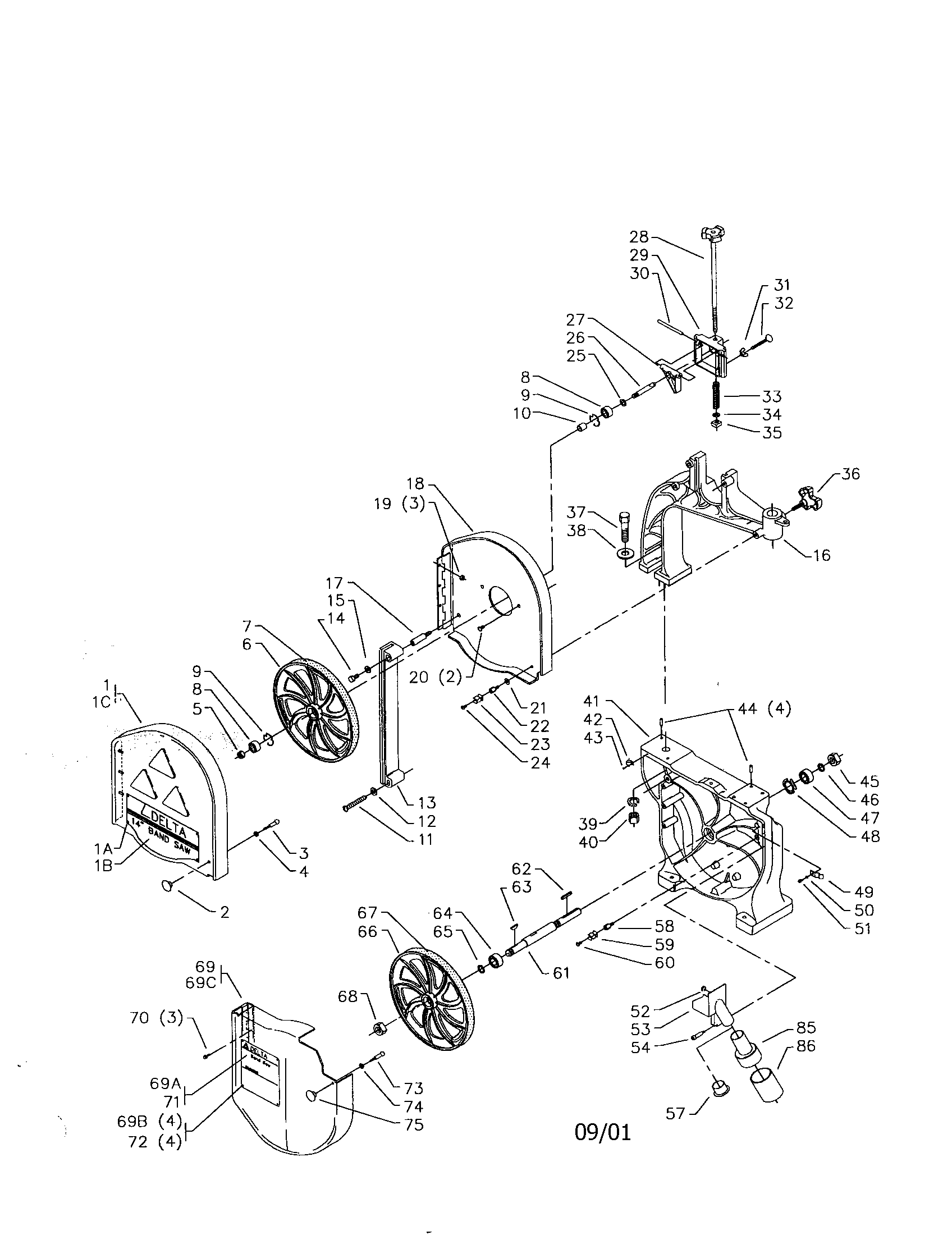

14" wood cutting bandsaw diagram

Shaft

Part #426-02-106-0004

The manufacturer no longer makes this part, and there's no substitute part

Guard 426-02-054-0017
#13

14" wood cutting bandsaw diagram

Guard

Part #426-02-054-0017

The manufacturer no longer makes this part, and there's no substitute part
