Kenmore Elite 63013913014 dishwasher Parts

Your Kenmore Elite dishwasher’s model number is printed on the identification (rating) label inside the dishwasher door area. Open the door and look along the inner edge of the tub opening; the label lists both the model number and serial number. For model-specific details, use the 63013913014 owner's manual.

Where to find the model and serial label

Check these common label locations first:

• Along the left side of the tub opening (inside the door)
• Along the right side of the tub opening (inside the door)
• On the top edge of the tub opening (inside the door)
• On the inner door panel near the latch area

What to write down (and why)

Record the information exactly as shown on the label:

• Model number (example format for this page: 63013913014)
• Serial number
• Date of purchase (if available)

Why it matters

The model number is how we match the correct Kenmore dishwasher parts, diagrams, and procedures. Even small model-number differences can change which door latch, drain pump, or water inlet valve fits.

Quick reference: model number vs. serial number

Item	What it identifies	Used for
Model number	The exact dishwasher design/version	Correct parts lookup and manuals
Serial number	Your specific unit’s production ID	Service history and manufacturing details

If you are ordering parts after you find the model number

Once you confirm the model number, you can order parts from the parts list for your dishwasher model, or search by model on Sears PartsDirect. Common examples for this model include the dishwasher water inlet valve 00622058 and the drain pump 00611332.

Last updated: February 2026

Yes. We still offer replacement parts for Kenmore dishwashers, including the Kenmore Elite 63013913014. The key is matching parts to your exact model number (found on the ID label inside the tub); then you can choose the correct items like valves, pumps, hoses, seals, and latches from our parts list or Sears PartsDirect.

How to make sure you get the right part

Use your model number 63013913014 and confirm the part location in the diagrams before ordering.

• Find the model and serial label inside the dishwasher (typically on the tub frame or door edge).
• Match the symptom to the system (fill, wash, drain, door, leak).
• Compare the part name and part ID, not just a description.
• Check for multiple similar items (for example, more than one drain hose option).
• Use the owner's manual to confirm features and basic troubleshooting steps.

Common parts we carry for model 63013913014

These are frequently replaced items for fill, drain, leaks, and door issues.

Problem area	What you may need	Example part for this model
Not filling	Water inlet valve	Dishwasher water inlet valve 00622058
Not draining	Drain pump or drain hose	Drain pump 00611332 or dishwasher drain hose 00668108

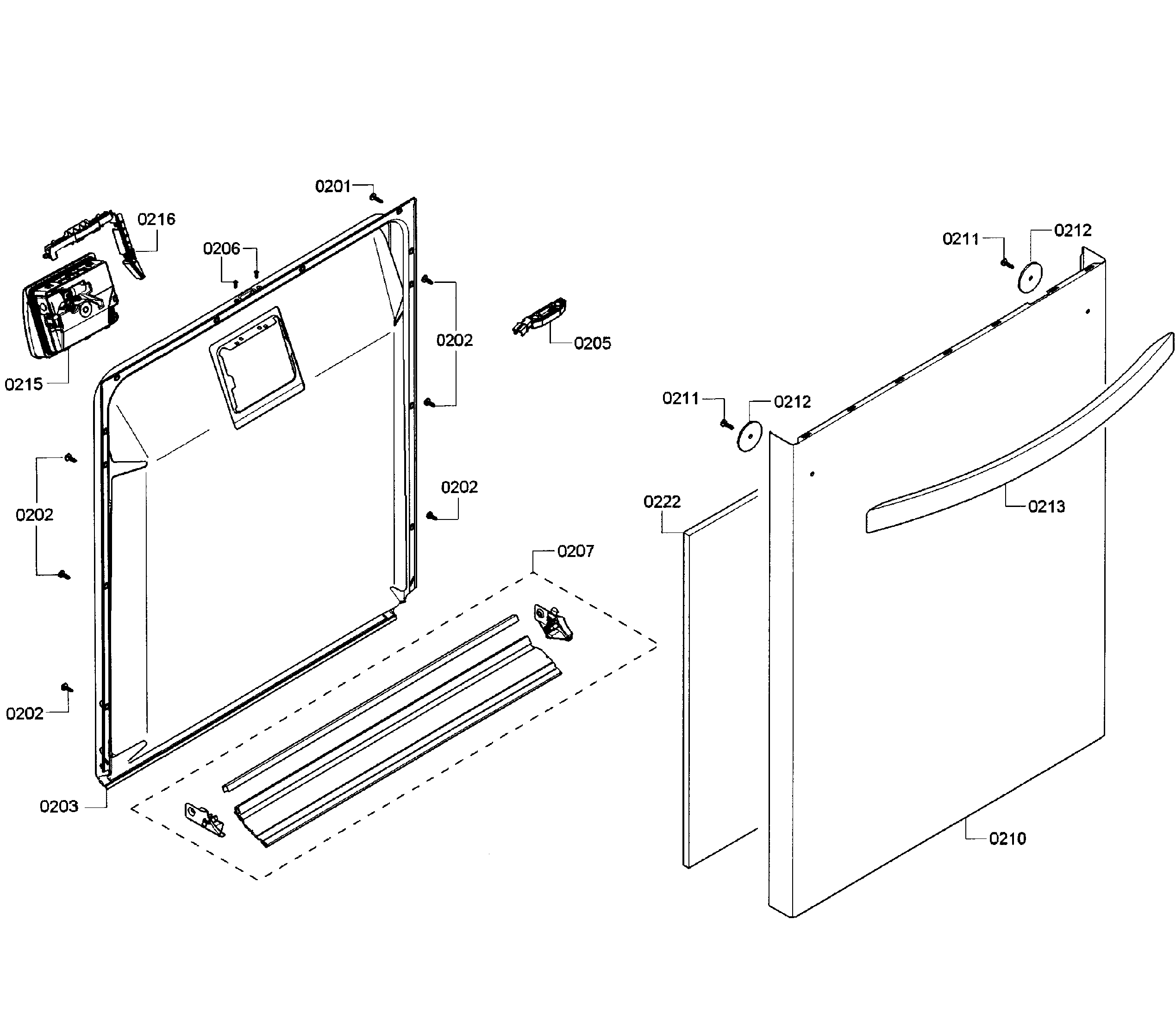

Leaking at door	Door seal	Sealing 00645141
Won’t start or stops mid-cycle	Door latch/switch	Dishwasher door latch assembly 00611312

Why it matters

Kenmore parts availability depends on the exact model and configuration. Using the correct model number and matching the correct part ID helps prevent fit issues, leaks, and repeat repairs, especially on critical systems like the water inlet, circulation, and drain.

Last updated: February 2026

Your Kenmore Elite model 63013913014 is a dishwasher, not a washer; dishwashers are not rated in cubic feet the way clothes washers are. For capacity, we use place settings and rack layout instead; check the owner's manual for the exact loading guidance for your unit.

How to identify capacity on this Kenmore Elite dishwasher

We size dishwasher capacity by how many place settings it holds and how the racks are configured.

• Look for “place settings” or “capacity” in the loading section

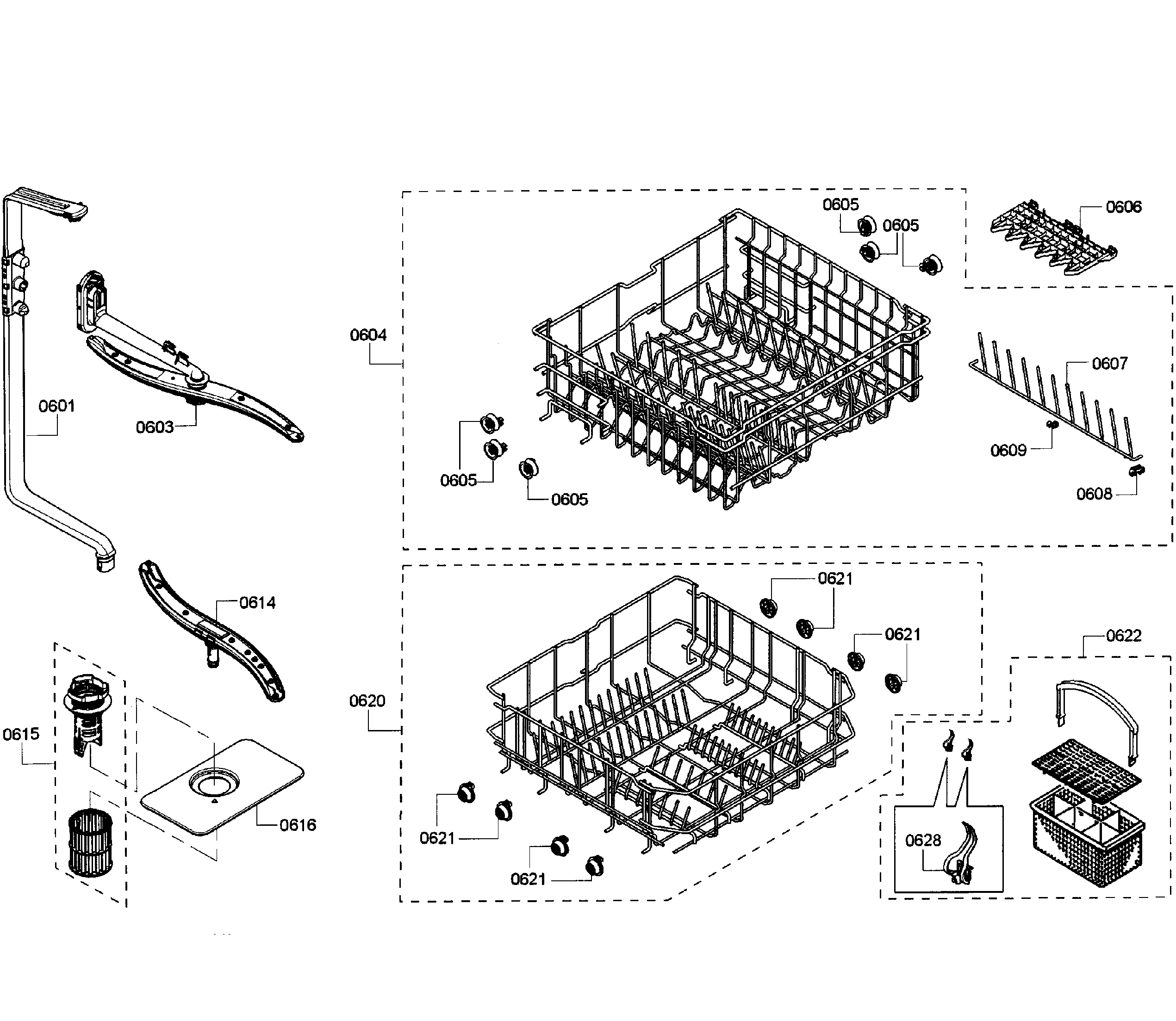

• Check upper and lower rack loading diagrams
• Confirm whether your model has adjustable upper rack positions
• Use the recommended dish sizes and spacing to avoid blocking spray arms
• Follow detergent and rinse aid guidance to match the cycle and soil level

Quick comparison: washer vs. dishwasher capacity

Appliance type	Common capacity unit	Typical range	What it means
Clothes washer	Cubic feet	3.5 to 5.0 cu. ft.	Tub volume for laundry
Dishwasher (63013913014)	Place settings	12 to 16 place settings	Standardized dish load

Why it matters

Using the correct capacity measure helps you load efficiently, prevent poor cleaning, and avoid issues like spray arm blockage, redeposit, and long cycle times. For best results, follow the loading patterns and cycle recommendations in the how to use your dishwasher efficiently guide.

Related parts that affect cleaning performance

If you are asking about “capacity” because dishes are not getting clean, these model-specific parts commonly affect wash coverage and water flow:

• Dishwasher spray arm 00668385 (upper spray coverage)
• Dishwasher water inlet valve 00622058 (fills the tub with the right amount of water)

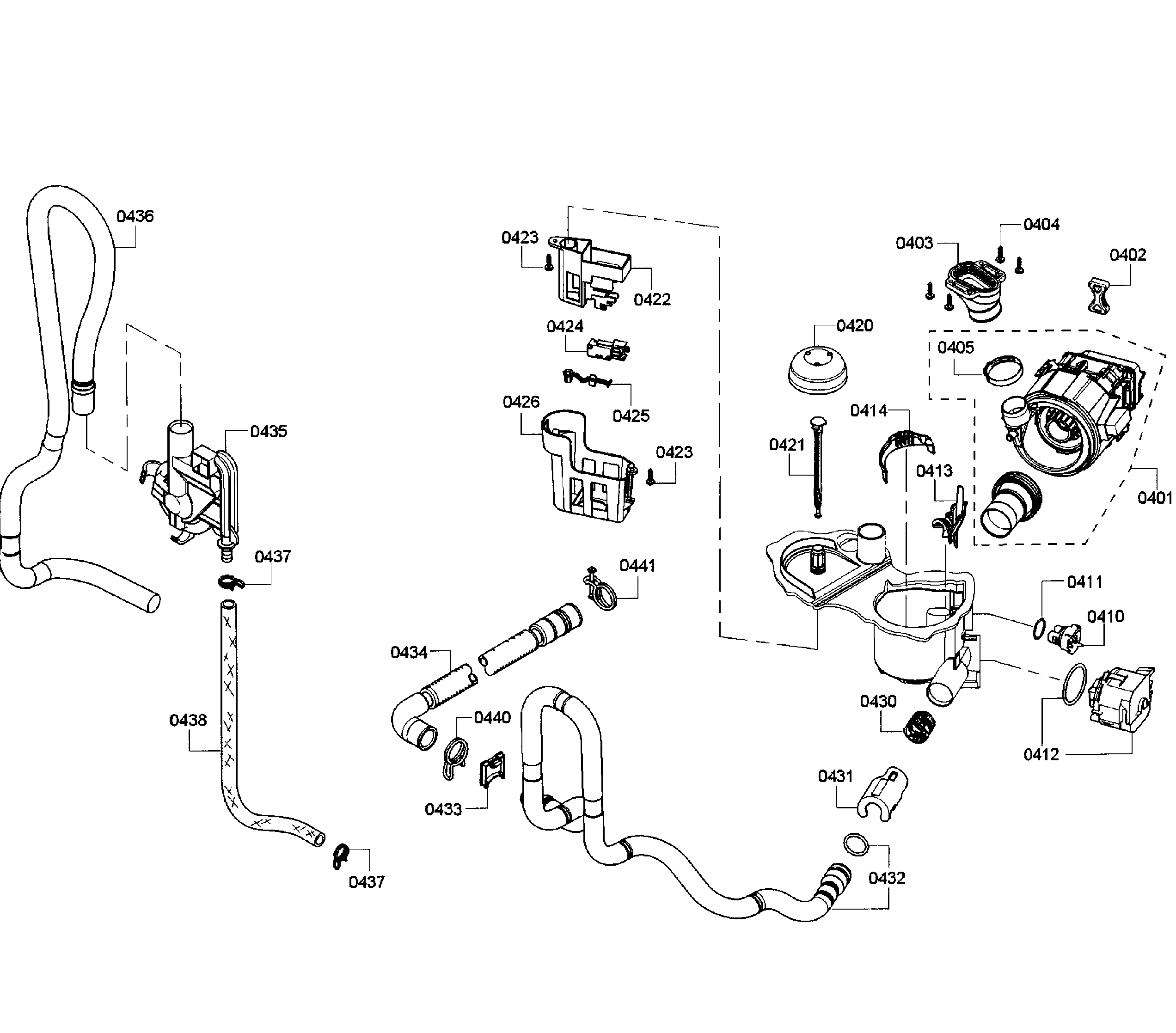

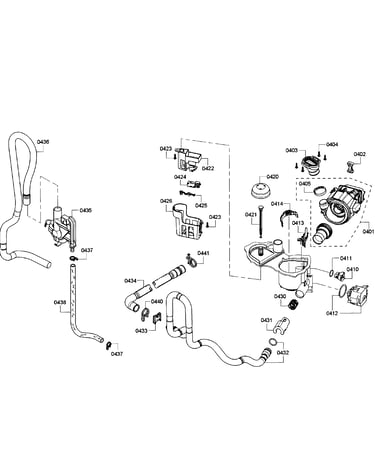

• Dishwasher pump and motor assembly 00705174 (circulation and heating function)

If you need to order any of these, use the parts list for model 63013913014 on this page, or search by model number on Sears PartsDirect.

Last updated: February 2026

Yes, repairing a Kenmore Elite dishwasher like model 63013913014 is usually worth it when the problem is a common, replaceable part (drain, fill, latch, seal) and the repair cost stays well below the price of a new dishwasher. For major failures (motor or heater assemblies), compare total repair cost to replacement value.

Quick way to decide (cost vs. value)

Use this simple rule for the 63013913014:

• Worth repairing: minor leaks, no-fill, no-drain, door won’t latch, intermittent start issues
• Maybe worth repairing: repeated draining problems, wash performance issues tied to multiple parts
• Often not worth repairing: multiple major components failing at once (for example, pump and motor plus control-related symptoms)

Typical repair examples for this model

Symptom	Common repair path	Example part on this model	Difficulty
Won’t fill	Check water supply, then replace inlet valve if needed	Dishwasher water inlet valve 00622058	Medium
Won’t drain	Clear blockage, then replace drain pump if needed	Drain pump 00611332	Medium
Leaks at door	Inspect/replace door seal	Sealing 00645141	Easy to medium
Won’t start	Verify door latches, power, reset cycle	Dishwasher door latch assembly 00611312	Medium

What to check before spending money on parts

The troubleshooting section for this dishwasher calls out several no-start causes that do not require parts, such as the door not being fully latched, a cycle not being selected, delay start being enabled, or the water supply being turned off. Confirm these basics first using the owner's manual.

• Make sure the door closes firmly and latches
• Confirm the unit is turned on and a cycle is selected
• Cancel/reset the cycle if a previous cycle did not complete
• Check for a tripped breaker or blown fuse
• Confirm the water shutoff valve is fully open

Why it matters

Dishwashers often fail in predictable, serviceable ways. Replacing a targeted part (like a drain pump, inlet valve, or door seal) restores performance and prevents secondary damage such as leaks, poor cleaning, or repeated cycle interruptions.

Ordering the right part

We recommend matching parts by the full model number 63013913014 and comparing the part ID before ordering. You can order parts listed for this model from the parts list, or search by model on Sears PartsDirect.

Last updated: February 2026

Common problems we see with the Kenmore Elite dishwasher model 63013913014 include not starting (door not latched, delay start on, power interruption), poor cleaning from blocked spray arms or filters, long cycle times from cool incoming water, and odors from food debris or drain restrictions. See the 63013913014 owner's manual for the model’s troubleshooting charts.

Most common symptoms and what they usually mean

• Dishwasher will not start: door not fully latched, unit not turned on, cycle not reset, delay start engaged, blown fuse or tripped breaker, or water supply turned off.
• Console lights off: door not closed or a household power issue (breaker or fuse).
• Runs a long time: incoming water not warm enough, options adding time, or soil level extending the cycle.
• Dishes not clean: spray arm movement blocked, spray arm nozzles clogged, or filters need cleaning.
• Odor: food debris in the bottom, residue near the door seal, standing water after a cycle, or a restricted drain hose.

Quick checks you can do first (no tools)

1. Confirm the door closes and latches firmly; a slightly open door can stop the cycle.
2. Make sure Delay Start is not selected (this model uses 3Hr, 6Hr, 9Hr delay indicators).
3. Verify the sink hot water is hot at the tap before starting a cycle (helps normal cycle time and cleaning).
4. Check the bottom of the tub for food debris; clean the filter system as outlined in the manual.
5. Look for kinks or clogs in the drain path; a restricted drain can cause odors and standing water.

Parts that commonly relate to these problems

If troubleshooting points to a failed component, these are common suspects for this model:

Symptom	Likely area	Example part for this model
Not filling, weak fill	Water supply and fill valve	Dishwasher water inlet valve 00622058
Not draining, standing water	Drain system	Drain pump 00611332 or dishwasher drain hose 00668108
Leaks at the door	Door sealing surface	Sealing 00645141
Poor wash action	Circulation system	Dishwasher pump and motor assembly 00705174

Why it matters

Catching the root cause early prevents repeat cycle failures, reduces water on the floor (which can lead to damage), and restores normal wash performance. Basic maintenance like cleaning filters and keeping the rinse agent full also helps prevent spots, odors, and long run times.

For ordering, use the parts list for model 63013913014 on this page, or search by model number on Sears PartsDirect.
