Frigidaire LFES3025PFC electric range Parts

Here are the diagrams and repair parts for Frigidaire LFES3025PFC electric range, as well as links to manuals and error code tables, if available.

Frigidaire LFES3025PFC electric range
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for LFES3025PFC Ranges

  • Cooking Appliance Oven Temperature Sensor for Frigidaire LFES3025PFC - Part 5304504897

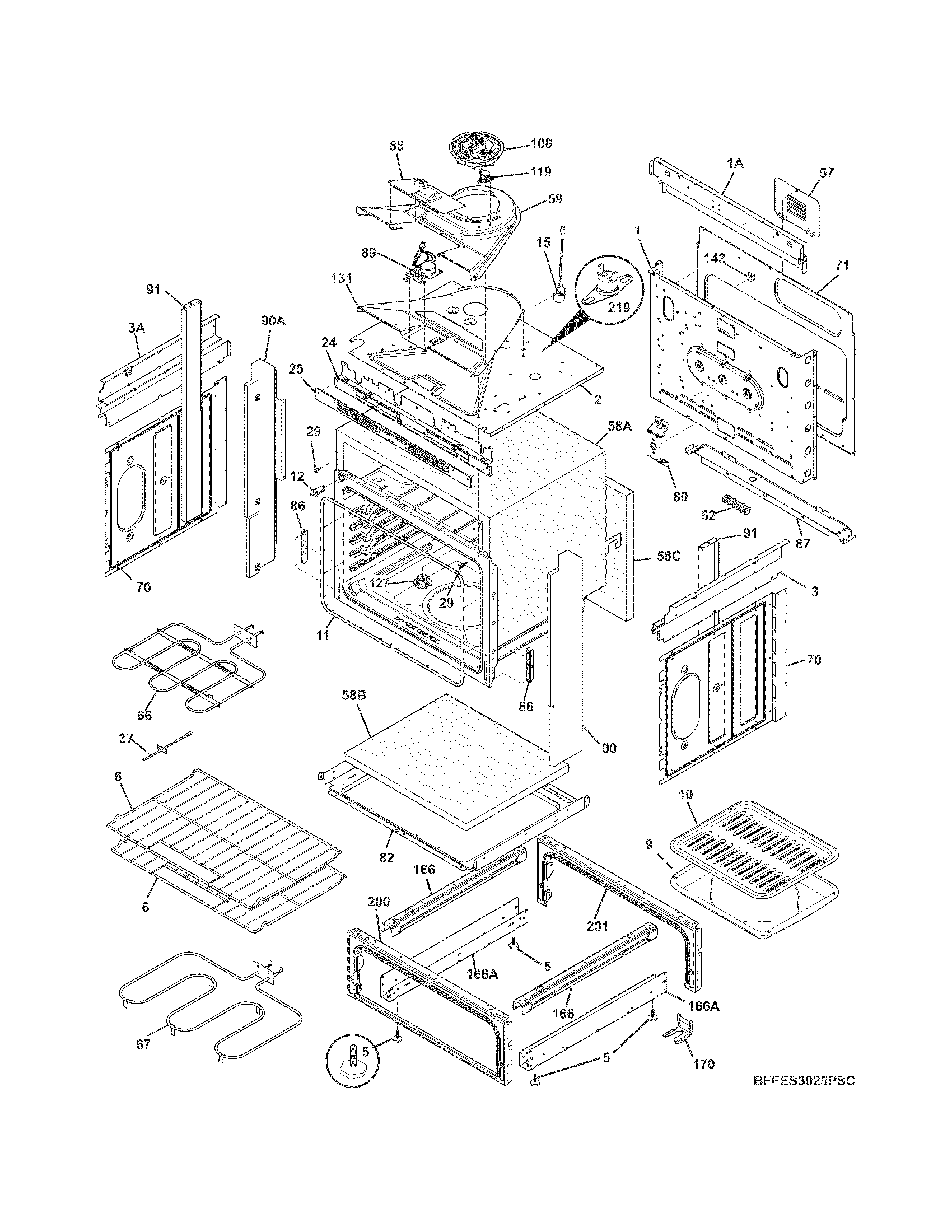

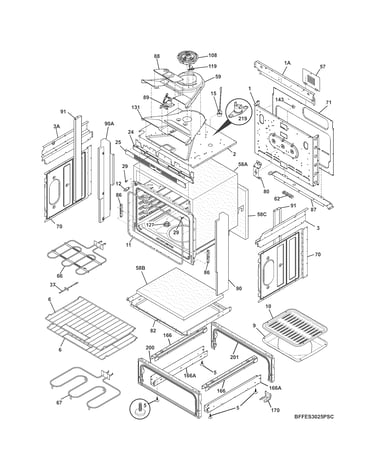

    Body diagram

    Range Oven Temperature Sensor

    Part #318562500

    Replaced by #5304504897

    Info Icon
    Manufacturer substitution
    This part replaces 318562500. Substitute parts can look different from the original.
    In Stock
    $24.70
    20% OFF Phone Price : $30.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Radiant Surface Element, 6-in for Frigidaire LFES3025PFC - Part 318178110

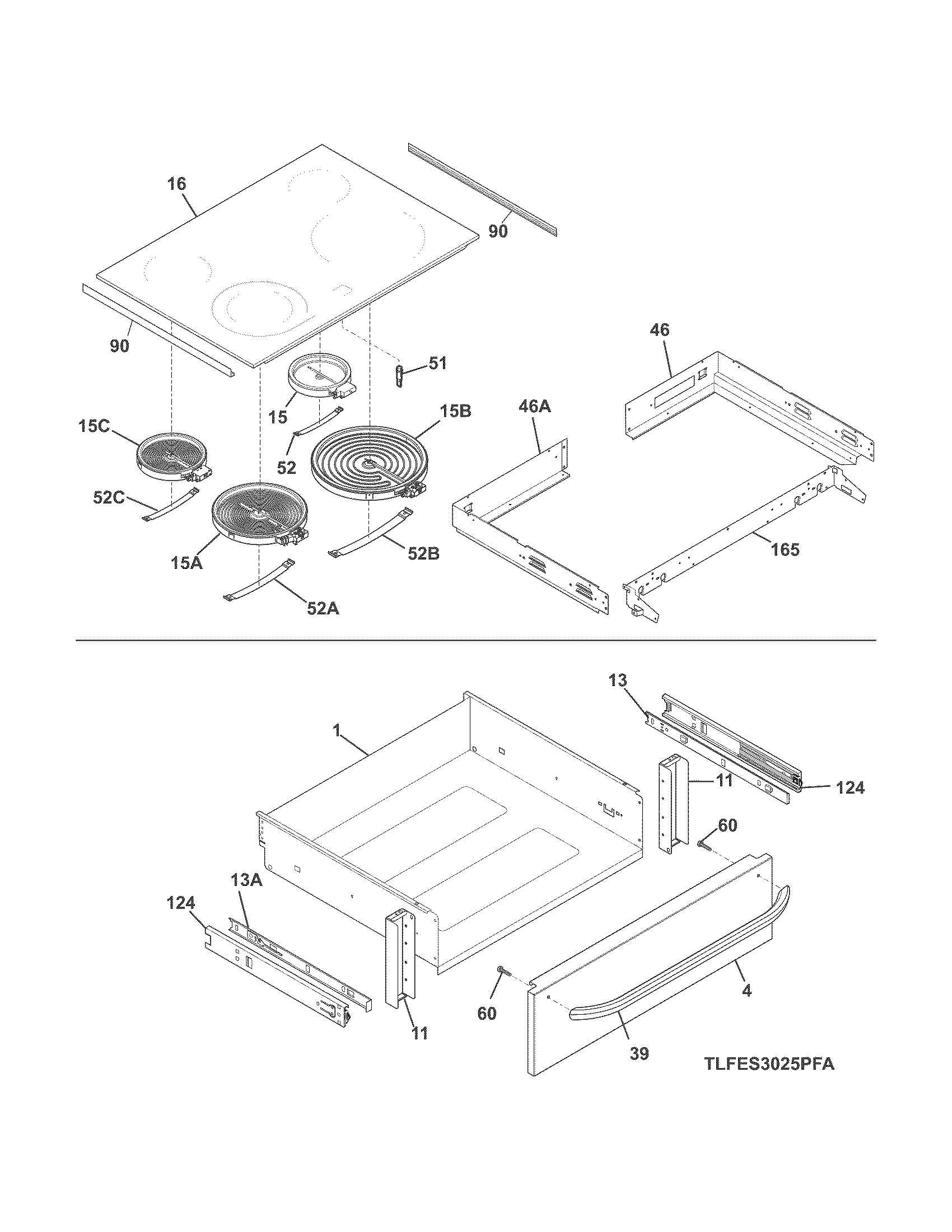

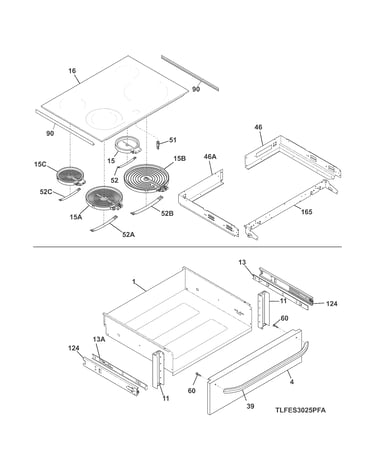

    Top/drawer diagram

    Frigidaire Range Radiant Surface Element, 6-in

    Part #318178110
    In Stock
    $100.22
    11% OFF Phone Price : $112.22Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Oven Door Inner Glass for Frigidaire LFES3025PFC - Part 5304503232

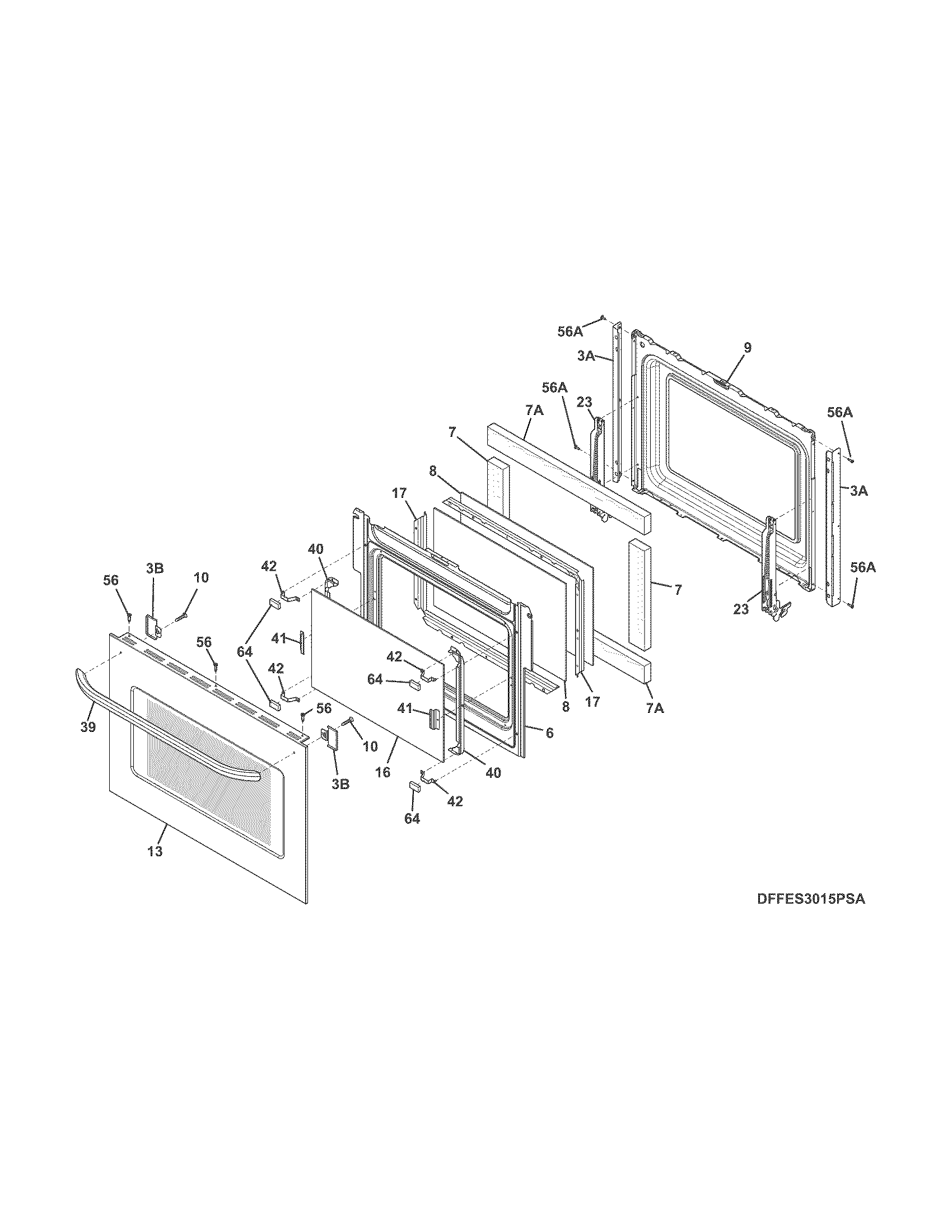

    Door diagram

    Range Oven Door Inner Glass

    Part #316117504

    Replaced by #5304503232

    Info Icon
    Manufacturer substitution
    This part replaces 316117504. Substitute parts can look different from the original.
    In Stock
    $67.96
    8% OFF Phone Price : $73.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Kelvinator Element for Frigidaire LFES3025PFC - Part 5304533520

    Top/drawer diagram

    Tappan Range Dual Radiant Surface Element

    Part #316282000

    Replaced by #5304533520

    Info Icon
    Manufacturer substitution
    This part replaces 316282000. Substitute parts can look different from the original.
    In Stock
    $82.50
    7% OFF Phone Price : $88.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw, #8-32 X 3/16-in for Frigidaire LFES3025PFC - Part 5303288565

    Range Screw, #8-32 X 3/16-in

    Part #5303288565
    This item is not returnable
    In Stock
    $3.85
    21% OFF Phone Price : $4.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Frigidaire LFES3025PFC - Part 316021109

    Body diagram

    Range Screw

    Part #316021109
    In Stock
    $16.27
    11% OFF Phone Price : $18.27Info Icon
    Minus Item
    Qty
    Plus Item
  • Ikea Range Oven Light Rocker Switch for Frigidaire LFES3025PFC - Part 5304527841

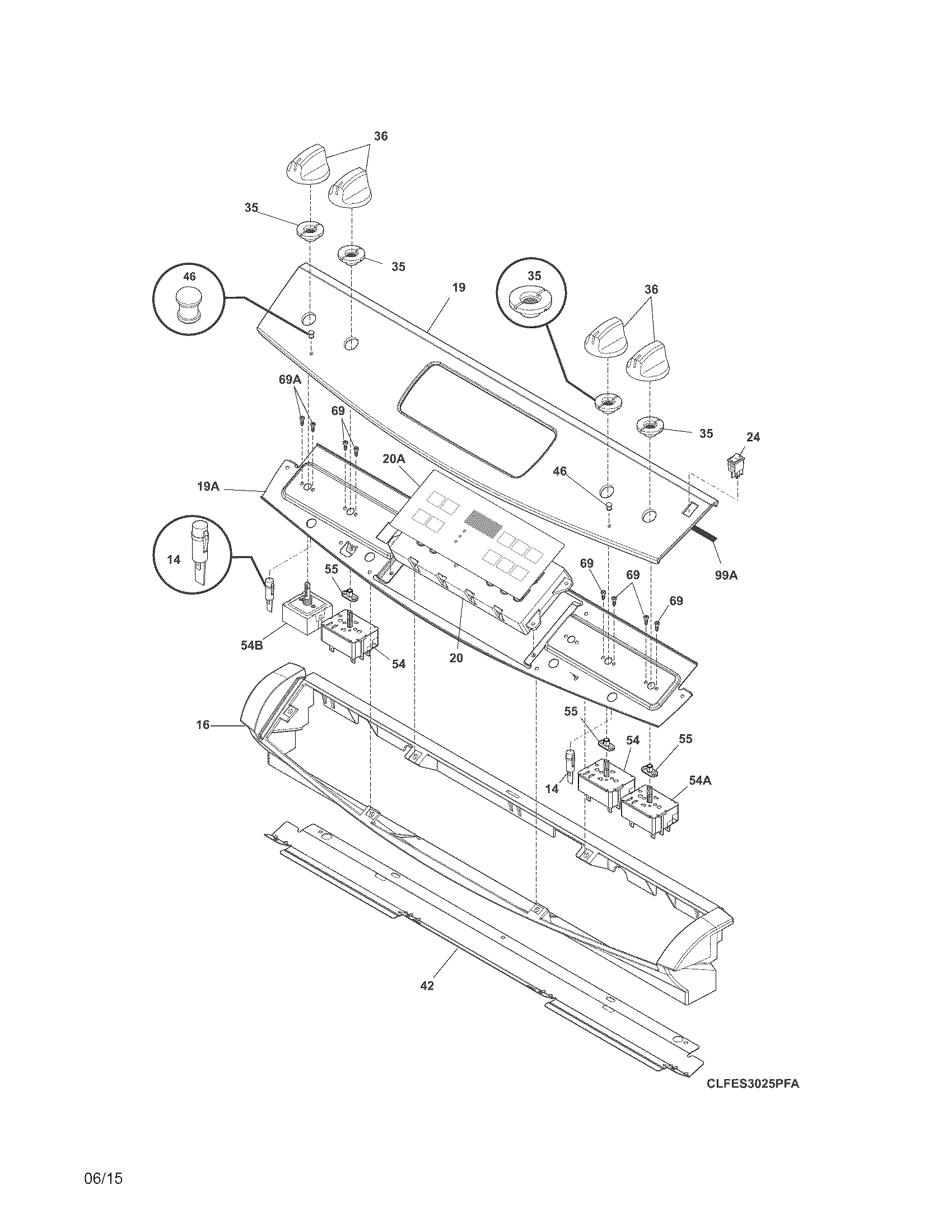

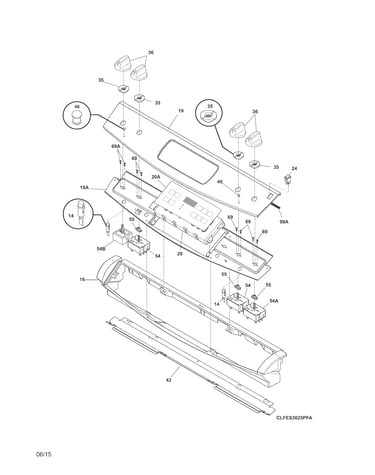

    Backguard diagram

    Light Switch

    Part #316005602

    Replaced by #5304527841

    Info Icon
    Manufacturer substitution
    This part replaces 316005602. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.02
    14% OFF Phone Price : $14.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Frigidaire LFES3025PFC - Part 316021109

    Range Hex Head Screw, #8-18 X 3/8-in

    Part #316021105

    Replaced by #316021109

    Info Icon
    Manufacturer substitution
    This part replaces 316021105. Substitute parts can look different from the original.
    In Stock
    $16.27
    11% OFF Phone Price : $18.27Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Frigidaire LFES3025PFC - Part 316021109

    Range Screw

    Part #316021110

    Replaced by #316021109

    Info Icon
    Manufacturer substitution
    This part replaces 316021110. Substitute parts can look different from the original.
    In Stock
    $16.27
    11% OFF Phone Price : $18.27Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Lock Assembly for Frigidaire LFES3025PFC - Part 5304528836

    Body diagram

    Oven Motor

    Part #139078300

    Replaced by #5304528836

    Info Icon
    Manufacturer substitution
    This part replaces 139078300. Substitute parts can look different from the original.
    In Stock
    $67.25
    8% OFF Phone Price : $73.25Info Icon
    Minus Item
    Qty
    Plus Item

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

View all

Why isn't my range working?

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…

Read more

Why doesn't my range's oven broiler work?

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Read more

Why won't my range's oven heat?

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Read more

Why can't I unlock my range's oven door?

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Read more

Why is my range's oven temperature wrong?

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Read more

Why won't my range's oven bake?

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

Read more

How do I get rid of streaks on my range's oven window?

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Read more
