Hoover
Upright Vacuum

Model #U3301-030 Hoover upright vacuum

Here are the diagrams and repair parts for Hoover U3301-030 upright vacuum, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 175 parts

    Vacuum Beater Bar Bearing

    #2

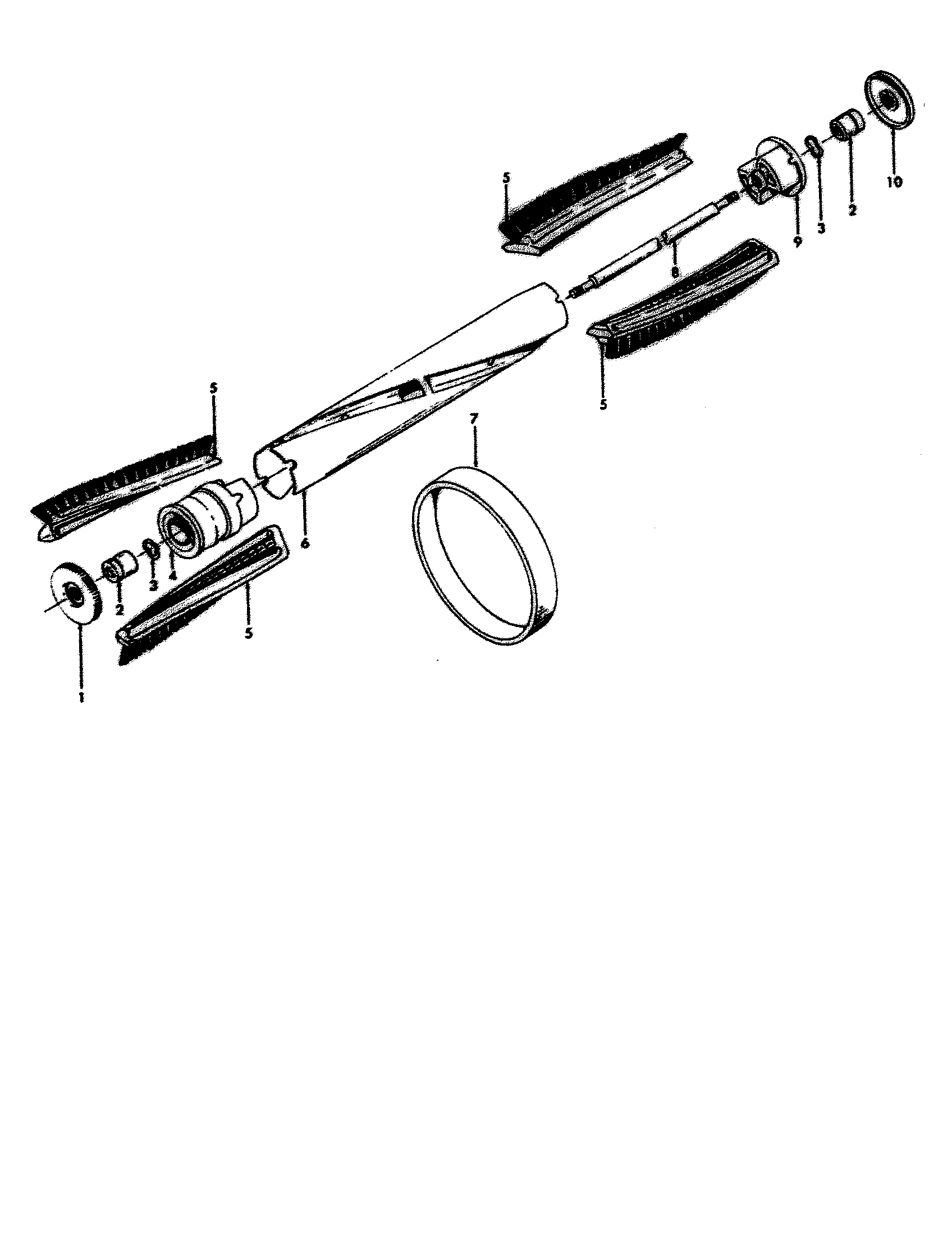

    Agitator Diagram

    Vacuum beater bar bearing

    Part #43267002
    This item is not returnable
    $4.09

    In Stock

    Vacuum Light Bulb

    #39

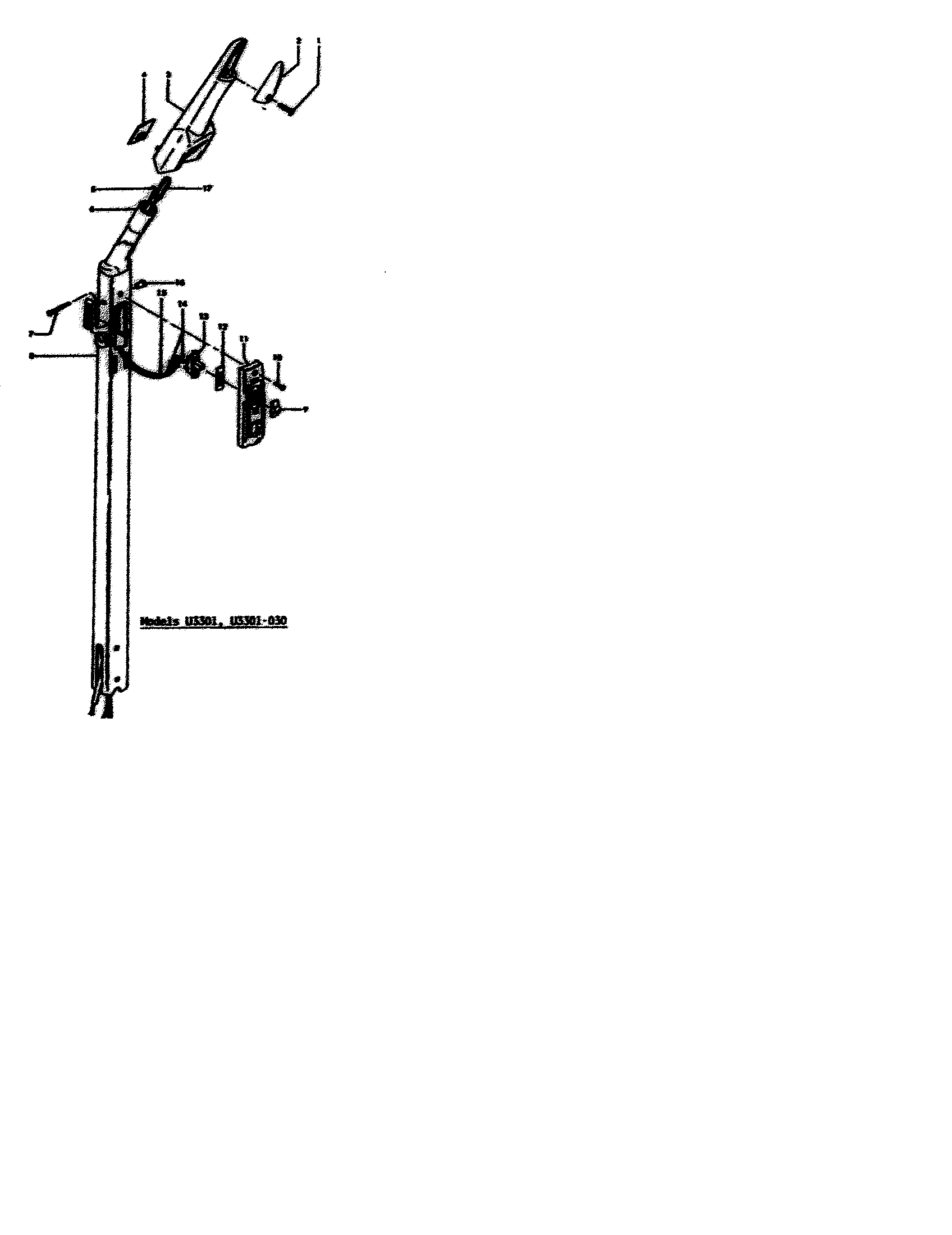

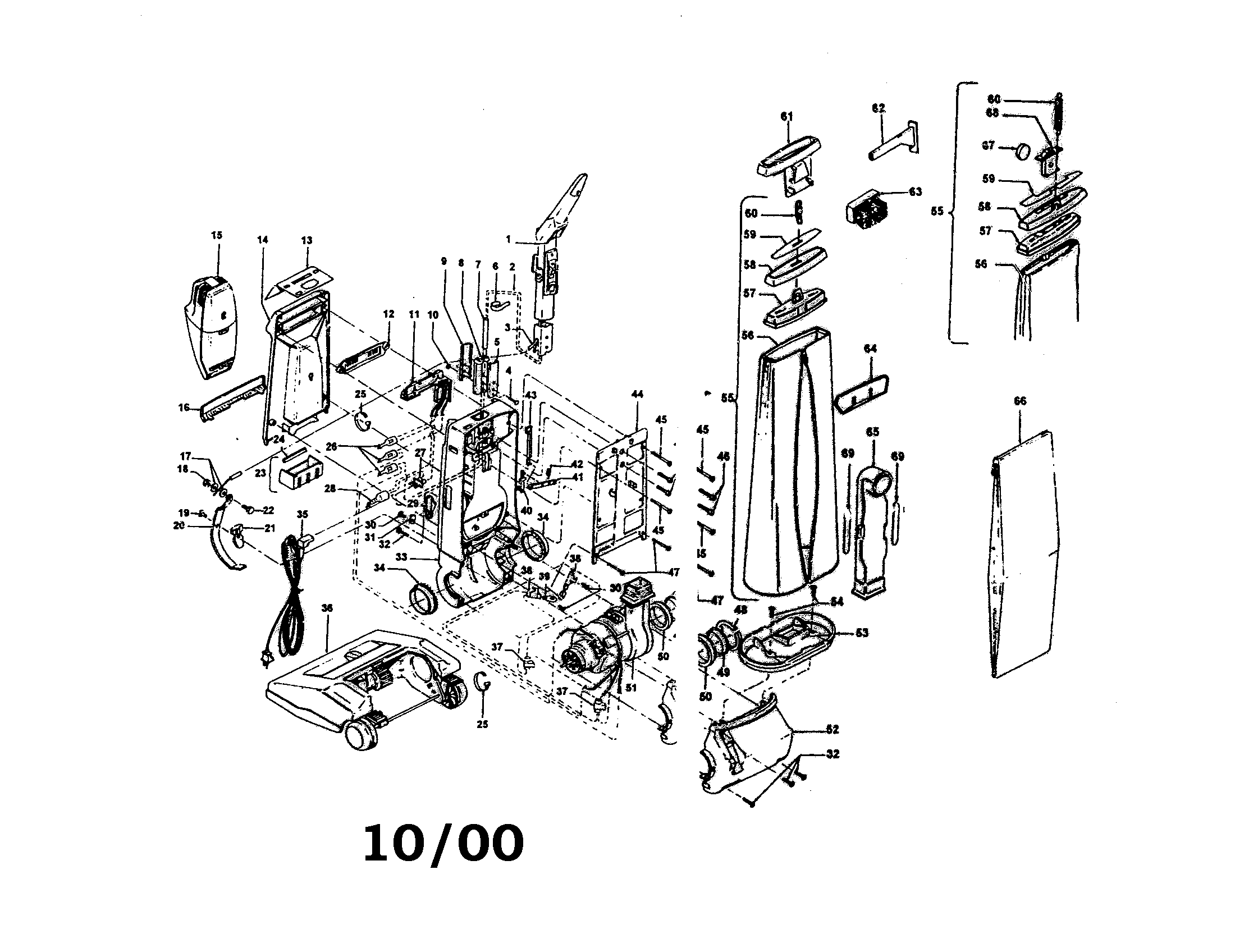

    Handle assembly Diagram

    Vacuum light bulb

    Part #27313101

    The manufacturer no longer makes this part, and there's no substitute part

    Hdl Nameplte

    #4A

    Handle assembly Diagram

    Hdl nameplte

    Part #51638024

    The manufacturer no longer makes this part, and there's no substitute part

    Motor Mount

    #2

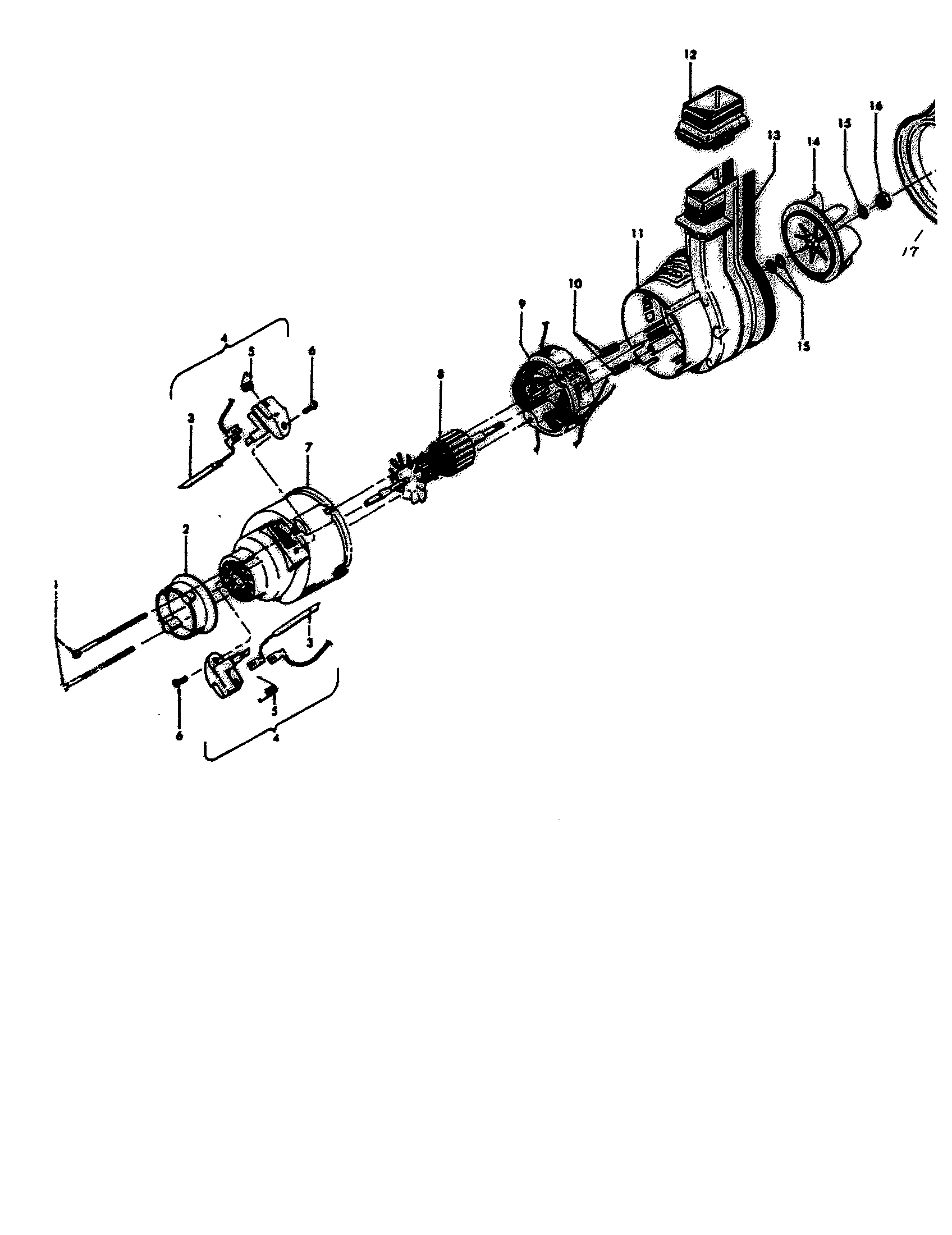

    Motor assembly Diagram

    Motor mount

    Part #32162003

    The manufacturer no longer makes this part, and there's no substitute part

    Lead Wire

    #15A

    Handle assembly Diagram

    Lead wire

    Part #46514009

    The manufacturer no longer makes this part, and there's no substitute part

    Hoover Vacuum Bag, Type A, 3-pack

    #66

    Handle assembly Diagram

    Hoover vacuum bag, type a, 3-pack

    Part #4010001A

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Beater Bar Belt

    #14

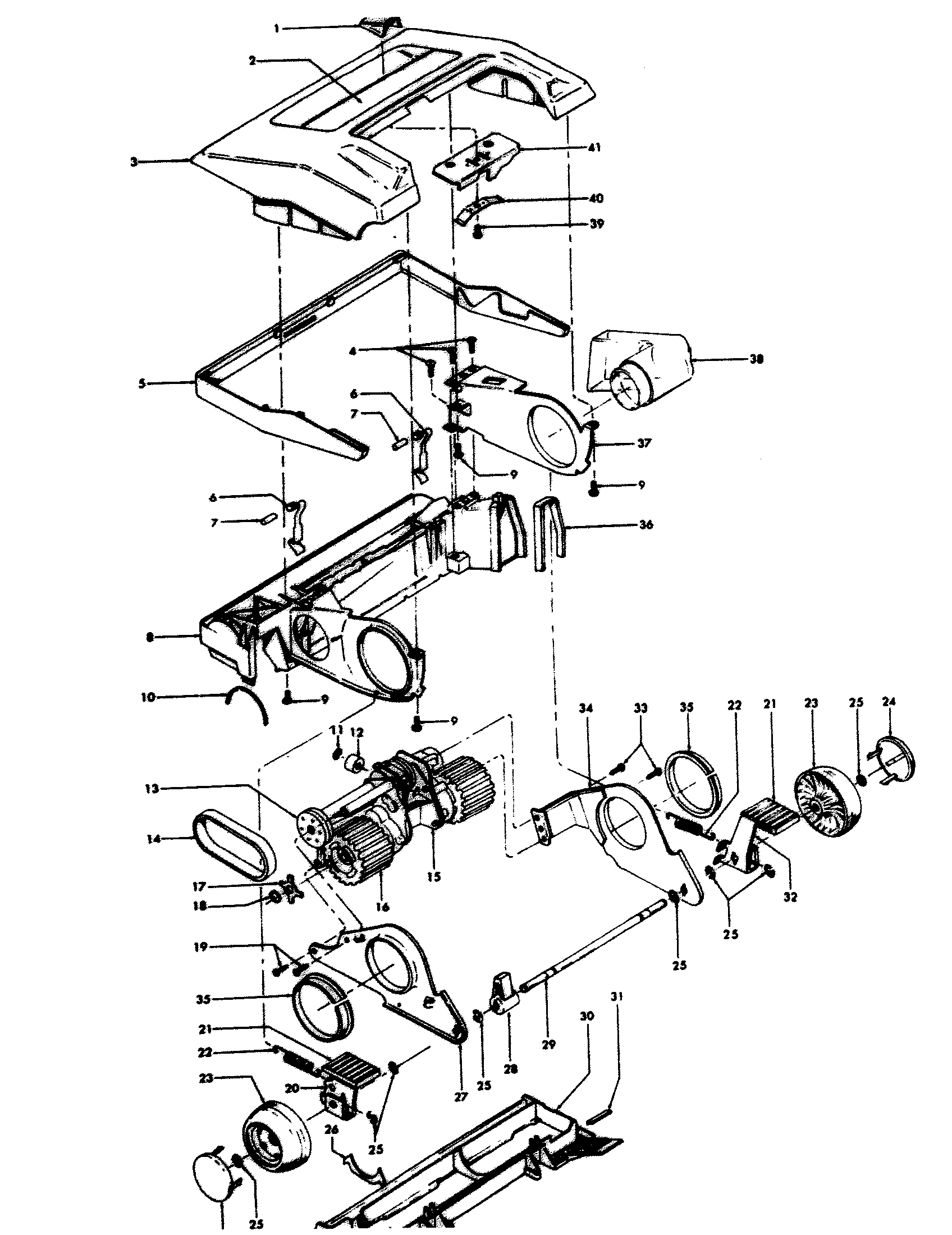

    Hood Diagram

    Vacuum beater bar belt

    Part #160147AG

    The manufacturer no longer makes this part, and there's no substitute part

    Insulated Terminal

    #28

    Handle assembly Diagram

    Insulated terminal

    Part #18972

    The manufacturer no longer makes this part, and there's no substitute part

    Axle

    #29

    Hood Diagram

    Axle

    Part #32547002

    The manufacturer no longer makes this part, and there's no substitute part

    Carpet Cleaner Screw

    #47

    Handle assembly Diagram

    Carpet cleaner screw

    Part #21447019

    The manufacturer no longer makes this part, and there's no substitute part
