GE
Electric Range

Model #JB910KK1CC GE electric range

Here are the repair parts and diagrams for your GE JB910KK1CC electric range.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Showing 10 of 170 parts

Range Oven Light Bulb

#257

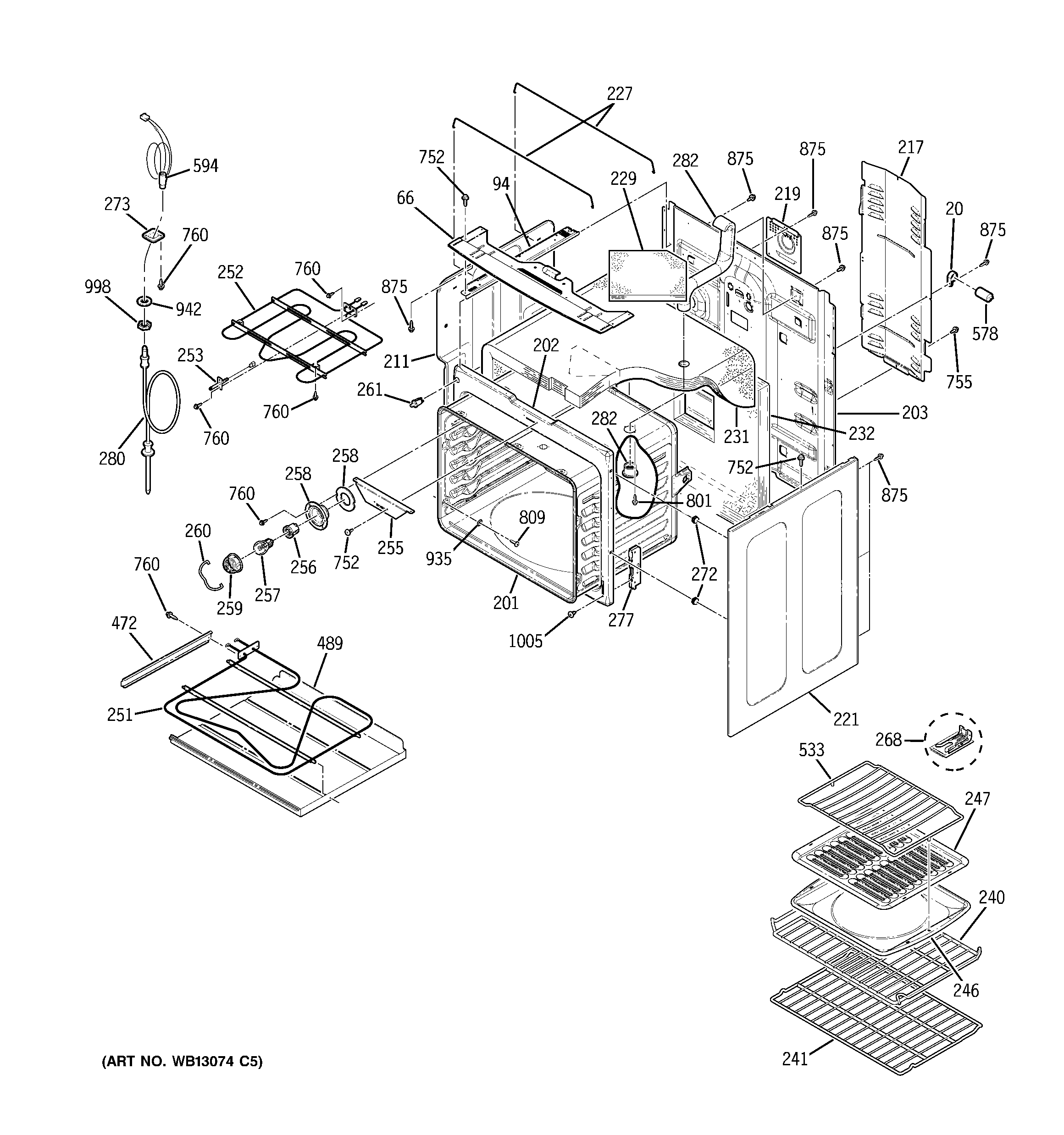

Body parts Diagram

Range oven light bulb

Part #WX12X1510
This item is not returnable
$5.09

In Stock

Range Convection Element

#298

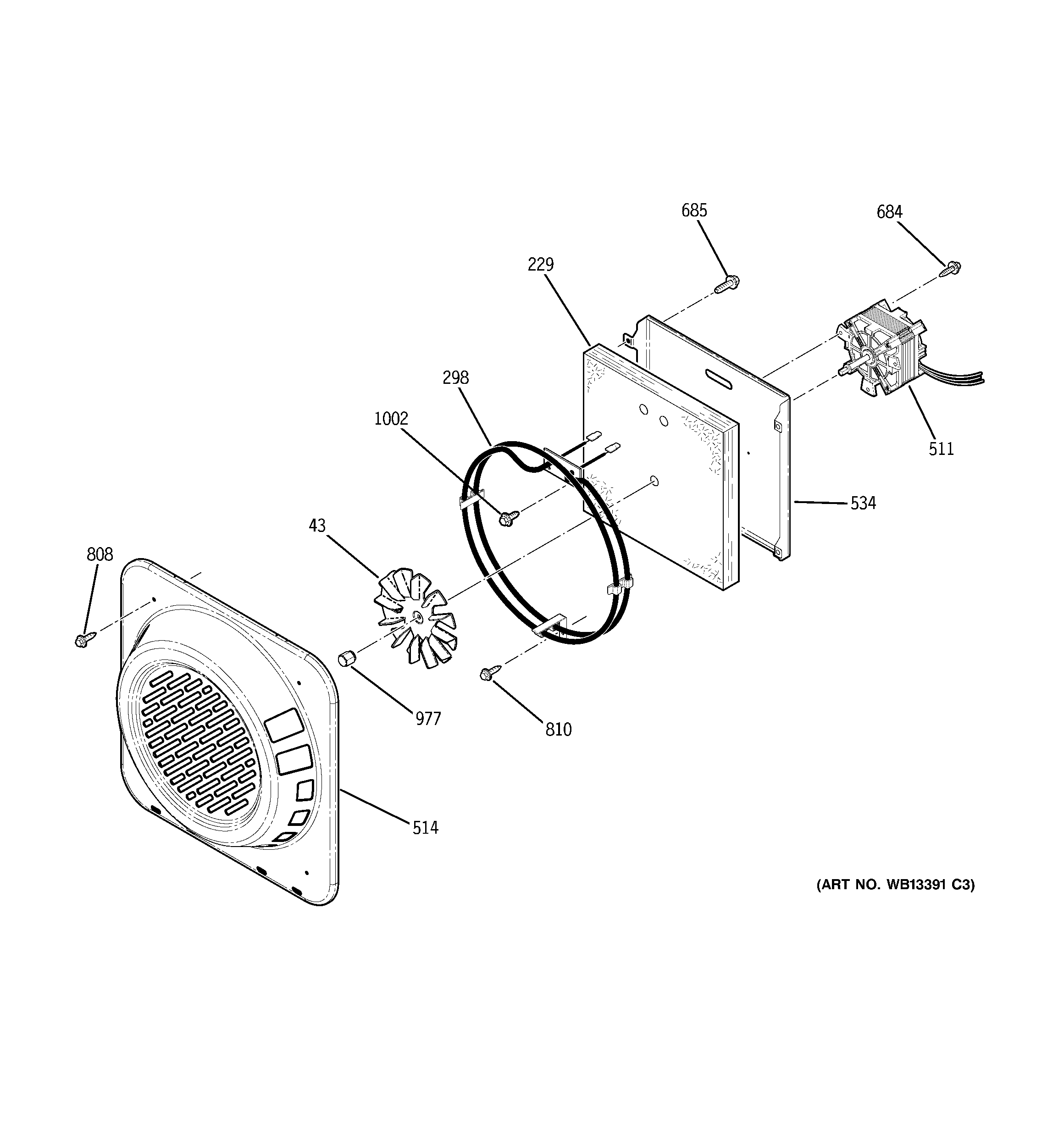

Convection fan Diagram

Range convection element

Part #WB44T10053
$49.47

In Stock

Range Leveling Leg

#296

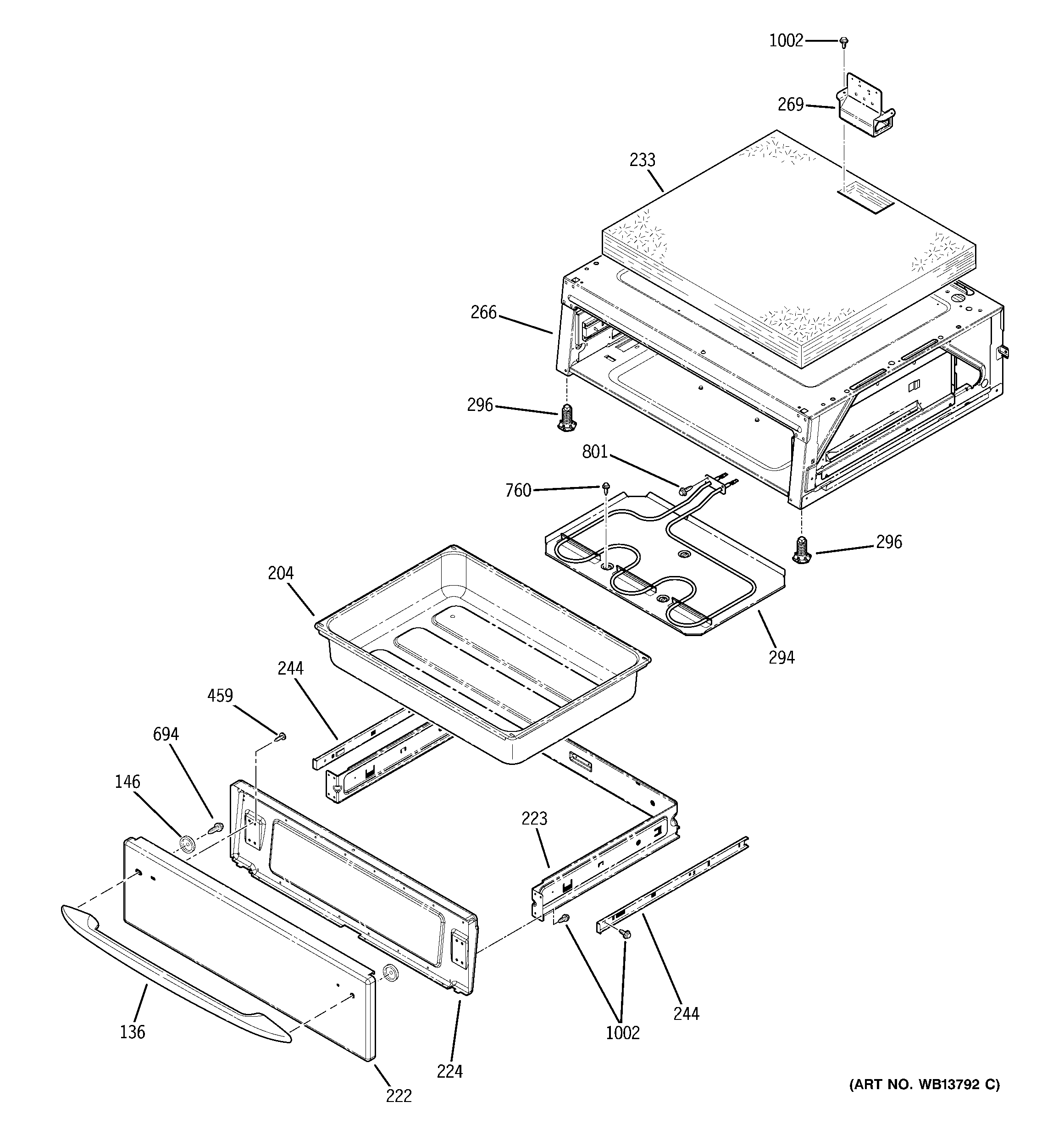

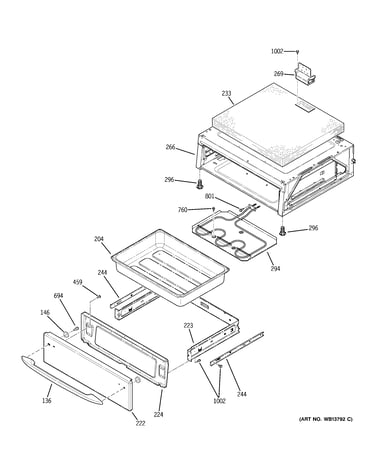

Warming drawer Diagram

Range leveling leg

Part #WB02X10521
$7.96

In Stock

Cooking Appliance Screw, #10-32

#1005

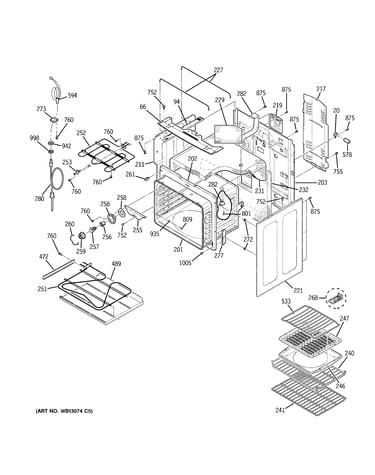

Body parts Diagram

Cooking appliance screw, #10-32

Part #WB01T10008
This item is not returnable
$4.33

In Stock

Range Radiant Surface Element

#56

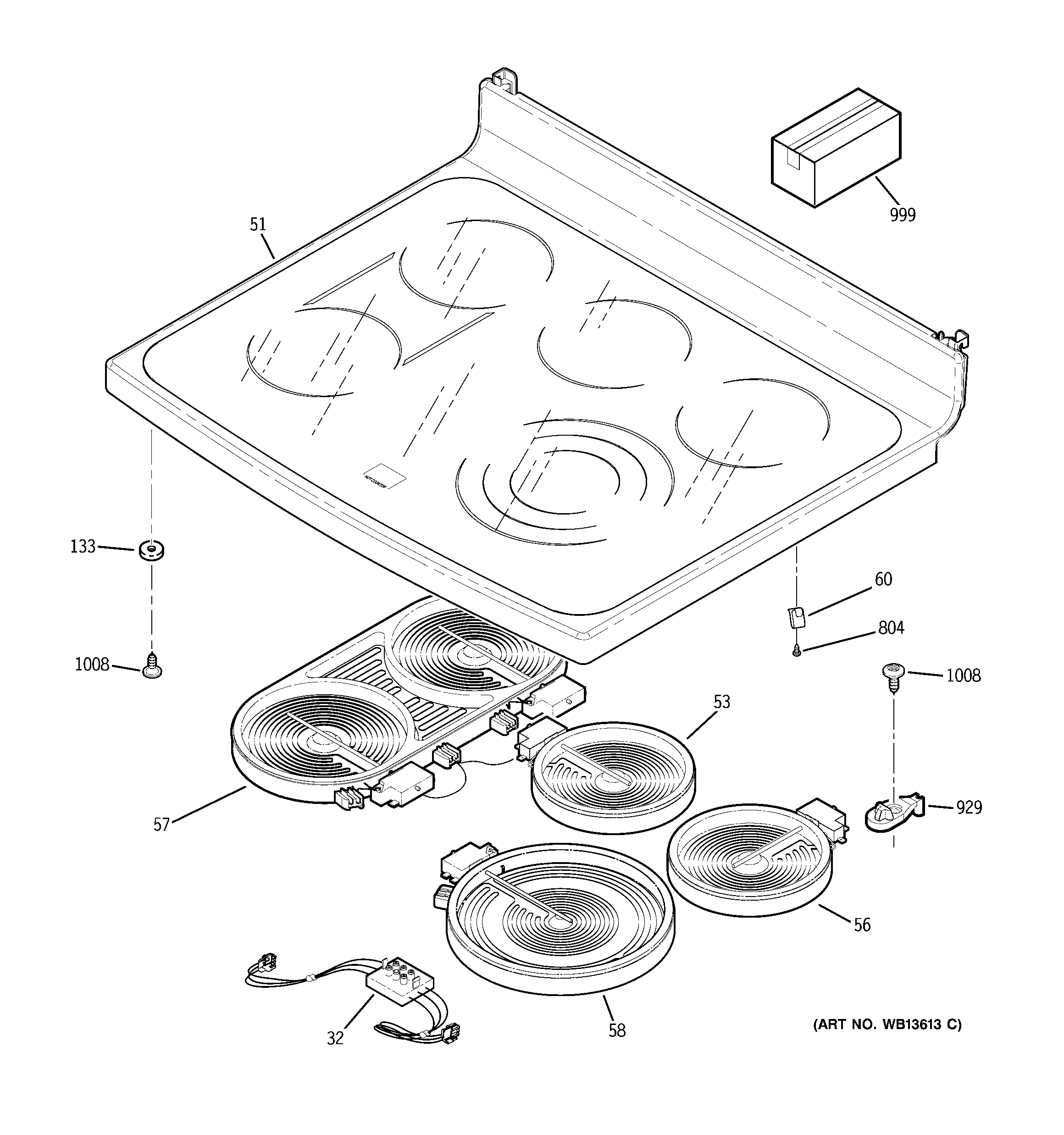

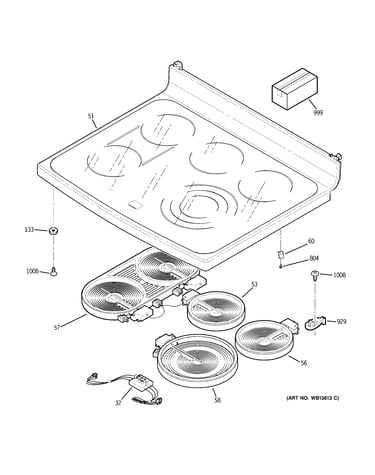

Cooktop Diagram

$57.84

In Stock

Range Warming Drawer Handle (Black)

#136

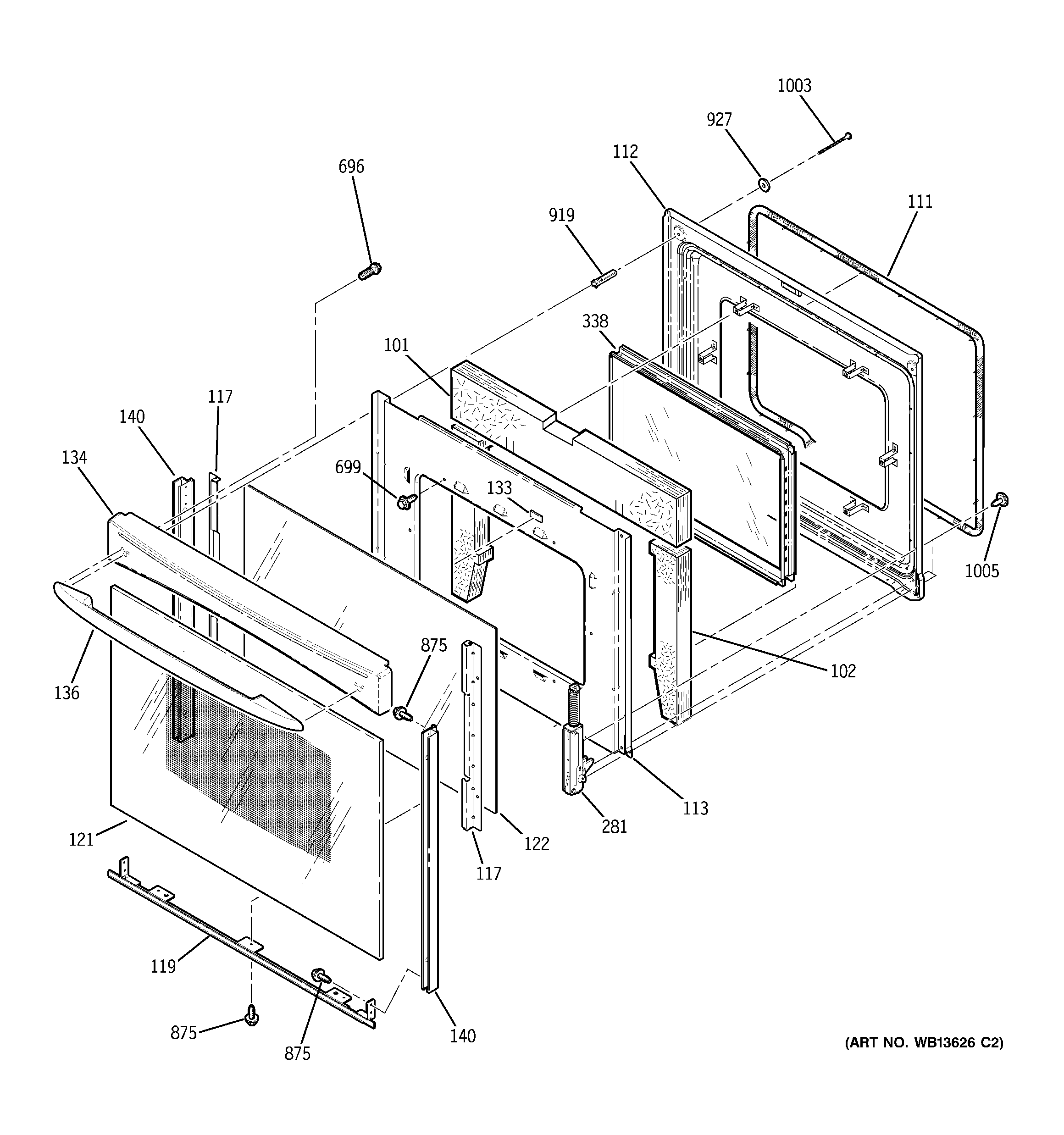

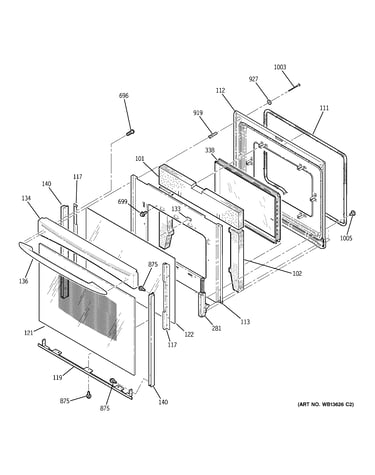

Door Diagram

$74.66

In Stock

Range Surface Element Control Switch Retainer

#28

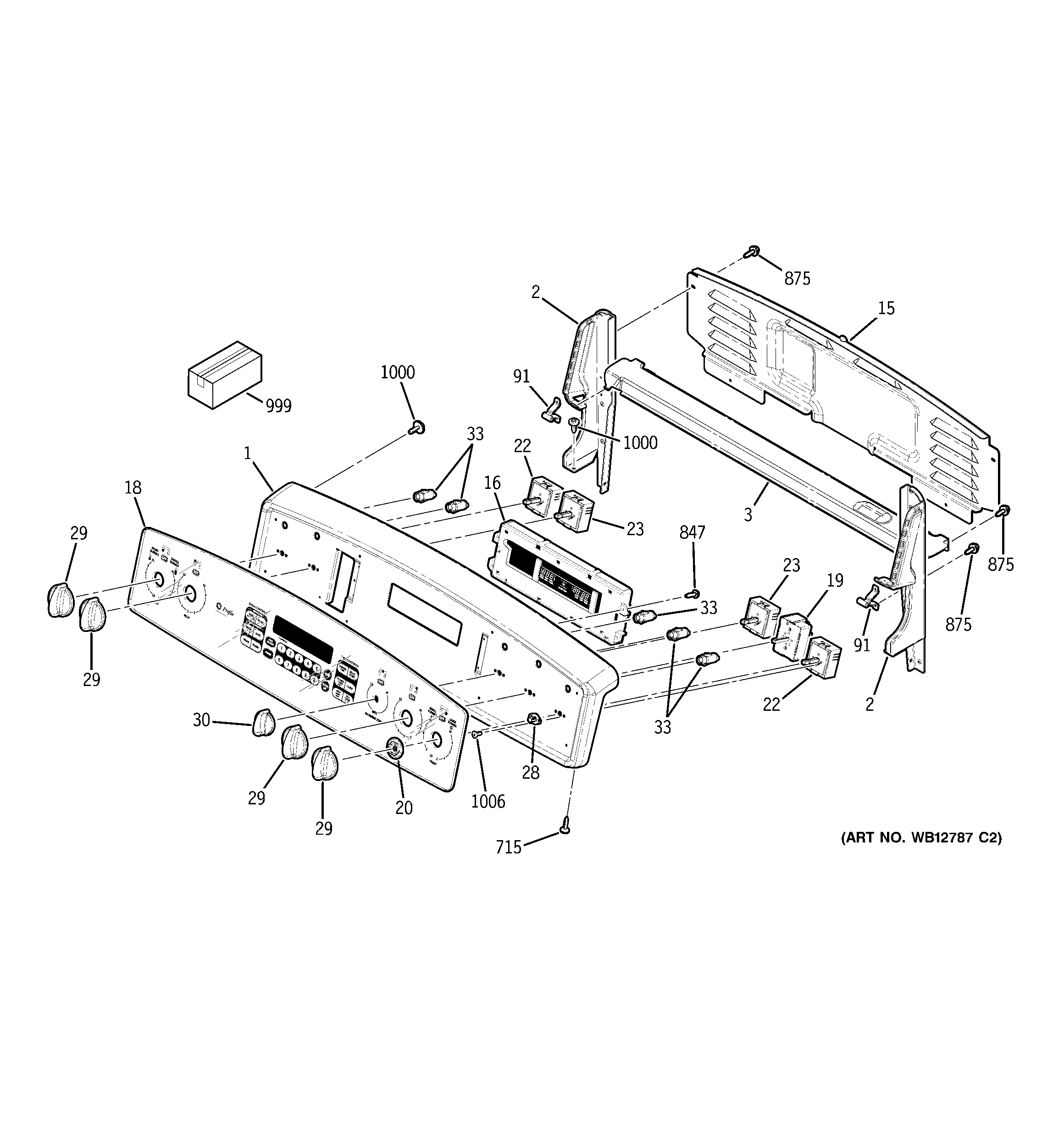

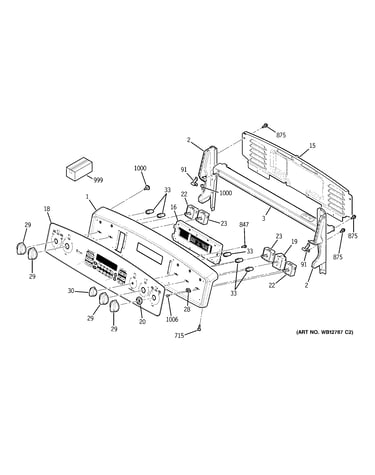

Control panel Diagram

Range surface element control switch retainer

Part #WB02T10047
This item is not returnable
$4.67

In Stock

Radiant Warmer Element

#53

Cooktop Diagram

Radiant warmer element

Part #WB30T10102
$44.46

In Stock

Screw, #8-18

#1002

Warming drawer Diagram

Screw, #8-18

Part #WB01T10017
This item is not returnable
$2.49

In Stock

Range Surface Element Control Switch

#19

Control panel Diagram

$46.18

In Stock
