Are all refrigerators 70 inches high?
No. Refrigerators are not all 70 inches high; heights vary by style and capacity. Many full-size French door and bottom-mount models land near the upper-60s to around 70 inches, but there are also shorter top-freezer units and taller built-in designs. For model-specific installation clearances, use the GI7FVCXWY03 owner's manual.
Typical refrigerator height ranges (what you will see most often)
- Top-freezer refrigerators: often about 61 to 67 inches tall
- Bottom-mount and French door refrigerators: often about 68 to 70 inches tall (hinges can add height)
- Built-in or specialty tall units: can be 72 inches to 84 inches or more
- Counter-depth vs. standard-depth: depth changes more than height, but some counter-depth models are slightly taller
How to measure correctly (so the new fridge fits)
Measure in three places and use the largest number.
- Floor to the lowest overhead cabinet/soffit
- Floor to the top of the hinge (not just the cabinet)
- Width at the front and back of the opening (walls can be out of square)
- Depth to the front edge of counters (include door swing and handles)
- Leave space for airflow; Whirlpool recommends about 1/2 inch at the top and behind on many models
Clearance checklist for Whirlpool GI7FVCXWY03
The exact dimensions depend on the configuration, but these clearances are commonly required:
| Area | Typical clearance to plan for | Why it matters |
|---|---|---|
| Top and back | 1/2 in | Ventilation and efficient cooling |
| Side near a wall | 3 3/4 in minimum | Door swing clearance |
| Back (ice maker models) | Extra space | Water line connection room |
Why it matters
A refrigerator that is even 1 inch too tall can prevent proper ventilation, make leveling difficult, and cause door alignment or gasket sealing issues. Planning for hinge height and required clearances helps avoid warm temperatures and excessive compressor run time.
Last updated: February 2026
Do you remove cardboard from the bottom of a Whirlpool refrigerator?
No. On Whirlpool refrigerator model GI7FVCXWY03, any cardboard-like panel or cover at the bottom or rear is typically there to protect components and help manage airflow; it should stay in place. Only remove loose shipping materials from inside and outside the cabinet.
What cardboard should be removed vs. left in place
Use this quick check to avoid removing a protective cover by mistake:
- Remove tape, foam blocks, plastic wrap, and any loose packing pieces
- Remove cardboard spacers used only to protect shelves, drawers, or doors in transit
- Leave in place any rigid panel attached with screws or clips near the compressor area
- Leave in place any cover that looks like part of the machine base or rear lower section
- Leave in place anything that directs air across coils or shields wiring
| What you see | Typical purpose | What we recommend |
|---|---|---|
| Loose cardboard insert or spacer | Shipping protection | Remove and recycle |
| Attached bottom/rear panel (cardboard or fiberboard) | Airflow and component protection | Leave installed |
| Base grille at the front | Air intake and access | Remove only for cleaning/service, then reinstall |
Why it matters
That lower cover helps protect wiring and refrigeration components and can support proper airflow. Removing it can lead to overheating, noise, or performance issues.
Model-specific notes from the manual
The GI7FVCXWY03 manual focuses on removing packaging materials (tape, glue residue, and shipping materials) and also notes using cardboard or hardboard to protect your floor when moving the refrigerator. For the correct access points and what is considered packaging vs. installed panels, follow the GI7FVCXWY03 owner's manual.
If you are trying to clean under the refrigerator
- Unplug the refrigerator before moving it
- Pull the unit straight out (do not “walk” it)
- Protect the floor with cardboard or hardboard
- Vacuum dust from accessible areas and reinstall any grilles/covers you removed
Last updated: February 2026

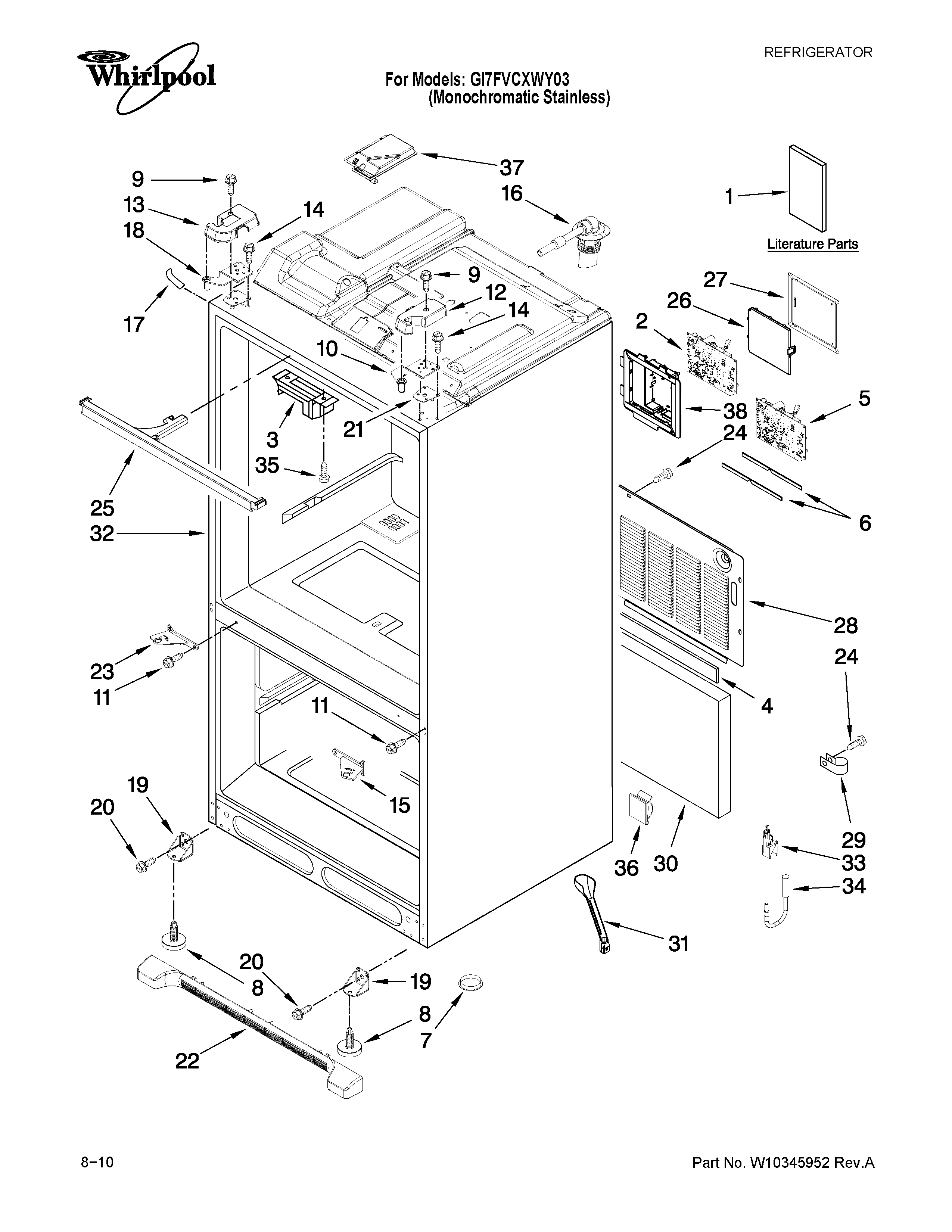

How do I remove the base grille on my Whirlpool refrigerator?
To remove the base grille on your Whirlpool refrigerator model GI7FVCXWY03, grasp the grille firmly at the bottom front and pull it straight toward you until it releases from the clips. Reinstall by aligning it with the leveling area and snapping it back into place (then secure any screws, if equipped).
Quick steps (GI7FVCXWY03)
- Unplug the refrigerator or disconnect power before working near wiring or moving parts.
- Stand in front of the unit and locate the base grille at the very bottom.
- Grasp the grille firmly with both hands.
- Pull the grille straight toward you to pop it off.
- Set it aside carefully to avoid cracking the plastic tabs.
- To reinstall, align the ends with the leveling assemblies and press until it snaps in.
When you typically remove the base grille
Removing the base grille gives you access to common maintenance areas at the bottom front of the refrigerator.
| Task | Why you remove the grille | What to do after |
|---|---|---|
| Clean condenser area | Helps airflow and efficiency | Snap grille back on when finished |
| Door/leveling adjustments | Access to leveling screws and brake foot | Confirm doors close smoothly |
| Service access | Easier access for inspection | Restore power after reassembly |
Tips to avoid damage
- Pull evenly from both sides so the grille releases without twisting.
- If it feels stuck, check for retaining screws at the ends and remove them first.
- Keep the grille square to the cabinet while pulling to protect the mounting clips.
Why it matters
A properly installed base grille helps protect components and supports correct airflow across the condenser area, which helps your Whirlpool GI7FVCXWY03 cool efficiently.
For the exact removal wording and related steps used during door/hinge service, follow the GI7FVCXWY03 owner’s manual.
Last updated: February 2026
Why is my Whirlpool bottom freezer frosting up?
Frost buildup in the freezer of your Whirlpool GI7FVCXWY03 usually happens when warm, humid air leaks into the freezer and freezes on the evaporator area. The most common causes are a door that is not sealing, frequent door openings, or a defrost system or drain issue.
Quick checks that fix most frosting problems
- Make sure the freezer door closes fully and is not blocked by baskets, bags, or an overfilled drawer.
- Check the door gasket for gaps, rips, or areas that look flattened.
- Limit long door openings; humid room air turns into frost fast.
- Let hot foods cool before loading; steam becomes frost.
- Confirm the temperature controls are set to normal (not the coldest setting).
Most common causes (and what to do)
| Likely cause | What you’ll notice | What we recommend |
|---|---|---|
| Door seal leak or misalignment | Frost near the door edge, corners, or on packages | Inspect and clean the gasket; correct door alignment per the GI7FVCXWY03 owner’s manual |
| Defrost drain problem | Ice sheet on freezer floor, water puddles after defrost | Clear the drain path; if the tube is damaged, replace the refrigerator drain tube W10619951 |
| Defrost system issue | Heavy frost on the back wall, reduced airflow, warming temps | Unplug and fully defrost, then monitor; if it returns quickly, troubleshoot the defrost circuit and controls |
| Airflow blocked inside freezer | Frost in one area, uneven temps | Repack items to keep vents clear and allow air circulation |
Why it matters
A frosted-up freezer restricts airflow across the evaporator, so the refrigerator has to run longer to maintain temperature. That can lead to warmer food temps, more noise, and higher energy use.
When to stop and service
- Frost returns within a few days after a full manual defrost
- Freezer temperature rises above 10°F
- You hear the fan struggling or airflow is weak at the vents
Last updated: February 2026
