Craftsman 917289362 tractor yts4000 Parts

Yes, replacing the engine on your Craftsman 917289362 front-engine lawn tractor is worth it when the tractor’s deck, transmission, and steering are still solid and the total engine-swap cost stays well below the cost of replacing the whole tractor. If multiple major systems are worn out, replacement makes more sense.

Quick decision checklist

• The mower deck is straight (no cracks, severe rust-through, or bent hangers)
• The transmission drives smoothly (no slipping, grinding, or loss of motion)
• The wiring and safety switches are intact (no widespread corrosion or hacked repairs)
• You can do basic maintenance and adjustments after the swap (throttle, belts, deck level)
• The engine failure is isolated (not the result of repeated overheating or chronic neglect)

Cost and value guide (practical rule)

Use this simple comparison to decide:

What you’re comparing	Good candidate to replace engine	Better to replace tractor
Total repair cost vs. replacement	Under ~50%	Around 50% or more
Condition of deck and driveline	Strong	Multiple worn systems
How long you plan to keep it	Several seasons	One season or less
Your DIY comfort level	Moderate to high	Low

What to inspect on this model before you commit

These items commonly determine whether an engine swap pays off:

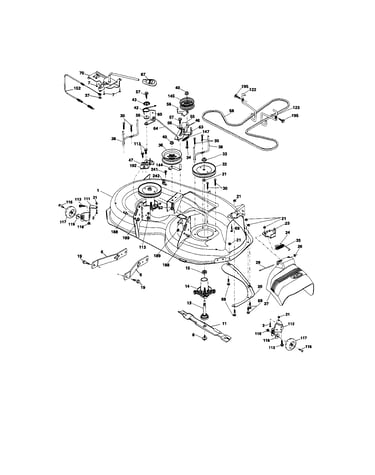

• Deck spindle/mandrel area: If the deck is noisy or wobbly, plan for spindle work; the lawn tractor mandrel housing 587819701 is a common deck wear item.

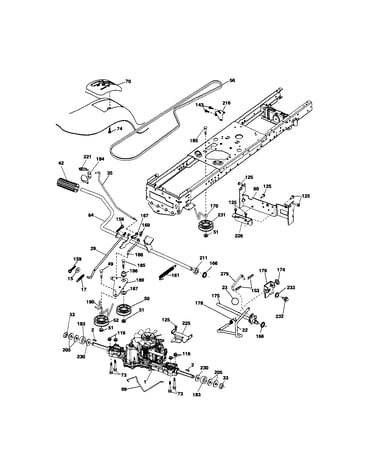

• Belts and pulleys: A worn drive belt or idler can mimic power problems; check the lawn tractor ground drive or blade drive belt 592855201 and the husqvarna lawn tractor ground drive idler pulley 532194327.
• Cut quality parts: If the tractor otherwise runs well, fresh blades can restore performance; consider the lawn tractor 42-in deck high-lift blade 532138971.

Why it matters

An engine swap only delivers value if the rest of the tractor can reliably use that new power. The manual also emphasizes operating at full throttle for best mowing performance, so a healthy engine plus a sound deck and belt system is what produces a clean cut and proper discharge.

Where to confirm procedures and settings

For model-specific operating guidance (throttle use, mowing technique, and troubleshooting basics), use the owner's manual. For parts shopping beyond what’s listed for this model, search by model number on Sears PartsDirect.

Last updated: February 2026

For the Craftsman lawn tractor model 917289362, we use SAE 30 engine oil when temperatures are above 32°F, and SAE 5W30 when temperatures are below 32°F. This matches the oil viscosity guidance in the 917289362 owner's manual.

Oil type and capacity for model 917289362

Use the oil viscosity that matches your outdoor temperature, and fill to the dipstick “FULL” mark (do not overfill).

• Above 32°F: SAE 30
• Below 32°F: SAE 5W30
• Oil capacity with filter: 64 oz
• Oil capacity without filter: 60 oz
• Check oil with the tractor on level ground

Quick reference table

Outdoor temperature	Recommended oil type	Notes
Above 32°F	SAE 30	Good protection in warmer mowing conditions
Below 32°F	SAE 5W30	Easier cold starting and better cold-flow

How we recommend checking the oil level

Checking oil correctly prevents hard starting, smoking, and premature engine wear.

• Park on a level surface and let the engine cool
• Remove the oil fill cap/dipstick, wipe clean
• Reinsert and tighten, wait a few seconds, then remove to read
• Add oil slowly until it reaches the FULL mark
• Recheck after adding; avoid overfilling

Why it matters

Using the correct viscosity helps the engine stay properly lubricated across temperature changes. Too thick in cold weather can make starting difficult; too thin in hot weather can reduce protection under load.

Last updated: February 2026

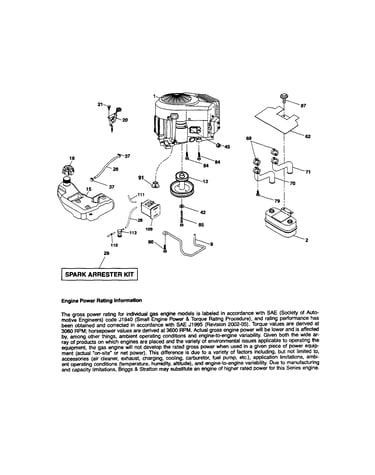

For Craftsman riding mower model 917289362, the operator’s manual identifies it as a 24.0 HP (rated by the engine manufacturer) 42-inch mower with a low-emission engine design. For the exact engine make and model used on your tractor, match the engine ID label to the specifications in the 917289362 owner's manual.

How to identify the exact engine on your 917289362

We use the engine’s ID tag (not the tractor model number) to confirm the engine manufacturer and model.

• Park on a level surface, set the parking brake, and remove the key
• Lift the hood and locate the engine ID label (often on the blower housing, valve cover, or near the starter)
• Write down the engine model, type, and code (or serial)
• Compare those numbers to the engine information section in the 917289362 owner's manual
• Use the engine ID when ordering tune-up parts (filters, spark plug, belts) to avoid mismatches

What we can confirm from the manual (model-specific)

The manual for this tractor family calls out these key points:

Item	What it tells you
Rated horsepower	24.0 HP (engine-manufacturer rating)
Mower deck size	42-inch
Engine design note	Low-emission engine that may operate differently than older engines

Why it matters

Craftsman tractors can share the same tractor model family while using different engine variants over time. Using the engine ID label prevents ordering the wrong ignition parts, fuel parts, or maintenance items.

Parts that commonly relate to engine starting and running

If your question is tied to a no-start or intermittent start issue, these model-matched parts are common checks:

• Lawn tractor ignition switch 532193350 (key switch and start/run contacts)
• Lawn tractor starter solenoid 582042802 (routes battery power to the starter)

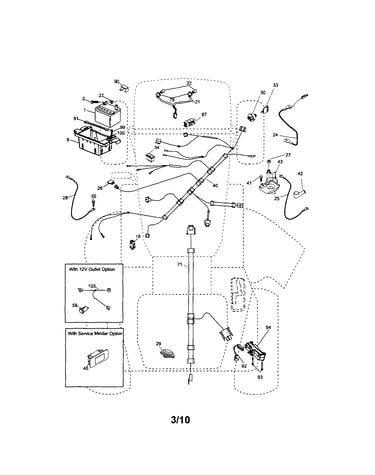

• Lawn tractor ignition harness 532401098 (wiring between switch, safety circuits, and solenoid)

For broader parts lookup by model number, we also support search and ordering through Sears PartsDirect.

Last updated: February 2026

Replacing the engine on a Craftsman riding tractor like model 917289362 typically runs $700 to $3,000 installed. The total depends on the replacement engine price, shop labor rate, and whether you also replace wear items (belts, wiring, fuel parts) during the swap.

Typical cost breakdown

Most of the bill is the engine itself plus labor to remove the old engine, transfer pulleys and brackets, and test-run the tractor.

• Replacement engine: commonly $500 to $2,000+ (varies by horsepower, crankshaft type, and availability)
• Labor: commonly 4 to 8 hours for a riding mower/tractor engine swap
• Shop supplies and incidentals: oil, filter, fuel line clamps, hardware
• Optional add-ons: battery, belts, electrical parts, blade service

What to check before you buy an engine

Many “bad engine” complaints are actually starting, fuel, or safety-interlock issues. Use the troubleshooting steps and safety procedures in the owner's manual to confirm the engine is the root cause.

• Battery condition and cable connections
• Starter circuit and solenoid operation
• Ignition switch and safety switches (seat, brake, PTO)
• Fuel quality and fuel delivery (stale gas, clogged filter)
• Compression and spark (basic engine health)

Parts that commonly get replaced during related repairs

If your tractor has no-start or intermittent electrical symptoms, these model-compatible parts are often involved:

• Lawn tractor starter solenoid 582042802
• Lawn tractor ignition switch 532193350
• Lawn tractor ground drive or blade drive belt 592855201 (if belt wear is contributing to poor drive or deck performance)

Quick comparison table

Option	Typical installed total	When it makes sense
Engine replacement only	$700 to $2,200	Tractor is otherwise in good condition
Engine plus wear items	$1,200 to $2,700	Belts, wiring, or fuel parts are also worn
Multiple system repairs plus engine	$2,000 to $3,000	Electrical and deck/drive issues stack up

Why it matters

An engine swap is a big investment; confirming the real failure first prevents spending engine money on a tractor that only needed an electrical part or fuel-system service.

You can order model 917289362 replacement parts from the parts list for this tractor, or search by model number on Sears PartsDirect.
