Husqvarna
Gas Chainsaw

Model #36 Husqvarna chainsaw

Here are the diagrams and repair parts for Husqvarna 36 chainsaw, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 144 parts

    Spark Screen

    #13

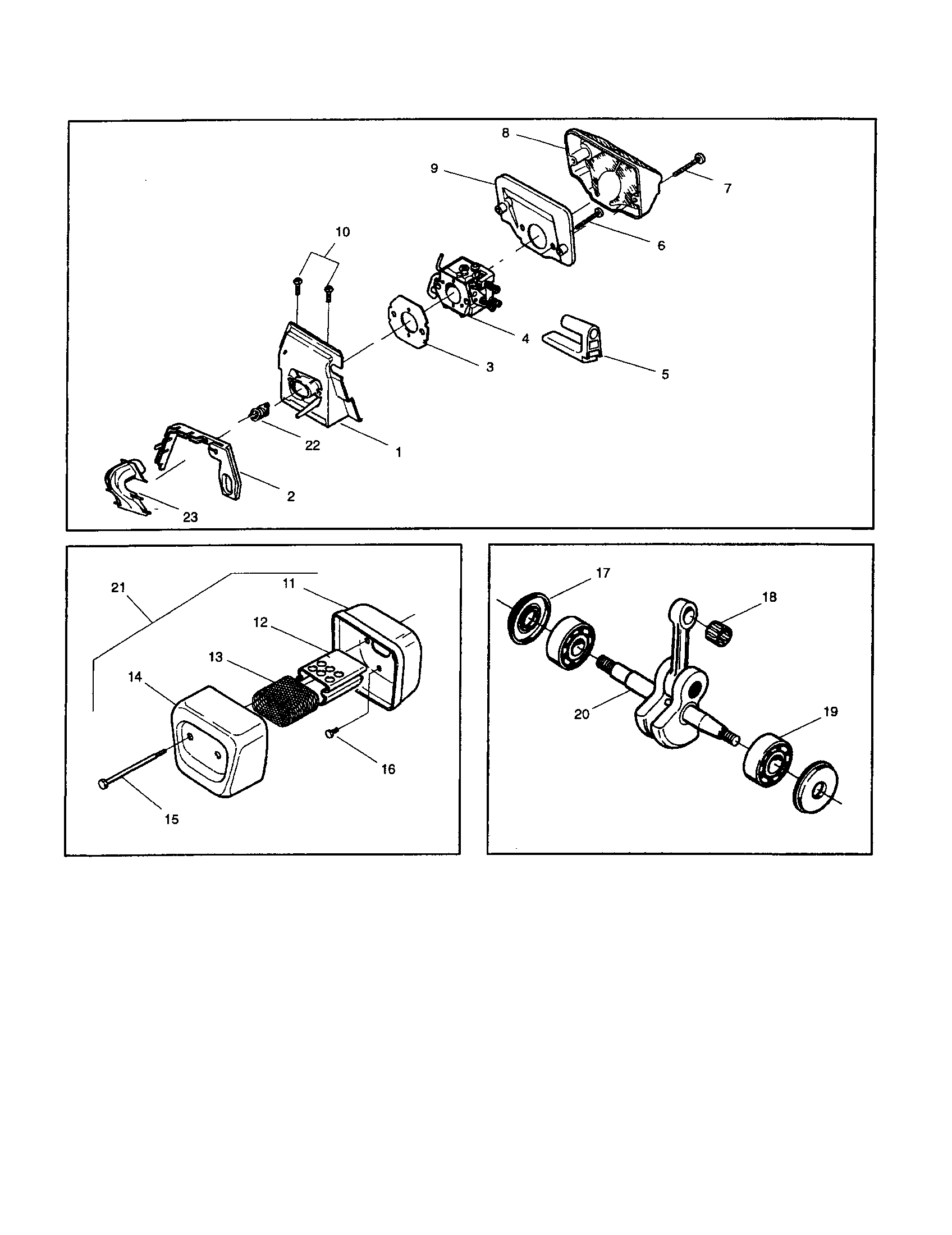

    Crankshaft/carburetor/muffler Diagram

    Spark screen

    Part #530029810
    ?
    Manufacturer substitution
    This part replaces 530-029810. Substitute parts can look different from the original.
    This part replaces 530-029810
    This item is not returnable
    $4.19

    In Stock

    Chainsaw Carburetor Intake Boot Connector

    #22

    Crankshaft/carburetor/muffler Diagram

    Chainsaw carburetor intake boot connector

    Part #530029814
    ?
    Manufacturer substitution
    This part replaces 530-029814. Substitute parts can look different from the original.
    This part replaces 530-029814
    $9.34

    In Stock

    Chainsaw Chain Brake Assembly

    #25

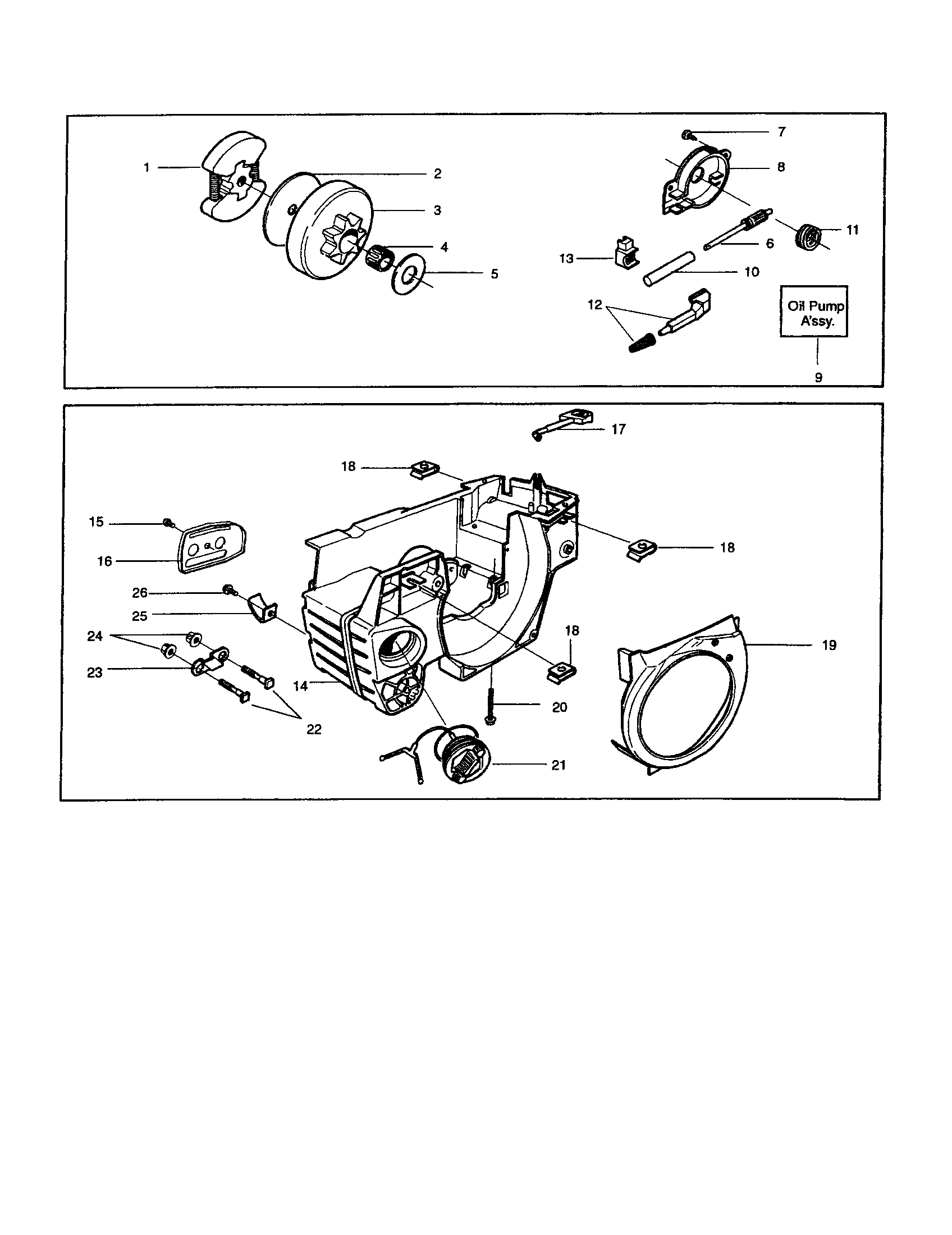

    Clutch drum/chassis Diagram

    Chainsaw chain brake assembly

    Part #530029850
    ?
    Manufacturer substitution
    This part replaces 530-029850. Substitute parts can look different from the original.
    This part replaces 530-029850
    This item is not returnable
    $3.73

    In Stock

    Chainsaw Bar Adjuster Tool

    #NI01

    All parts Diagram

    Chainsaw bar adjuster tool

    Part #530031163
    ?
    Manufacturer substitution
    This part replaces 530-031135. Substitute parts can look different from the original.
    This part replaces 530-031135
    This item is not returnable
    $5.45 |
    8% OFF MSRP:$5.90

    In Stock

    Line Trimmer Carburetor Diaphragm Gasket

    #3

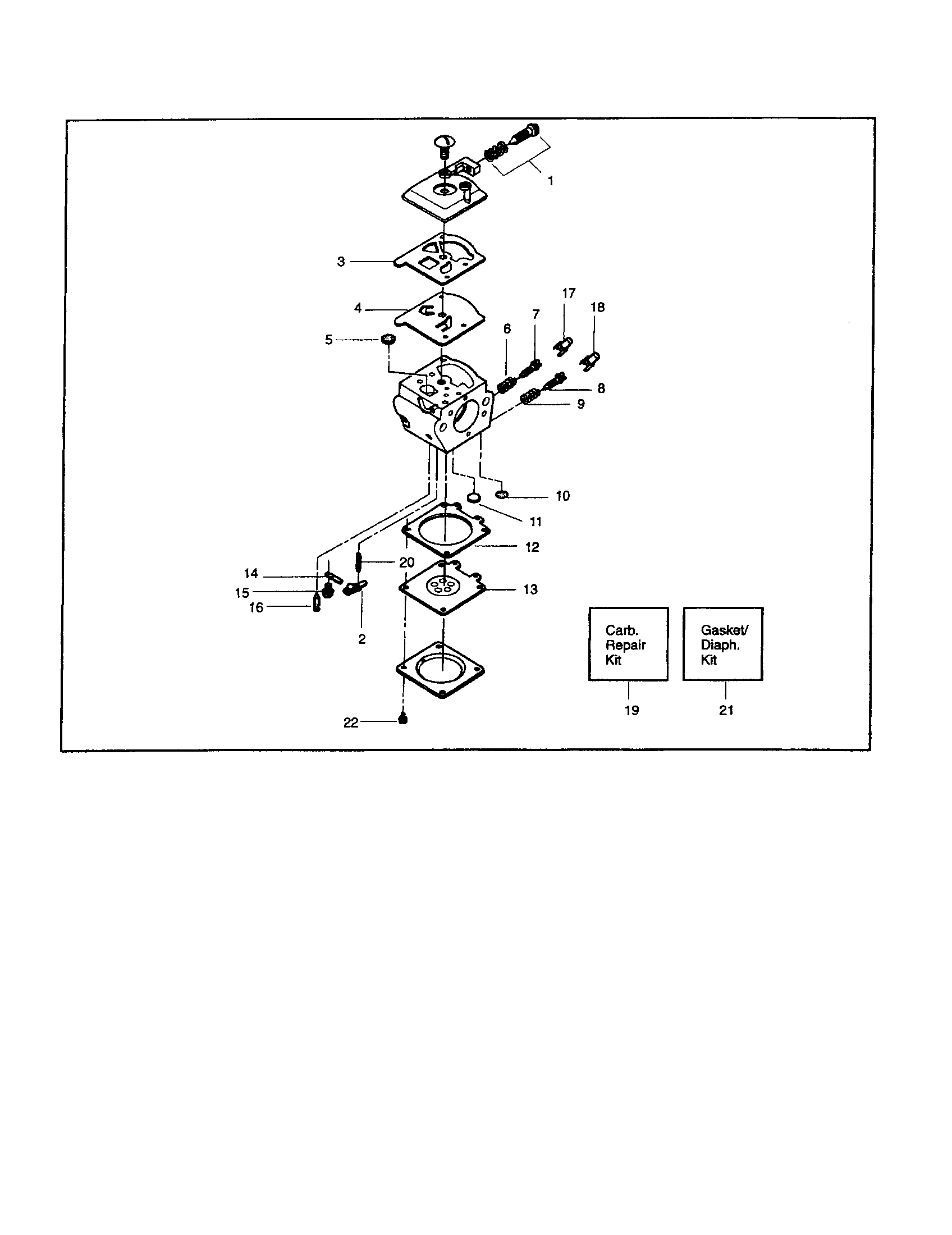

    Carburetor Diagram

    Line trimmer carburetor diaphragm gasket

    Part #530035164
    ?
    Manufacturer substitution
    This part replaces 530-035164. Substitute parts can look different from the original.
    This part replaces 530-035164
    This item is not returnable
    $1.26 |
    57% OFF MSRP:$2.93

    In Stock

    Plate

    #23

    Clutch drum/chassis Diagram

    Plate

    Part #530036043
    ?
    Manufacturer substitution
    This part replaces 530-036043. Substitute parts can look different from the original.
    This part replaces 530-036043
    This item is not returnable
    $2.99

    In Stock

    Lead Wire Assembly

    #9

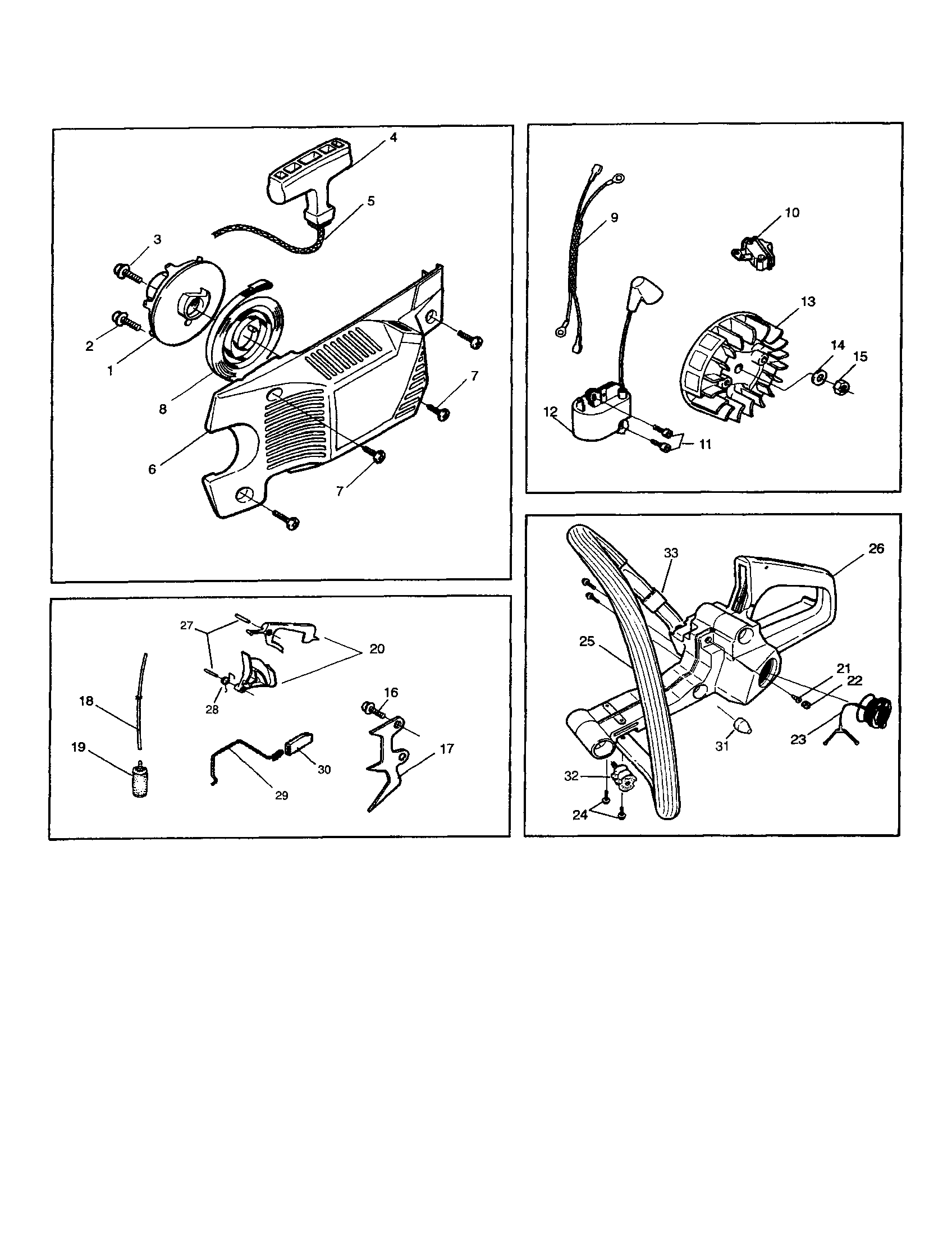

    Fan housing/flywheel/ignition Diagram

    Lead wire assembly

    Part #530403257
    ?
    Manufacturer substitution
    This part replaces 530-037468. Substitute parts can look different from the original.
    This part replaces 530-037468
    This item is not returnable
    $3.99

    In Stock

    Muffler Body

    #11

    Crankshaft/carburetor/muffler Diagram

    Muffler body

    Part #530037251
    ?
    Manufacturer substitution
    This part replaces 530-037251. Substitute parts can look different from the original.
    This part replaces 530-037251
    This item is not returnable
    $5.99

    In Stock

    Chainsaw Bar Adjuster Pin Retainer

    #13

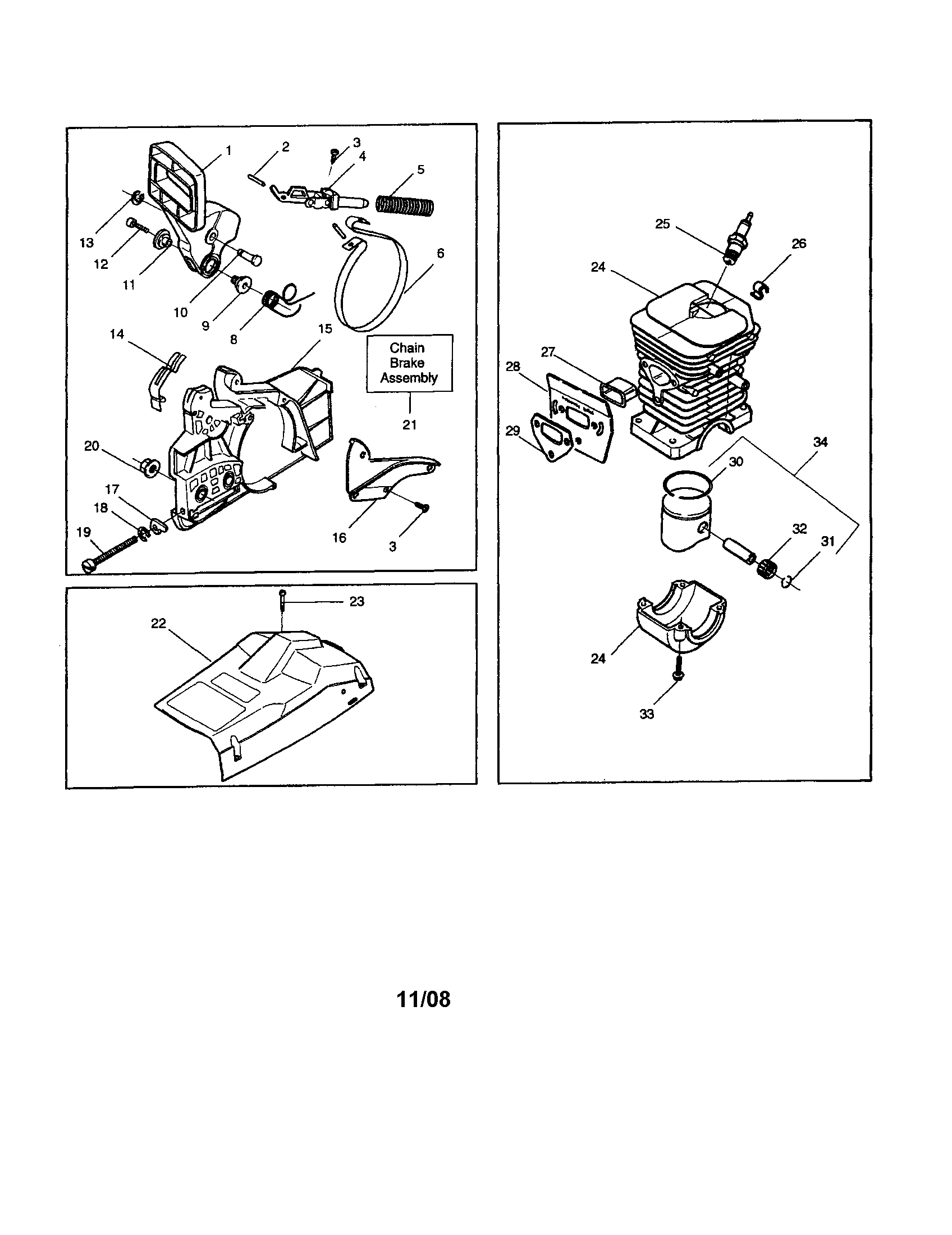

    Cylinder/shield/clutch cover Diagram

    Chainsaw bar adjuster pin retainer

    Part #530038593
    ?
    Manufacturer substitution
    This part replaces 530-038593. Substitute parts can look different from the original.
    This part replaces 530-038593
    This item is not returnable
    $4.16

    In Stock

    Line Trimmer Throttle Linkage

    #2

    Carburetor Diagram

    Line trimmer throttle linkage

    Part #530035031
    ?
    Manufacturer substitution
    This part replaces 530-035031. Substitute parts can look different from the original.
    This part replaces 530-035031
    This item is not returnable
    $3.17

    In Stock

    Symptoms for gas chainsaws

    Choose a symptom to see related chainsaw repairs.

    Main causes: cracked fuel lines, leaky carburetor seals, damaged fuel tank cap, cracked fuel tank
    Main causes: stale gasoline, cracked fuel lines, dirty carburetor, damaged spark plug, worn piston rings
    Main causes: bad gas, engine needs tune up, cracked fuel lines, dirty carburetor
