What is the advantage of a bottom mount fridge?
A bottom-mount refrigerator like the Whirlpool GI6SARXXF01 keeps the fresh-food section at eye level, so you reach everyday items more easily and bend less often. The freezer stays in the lower drawer, which works well when you access refrigerated foods more than frozen foods.
Key advantages in daily use
- Less bending for fresh food: milk, produce, leftovers, and condiments are easier to see and grab.

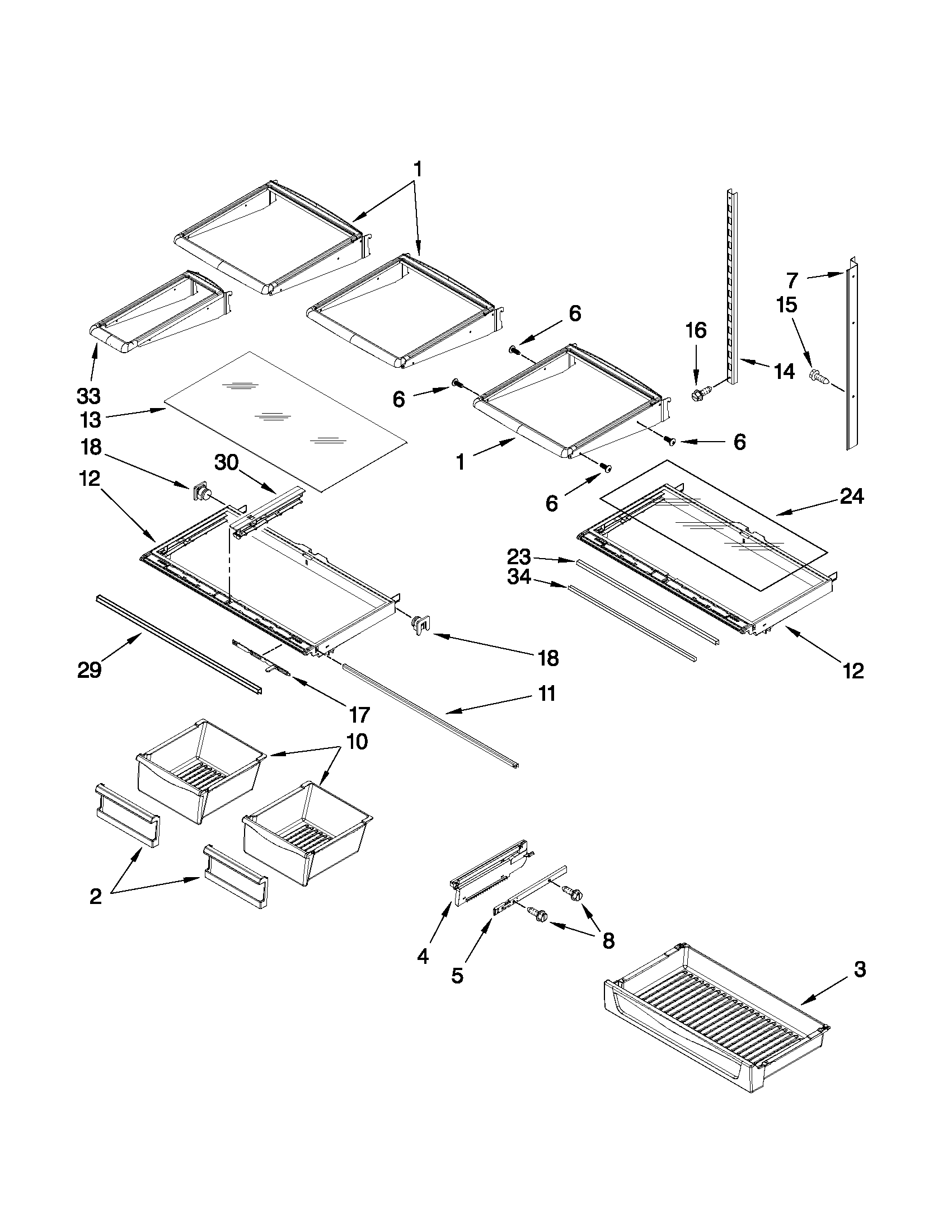

- Better organization up top: shelves and crispers are more convenient to load and clean.
- Freezer drawer capacity: the lower freezer typically holds bulky frozen items well.
- Door swing and clearance planning: you can plan placement so doors open fully without hitting a wall.
Installation and space planning (GI6SARXXF01)
Our GI6SARXXF01 documentation calls out these clearances for proper ventilation and door swing:
| What you need | Typical clearance guidance | Why it matters |
|---|---|---|
| Side and top ventilation | 1/2 inch | Helps airflow and cooling performance |
| Rear clearance | 1 inch | Room for airflow and connections |
| Door swing near a fixed wall | 3 3/4 inches minimum | Allows doors to open properly |
For the exact placement and leveling steps for your kitchen, use the GI6SARXXF01 owner's manual.
Why it matters
Most households open the refrigerator compartment far more than the freezer. With a bottom-mount design, the most-used space is higher and easier to access, which reduces strain and makes it faster to find items.
Parts that commonly support convenience features
If you are improving day-to-day usability (lighting, door closing, ice storage), these model-matched parts are often involved:
- Refrigerator light switch W11396033

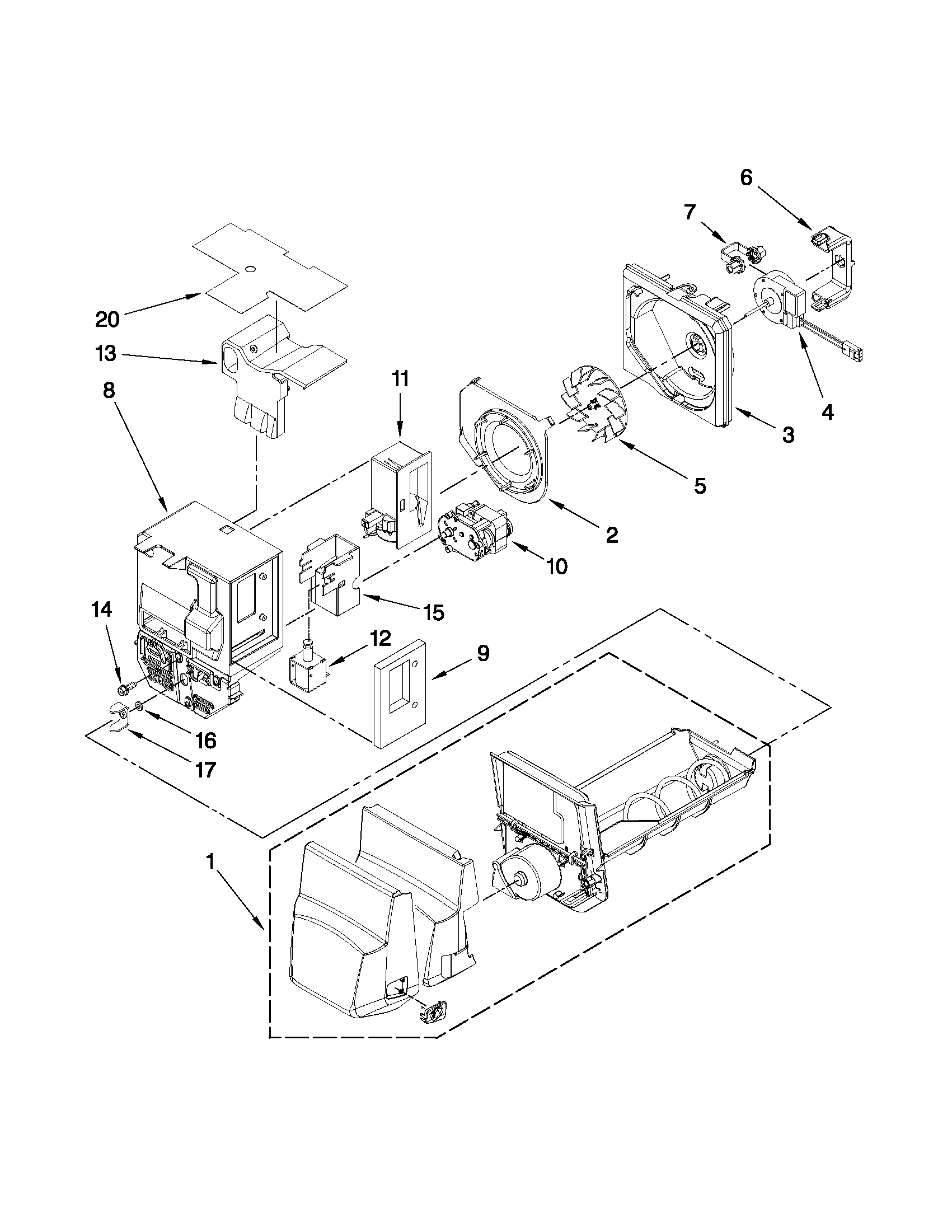

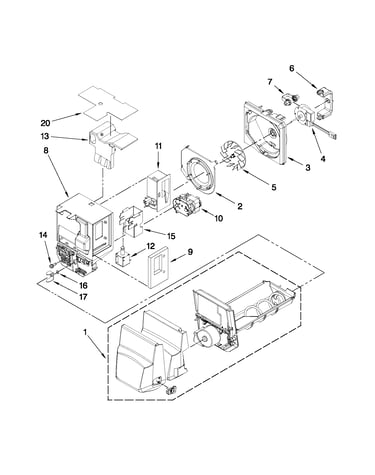

- Refrigerator ice container W11185686

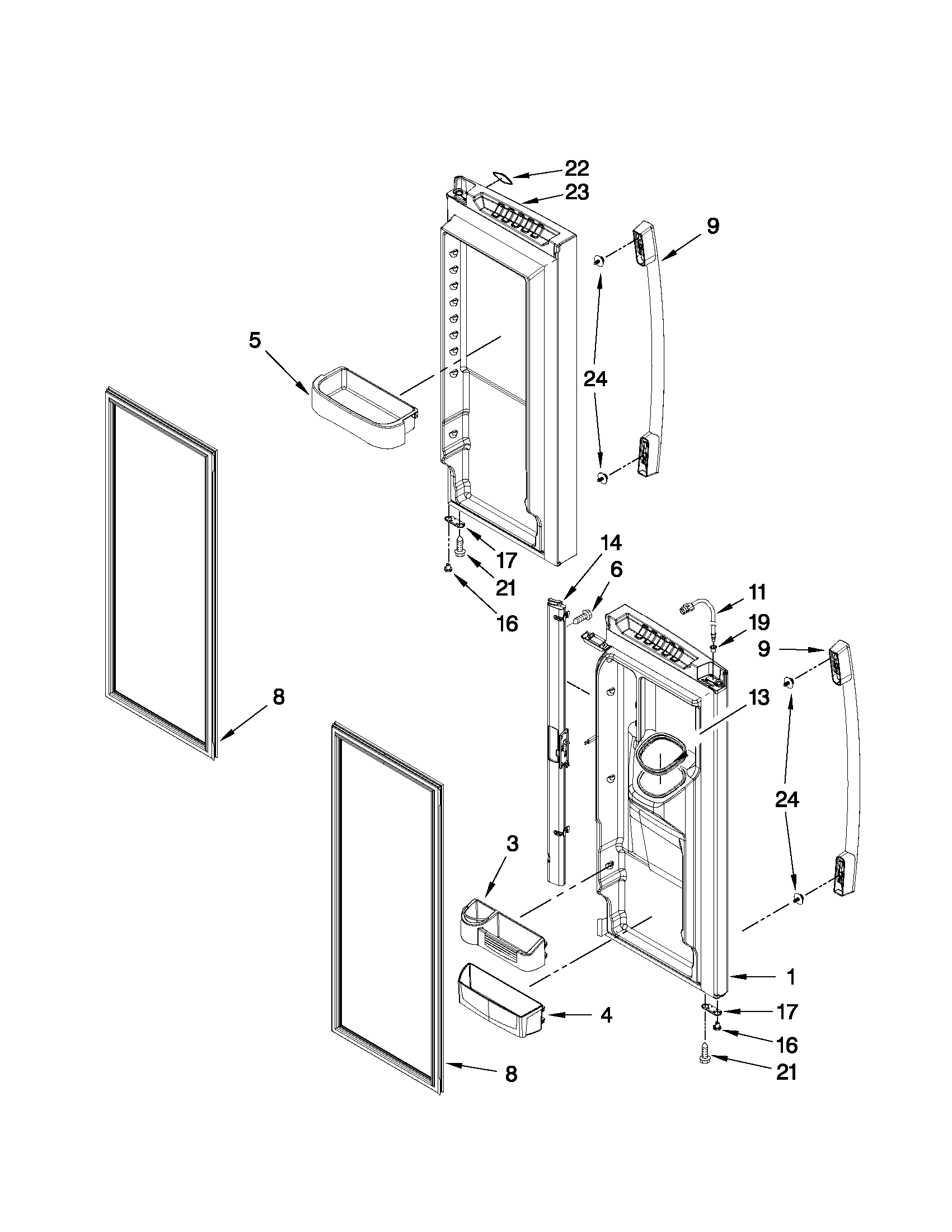

- Refrigerator gasket panel (gray) W10830055
You can order GI6SARXXF01 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
Do you remove cardboard from the bottom of a Whirlpool refrigerator?
For the Whirlpool GI6SARXXF01 bottom-mount refrigerator, remove and recycle the packaging cardboard used for shipping. Do not remove any factory-installed bottom or rear cover panels; those protect components and help the refrigerator run correctly. See the GI6SARXXF01 owner's manual for handling and setup details.
What to remove vs. what to leave in place
- Remove shipping materials: tape, foam, plastic wrap, and any loose cardboard spacers.
- Remove any cardboard placed under the refrigerator while moving it (that cardboard is only to protect your floor).
- Leave installed covers and shields (bottom/rear panels) that are attached with screws or clips.
- Leave installed the base grille unless you are servicing or cleaning behind it.
- Do not pull out panels to “improve airflow”; the airflow path is designed around those covers.
Quick check: is it packaging or a protective panel?
| What you see | Typical signs | What to do |
|---|---|---|
| Loose cardboard sheet | Not screwed in, slides out easily | Remove and recycle |
| Cardboard used as a floor protector | Under wheels/feet during moving | Remove after positioning |
| Installed cover panel (may look like fiberboard/cardboard) | Screws/clips, fits the cabinet base | Leave in place |
Why it matters
Those installed panels help protect wiring and refrigeration components and support proper airflow across the condenser area. Removing them can lead to overheating, noise, or poor cooling performance.
Related setup tip from the manual
When moving the GI6SARXXF01 for cleaning or service, we recommend placing cardboard or hardboard on the floor to prevent damage, then pulling the refrigerator straight out (do not “walk” it). Refer to the GI6SARXXF01 owner's manual for the full moving and installation guidance.
You can also find model-specific replacement parts and diagrams on this page, or search by model on Sears PartsDirect.
Last updated: February 2026
How do I remove the base grille on my Whirlpool refrigerator?

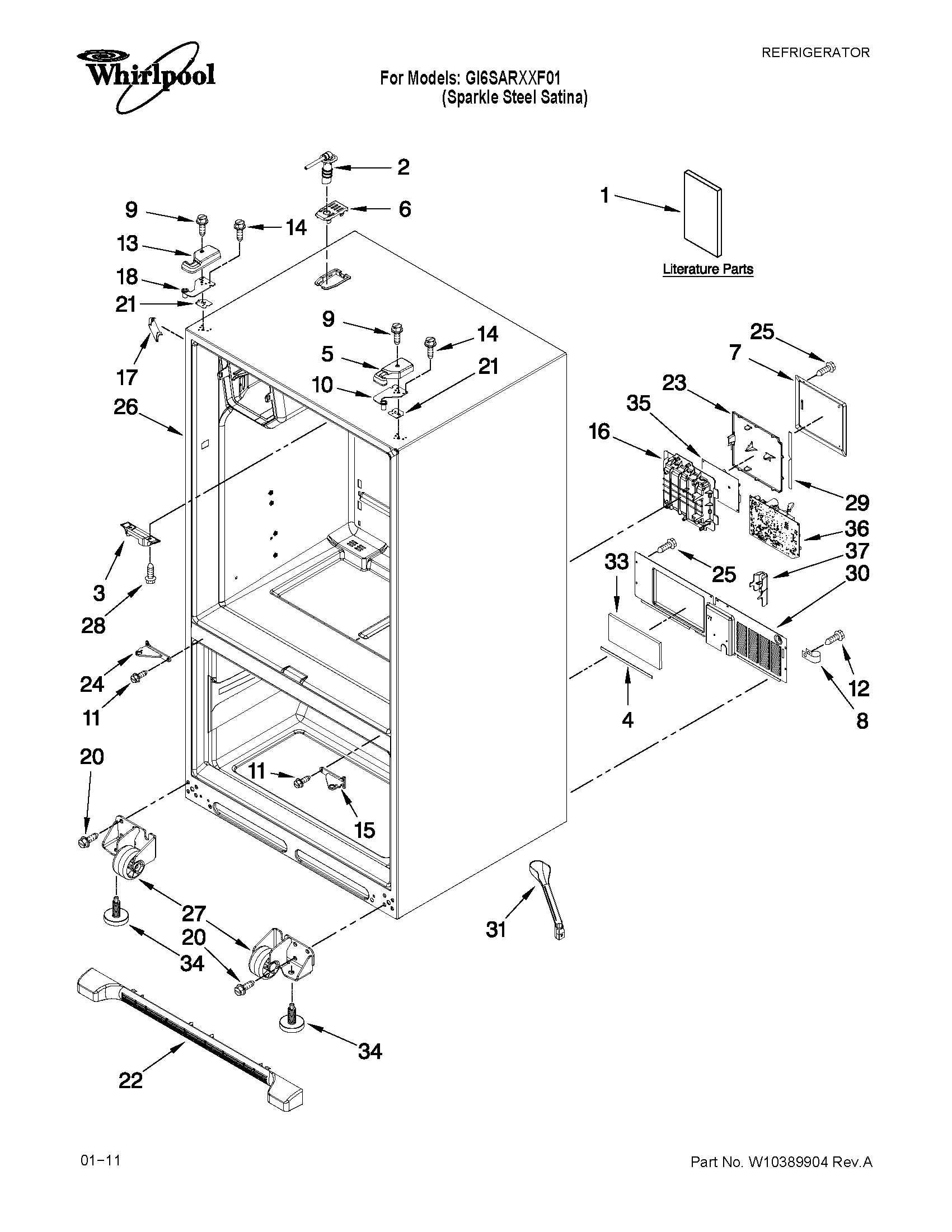

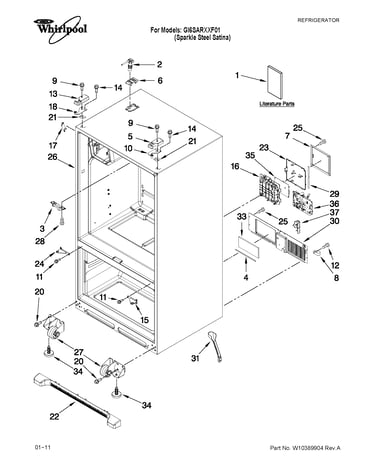

To remove the base grille on your Whirlpool GI6SARXXF01 bottom-mount refrigerator, grasp the grille firmly at the bottom front of the cabinet and pull it straight toward you until it releases. This gives you access to the front leveling screws and the condenser area (for cleaning).
Steps to remove and reinstall the base grille
- Unplug the refrigerator if you plan to clean near electrical components.
- Stand in front of the refrigerator and locate the base grille at the very bottom.
- Grip the grille with both hands near the ends.
- Pull the grille straight toward you to pop it off.
- After you finish, align the grille with the front base and press it back in until it snaps into place.
When you typically need to remove it
Removing the base grille is common for a few routine tasks:
- Adjusting the front leveling screws so doors close properly
- Cleaning dust and pet hair from the condenser area
- Checking for debris that can restrict airflow at the bottom front
Quick reference: what’s behind the grille
| What you’re accessing | Why it matters | Typical tool |
|---|---|---|
| Front leveling screws | Helps the refrigerator sit stable and doors close easier | 1/4-inch hex driver |
| Condenser area (front) | Dust buildup can reduce cooling efficiency | Vacuum with soft brush |
| Floor area under cabinet | Debris can block airflow and cause noise | Flashlight, vacuum |
Why it matters
On the GI6SARXXF01, the base grille is the normal access point for leveling and for condenser cleaning. Keeping that area clear helps your refrigerator cool efficiently and can prevent temperature swings.
For the exact procedure and related leveling instructions, follow the GI6SARXXF01 owner's manual. You can also find model-specific replacement parts through Sears PartsDirect.
Last updated: February 2026
What is the bottom part of the fridge called?
On a Whirlpool GI6SARXXF01 bottom-mount refrigerator, the “bottom part” people usually mean is the base area behind the base grille, where key cooling components live, especially the compressor. The compressor is the sealed pump that circulates refrigerant to keep the refrigerator and freezer cold (it is typically located at the lower rear). See the GI6SARXXF01 owner's manual for cabinet and base-grille details.
What you might be referring to (common “bottom parts”)
Depending on what you are looking at, the bottom of the refrigerator can mean different things:
- Base grille (toe grille): the vented cover at the very bottom front
- Leveling screws/rollers: used to raise or lower the cabinet so doors close properly

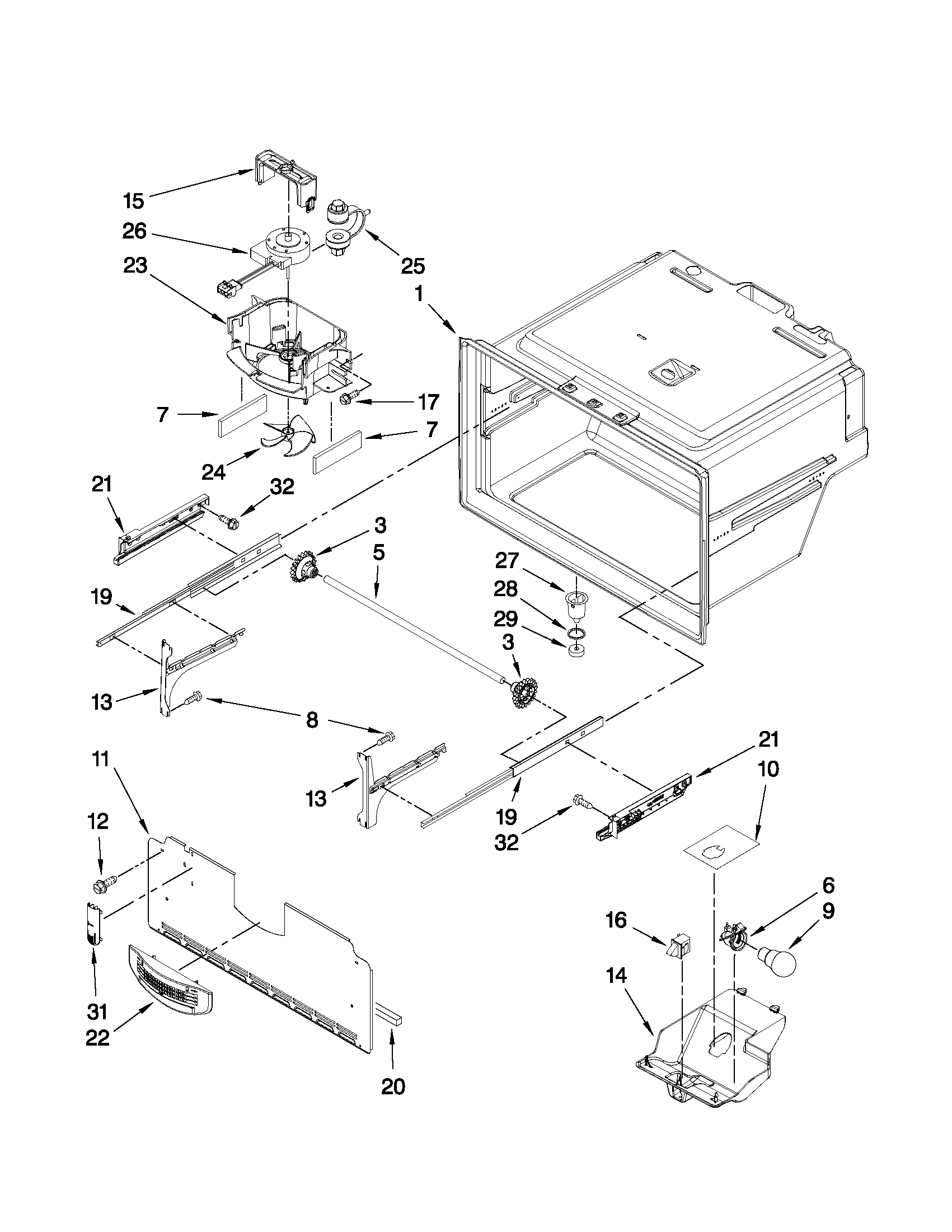

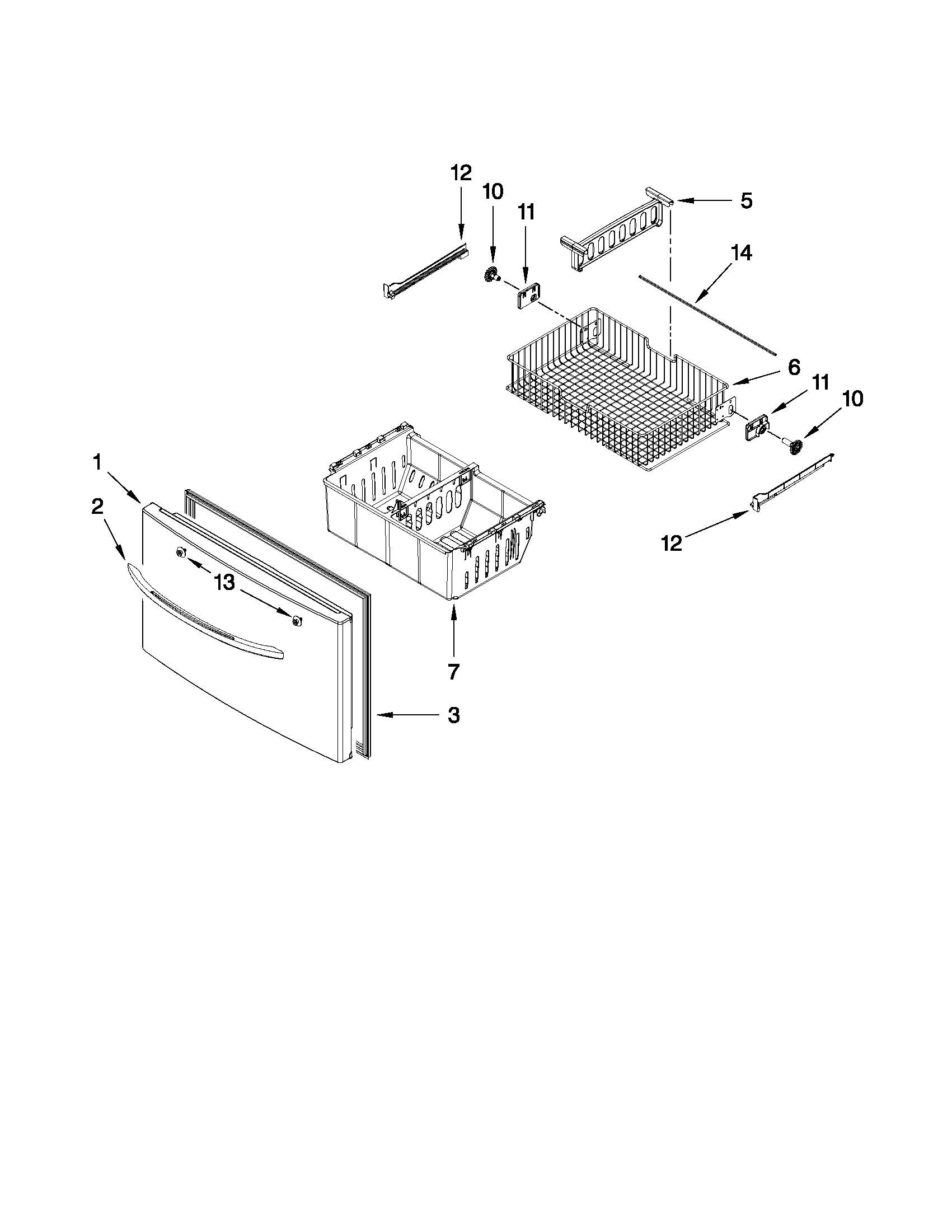

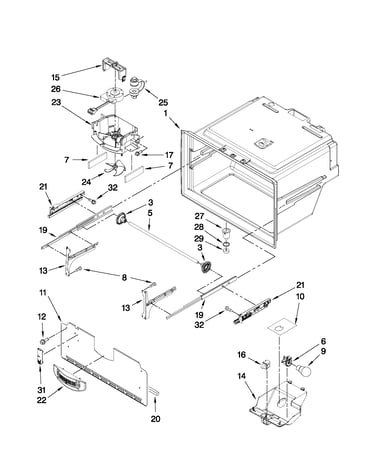

- Freezer drawer assembly: the bottom drawer on a bottom-mount design

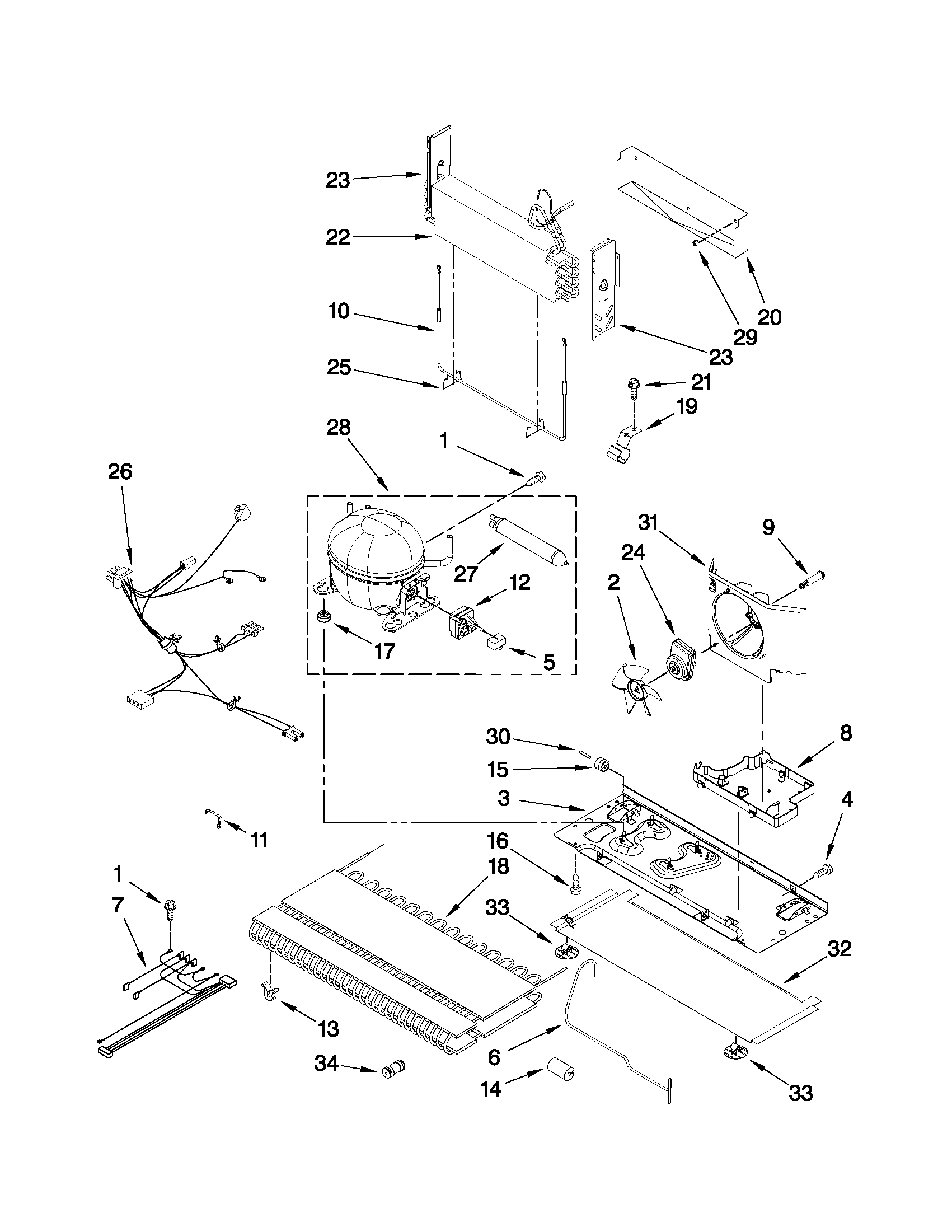

- Compressor compartment: the lower rear area where the compressor and related parts sit
- Bottom hinge area: hardware at the bottom of the cabinet/door used for alignment
Quick ID guide
Use this to match what you see to the correct name.
| What you see | What it’s usually called | Where it is |
|---|---|---|
| Vented cover you pull off from the front | Base grille | Bottom front |
| Adjustable screws you turn with a hex driver | Leveling screws | Behind base grille |
| Large pull-out bin | Freezer drawer | Bottom front |
| Black “tank” with lines attached | Compressor | Bottom rear |
Why it matters
Using the right name helps you find the correct instructions and parts faster. For example, if you are troubleshooting cooling, you will focus on the compressor area; if doors will not close evenly, you will focus on the base grille and leveling screws.
Parts that relate to the “bottom cooling area”
If you are diagnosing a cooling issue tied to the lower rear compartment, these model-matched parts are commonly involved:
Last updated: February 2026
