Whirlpool GC5SHAXVS02 refrigerator Parts

A side-by-side refrigerator like the Whirlpool GC5SHAXVS02 trades wide, open shelf space for two tall, narrow compartments; large platters and pizza boxes are harder to fit, and you may bend more to reach items stored low in either section.

Common disadvantages (and what you can do about them)

• Narrow shelf width: Wide items often need to be stored diagonally or moved to a different shelf.
• Less flexible fresh-food layout: The refrigerator side can feel tighter for party trays and meal prep containers.
• More bending for daily use: Both the freezer and refrigerator have lower bins that require stooping.
• Dispenser-related upkeep: Models with ice and water in the door can need more cleaning and occasional part replacement.
• Door clearance needs: Doors must open fully for best access; leveling and alignment matter.

Quick comparison: side-by-side vs other common styles

Feature	Side-by-side (GC5SHAXVS02 style)	French door	Top freezer
Fits wide items	Fair	Best	Good
Freezer access	Easy at eye level	Lower drawer	Upper compartment
Fresh-food organization	Tall, narrow	Wide shelves	Moderate
Typical dispenser setup	Common	Common	Less common

Why it matters

If you regularly store wide items (sheet pans, party platters, pizza boxes), shelf width is the biggest day-to-day limitation. If you use the dispenser often, keeping the water system maintained helps prevent clogs and slow flow.

Helpful model-specific tips

• Use the shelf positions to create one “tall zone” for pitchers and bottles.
• Keep frequently used items at mid-shelf height to reduce bending.
• If water taste or flow is an issue, replacing the refrigerator water filter EDR3RXD1 on schedule helps.
• For door closing and gasket care, follow the cleaning and adjustment guidance in the owner's manual.

Last updated: February 2026

For your Whirlpool GC5SHAXVS02 side-by-side refrigerator, the most reliable way to find the correct replacement part is to search by the full model number first, then match the part name and part ID to what is installed on your refrigerator. Use the parts list for GC5SHAXVS02 and confirm details in the owner's manual.

Fast ways to find the right part

• Use the full model number GC5SHAXVS02 (from the label inside the refrigerator compartment) to pull the correct parts list.
• If you already have a part number from the old part, search by that number to narrow results.
• Match by part name + part ID (best for avoiding look-alike parts).
• Compare your refrigerator’s configuration (ice and water dispenser, filter style, control type) to the listing.
• When replacing a filter, confirm the cartridge style and any cap used.

Common replacement parts for this model

These are frequently searched items for GC5SHAXVS02:

What you need	What it affects	Example part on this model page
Water filter	Water taste, flow, ice quality	Refrigerator water filter EDR3RXD1
Water filter cap	Filter fit and sealing	Refrigerator water filter cap (black) WP2260518B

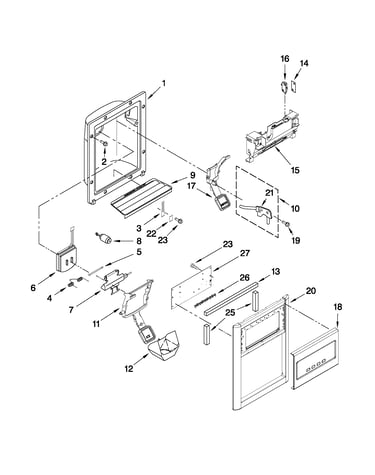

Dispenser switch	Water and ice dispensing	Refrigerator dispenser switch WP2162361

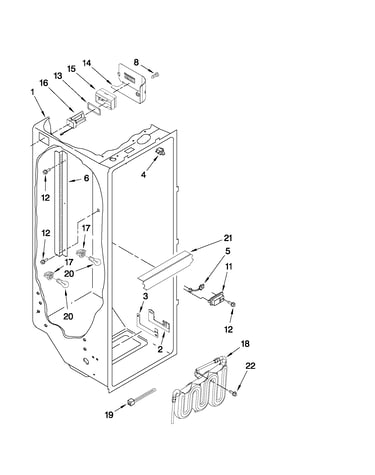

Light switch	Interior light operation	Refrigerator light switch W11384469

Why model number matching matters

Whirlpool uses similar-looking parts across many side-by-side refrigerators. Searching by GC5SHAXVS02 helps ensure the part fits your wiring, mounting points, and dispenser or filtration setup.

Quick checks before you order

• Confirm the symptom (no water, warm temps, no ice, leaking) so you target the correct system.
• Verify the part location and connectors before removing anything.
• For water filter issues, replace the filter on schedule and flush/purge air after installation.

Last updated: February 2026

Most 24.5 cu ft refrigerators are built for a standard 36-inch cabinet opening; for the Whirlpool GC5SHAXVS02 side-by-side, the installation dimensions show a width of about 36 inches (roughly 90.5 to 91.5 cm). For the exact fit details and clearances, use the installation guide.

Typical width you should plan for

A 24.5 cu ft class refrigerator is usually considered a “36-inch” refrigerator. In real-world installs, you should plan for the cabinet opening, door swing clearance, and a little room for leveling and airflow.

• Standard cabinet opening width: 36 in
• Typical actual cabinet width of the unit: about 35 5/8 to 36 11/16 in (varies by model)
• Always allow extra space for door swing and side-wall clearance

GC5SHAXVS02 width and clearance notes

The GC5SHAXVS02 installation information shows a top-view width around 35 5/8 in and an opening width of 36 in. Dimensions can vary slightly by model and configuration, so we recommend measuring your space and comparing to the spec diagram.

Quick fit checklist

• Measure the cabinet opening at the front and back (walls are not always square)
• Confirm you have a true 36-inch opening (not 35 3/4 in)
• Account for door swing (side-by-side doors need room to open wide)
• Verify the refrigerator can pass through doorways and hallways during delivery
• Leave room for the water line if you have an ice maker or dispenser

Width planning guide (common scenarios)

What you are measuring	What to expect	Why it matters
Cabinet opening	36 in	Ensures the refrigerator fits without rubbing
Refrigerator body	~35.6 to 36.7 in	Actual unit width can be slightly under or over “36 in”
Side clearance for door swing	Extra space at sides	Prevents doors from hitting walls and improves access

Why it matters

A refrigerator that is “36 inches wide” can still be a tight fit if the opening is slightly narrow or if the doors need extra swing clearance. Planning for both the cabinet opening and door movement prevents installation headaches and helps the doors seal properly.

Last updated: February 2026

No single side-by-side refrigerator is “most reliable” for everyone; the most dependable choice is usually the simplest model that fits your kitchen, has strong parts availability, and matches how you use ice and water. For Whirlpool owners, keeping maintenance up to date on models like GC5SHAXVS02 improves long-term reliability. See the owner's manual for care, operating tips, and normal sound expectations.

What to look for in a reliable side-by-side

We see the best real-world reliability when the design is straightforward and the unit is installed correctly.

• Choose a model with fewer dispenser and ice maker features if you rarely use them
• Prioritize easy-to-service components (fans, controls, door seals)
• Confirm the refrigerator can cool properly after install (allow a full 24 hours)
• Keep airflow clear and doors sealing tightly to reduce compressor run time
• Replace water filtration on schedule if you use the dispenser

Reliability checklist you can control (GC5SHAXVS02 and similar)

Even a “top” brand becomes unreliable when basic upkeep is missed.

Item	What you do	Why it helps reliability
Water filter	Replace the refrigerator water filter EDR3RXD1 on schedule	Protects water flow and reduces dispenser and ice maker issues
Door sealing	Keep gaskets clean and doors aligned	Prevents warm air leaks and frost buildup
Cooling airflow	Avoid blocking vents with food packages	Keeps temperatures stable and reduces run time
Installation clearances	Allow proper door swing and side clearance	Prevents door damage and poor access

Why it matters

“Reliable” usually means stable temperatures, consistent ice and water performance, and fewer nuisance problems like noise, frost, or leaks. On Whirlpool side-by-side refrigerators, heavy ice and water use makes filtration, water line condition, and dispenser components more important to long-term dependability.

Helpful DIY reading

• How to replace the water filter in a Whirlpool refrigerator

Last updated: February 2026

Frosting in your Whirlpool GC5SHAXVS02 side-by-side refrigerator almost always happens when warm, humid air keeps getting into the freezer, most commonly from a door that is not sealing or not closing fully. Start by checking door closure, gasket condition, and airflow so the automatic defrost system can keep up.

Quick checks that fix most frosting

• Make sure nothing inside is preventing the door from closing (packages, bins, shelves).
• Inspect the door gasket for gaps, tears, or areas not touching the cabinet.
• Clean sticky gaskets with mild soap and warm water, then dry thoroughly.
• Limit long door openings; humidity entering the freezer turns into frost quickly.
• Confirm vents are not blocked by food; blocked airflow can cause cold spots and frost.

What to check next (defrost and airflow)

If the door is sealing and you still see heavy frost on the back freezer wall or poor cooling, the issue is often in the defrost system or evaporator airflow.

• A failed defrost thermostat can prevent proper defrost cycling; see refrigerator defrost bi-metal thermostat WPW10225581.

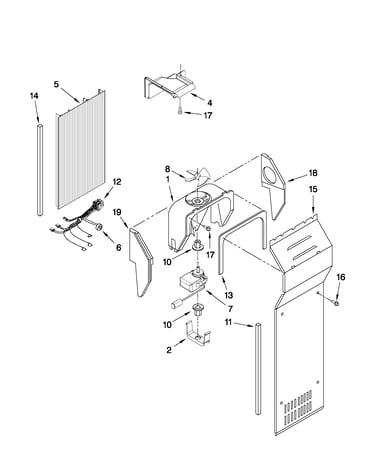

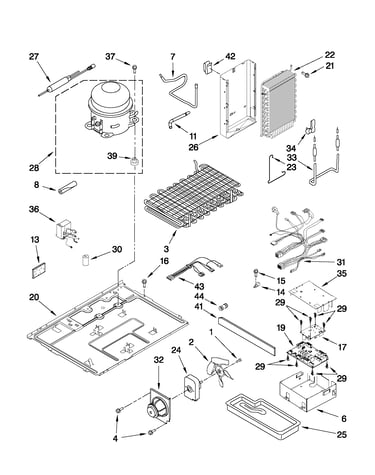

• If airflow is weak or noisy, inspect the evaporator fan area; a damaged blade can reduce circulation; see refrigerator evaporator fan blade WP2169142.

Symptoms guide

What you see	Most likely cause	What to do first
Frost only near the door opening	Door left ajar or gasket leak	Check closure, clean gasket, remove obstructions
Heavy frost on back freezer panel	Defrost problem or airflow restriction	Check vents, then inspect defrost components
Frost plus warm refrigerator section	Evaporator airflow blocked by ice	Reduce door openings, clear blockage, check fan/defrost

Why it matters

Frost buildup acts like insulation and can block airflow through the evaporator area. That forces longer run times, warmer temperatures, and can lead to ice blocking vents and the ice maker area.

Helpful model-specific reference

For door closing checks, gasket cleaning guidance, and normal operation notes, follow the care and use steps in the GC5SHAXVS02 owner's manual.
