Hotpoint
Top-Mount Refrigerator

Model # HPS18BTNDRWW Official Hotpoint top-mount refrigerator

Here are the diagrams and repair parts for Official Hotpoint HPS18BTNDRWW top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

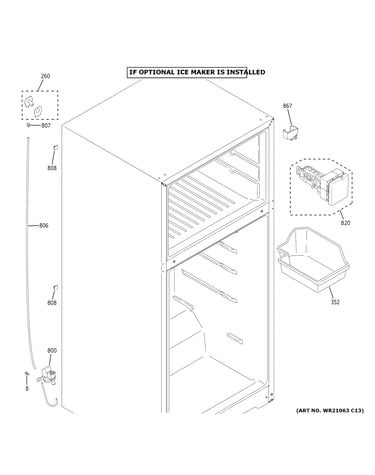

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

R600 Drier W/ Red Cap WR87X30875
#740

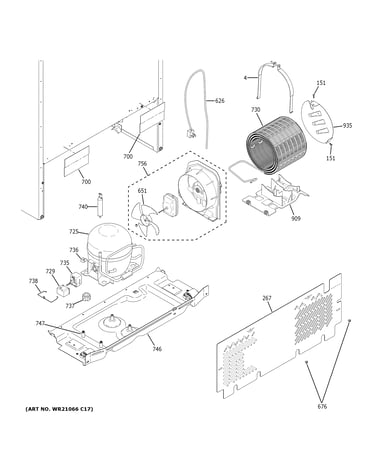

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
In Stock
Evaporator Fan Motor WR60X31523
#610

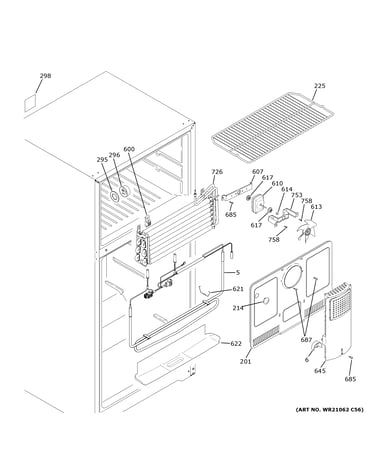

Freezer section diagram

Evaporator fan motor

Part #WR60X31523

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X31523. Substitute parts can look different from the original.
BEST SELLER
$74.17
7% OFF Phone Price : $80.17
In Stock
Refrigerator Glass Shelf WR32X21260
#244

Fresh food shelves diagram

Refrigerator glass shelf

Part #WR32X21260

BEST SELLER
$25.11
19% OFF Phone Price : $31.11
In Stock
Main Control Board WR55X33569
#257

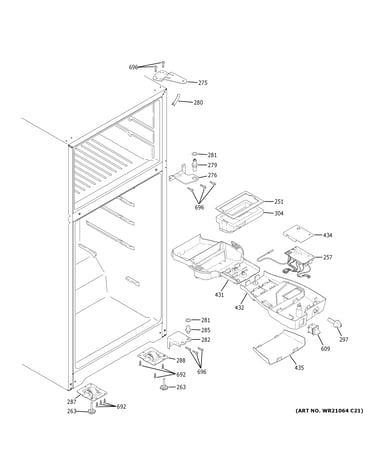

Fresh food section diagram

Main control board

Part #WR55X33569

Replaced by #WR55X43825

?
Manufacturer substitution
This part replaces WR55X33569. Substitute parts can look different from the original.
BEST SELLER
$182.21
6% OFF Phone Price : $194.21
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

Freezer section diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47
14% OFF Phone Price : $14.47
In Stock
Compressor WR87X32218
#725

Machine compartment diagram

Compressor

Part #WR87X32218

Replaced by #WR87X31765

?
Manufacturer substitution
This part replaces WR87X32218. Substitute parts can look different from the original.
BEST SELLER
$214.28
5% OFF Phone Price : $226.28
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#617

Freezer section diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
In Stock
Refrigerator Door Hinge Nylon Washer (replaces Wr01x10146) WR01X27364
#281

Fresh food section diagram

Refrigerator door hinge nylon washer (replaces wr01x10146)

Part #WR01X27364

BEST SELLER
This item is not returnable
$6.31
14% OFF Phone Price : $7.31
In Stock

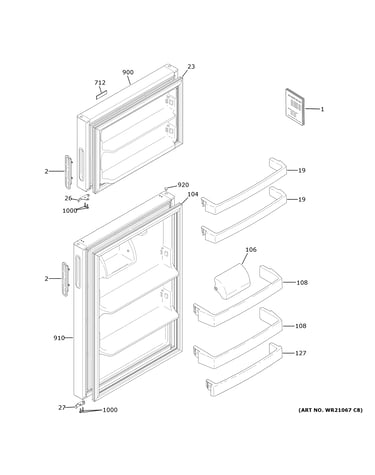

Refrigerator Door Shelf Rail WR17X21154
#108

Doors diagram

Refrigerator door shelf rail

Part #WR17X21154

Replaced by #WR17X30024

?
Manufacturer substitution
This part replaces WR17X21154. Substitute parts can look different from the original.
BEST SELLER
$21.50
22% OFF Phone Price : $27.50
In Stock
