GE PFSS5RKZHSS bottom-mount refrigerator Parts

To order replacement parts for your GE PFSS5RKZHSS bottom-mount refrigerator, match the part to your exact model and then order it from the parts list for this model; for broader part searches by model number, use Sears PartsDirect. For diagrams and part locations, use the PFSS5RKZHSS owner's manual.

Step-by-step: ordering the right part

• Find your full model number on the refrigerator’s model/serial tag and confirm it matches PFSS5RKZHSS.

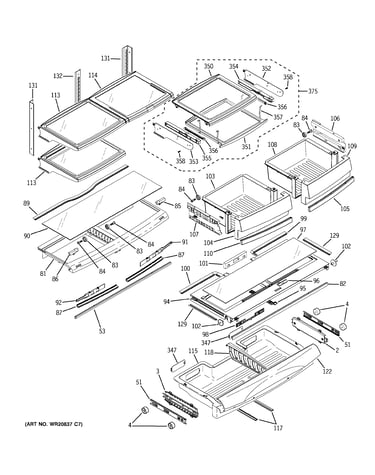

• Use the exploded-view diagrams and part descriptions to identify the exact part you need.
• Compare the part name and part ID before ordering (this prevents wrong-part returns).
• If you are fixing a symptom (no ice, warm fridge, leaking), diagnose first so you replace the correct component.
• Order the part and keep your model and serial number handy for reference during installation.

Commonly ordered parts for PFSS5RKZHSS

These are examples of parts customers often replace on this model (availability can vary):

What you are fixing	Part to check first	Example part ID on this model
Bad water taste or slow water flow	Water filter	MWFP
No water to dispenser or ice maker	Refrigerator water valve	WR57X33326
Frost buildup or warm freezer	Defrost bi-metal thermostat	WR50X10065
Warm fresh food section	Refrigerator air damper	WR17X12456

Why it matters

Ordering by the exact PFSS5RKZHSS model parts list helps ensure the part fits your refrigerator’s wiring, mounting points, and water connections. That is especially important for items like a water valve, temperature sensor, or inverter where small differences can stop the repair.

Last updated: February 2026

The most common problem we see on a GE refrigerator like model PFSS5RKZHSS is poor cooling (fresh food too warm, freezer not holding temperature). In many cases, the root cause is restricted airflow or heat removal, such as dirty condenser coils, a weak fan, or a defrost issue.

Quick checks that fix many “not cooling” complaints

• Make sure the temperature settings were not accidentally changed (confirm in the PFSS5RKZHSS owner's manual).
• Clean dust and pet hair from the condenser area; restricted airflow makes the compressor run longer.
• Verify interior vents are not blocked by food packages.
• Listen for the evaporator fan in the freezer; it should run when the compressor is running.
• Check door closing and sealing; warm air leaks cause temperature swings and frost.

Common causes and the parts that often solve them

If basic cleaning and airflow checks do not restore normal temperatures, these are the most frequent repair paths:

Symptom	Most likely area	Example part for PFSS5RKZHSS
Fresh food warm, freezer OK	Airflow control between compartments	Refrigerator air damper WR17X12456
Both sections warm, runs a lot	Heat not being removed	Condenser fan motor, condenser coil cleaning
Frost buildup, airflow weak	Defrost system problem	Refrigerator defrost bi-metal thermostat WR50X10065
Temps inaccurate or erratic	Sensing/feedback issue	Temperature sensor WR55X10025

Why it matters

Poor cooling is more than an inconvenience; it can shorten compressor life, increase energy use, and put food safety at risk. Fixing airflow restrictions early is the fastest way to prevent bigger failures.

When to order parts

If you have repeated warm temperatures after cleaning coils and confirming fans run, order replacement parts for PFSS5RKZHSS from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most commonly replaced parts in a refrigerator are the ones that affect cooling, sealing, and water/ice functions: door gaskets, fans, sensors, defrost parts, and water system components. For your GE PFSS5RKZHSS bottom-mount refrigerator, many of these are serviceable and listed in the parts breakdown in the PFSS5RKZHSS owner's manual.

Most common replacement parts (and what they do)

• Door gasket: Keeps warm air out; a poor seal causes sweating, frost, and temperature swings.
• Evaporator fan parts: Move cold air through the fresh food and freezer sections (noise and warm temps are common symptoms).
• Temperature sensors (thermistors): Tell the control system the actual compartment temperature.
• Defrost components: Prevent the evaporator from icing over and blocking airflow.
• Water filter and water valve: Affect water taste/flow and ice maker fill.
• Ice maker and dispenser parts: Handle ice production and delivery.

Common parts for GE PFSS5RKZHSS that match those categories

Symptom you notice	Part category to check first	Example part for this model
Warm fridge or freezer, odd temperature readings	Temperature sensing	Temperature sensor WR55X10025
Bad-tasting water, slow dispenser flow	Water filtration	GE refrigerator water filter MWFP
No water to dispenser or ice maker, weak fill	Water inlet valve	Refrigerator water valve WR57X33326
Frost buildup, intermittent warming	Defrost protection	Refrigerator defrost bi-metal thermostat WR50X10065
Loud buzzing or no ice production	Ice maker system	Refrigerator ice maker WR30X28693
Rattling or poor airflow	Evaporator fan drive	Refrigerator evaporator fan motor WR60X10277

Why it matters

These parts fail more often because they either move (fans, ice maker), seal (gasket), sense temperature (sensors), or handle water flow (filter, valve). Replacing the right component restores stable temperatures, reduces frost, and improves water and ice performance.

Quick troubleshooting tips before you buy a part

• Confirm the set temperatures and give the unit 24 hours to stabilize after changes.
• Check for blocked vents and overpacked shelves that restrict airflow.
• Listen for fan noise changes (grinding, chirping, or silence when the door switch is pressed).
• Inspect the door seal for gaps, tears, or areas that do not grip paper.
• If water flow is slow, replace the filter and then purge air from the dispenser.

For ordering, we recommend using the model-specific parts list first; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

Yes. With a GE PFSS5RKZHSS bottom-mount refrigerator, we can safely replace many common, non-sealed-system parts ourselves (filters, bins, gaskets, some fans and sensors) using basic tools and careful shutoff steps; sealed-system and complex electrical repairs belong with a technician.

Good DIY replacements for this model

These are typical homeowner-friendly repairs when you follow the PFSS5RKZHSS owner's manual and unplug the refrigerator first:

• Water filter replacement: GE refrigerator water filter MWFP
• Ice maker swap (mechanical assembly): refrigerator ice maker WR30X28693
• Door bin and drawer hardware: refrigerator door bin WR71X10875
• Temperature or humidity sensing parts (after unplugging): temperature sensor WR55X10025
• Evaporator fan motor replacement (access panels, wiring connectors): refrigerator evaporator fan motor WR60X10277

Repairs we do not DIY

Some repairs create shock risk, refrigerant risk, or require specialized tools and testing.

• Sealed-system work (compressor, refrigerant lines)
• Control board level diagnostics when symptoms are unclear
• Wiring repairs beyond simple plug-in connectors
• Any repair that requires brazing, vacuum pumping, or refrigerant handling

Quick safety checklist before you start

• Unplug the refrigerator (do not rely on the control panel).
• Shut off the water supply if you are working on the filter, valve, or tubing.
• Protect floors; keep towels ready for water lines.
• Take photos of wire routing and connectors before disconnecting anything.
• Use cut-resistant gloves around sheet metal panels.

What to replace first (fast troubleshooting guide)

Symptom	Most common DIY checks	Parts often involved
Warm fridge or freezer	Clean airflow paths, listen for fan	Evaporator fan motor, temperature sensor
No ice or slow ice	Replace filter, purge air, check fill	Water filter, water valve, ice maker
Water tastes bad/slow dispense	Replace filter, purge air	Water filter, filter head and tubing
Frost buildup, warming	Check door seal, look for defrost issues	Door gasket, defrost bi-metal thermostat

Why it matters

DIY-friendly part replacement keeps food at safe temperatures, prevents water leaks, and restores ice and water performance without the cost and downtime of a full service call.

For parts ordering, use the parts list for GE PFSS5RKZHSS on this page, or search by model number on Sears PartsDirect.

Last updated: February 2026
