Dyson DC15 BALL vacuum

Dyson DC15 BALL vacuum Parts

Here are the diagrams and repair parts for Dyson DC15 BALL vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part

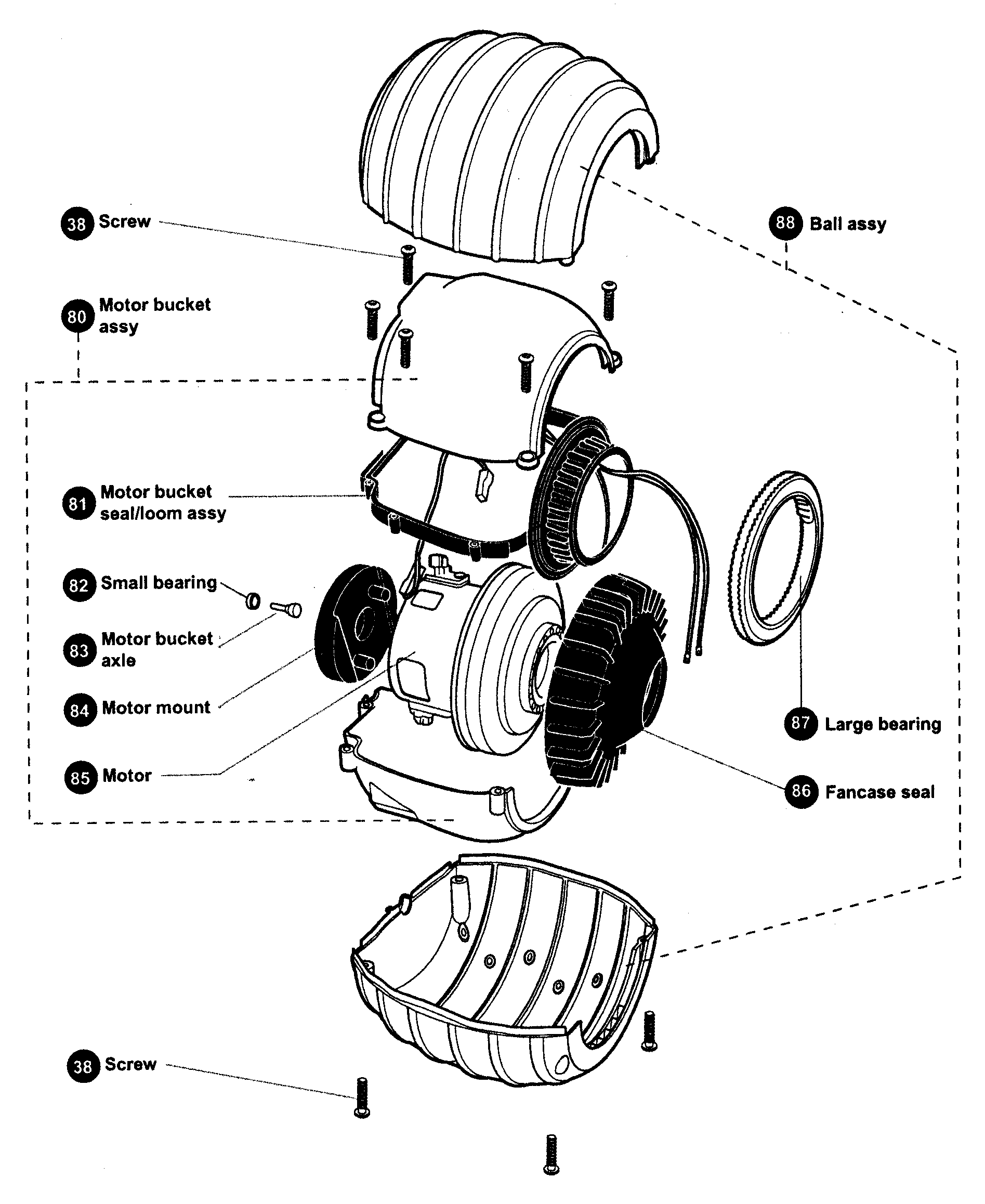

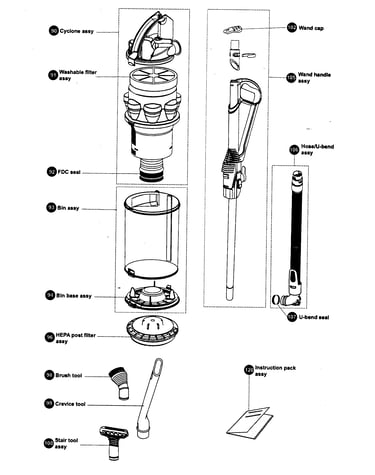

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for DC15 BALL Vacuum Cleaners

  • Dyson Spring for Dyson DC15 BALL - Part 900199-87

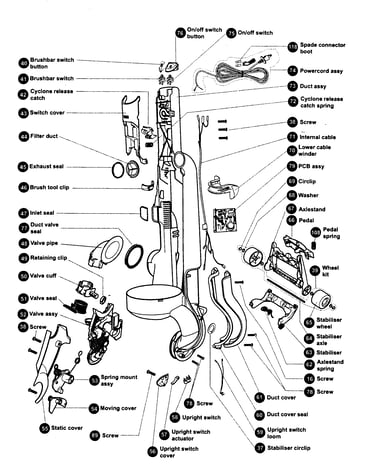

    Duict valve/stabiliser diagram

    Dyson Spring

    Part #900199-87

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Vacuum Switch Button for Dyson DC15 BALL - Part 907882-01

    Duict valve/stabiliser diagram

    Dyson Vacuum Switch Button

    Part #907882-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Vacuum Wire Harness for Dyson DC15 BALL - Part 909594-02

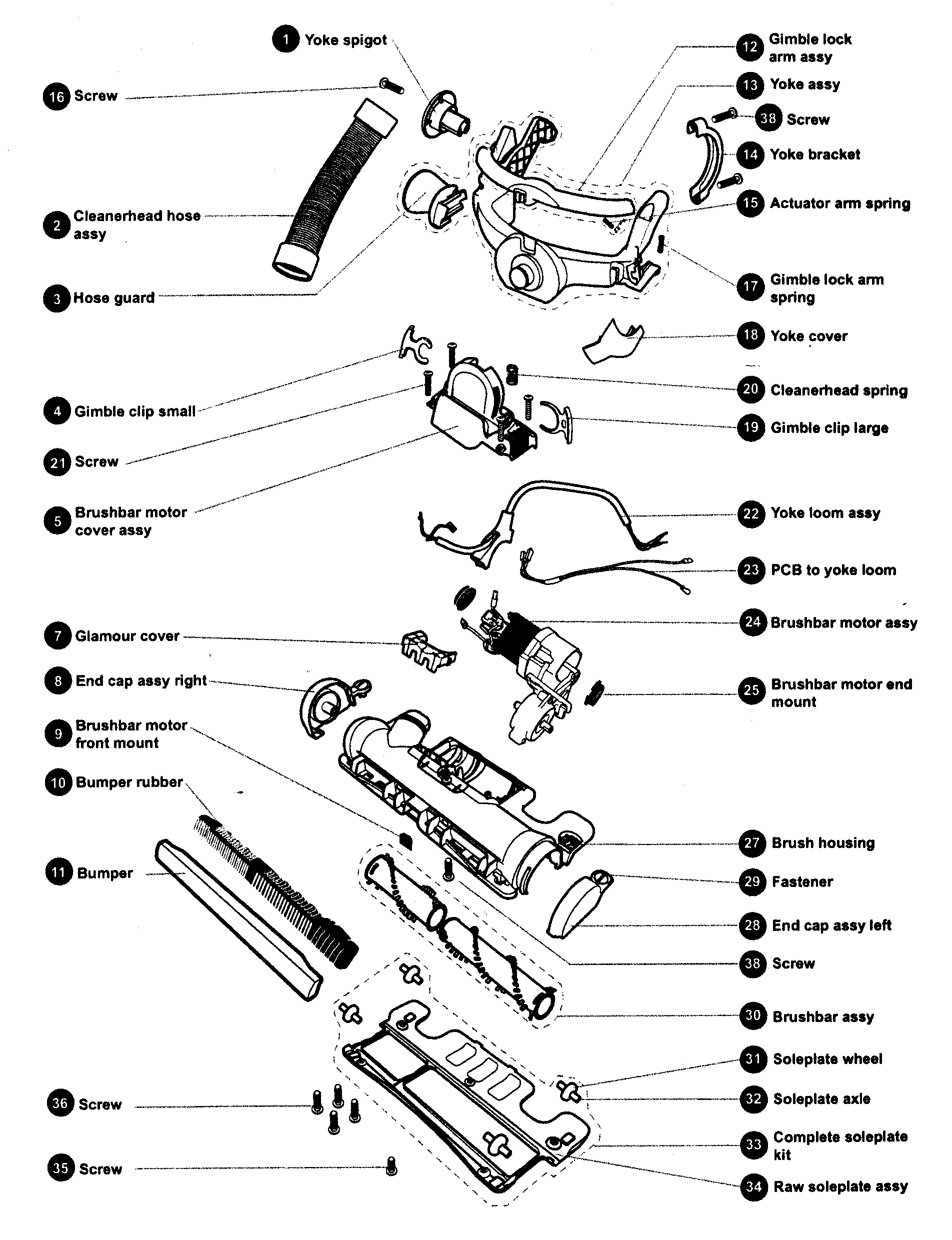

    Cleanerhead/yoke assy diagram

    Dyson Vacuum Wire Harness

    Part #909594-02

    The manufacturer no longer makes this part, and there's no substitute part

  • Boot for Dyson DC15 BALL - Part 908062-01

    Duict valve/stabiliser diagram

    Boot

    Part #908062-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Yoke for Dyson DC15 BALL - Part 907314-01

    Cleanerhead/yoke assy diagram

    Dyson Yoke

    Part #907314-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Pedal for Dyson DC15 BALL - Part 907928-01

    Duict valve/stabiliser diagram

    Dyson Pedal

    Part #907928-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Lock Arm for Dyson DC15 BALL - Part 909984-02

    Cleanerhead/yoke assy diagram

    Dyson Lock Arm

    Part #909984-02

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Vacuum Wand Lock Clip for Dyson DC15 BALL - Part 907316-01

    Cleanerhead/yoke assy diagram

    Dyson Vacuum Wand Lock Clip

    Part #907316-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Dyson Circlip for Dyson DC15 BALL - Part 909713-03

    Duict valve/stabiliser diagram

    Dyson Circlip

    Part #909713-03

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Beater Bar Housing End Cap Fastener for Dyson DC15 BALL - Part 900130-04

    Cleanerhead/yoke assy diagram

    Vacuum Beater Bar Housing End Cap Fastener

    Part #900130-04

    The manufacturer no longer makes this part, and there's no substitute part

Dyson Vacuum DC15 BALL FAQs

The Dyson DC15 (Ball upright vacuum) dates to around 2005, so in February 2026 most DC15 vacuums are about 21 years old. Exact age depends on the specific production run and when your unit was purchased.

Quick age check (what to look for)

  • Serial number label: often on the main body or near the bin; it may include a date code.
  • Original receipt or registration: purchase date is the most accurate “age” for your vacuum.
  • Wear items: frequent belt or brush roll issues can indicate heavy use over many years.
  • Motor behavior: surging, overheating, or frequent shutoffs can show age-related wear.
  • Hose and seals: cracks, loose fittings, and air leaks are common on older uprights.

Typical DC15 age examples

If your DC15 was bought in... Age in February 2026 What that usually means
2005 21 years Expect routine maintenance; check belts, brush roll, and seals
2008 18 years Suction issues often trace to clogs, filters, or hose leaks
2012 14 years Still serviceable; inspect brush roll and airflow path regularly

Why it matters

Knowing the age helps us prioritize the most likely fixes first. On a 15 to 20+ year-old upright vacuum like the Dyson DC15, performance problems are most often tied to airflow restrictions (clogs, dirty filters), worn brush roll components, or air leaks rather than a single “mystery” failure.

Next steps if you are troubleshooting an older DC15

Last updated: February 2026

A Dyson upright vacuum like the Dyson DC15 typically lasts 8 to 12 years with normal home use when filters are kept clean, clogs are cleared quickly, and the brush roll and belts are maintained. Heavy use and neglected maintenance shorten lifespan.

Typical lifespan by vacuum type

Because the DC15 is a corded upright, it usually outlasts many cordless models (no battery wear).

Vacuum type Typical lifespan What usually ends it
Corded upright (like DC15) 8 to 12 years Motor wear, cracked hoses, worn brush roll/belts
Cordless stick 5 to 8 years Battery aging, bin seals, motor wear
Canister 8 to 12 years Hose/power nozzle issues, motor wear

What makes a Dyson DC15 last longer

We see the biggest lifespan gains from basic airflow and brush maintenance.

  • Wash or clean filters on schedule; let them dry fully before reinstalling
  • Clear clogs in the wand, hose, and cleaner head as soon as suction drops
  • Remove hair and string from the brush roll to prevent overload
  • Replace worn belts before they slip or burn (a common cause of “no pickup”)
  • Empty the bin before it is packed tight to keep airflow strong
  • Check for air leaks at seals and connections if suction seems inconsistent

For step-by-step DIY help on common wear items, use our vacuum repair-guides landing page.

Signs it is near end of life

A vacuum can still run but perform poorly when key components are worn.

  • Burning smell or repeated shutoffs during normal cleaning
  • Loud grinding or high-pitched whine from the motor area
  • Weak suction after you have cleared clogs and cleaned filters
  • Brush roll stops or struggles even after cleaning hair and debris

Why it matters

A well-maintained DC15 keeps stronger suction, protects the motor from overheating, and reduces belt and brush roll damage. That usually means fewer repairs and better cleaning performance over the life of the vacuum.

Last updated: February 2026

The most common problem we see on a Dyson DC15 upright vacuum is loss of suction. In most cases, suction drops because airflow is restricted by a clog (hose, wand, cleaner head, or internal duct) or because filters and bins are overdue for cleaning, which can also make the vacuum pulse or shut off.

Most common issues (and what they usually mean)

  • Loss of suction: blockage in the airflow path, dirty filters, or a bin/seal issue
  • Pulsing or surging: airflow restriction; the vacuum is protecting the motor
  • Brush roll not spinning: jammed beater bar, worn belt, or a seized brush roll end cap
  • Shuts off during use: overheating from restricted airflow or a failing motor
  • Unusual noise or burning smell: debris in the brush area, belt slip, or motor strain

Quick checks we recommend first (DC15)

  1. Empty the bin and check that it seats fully.
  2. Inspect the wand and hose for clogs (a coin, sock, or hair wad is common).
  3. Check the cleaner head airway and remove wrapped hair and string.
  4. Confirm the brush roll area spins freely by hand (with power unplugged).
  5. Clean or replace filters on schedule (dirty filters are a top cause of weak suction).

Symptom-to-cause guide

Symptom Most likely cause Best next step
Weak pickup on carpet Clog or dirty filters Clear airflow path; service filters
Pulsing Airflow restriction Find and remove blockage
Brush not turning Jam or belt issue Inspect brush and belt drive
Stops after a few minutes Overheating from restriction Clear clogs; let it cool; recheck airflow

Why it matters

Restricted airflow makes the motor work harder, which reduces cleaning performance and can lead to overheating shutoffs. Fixing suction and brush-roll problems early keeps your DC15 cleaning consistently and helps prevent repeat failures.

Helpful DIY troubleshooting

For step-by-step diagnosis and repair walkthroughs, use our DIY resources:

Last updated: February 2026

On the Dyson DC15, the vacuum “stands up” when you return the handle to the fully upright position and let the rear stabilizer system support the machine. To recline and re-park it correctly, use the stabilizer pedal on the back, not the cleaner head.

How to park the DC15 upright

  • Turn the vacuum off and place it on a flat, level floor.
  • Hold the handle and guide it back to the fully upright position.
  • Make sure the machine is balanced on the ball and rear stabilizer area.
  • If you need to recline it again, press the stabilizer pedal on the back to release the upright position.
  • Keep your foot off the cleaner head; use the stabilizer control instead.

If it will not stay upright

These checks focus on the DC15’s stabilizer and pivot areas (not a click-in “upright lock”).

  • Clear hair, string, or debris around the rear stabilizer and hinge points.
  • Confirm the hose and wand are seated and routed normally; a tugging hose can pull the handle out of the parked position.
  • Check for cracked or loose plastic around the rear stabilizer pedal area.
  • Verify the vacuum is on a hard, level surface; thick carpet can make it feel unstable.

Quick diagnosis

What you notice Most likely cause What to do
Handle will not stay vertical Stabilizer/pivot binding Remove debris around stabilizer and pivots
Hard to recline or return upright Stabilizer pedal not moving freely Press pedal repeatedly, clear obstructions
Tips easily when parked Hose/wand pulling or uneven surface Reseat hose/wand, move to level floor

Why it matters

Parking the DC15 correctly prevents tip-overs and reduces strain on the hose, wand, and pivot points, which helps maintain steering control and overall stability.

For more troubleshooting steps for upright vacuums, use our vacuum repair-guides landing page.
