Whirlpool WFE320M0JS0 free standing electric range Parts

For your Whirlpool WFE320M0JS0 electric range, we use your model number to match the correct replacement part numbers. You can find the model and serial number on the rating label located on the upper right corner of the front frame; the exact label location is shown in the WFE320M0JS0 owner's manual.

You will typically see these fields printed together:

• Model number (example: WFE320M0JS0)
• Serial number (unique to your range)
• Electrical ratings (volts/amps)
• Manufacturer information

Once you have the model number, match parts by model first, then confirm the part name and ID.

• Search parts using the full model number (all letters and numbers)
• Match the part name to what you are replacing (switch, element, sensor, etc.)
• Confirm the part ID before ordering
• If multiple versions appear, compare your old part’s markings and wire terminals

Using the correct Whirlpool model number prevents ordering the wrong surface element, control switch, or oven sensor; small design changes between similar ranges can affect fit, wiring, and performance.

Last updated: February 2026

Yes. Whirlpool is a solid, dependable brand for electric ranges, and the Whirlpool WFE320M0JS0 is built for everyday cooking with straightforward controls and serviceable components. Most owners choose Whirlpool for reliable heating performance, practical features, and good long-term value.

A good electric range consistently heats, holds temperature, and has parts support when something wears out.

Common strengths many Whirlpool electric ranges are known for:

• Even baking and predictable temperature control for daily meals
• Simple, familiar controls that are easy to use
• Widely available replacement parts and documentation
• Ceramic glass cooktops that look clean and modern
• Good value compared with premium feature-heavy models

These are common ownership realities for many ceramic-glass electric ranges, including Whirlpool models:

• Glass cooktops can scratch or show stains if cookware bottoms are rough or spills bake on
• Boil times depend heavily on pan type and element size selection
• Oven temperature can drift over time; calibration and sensor checks help
• Electrical supply issues in the home can cause “dead” symptoms or error codes

Brand quality shows up most after a few years: stable oven temperatures, durable surface elements, and the ability to repair instead of replace. For the WFE320M0JS0, keeping the cooktop clean and addressing heating issues early helps protect performance and extend service life.

• Use the WFE320M0JS0 owner's manual for feature operation, cleaning guidance, and troubleshooting steps.

Last updated: February 2026

A Whirlpool electric oven like model WFE320M0JS0 typically lasts 13 to 15 years with normal household use and basic maintenance. Keeping the cooktop and oven cavity clean, avoiding overheating, and fixing small issues early helps you reach the high end of that range.

• Running the oven at very high temps for long periods (frequent broiling or long bakes)
• Heavy spillovers that carbonize and damage finishes or components
• Slamming or leaning on the open door (stresses hinges and door alignment)
• Loose or overheated power connections at the terminal block
• Ignoring early symptoms like uneven baking or error codes

We recommend these habits for Whirlpool free standing electric ranges:

• Clean spills after the range cools; start with mild soap and water per the WFE320M0JS0 owner’s manual.
• Keep the door closing smoothly; replace worn hinges if the door drops or won’t seal (for example, range oven door hinge WPW10299227).
• If baking temps seem off, test the sensor and replace it if needed (for example, range oven temperature sensor WPW10181986).
• Make sure the range is stable and properly secured; confirm anti-tip hardware is installed per the WFE320M0JS0 installation guide.
• Use the right tools and safe testing practices when checking electrical parts (see how to use a multimeter to test electrical parts video).

A range that is nearing end-of-life often shows up as temperature swings, longer preheat times, or intermittent heating. Addressing the common wear parts early can prevent bigger failures and keep cooking performance consistent.

Last updated: February 2026

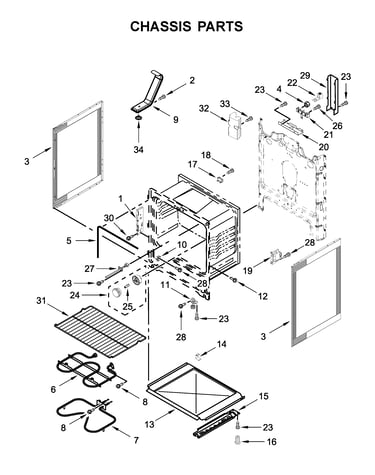

On the Whirlpool WFE320M0JS0 free standing electric range, the main “stove” parts include the cooktop surface units (heating elements), oven cavity and racks, electronic controls, and safety hardware like the anti-tip bracket. These components work together to heat cookware on top and bake or broil in the oven.

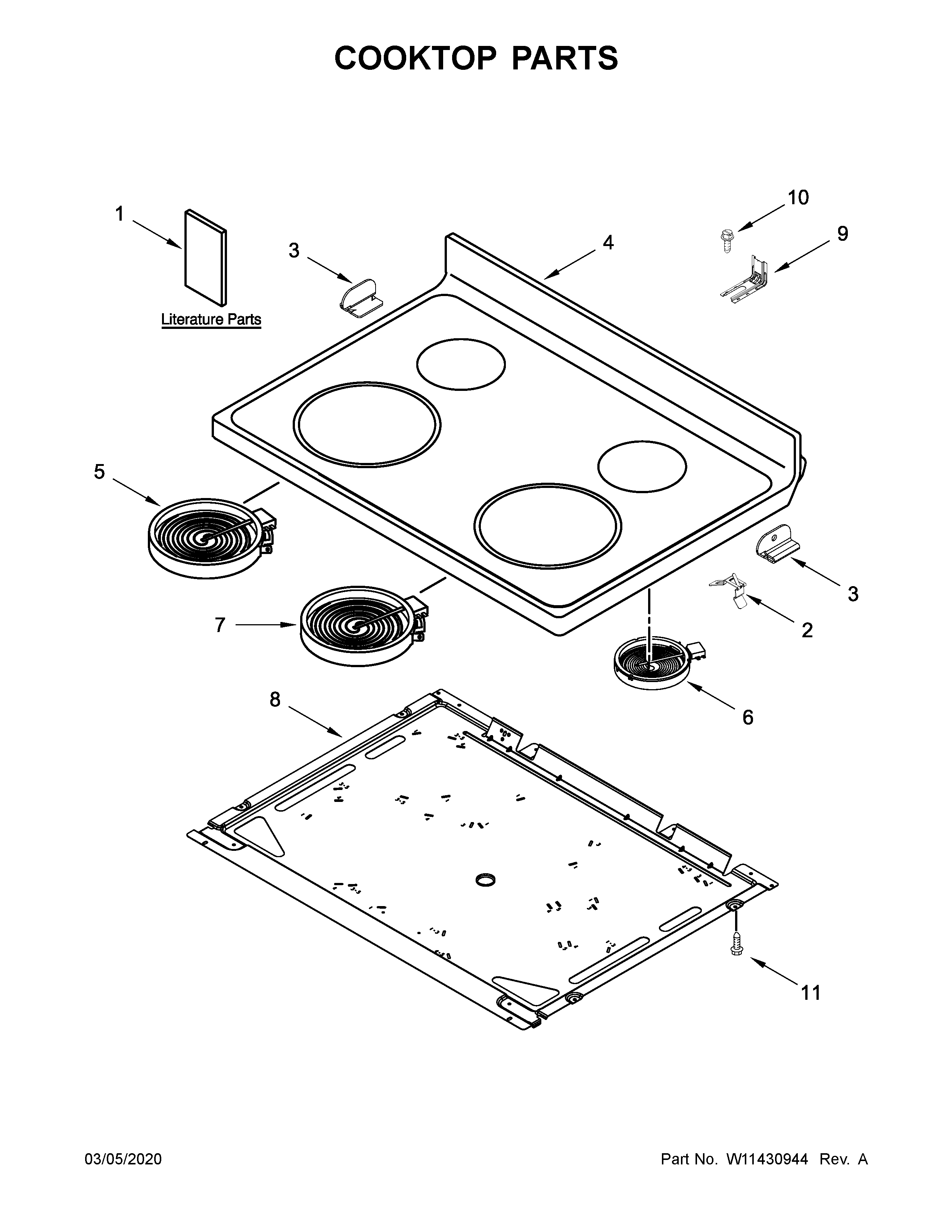

• Cooktop surface units (radiant elements) and their control knobs/switches

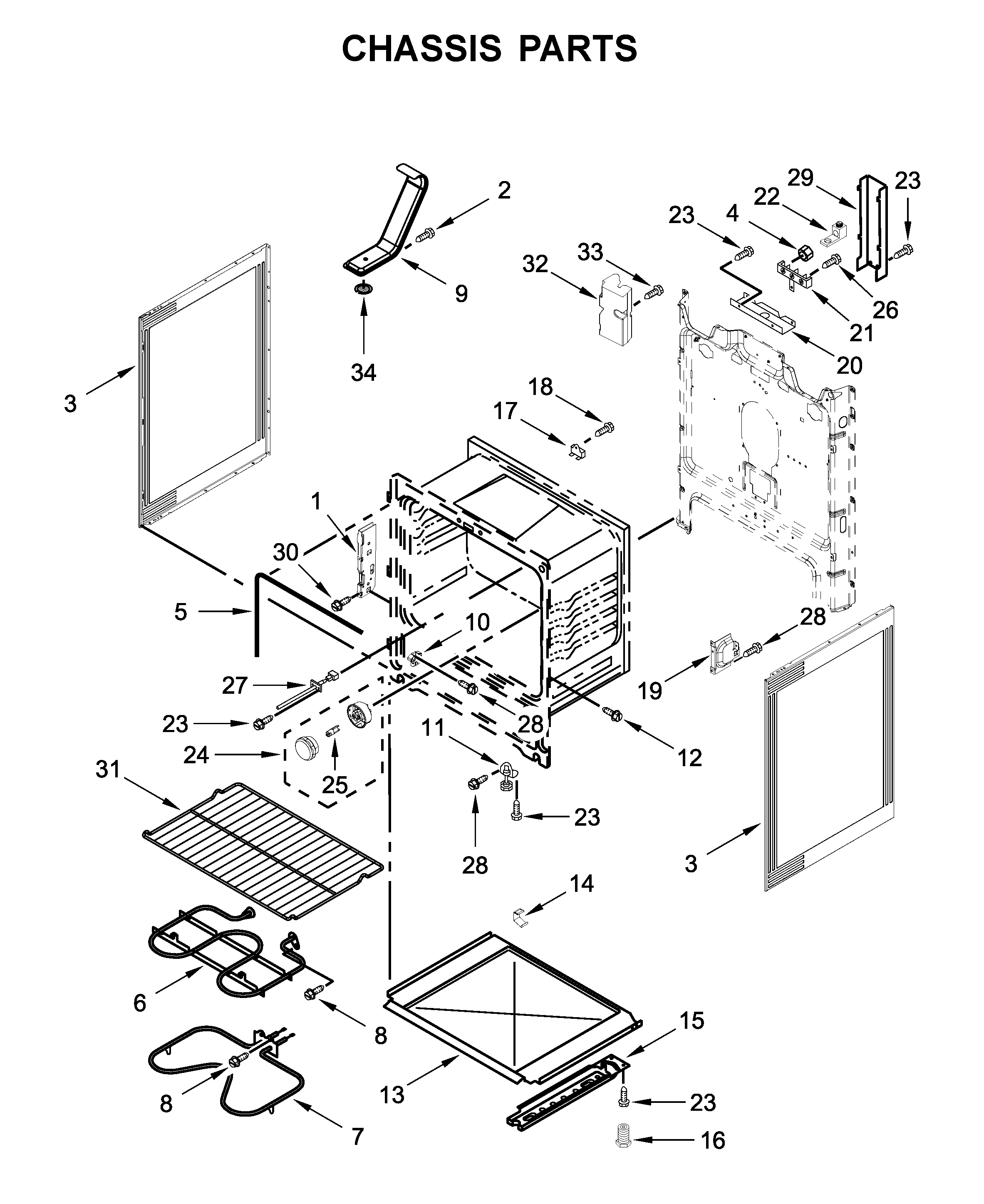

• Oven cavity with bake and broil heating functions
• Oven racks and rack supports for positioning bakeware

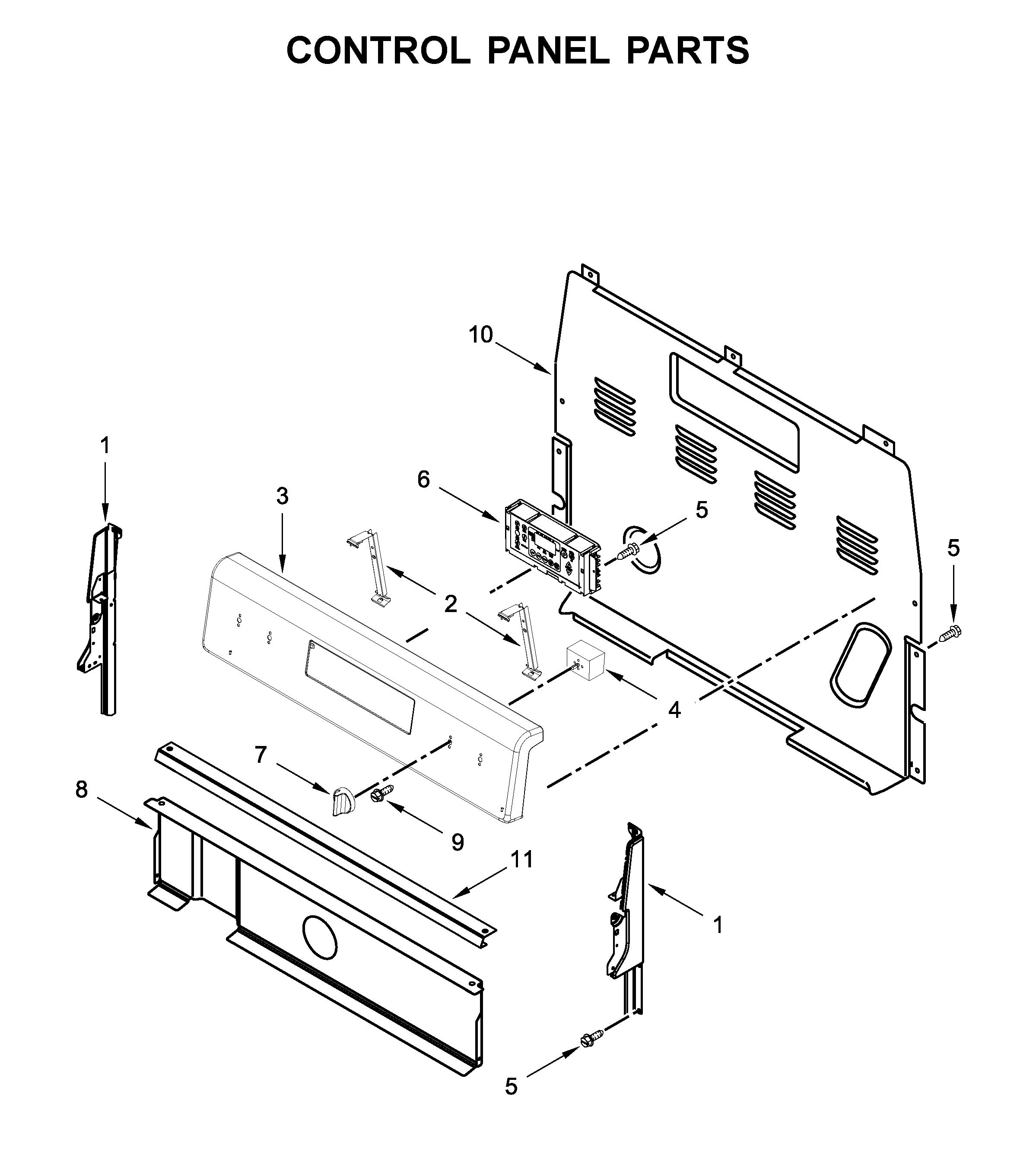

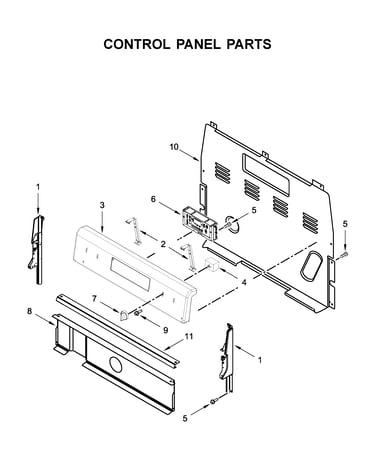

• Electronic oven controls (control panel/console)

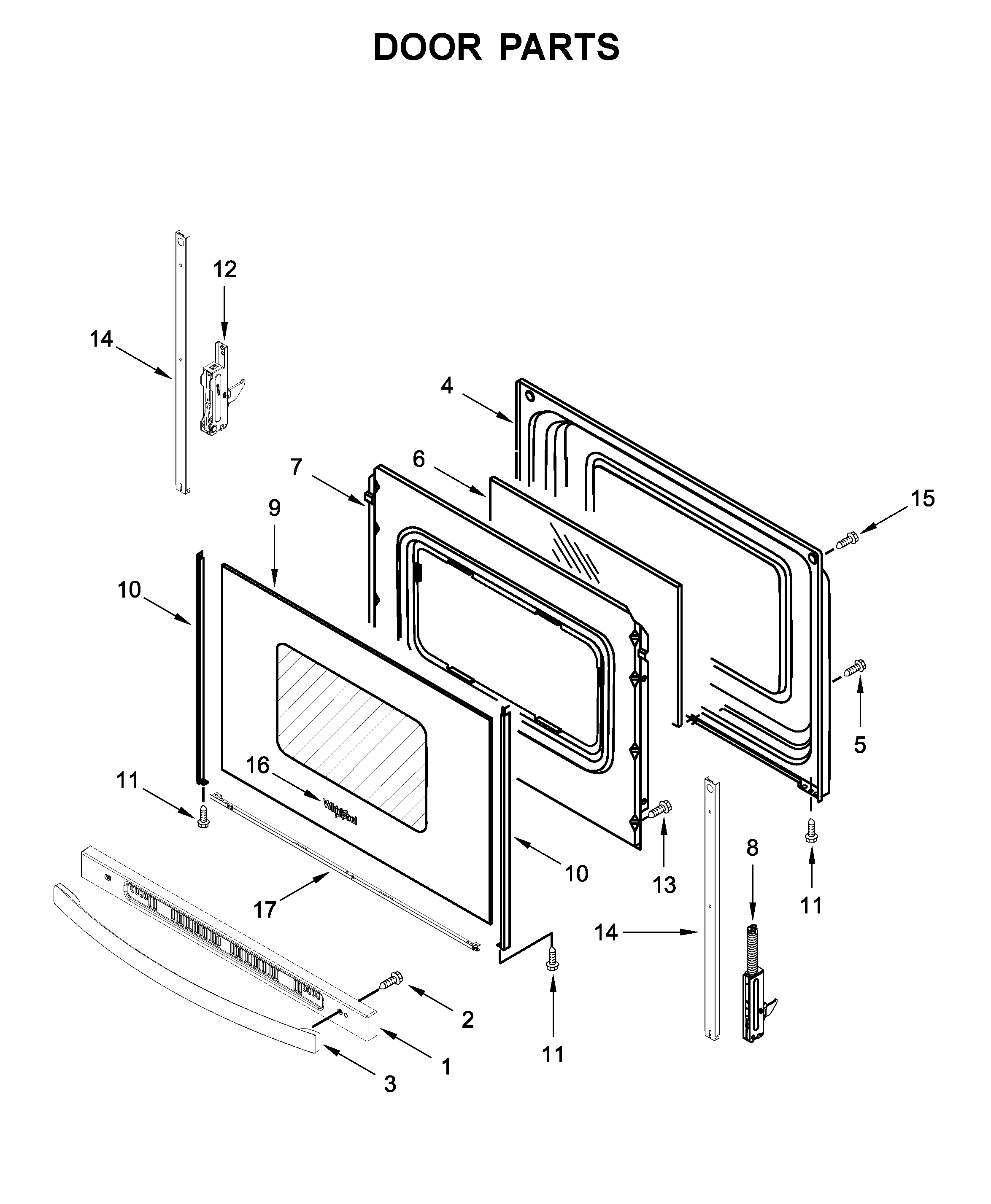

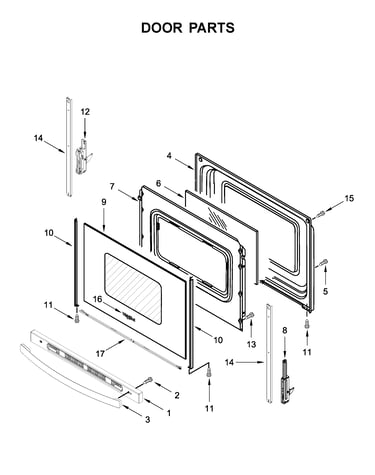

• Oven door assembly (hinges, trim, panels)

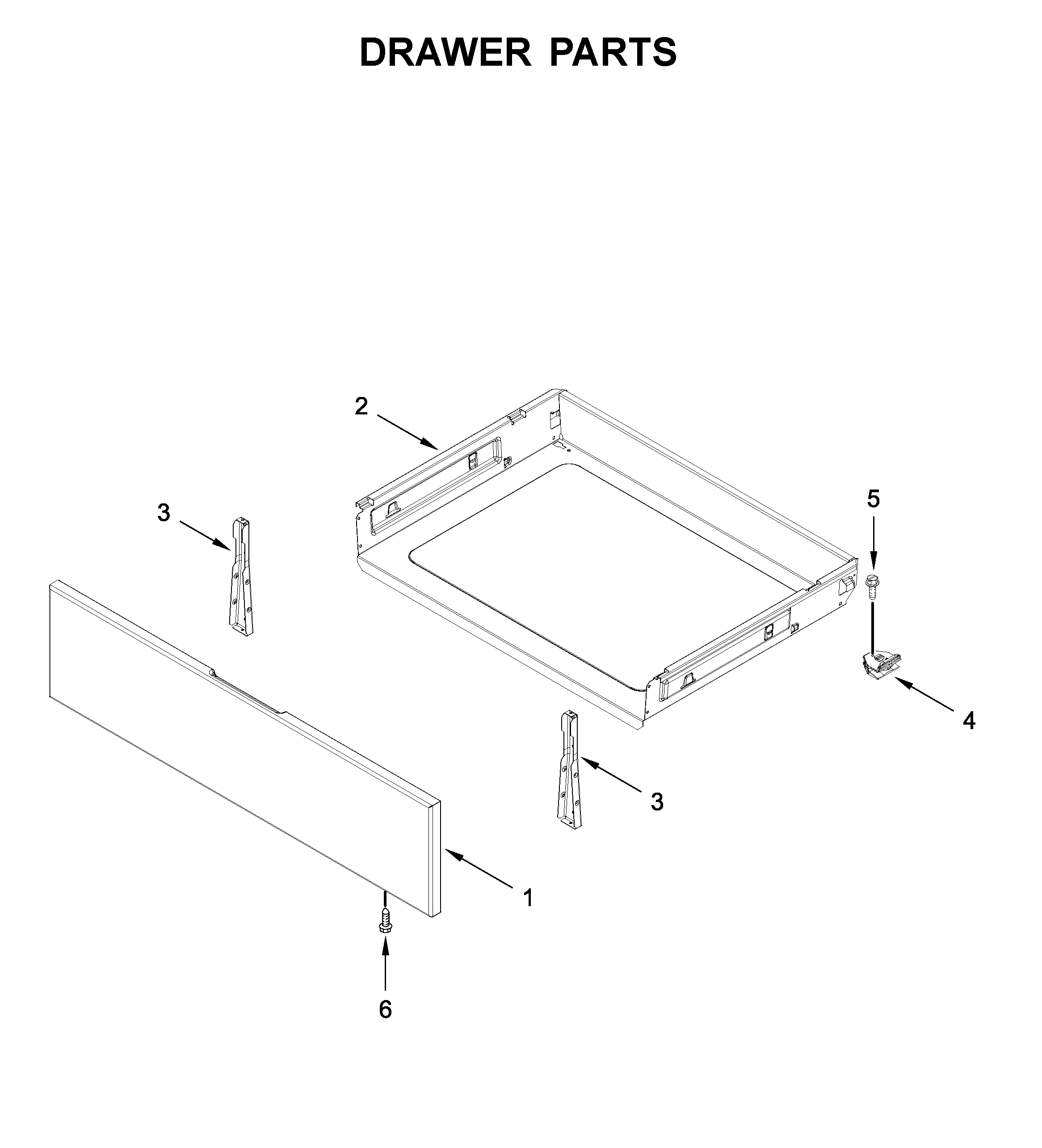

• Storage drawer or warming drawer (model configuration dependent)
• Power connection parts (cord/terminal block area) and anti-tip bracket

Here are examples of real parts we stock for this model and what they do.

Your documentation lists key assemblies and features (cooktop use, oven use, electronic controls, racks, and safety guidance). For the exact layout and feature set on your unit, use the WFE320M0JS0 owner's manual. For installation-related parts and safety hardware (including the anti-tip bracket and electrical connection requirements), use the WFE320M0JS0 installation guide.

Knowing the correct part names helps you troubleshoot faster and order the right replacement. For example, a “burner not heating” problem can be the surface element, the control switch, or a wiring connection, and each fix uses a different part.

Last updated: February 2026

The two most common electric stove problems on a Whirlpool free standing electric range like model WFE320M0JS0 are (1) a surface element that will not heat and (2) control-related issues such as overheating or a burner that will not shut off. Both problems usually trace to the heating element, the control switch, or a wiring connection.

When a cooktop element does not heat, we focus on the element itself, the infinite switch behind the knob, and the wiring terminals feeding the element.

What to check first

• Confirm the knob is being pushed in and turned to a heat setting (a common “cooktop will not operate” cause).
• Try a different burner to see if the issue is isolated or affects multiple elements.
• Check for a tripped breaker or blown fuse if nothing on the range operates.
• Inspect the element area for visible damage (cracks, blisters, burned spots).
• If the cooktop is broken, stop using it and have it serviced (shock risk).

Common parts involved (when symptoms match)

If a surface unit stays on high, cycles incorrectly, or will not shut off, the most common cause is a failed surface element control switch. In some cases, a damaged element or heat-damaged wiring can also contribute.

What to do right away

• Turn the knob to OFF; if heat continues, shut off power at the breaker.
• Let the cooktop cool completely before inspecting anything.
• If you see melted wiring or arcing, schedule service before using the range again.

A burner that will not heat is an inconvenience; a burner that overheats or will not shut off can damage cookware, the cooktop, and internal wiring. Catching the cause early helps prevent more expensive repairs.

We recommend following the safety and control-use guidance in the WFE320M0JS0 owner’s manual, including cautions about not leaving surface units unattended at high heat and keeping oven vent ducts unobstructed.

Last updated: February 2026

On a Whirlpool WFE320M0JS0 electric range, the F3E2 error points to a problem with the oven temperature sensing circuit (most commonly the oven temperature sensor or its wiring). The oven may heat incorrectly or stop heating until the issue is corrected; use the WFE320M0JS0 owner's manual for model-specific troubleshooting steps.

• Press Cancel/Off to clear the display, then try Bake again.
• Turn power off at the breaker for 1 minute, then restore power (a hard reset).
• If the code returns immediately, avoid using the oven until the sensor circuit is checked.
• If the oven was just cleaned or moved, inspect for pinched wires behind the range.
• Confirm the oven door closes fully; heat escaping can cause unstable temperature control.

In most cases, F3E2 is resolved by addressing the temperature sensor circuit:

• A failed sensor probe inside the oven cavity
• Loose or corroded wire connections at the sensor or control
• Damaged harness (heat damage, pinched wire)
• Less commonly, a problem in the electronic control

If the sensor is suspected, the correct replacement for this model is the range oven temperature sensor WPW10181986.

The oven control relies on the temperature sensor signal to regulate bake and broil. When that signal is out of range, the control can shut heating down or allow inaccurate temperatures, which affects cooking results and can overheat components.

Last updated: February 2026
