On Kenmore Elite washer model 11045088402, the door typically unlocks by pausing or canceling the cycle: press PAUSE/CANCEL once to pause and unlock (when safe), or press PAUSE/CANCEL twice to cancel so the washer powers down and unlocks after it drains if needed. See the 11045088402 owner's manual.

Quick ways to unlock (most common)

• Pause the cycle: press PAUSE/CANCEL once; the door unlocks so you can add or remove items (when conditions allow).
• Cancel the cycle: press PAUSE/CANCEL twice; the washer powers down and unlocks.
• If the door stays locked: wait for the washer to drain automatically if the water level or temperature is too high.
• If you need to drain first: select DRAIN & SPIN, then press and hold START for about 1 second; the door unlocks when the spin completes.

If the controls are locked (Control Lock)

When CONTROL LOCKED is lit, most buttons are disabled (except Pause/Cancel and Start). To unlock the controls on this model:

• Press and hold DRAIN & SPIN for 3 seconds.

What to expect (door unlock timing)

Situation	What the washer does	When it unlocks
Normal pause	Stops the cycle	Usually right away
Cancel cycle	Powers down	After draining if needed
Hot water or high water level	Drains automatically for safety	After conditions are safe

Why it matters

A front-load washer can keep the door locked to prevent spills and reduce burn risk from hot water. Using PAUSE/CANCEL and DRAIN & SPIN unlocks the door the safe way and helps avoid damage to the door lock assembly.

Last updated: January 2026

On the Kenmore Elite washer model 11045088402, an F5 code is treated as an electrical fault (an “F” variable). We clear the cycle first, then check the most common causes: door lock/strike issues, drainage problems leaving water in the tub, or a control-related fault. See the 11045088402 owner's manual for the model’s code-message reset steps.

What to do first (safe reset and quick checks)

• Press PAUSE/CANCEL twice to cancel the cycle.
• Unplug the washer (or disconnect power) for 1 minute.
• If there is water in the tub, select DRAIN & SPIN after restoring power.
• Close the door firmly and restart a normal cycle.
• If the code returns immediately, stop and troubleshoot before repeated restarts.

Common causes on this style of Kenmore Elite washer

Even when the display shows “F5,” the fix usually falls into one of these buckets:

• Door not locking (failed lock, misaligned strike, or door not fully closed)
• Drain issue leaving water in the washer (pump or hose restriction)
• Electrical/control fault (wiring connection, control board, or motor control issue)

Parts that often solve the problem

If the symptoms match, these are the most common repair parts for this model:

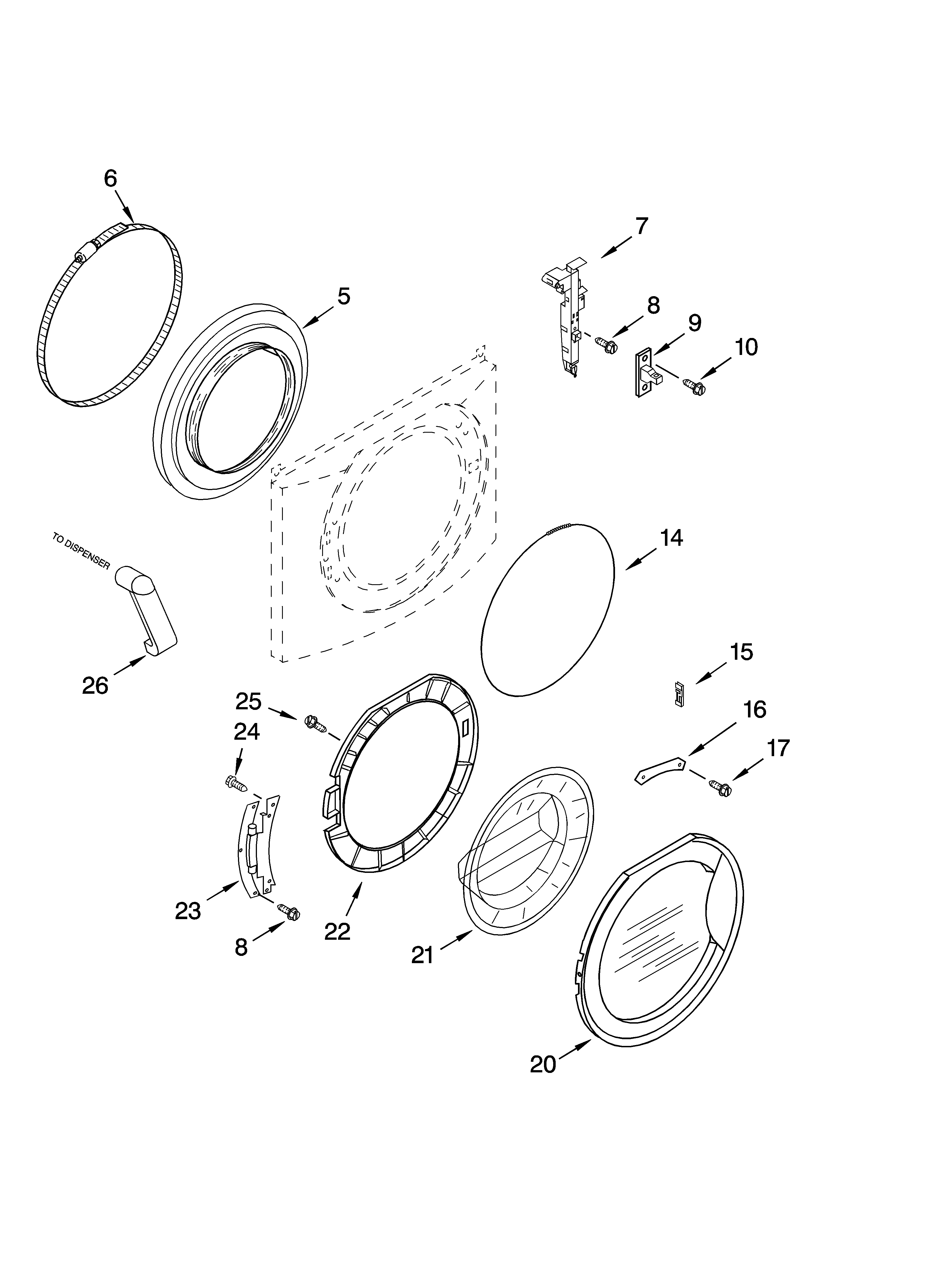

• Door will not lock or unlock: washer door lock assembly WP8182634
• Door closes but does not “catch”: washer door strike WP8181651
• Washer will not drain or shows drain-related behavior: water pump 280187

Symptom-to-part guide

What you notice	Most likely area	Typical next step
Door won’t lock, cycle won’t start	Door lock/strike	Inspect strike alignment; replace lock if intermittent
Water left in tub, won’t spin out	Drain system	Check drain hose; inspect pump for blockage
Code appears randomly mid-cycle	Electrical/control	Check harness connections; consider control diagnosis

Why it matters

An “F” code means the washer is protecting itself from running with an unsafe condition (like an unlocked door) or an electrical fault. Clearing the cycle correctly and matching the symptom to the right system prevents repeat shutdowns and unnecessary parts.

Last updated: January 2026

For Kenmore Elite washer model 11045088402, a hard reset is done by disconnecting power long enough for the control to fully power down, then restoring power and restarting a cycle. If the washer is acting “stuck,” canceling the cycle from the control panel often restores normal operation.

Hard reset steps (power reset)

1. Press PAUSE/CANCEL to stop the cycle.
2. Unplug the washer (or switch the breaker off).
3. Wait 2 minutes.
4. Restore power.
5. Select a cycle and press and hold START for about 1 second to run.

• This clears many temporary control glitches.
• If the door stays locked, the washer may drain automatically before unlocking.
• If the washer will not respond after power is restored, check the outlet and breaker first.

Control-panel reset (cancel and restart)

The 11045088402 control supports canceling and restarting a cycle:

• Press PAUSE/CANCEL twice to cancel the cycle.
• Select the desired cycle.
• Choose any available options/modifiers.
• Press and hold START (about 1 second) to restart.

Reference: 11045088402 owner's manual

If the washer still will not run

These checks fix the most common “won’t start” situations on front-load Kenmore Elite washers:

• Confirm the door is fully closed and latched; a misaligned strike can prevent starting.
• Reduce the load size; an overpacked drum can cause control and lock issues.
• Run DRAIN & SPIN to clear standing water.
• If you hear draining but water remains, inspect the drain path and pump area.

Symptom	Most likely area to check	Related part for this model
Won’t drain, door may stay locked	Drain pump or drain hose restriction	Water pump 280187
Starts then stops, door won’t lock	Door latch/lock system	Washer door lock assembly WP8182634

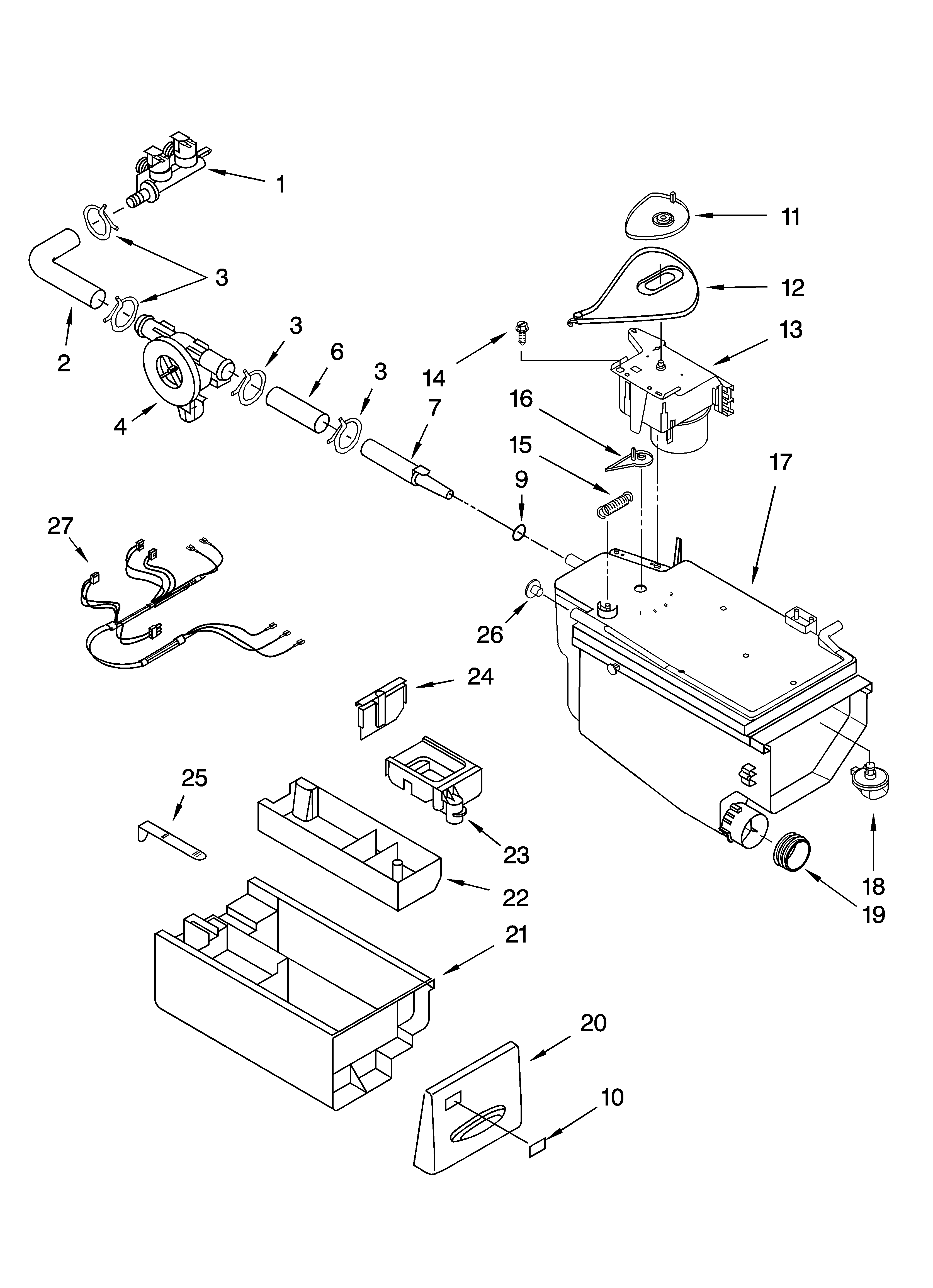

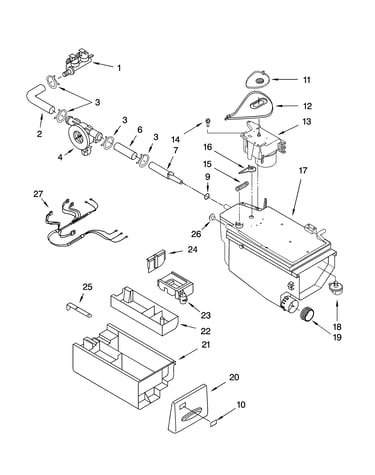

Slow fill or no fill	Inlet screens/valve	Washer water inlet valve WP8181694

Why it matters

A true hard reset removes “hung” control logic so the washer can reinitialize the door lock, drain routine, and cycle selection. Using PAUSE/CANCEL correctly also prevents repeated error conditions caused by an incomplete cycle stop.

Last updated: January 2026

On Kenmore Elite washer model 11045088402, we unclog the drain hose by safely draining any standing water, then checking the hose for kinks, freezing, or a blockage and flushing it clear. Correct drain hose routing also prevents repeat drain problems.

Safe prep first

• Unplug the washer or switch off power at the breaker.
• Turn off both water faucets.
• If the tub is full: press PAUSE/CANCEL once, select DRAIN & SPIN, then press and hold START for about 1 second.
• Put towels and a shallow pan under the hose connection.
• Confirm proper drain hose height and routing in the 11045088402 owner's manual.

Steps to clear the drain hose

1. Pull the washer forward enough to avoid crushing the hose.
2. Inspect the entire hose for a kinked or pinched section; straighten the path.
3. Disconnect the hose from the home drain (standpipe or laundry tub) and check the outlet end for lint, coins, or small socks.
4. Flush the hose with running water; use a flexible brush or small drain snake (avoid sharp tools that can puncture the hose).
5. Reinstall and secure the hose so it stays put but still leaves an air gap at the standpipe.

Routing mistakes that cause repeat clogs

• Do not force excess drain hose down into the standpipe.
• Do not lay extra hose on the bottom of the laundry tub.
• Do not straighten the hose completely; keep a natural curve.
• Keep the hose secure but loose enough to maintain an air gap.

Symptom	Likely cause	Fix
Won’t drain	Kink or clog	Inspect path, then flush hose
Drains slowly	Partial blockage	Flush hose, recheck routing
Drain issue returns	Hose pushed too deep	Re-route for air gap

If the hose is clear but it still won’t drain

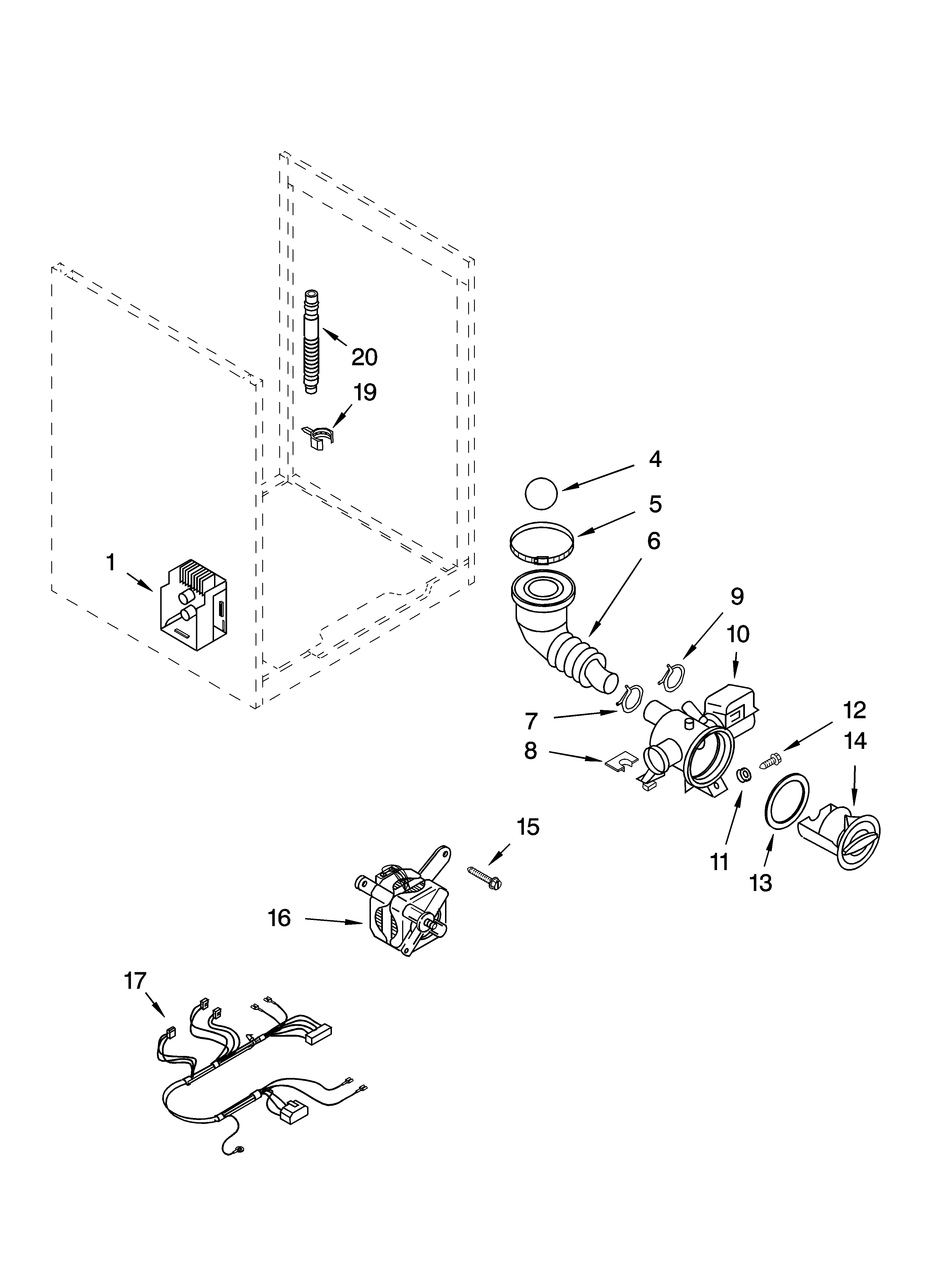

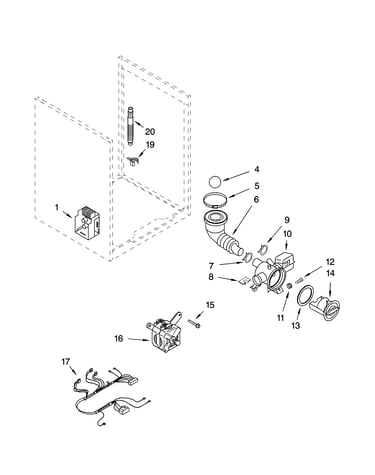

A restriction at the pump or tub-to-pump path is next. If the pump is noisy, jammed, or not moving water during DRAIN & SPIN, replacement is common (see water pump 280187).

Why it matters

A restricted drain hose causes standing water, odor, poor rinsing, and repeated drain errors; correct routing helps prevent backflow into the washer.

Last updated: January 2026
