Model # DPSR473EW0WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DPSR473EW0WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Drive Belt WE12M0022
#213

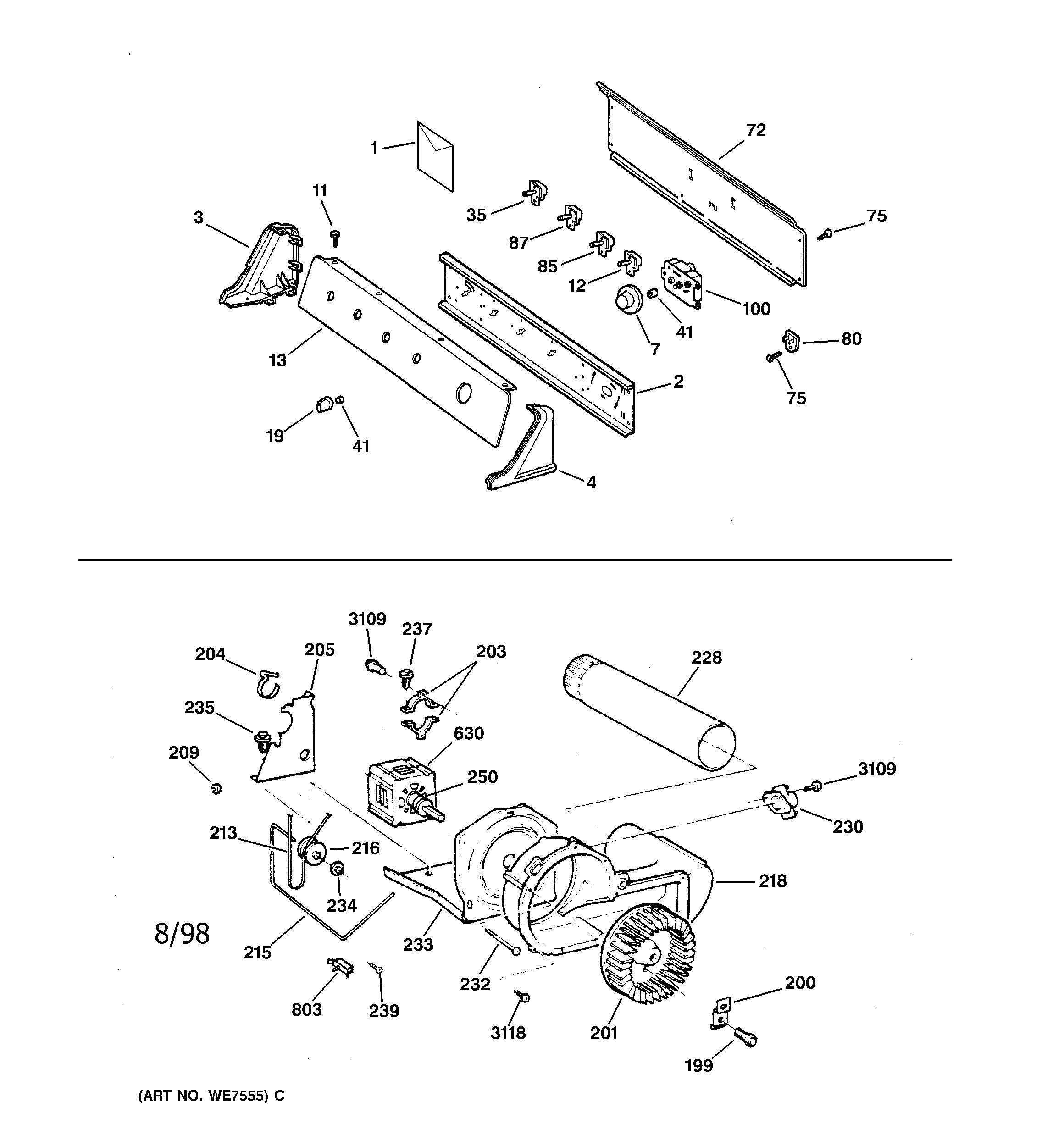

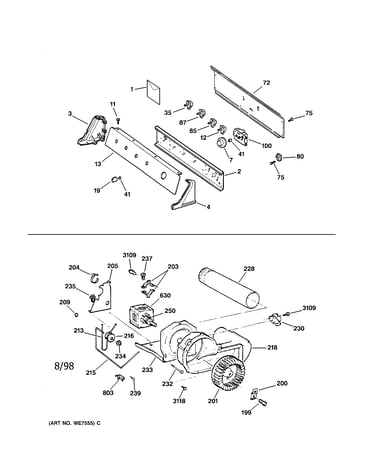

Backsplash, blower & motor diagram

Drive belt

Part #WE12M0022

Replaced by #WE03X29897

?
Manufacturer substitution
This part replaces WE12M0022. Substitute parts can look different from the original.
BEST SELLER
$30.53 |
16% OFF Phone Price : $36.53
In Stock
Slide Drum WE01M0333
#316

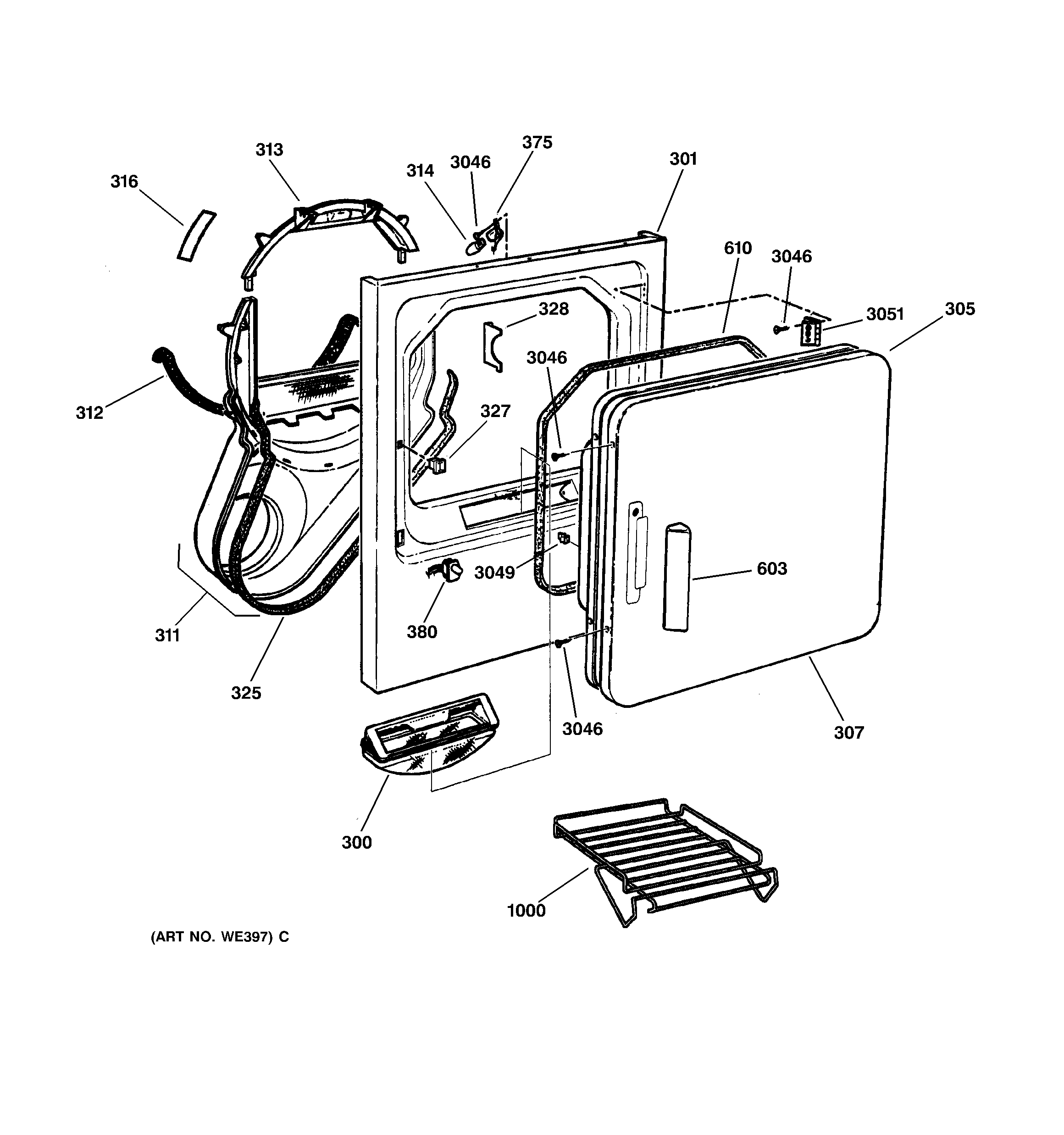

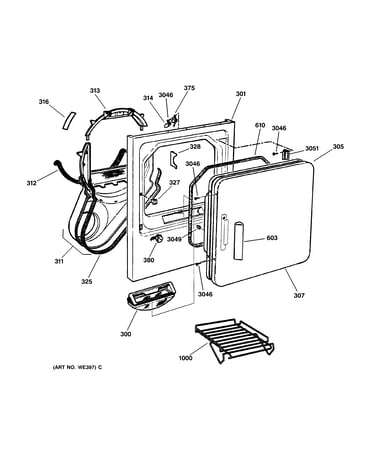

Front panel & door diagram

Slide drum

Part #WE01M0333

Replaced by #WE1M504

?
Manufacturer substitution
This part replaces WE01M0333. Substitute parts can look different from the original.
BEST SELLER
$18.21 |
10% OFF Phone Price : $20.21
In Stock
Slide Drum WE01M0316
#316

Front panel & door diagram

Slide drum

Part #WE01M0316

Replaced by #WE1M1067

?
Manufacturer substitution
This part replaces WE01M0316. Substitute parts can look different from the original.
BEST SELLER
$14.41 |
12% OFF Phone Price : $16.41
In Stock
T'stat Saf. WE04M0137
#507

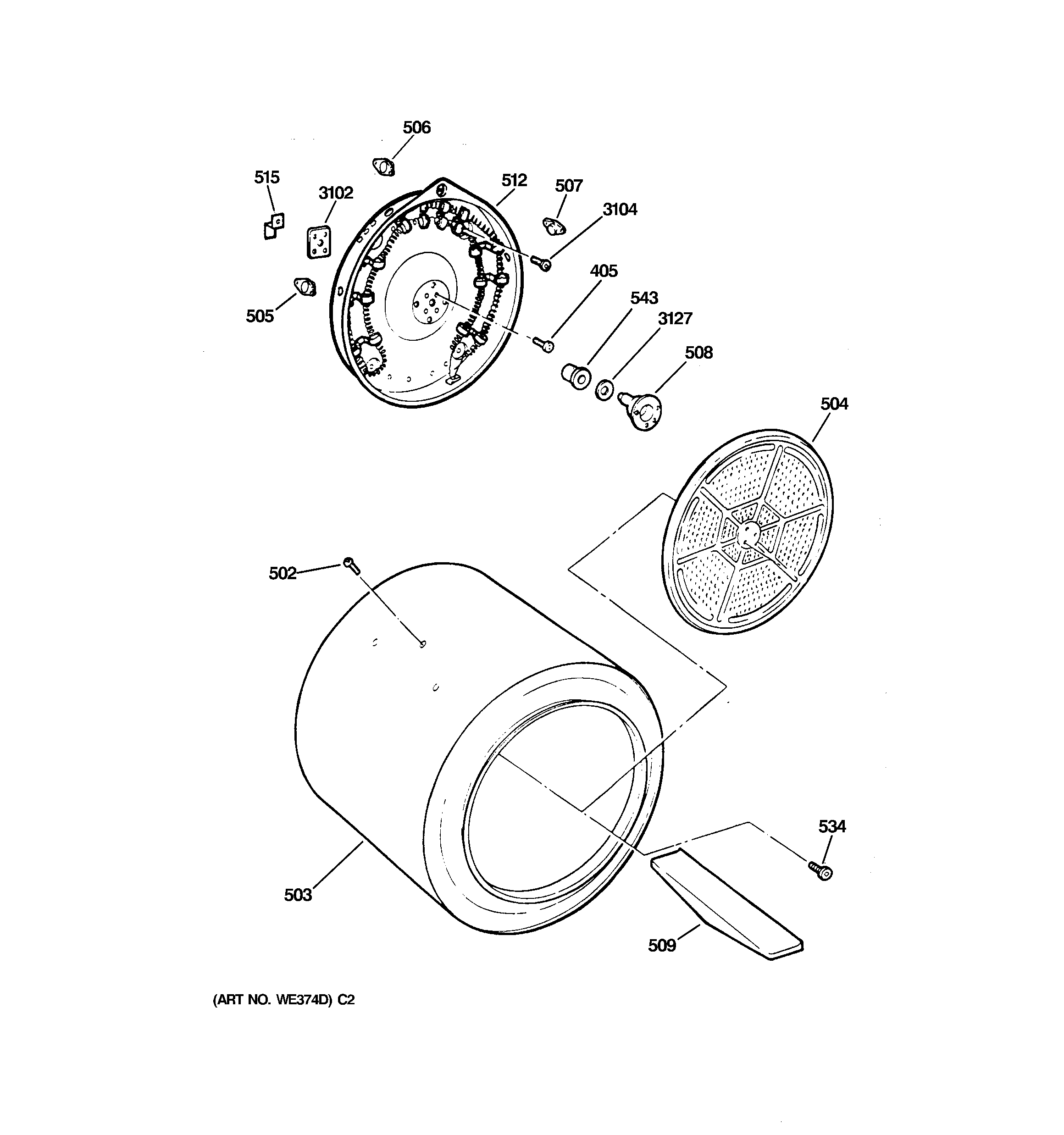

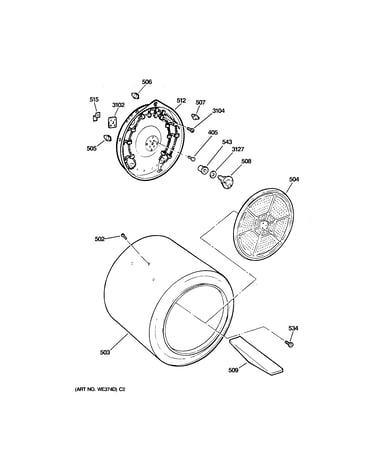

Drum diagram

T'stat saf.

Part #WE04M0137

Replaced by #WE4M137

?
Manufacturer substitution
This part replaces WE04M0137. Substitute parts can look different from the original.
BEST SELLER
$78.01 |
7% OFF Phone Price : $84.01
In Stock
Air Duct WE14M0076
#311

Front panel & door diagram

Air duct

Part #WE14M0076

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M0076. Substitute parts can look different from the original.
BEST SELLER
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Shft-brkt As WE03X0039
#508

Drum diagram

Shft-brkt as

Part #WE03X0039

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0039. Substitute parts can look different from the original.
BEST SELLER
$73.76 |
8% OFF Phone Price : $79.76
In Stock
Washer WE02X0195
#3127

Drum diagram

Washer

Part #WE02X0195

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE02X0195. Substitute parts can look different from the original.
BEST SELLER
$73.76 |
8% OFF Phone Price : $79.76
In Stock
Sleeve Bearing WE03M0015
#543

Drum diagram

Sleeve bearing

Part #WE03M0015

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03M0015. Substitute parts can look different from the original.
BEST SELLER
$73.76 |
8% OFF Phone Price : $79.76
In Stock
Thermostat Center WE4M0181
#506

Drum diagram

Thermostat center

Part #WE4M0181

Replaced by #WE4M181

?
Manufacturer substitution
This part replaces WE4M0181. Substitute parts can look different from the original.
BEST SELLER
$71.22
In Stock
Timer Knob WE1M443
#7

Backsplash, blower & motor diagram

Timer knob

Part #WE1M443

Replaced by #WE1M654

?
Manufacturer substitution
This part replaces WE1M443. Substitute parts can look different from the original.
BEST SELLER
$28.23 |
18% OFF Phone Price : $34.23
In Stock
