Kenmore 36378672891 refrigerator

Kenmore 36378672891 refrigerator Parts

Here are the diagrams and repair parts for Kenmore 36378672891 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 36378672891 Refrigerators

  • G.e. Refrigerator Ice Maker Kit for Kenmore 36378672891 - Part WR30X10093

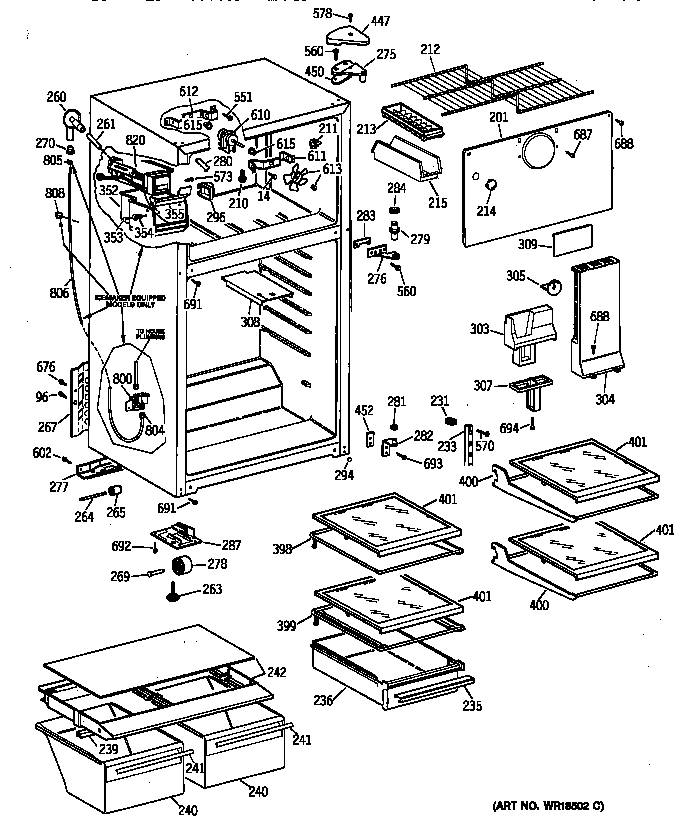

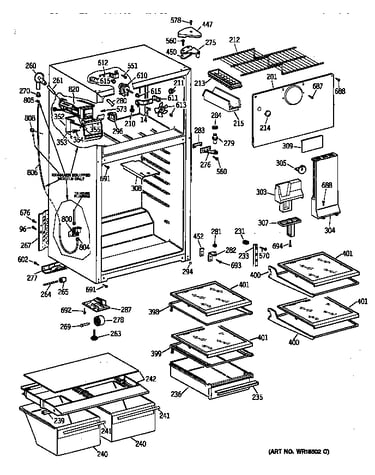

    Cabinet diagram

    Ice Maker

    Part #WR30X0327

    Replaced by #WR30X10093

    Info Icon
    Manufacturer substitution
    This part replaces WR30X0327. Substitute parts can look different from the original.
    In Stock
    $247.78
    5% OFF Phone Price : $259.78Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Filter Dryer for Kenmore 36378672891 - Part WR86X25269

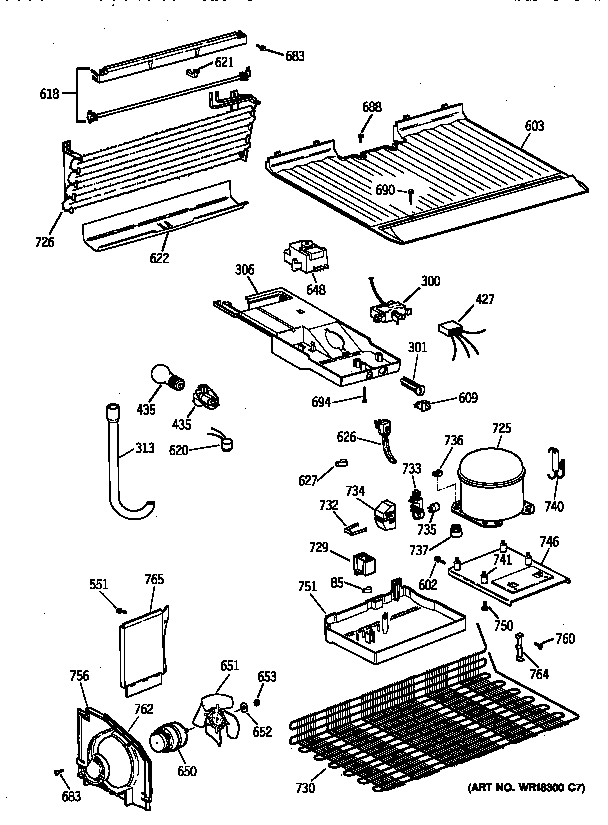

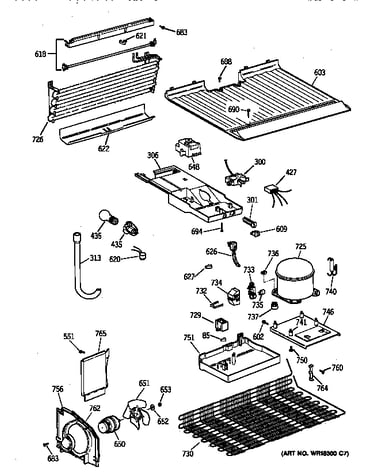

    Unit parts diagram

    Dryer Filter

    Part #WR86X0096

    Replaced by #WR86X25269

    Info Icon
    Manufacturer substitution
    This part replaces WR86X0096. Substitute parts can look different from the original.
    In Stock
    $46.36
    45% OFF Was : $83.96Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Appliance Light Bulb, 40-watt for Kenmore 36378672891 - Part 40A15

    Unit parts diagram

    40a15/22

    Part #STD372402

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces STD372402. Substitute parts can look different from the original.
    In Stock
    $15.40
    11% OFF Phone Price : $17.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for Kenmore 36378672891 - Part WR87X20798

    Unit parts diagram

    Comp Repl Kt

    Part #WR87X0479

    Replaced by #WR87X20798

    Info Icon
    Manufacturer substitution
    This part replaces WR87X0479. Substitute parts can look different from the original.
    In Stock
    $508.48
    $12.00 OFF Phone Price : $520.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve Assembly for Kenmore 36378672891 - Part WR57X10033

    Cabinet diagram

    Water Valve

    Part #WR57X0110

    Replaced by #WR57X10033

    Info Icon
    Manufacturer substitution
    This part replaces WR57X0110. Substitute parts can look different from the original.
    In Stock
    $50.80
    11% OFF Phone Price : $56.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Timer for Kenmore 36378672891 - Part WR9X502

    Unit parts diagram

    Defrost Control

    Part #WR09X0502

    Replaced by #WR9X502

    Info Icon
    Manufacturer substitution
    This part replaces WR09X0502. Substitute parts can look different from the original.
    In Stock
    $90.01
    6% OFF Phone Price : $96.01Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Refrigerator Condenser Fan Motor for Kenmore 36378672891 - Part WR60X187

    Unit parts diagram

    Fan Motor

    Part #WR60X0187

    Replaced by #WR60X187

    Info Icon
    Manufacturer substitution
    This part replaces WR60X0187. Substitute parts can look different from the original.
    In Stock
    $260.70
    $12.00 OFF Phone Price : $272.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Power Cord for Kenmore 36378672891 - Part WR23X10300

    Unit parts diagram

    Power Cord

    Part #WR23X0108

    Replaced by #WR23X10300

    Info Icon
    Manufacturer substitution
    This part replaces WR23X0108. Substitute parts can look different from the original.
    In Stock
    $28.25
    18% OFF Phone Price : $34.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Shelf Rail End Cap for Kenmore 36378672891 - Part WR2X7975

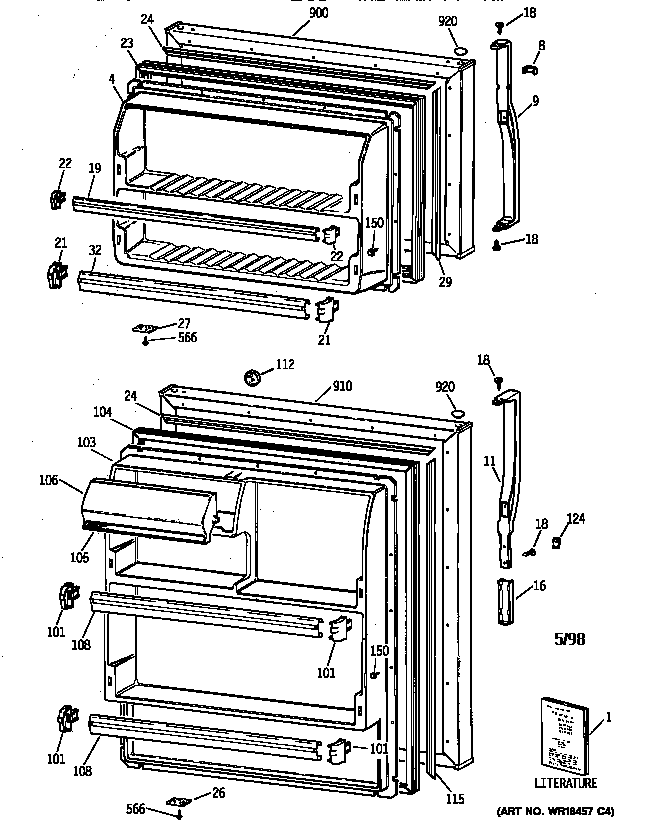

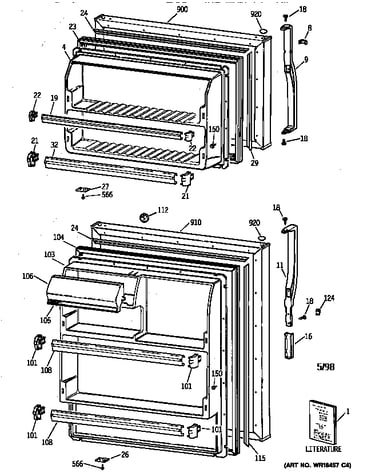

    Doors diagram

    Refrigerator Shelf Cap

    Part #WR02X7975

    Replaced by #WR2X7975

    Info Icon
    Manufacturer substitution
    This part replaces WR02X7975. Substitute parts can look different from the original.
    In Stock
    $33.13
    15% OFF Phone Price : $39.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Fill Tube Grommet for Kenmore 36378672891 - Part WR02X10967

    Cabinet diagram

    Refrigerator Grommet

    Part #WR02X9161

    Replaced by #WR02X10967

    Info Icon
    Manufacturer substitution
    This part replaces WR02X9161. Substitute parts can look different from the original.
    In Stock
    $28.25
    18% OFF Phone Price : $34.25Info Icon
    Minus Item
    Qty
    Plus Item

Kenmore Refrigerator 36378672891 FAQs

Yes. We still carry replacement parts for Kenmore refrigerators, including model 36378672891. You can order common repair and maintenance parts from the parts list for your exact model, and you can also search by model number on Sears PartsDirect if you need additional items.

Parts you can commonly still get (examples for model 36378672891)

Availability changes over time, but these are typical Kenmore top-mount refrigerator parts we often see customers replace:

How we recommend matching the right part

Use your full model number 36378672891 and confirm the part by location and symptoms.

  • Match the part to the correct section (freezer door, fresh food door, back of cabinet, etc.)
  • Compare the part name and part ID, not just the description
  • Check for multiple similar options (for example, more than one gasket)
  • If you are replacing an electrical part, unplug the refrigerator first
  • If the part is water-related, shut off the household water supply before servicing
Quick match guide
Symptom Common part to check Example part on this model page
Door not sealing, moisture, warm spots Door gasket Refrigerator gasket WR24X10228 or refrigerator gasket WR24X10229
No ice or slow ice Water inlet valve or ice maker Water valve WR57X10033, ice maker WR30X10093
Frost buildup, warming, noisy fan Defrost system components Defrost control WR9X502
Why it matters

Using the correct model-specific part helps restore proper temperatures, reduces frost and leaks, and prevents repeat repairs caused by poor fit or incorrect electrical ratings.

Last updated: February 2026

Most Kenmore refrigerators, including top-mount models like 36378672891, typically last 12 to 15 years with normal household use. Regular maintenance and quick fixes for cooling or sealing problems help you reach the high end of that range and avoid early compressor wear.

Typical lifespan and what affects it

Here’s what most often determines whether a refrigerator makes it to 15 years (or needs replacement sooner):

  • Condenser coil cleanliness (dust buildup makes the compressor run hotter and longer)
  • Door seal condition (air leaks force longer run times and can cause frost issues)
  • Airflow inside the cabinet (overpacking blocks vents and creates warm spots)
  • Room conditions (hot garages and tight enclosures shorten life)
  • Defrost performance (ice buildup reduces cooling efficiency)
Quick maintenance checklist (10 minutes)

We recommend doing these simple checks a few times per year:

  • Vacuum dust from the lower rear area and around the condenser section
  • Confirm both doors close easily and stay shut without bouncing open
  • Wipe gaskets with warm, soapy water; dry fully
  • Keep food from blocking interior air vents
  • Listen for unusual fan noise or clicking during start-up
Common “end of life” symptoms vs fixable issues
Symptom Often fixable? Common next step
Door won’t seal, moisture on gasket Yes Inspect and replace the door gasket if torn or warped (example: refrigerator gasket WR24X10228)
Fridge light stays off or flickers Yes Check the bulb and door switch (examples: 40A15/22 40A15, light switch WR23X37285)
Warm fridge, freezer OK, fan noise changes Sometimes Check airflow and fan operation; use our guide how to fix your evaporator cooling fan
No ice or no water fill (if equipped) Often Diagnose supply and valve operation (example: water valve WR57X10033)
Why it matters

A refrigerator that is running longer than normal uses more electricity and puts extra stress on the sealed system. Fixing airflow problems, gasket leaks, or a weak water inlet valve early can prevent bigger failures and extend the service life.

If you’re planning ahead, we stock model-matched replacement parts for Kenmore 36378672891 on this page, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 36378672891 are cooling issues, water leaks, ice maker failures, frost buildup, and unusual noises. These typically trace back to airflow restrictions, dirty condenser coils, door seal problems, or a failing defrost or fan component.

Common symptoms and what usually causes them
  • Not cooling or warm fridge section: blocked air vents, dirty condenser coils, or a fan problem
  • Water leaking inside or onto the floor: clogged/iced defrost drain, loose water line, or a valve issue
  • Ice maker not making ice: water supply problem, inlet valve issue, or ice maker failure
  • Heavy frost in the freezer: defrost system problem or door not sealing
  • Noisy operation: fan motor noise, compressor start components, or vibration from leveling
Quick checks we recommend first (no parts required)
  • Set temps to about 37°F (fresh food) and 0°F (freezer), then wait 24 hours for stabilization.
  • Make sure food packages are not blocking interior vents.
  • Clean condenser coils and confirm the condenser area has good airflow.
  • Check door closing and gasket contact all the way around.
  • If you have an ice maker, confirm the household shutoff valve is fully open.
Parts that commonly solve these problems
Symptom Common fix Example part for this model
Leaking or no ice Replace a sticking inlet valve Water valve WR57X10033
Frost buildup, warm temps Defrost system timing/control issue Defrost control WR9X502
Door not sealing, moisture Replace torn or warped gasket Refrigerator gasket WR24X10228
No ice production Replace ice maker assembly Ice maker WR30X10093
Clicking, hard start Replace overload protector Refrigerator overload WR8X122
Why it matters

Most “big” refrigerator complaints start as small efficiency problems. A dirty coil or weak door seal can raise temperatures, increase frost, and overwork the compressor. Catching airflow, sealing, and defrost issues early helps protect food and prevents expensive sealed-system repairs.

Ordering the right parts

We list model-matched replacement parts for Kenmore 36378672891 on this page; for additional part searches by model number, use Sears PartsDirect.

Last updated: February 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair time and Difficulty

 15 minutes or less
