Side-By-Side Refrigerator

Model #TFG22JAXFWW Official GE refrigerator - x series

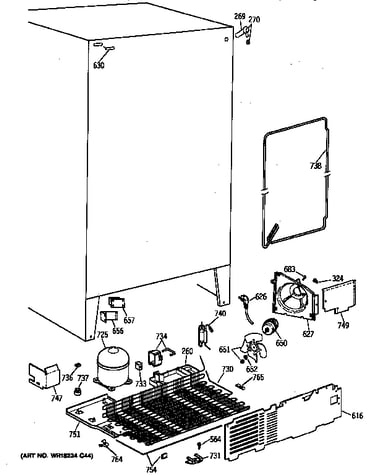

Here are the diagrams and repair parts for GE TFG22JAXFWW refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 214 parts

    Refrigerator Crisper Drawer Slide Rail#479B

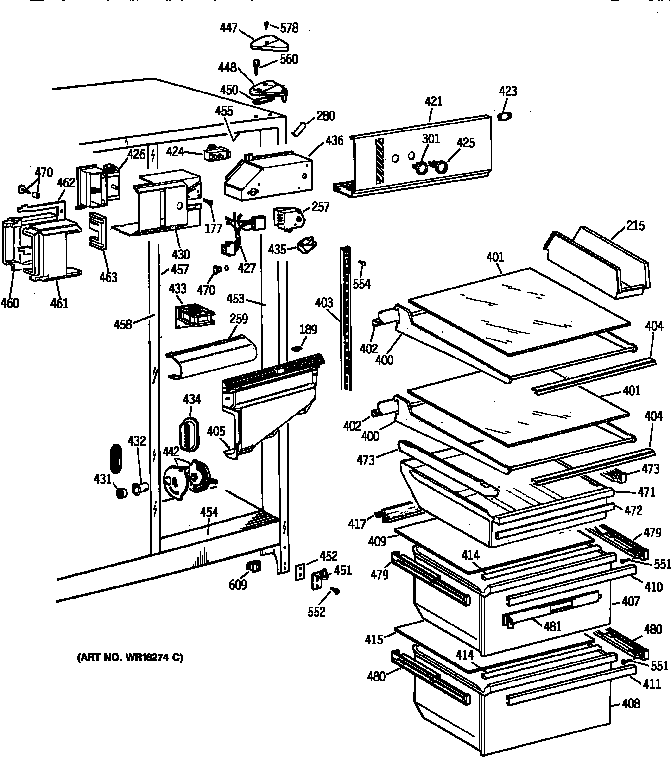

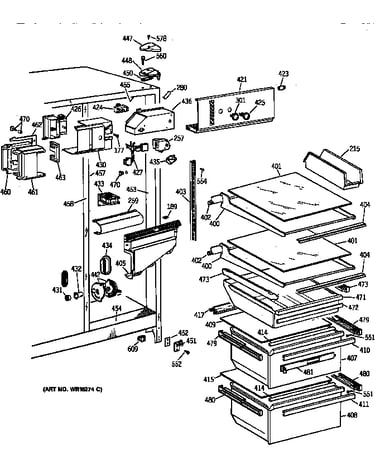

    Fresh food section Diagram

    Refrigerator slide assembly, left

    Part #WR72X0239
    Replaced by #WR72X239
    ?
    Manufacturer substitution
    This part replaces WR72X0239. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $18.47 |
    10% OFF
    Phone Price: $20.47
    Refrigerator Drawer Slide Rail#479A

    Fresh food section Diagram

    Refrigerator slide assembly, right

    Part #WR72X0240
    Replaced by #WR72X240
    ?
    Manufacturer substitution
    This part replaces WR72X0240. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $33.10 |
    13% OFF
    Phone Price: $38.10
    Refrigerator Door Closer Cam#16

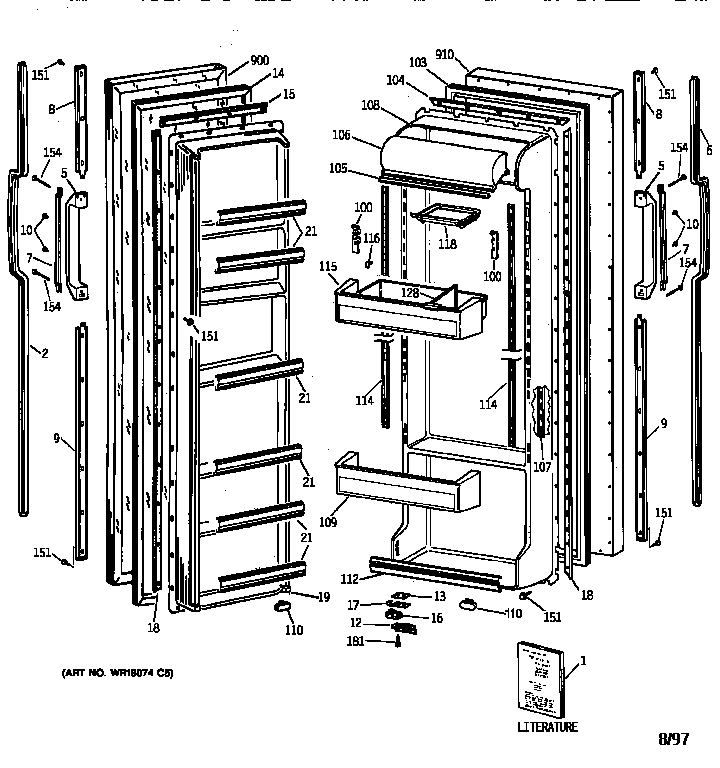

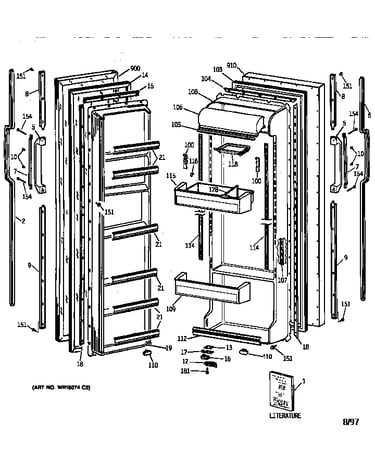

    Doors Diagram

    Refrigerator riser cam

    Part #WR02X4901
    Replaced by #WR2X4901
    ?
    Manufacturer substitution
    This part replaces WR02X4901. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Refrigerator Light Switch

    See All Related Diagrams

    Refrigerator light switch

    Part #WR23X0359
    Replaced by #WR23X10725
    ?
    Manufacturer substitution
    This part replaces WR23X0359. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Refrigerator Door Hinge#261

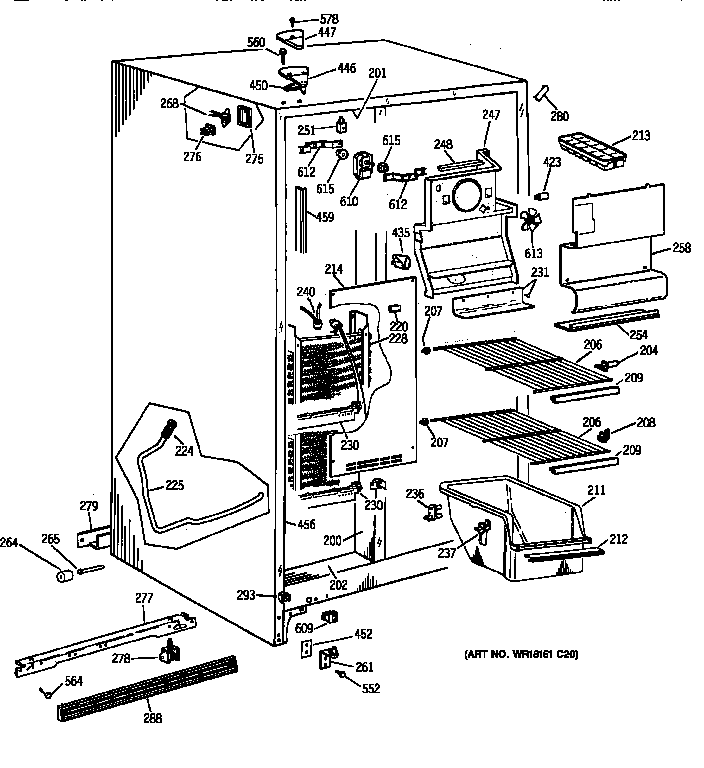

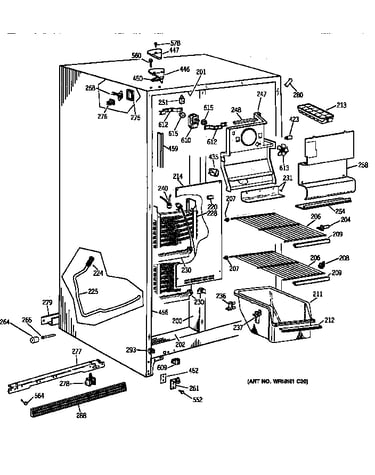

    Freezer section Diagram

    Refrigerator hinge

    Part #WR13X0742
    Replaced by #WR13X10020
    ?
    Manufacturer substitution
    This part replaces WR13X0742. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $28.19 |
    15% OFF
    Phone Price: $33.19
    Refrigerator Door Hinge#451

    Fresh food section Diagram

    Refrigerator hinge

    Part #WR13X0741
    Replaced by #WR13X10020
    ?
    Manufacturer substitution
    This part replaces WR13X0741. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $28.19 |
    15% OFF
    Phone Price: $33.19
    Refrigerator Defrost Bi-Metal Thermostat#240

    Freezer section Diagram

    Refrigerator defrost thermostat

    Part #WR50X0122
    Replaced by #WR50X122
    ?
    Manufacturer substitution
    This part replaces WR50X0122. Substitute parts can look different from the original.
    In Stock
    $36.69 |
    12% OFF
    Phone Price: $41.69
    Refrigerator Crisper Drawer#407

    Fresh food section Diagram

    In Stock
    $122.59 |
    8% OFF
    Phone Price: $132.59
    Refrigerator Crisper Drawer Slide Rail, Right#480B

    Fresh food section Diagram

    Refrigerator slide assembly, right

    Part #WR72X0253
    Replaced by #WR72X253
    ?
    Manufacturer substitution
    This part replaces WR72X0253. Substitute parts can look different from the original.
    In Stock
    $33.79 |
    13% OFF
    Phone Price: $38.79
    Refrigerator Toe Grille#288

    Freezer section Diagram

    Refrigerator base grille

    Part #WR74X0217
    Replaced by #WR74X217
    ?
    Manufacturer substitution
    This part replaces WR74X0217. Substitute parts can look different from the original.
    In Stock
    $28.19 |
    15% OFF
    Phone Price: $33.19
