Whirlpool LSR5233EQ2 direct-drive washer Parts

On a Whirlpool LSR5233EQ2 direct-drive washer, a “lid lock reset” is usually a simple power reset plus making sure the lid switch is being triggered correctly. Unplug the washer for 5 minutes, plug it back in, then close the lid firmly and start a cycle; if the washer still will not run, the lid switch circuit typically needs troubleshooting or replacement.

• Unplug the washer (or switch off the breaker) for 5 minutes.
• Plug back in.
• Open the lid, then close it firmly (do not slam).
• Select a normal cycle and pull the timer knob (or start the cycle) to test.
• If the lid was left open during a pause, cancel the cycle and restart from the beginning.

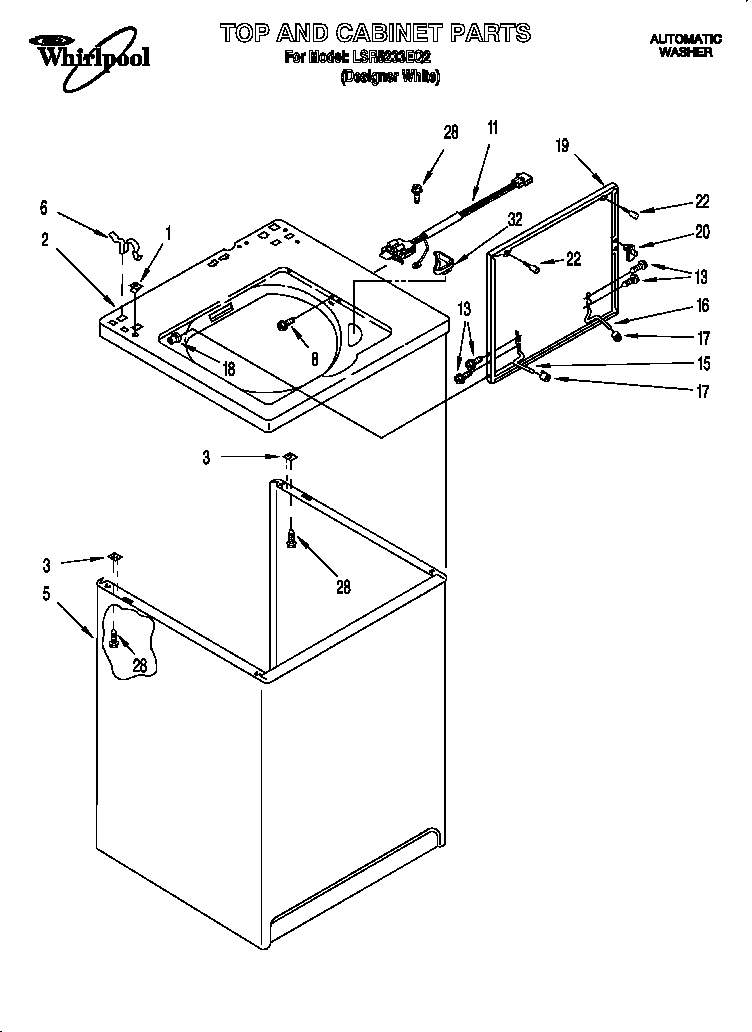

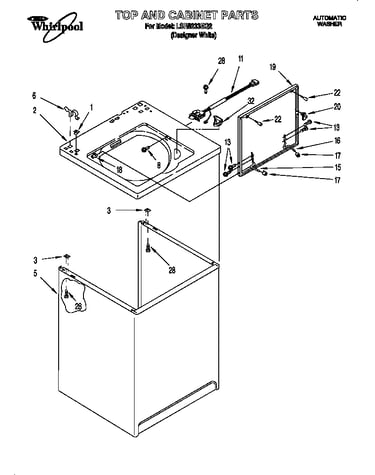

This model uses a lid switch style safety circuit (many owners call it a “lid lock”). If the lid strike is not pressing the switch lever, the washer will not agitate or spin.

• Lid closes evenly and is not twisted
• Hinge area is tight (lid not sagging)
• You hear/feel a distinct “click” when the lid closes
• No broken plastic at the lid strike area
• No loose or damaged wiring at the cabinet top

If the switch is failing electrically or mechanically, replacement is the correct fix: switch 3949247V.

The lid switch circuit is a safety feature; it prevents the basket from spinning with the lid open. Resetting power can clear a stuck timer state, but it will not bypass a worn switch, broken lid strike, or damaged wiring.

Last updated: February 2026

On your Whirlpool LSR5233EQ2 direct-drive washer, a clogged drain pump usually shows up as slow or no draining, standing water, or a humming sound with little water movement. We check the drain path from the tub to the pump to the drain hose, then inspect the pump inlet for debris.

• Unplug the washer before servicing.
• Turn off both water supply valves.
• Bail out water or use a wet/dry vacuum to reduce spills.
• Keep towels and a shallow pan ready.
• If you need to tip the washer, have a helper stabilize it.

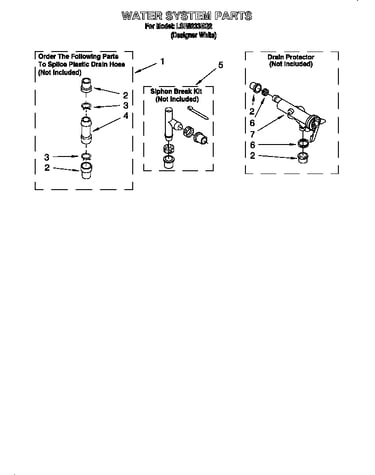

• Check the drain hose: Make sure it is not kinked, crushed, or shoved too far down the standpipe.
• Listen during drain: A steady hum with little or no water flow points to a blockage at the pump or hose.
• Look for a partial drain: If it drains slowly, lint, coins, socks, or a small garment can be restricting flow.

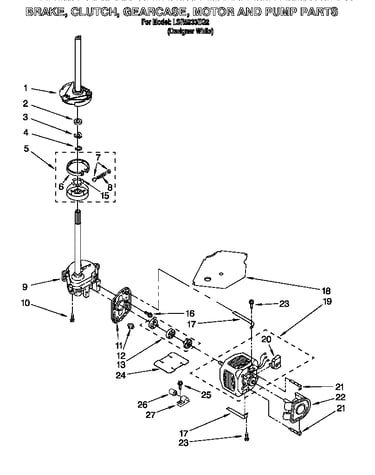

1. Access the pump (front lower area on most direct-drive Whirlpool designs).
2. Place a pan under the pump and loosen the hose clamps.
3. Remove the tub-to-pump hose first; pull out debris from the hose and pump inlet.
4. Spin the pump impeller by hand; it should turn smoothly with light, even resistance.
5. Reconnect hoses, restore power, and run a short drain/spin test.

If the impeller is jammed, wobbly, or the pump leaks, replacement is the right fix. The correct replacement for this model is the washer drain pump WP3363394.

A restricted drain pump can prevent the washer from reaching full spin speed, leave clothes soaking wet, and overwork the drive system. Clearing the clog early helps protect components like the motor coupling and clutch.

Last updated: February 2026

Yes, it’s usually worth repairing a Whirlpool washer when the fix is a common wear part and the machine is otherwise in good shape. For the Whirlpool LSR5233EQ2 direct-drive washer, repairs like a pump, coupling, or lid switch are often practical because these are straightforward, high-failure items.

Use these checkpoints to make a clear call:

• Repair when the problem is limited to a common mechanical part (drain, spin, agitation) and the tub and cabinet are solid.
• Repair when the washer fills normally, does not leak from the tub seal area, and the motor runs.
• Replace when the outer tub is damaged, the machine has severe rust, or multiple major systems are failing at once.
• Replace when the washer needs repeated major repairs in a short period (for example, clutch plus gear case plus tub work).
• Repair when the symptoms match a known direct-drive issue like a worn motor coupling or agitator dogs.

Parts cost is only one piece of the decision; labor and difficulty matter too.

A direct-drive Whirlpool like the LSR5233EQ2 is built around mechanical components (coupling, clutch, pump, drive block). When one of these wear parts fails, replacing it often restores normal wash and spin performance without the cost of a full replacement washer.

If your LSR5233EQ2 has one clear symptom and it points to a single common part (coupling, pump, agitator dogs, lid switch), repairing it is the smart move. If you’re seeing tub damage, chronic leaks, or multiple major failures, replacement is the better long-term value.

Last updated: February 2026

The most common problems we see on Whirlpool washers like the LSR5233EQ2 are won’t drain or won’t spin, leaks, and no agitation. On a direct-drive design, these symptoms often trace back to a worn drain pump, a failed lid switch, or a worn drive coupling.

• Washer won’t drain / clothes still wet: clogged pump, jammed impeller, or a failing pump such as the washer drain pump WP3363394
• Washer won’t spin: lid switch failure, worn clutch, or drive system wear (for example the clutch 285785)

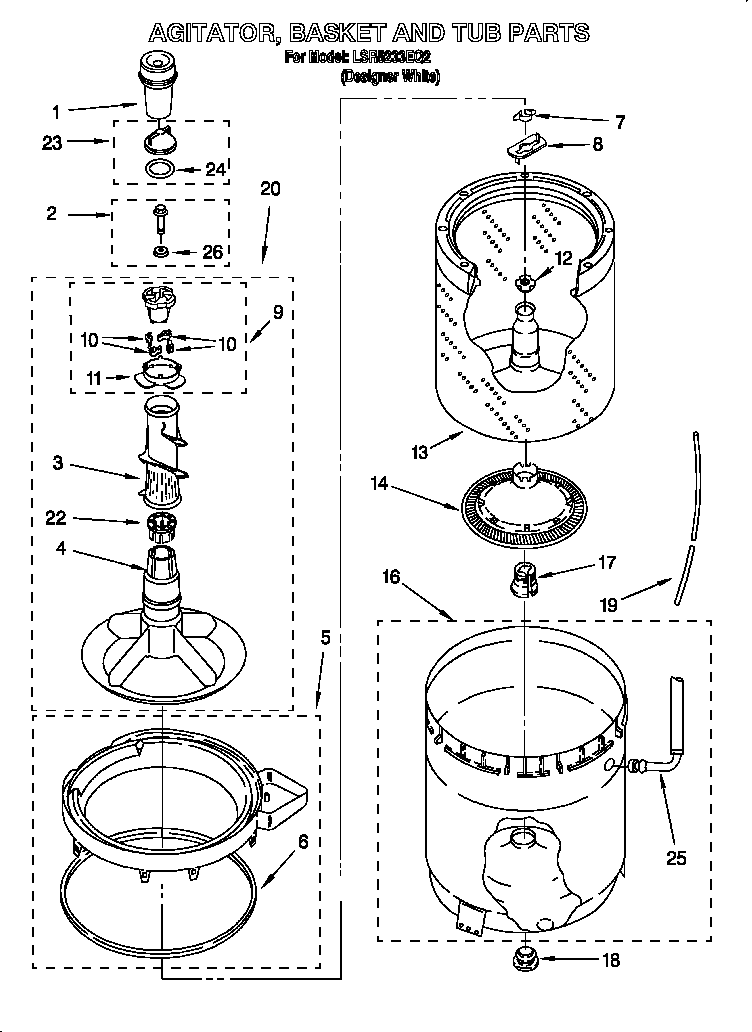

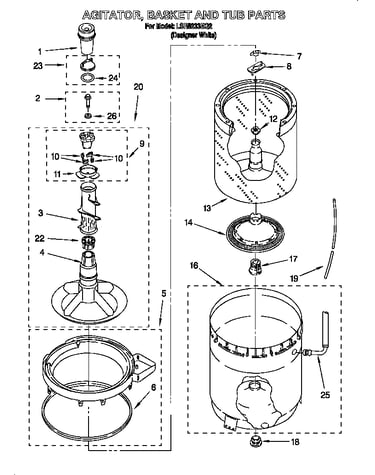

• Washer won’t agitate or agitator “slips”: worn agitator dogs such as the agitator dog 80040
• Loud noise in spin: clutch wear, drive block wear, or basket drive issues
• Leaks: loose fill hoses, cracked pump housing, or tub seal and gasket problems

1. Confirm the load is balanced (one heavy item can stop spin or cause banging).
2. Check the drain hose for kinks and make sure it is not shoved too far down the standpipe.
3. Look for coins, socks, or debris at the pump and in the tub-to-pump hose.
4. Test the lid switch: if the washer will not spin with the lid closed, the switch is a top suspect.
5. Listen during agitation: a motor running with weak or no agitation often points to agitator dogs or the drive coupling.

Drain and spin problems can leave clothes soaking wet and strain the motor and clutch over time. Catching a worn coupling, clutch, or pump early helps prevent bigger drive system damage on a direct-drive washer.

Last updated: February 2026
