Samsung DV52J8700GW/A2-00 dryer Parts

Most Samsung dryers, including model DV52J8700GW, typically last 10 to 15 years with normal household use and basic maintenance like good airflow, regular lint removal, and avoiding chronic overheating. For model-specific care and cleaning intervals, follow the DV52J8700GW owner's manual.

What affects dryer lifespan the most

A dryer’s life is usually determined by heat stress, airflow restriction, and wear on moving parts.

• Keeping the lint screen and exhaust path clear reduces overheating and cycling stress
• Avoiding overloading reduces strain on the drum, belt, and motor
• Using the right cycle and heat setting prevents excessive high-heat run time
• Fixing squealing, thumping, or burning smells early prevents secondary damage
• Cleaning lint buildup inside the cabinet (periodically) helps protect wiring and sensors

Typical lifespan by component (what usually wears first)

These are common wear items across many Samsung dryers; replacing them on time often extends overall dryer life.

Component	Common symptom	What it can lead to if ignored
Drum belt	Drum not turning, slipping, squeal	Motor strain, no-dry condition

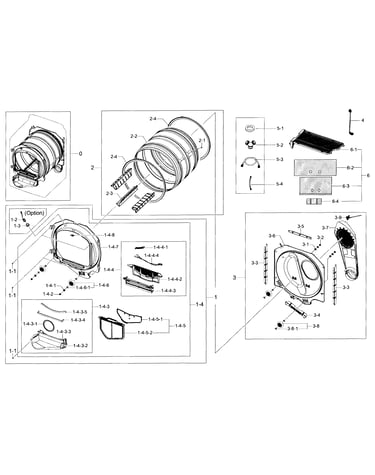

Drum support rollers	Thumping, rumbling, squealing	Drum wear, belt wear
Drive motor	Hums, won’t start, stops mid-cycle	No tumble, overheating risk
Thermostats/sensors	Overheats or no heat	Long dry times, shutdowns

If you’re hearing rumbling or thumping, the Samsung dryer drum support roller DC97-16782A is a common fix on this model family.

Maintenance checklist to reach the 10 to 15 year range

• Clean the lint screen before every load
• Check airflow at the outside vent; strong, steady flow matters
• Keep the dryer from being pushed tight against the vent hose (prevents crushing)
• Don’t run repeated back-to-back high-heat cycles on heavy loads
• Address long dry times promptly (often a venting restriction)

Why it matters

A dryer that runs hot or can’t move air efficiently takes longer to dry, stresses thermostats and the motor, and shortens the life of key parts. Good airflow and early part replacement usually cost less than replacing the entire dryer.

Last updated: February 2026

A bad heating element in a Samsung dryer like model DV52J8700GW typically shows up as no heat, weak heat, or a tripped breaker. The most reliable check is a continuity test with the dryer unplugged; an open circuit or a short to the metal housing indicates failure (replace the heater assembly).

Quick symptoms to look for

• Dryer runs but clothes stay cold or take much longer to dry
• Heat starts, then stops mid-cycle (often with overheating protection involved)
• Breaker trips shortly after starting a heated cycle
• Burning smell or visible scorching near the heater area
• Error codes related to heating or temperature control (check Samsung dryer error codes)

How we test the heating element (safe, basic method)

1. Unplug the dryer (or switch off the breaker). For electric dryers, this is critical.

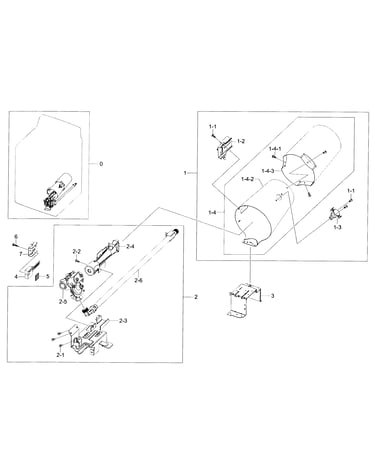

2. Access the heater area using the disassembly steps in the DV52J8700GW owner’s manual.
3. With a multimeter:

• Test continuity across the element terminals.
• Test each terminal to the metal heater housing (ground).

What the meter results mean

Test	Normal result	What “bad” looks like
Terminal-to-terminal continuity	Continuity present	No continuity (open element)
Terminal-to-housing (ground)	No continuity	Continuity present (shorted element)

Don’t overlook these common “no heat” causes

A heating complaint is often airflow or temperature sensing, not just the element. Check these first:

• Lint screen and lint duct are clean and seated correctly
• Vent hose is not crushed, kinked, or excessively long
• Outside vent hood opens fully and is not blocked
• Thermostats and sensors are not open or out of range (for example, dryer thermal cut-off thermostat DC47-00016A or a dryer thermistor)

Why it matters

A shorted element can overheat the heater housing and trigger safety devices; restricted venting can also cause repeated overheating and premature failure of thermostats, thermistors, and the heater.

Last updated: February 2026

To find the right part number for your Samsung dryer, we match parts to the exact model number first. For Samsung model DV52J8700GW, check the model and serial tag on the front frame behind the door; if it’s missing, check the back panel, then confirm the part in the DV52J8700GW owner's manual.

Where to look for the model tag (fast checklist)

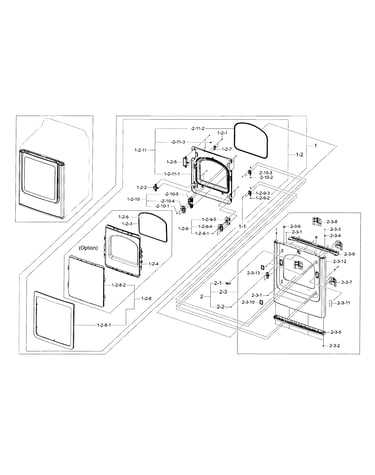

• Open the dryer door and inspect the front frame (door opening area)
• Look for a sticker or metal tag with MODEL and SERIAL
• If it’s worn off, check the rear panel for a second tag
• Write the model number exactly as shown (letters and numbers)
• Take a clear photo so you can zoom in later

How to get the correct part number once you have the model

1. Identify the failed symptom (no heat, won’t start, noisy, long dry times).

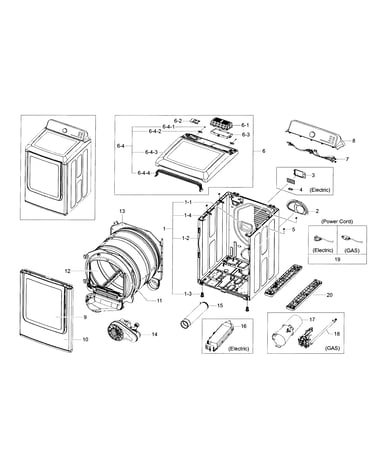

2. Find the part by name in diagrams or lists, then confirm the manufacturer part number.
3. Compare your old part’s label (if present) to the listing.

Common DV52J8700GW parts customers look up

Symptom	Part type	Example part number
Thumping or squealing	Drum support roller	DC97-16782A
Drum not turning	Drum belt	6602-001655
No heat or overheating	High-limit thermostat / thermal cut-off	DC47-00017A / DC47-00016A
Door won’t start cycle	Door switch / door strike	DC64-00828B / DC66-00395A

Why it matters

Samsung often uses similar-looking parts across different dryers, but small model differences change fit and wiring. Using the exact DV52J8700GW model number prevents ordering the wrong drum belt, thermostat, or control.

Last updated: February 2026
