Frigidaire
Dishwasher

Model #FDB989GFC0 Official Frigidaire dishwasher

Here are the diagrams and repair parts for Frigidaire FDB989GFC0 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

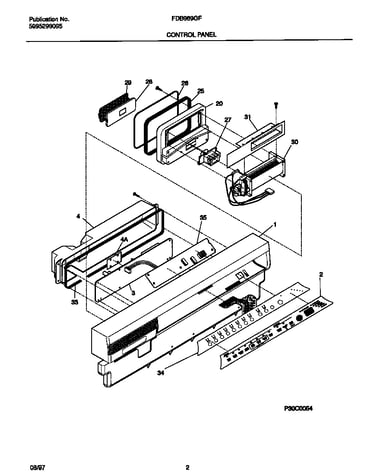

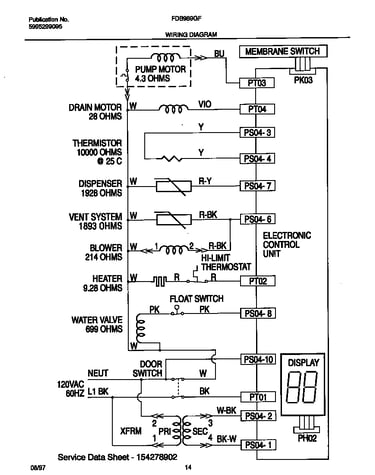

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

?
This is the number corresponding to the part on the diagram / schematic

Showing 10 of 151 parts

Dishwasher Door Seal (replaces 154845301)#3

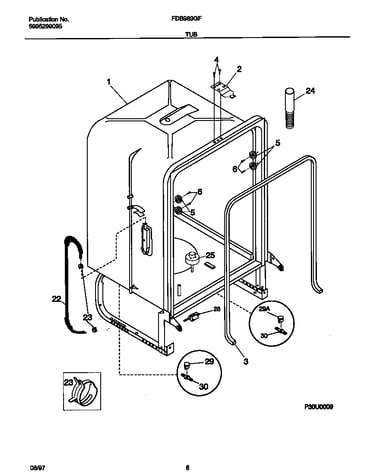

Tub Diagram

Gasket

Part #154211801
Replaced by #154827601
?
Manufacturer substitution
This part replaces 154211801. Substitute parts can look different from the original.
BEST SELLER
In Stock
$22.64 |
27% OFF
MSRP: $31.00
Dishwasher Spray Arm, Lower (replaces 154568001, 154568002, 5304506526)#24A

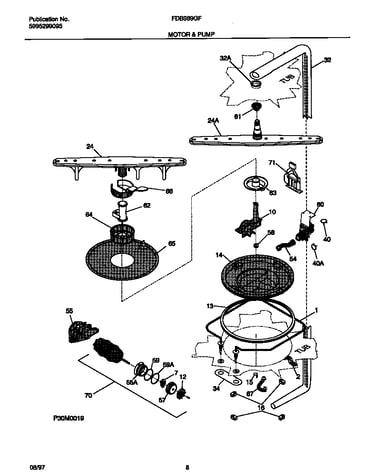

Motor & pump Diagram

Lo spray arm

Part #154250901
Replaced by #5304517203
?
Manufacturer substitution
This part replaces 154250901. Substitute parts can look different from the original.
BEST SELLER
In Stock
$30.01 |
14% OFF
Phone Price: $35.01
Dishwasher Door Seal, Lower (replaces 154576501, 154759101)#49

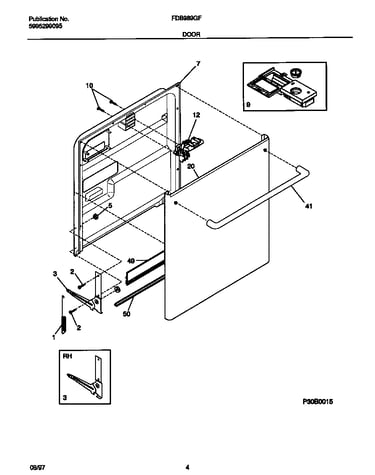

Door Diagram

Gasket

Part #154297601
Replaced by #809006501
?
Manufacturer substitution
This part replaces 154297601. Substitute parts can look different from the original.
BEST SELLER
In Stock
$23.10 |
18% OFF
Phone Price: $28.10
Dishwasher Dishrack, Lower (replaces 154866702)#13

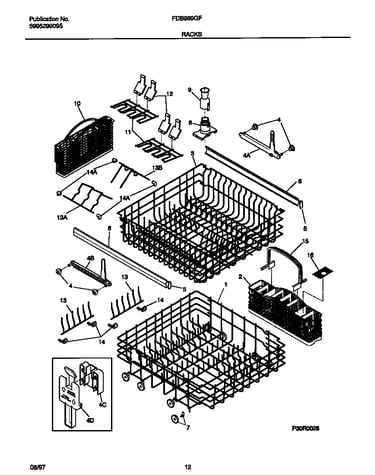

Racks Diagram

Fold bracket

Part #154224902
Replaced by #808602302
?
Manufacturer substitution
This part replaces 154224902. Substitute parts can look different from the original.
BEST SELLER
Back Order
$83.93 |
6% OFF
Phone Price: $88.93
Dishwasher Dishrack, Lower (replaces 154866702)#1

Racks Diagram

Rack

Part #154308305
Replaced by #808602302
?
Manufacturer substitution
This part replaces 154308305. Substitute parts can look different from the original.
BEST SELLER
Back Order
$83.93 |
6% OFF
Phone Price: $88.93
Dishwasher Water Inlet Valve (replaces 154359802, 154476101)#3

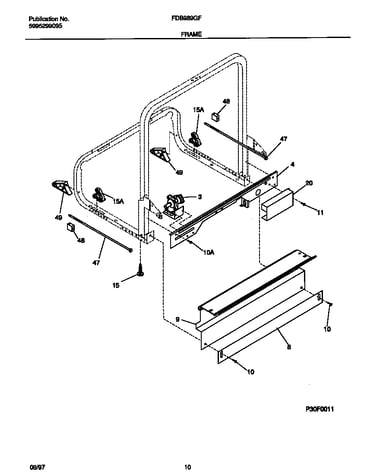

Frame Diagram

Water valve

Part #154219601
Replaced by #154637401
?
Manufacturer substitution
This part replaces 154219601. Substitute parts can look different from the original.
BEST SELLER
In Stock
$51.17 |
9% OFF
Phone Price: $56.17
Dishwasher Dishrack, Upper (replaces 154319519, 154319524, 154866505, 5304505698, 808602002)#3

Racks Diagram

Rack assembly

Part #154207705
Replaced by #5304498212
?
Manufacturer substitution
This part replaces 154207705. Substitute parts can look different from the original.
BEST SELLER
In Stock
$113.69 |
8% OFF
Phone Price: $123.69
Dishwasher Filter (replaces 154775401, 154775402)#63

Motor & pump Diagram

Base

Part #154252201
Replaced by #5304506533
?
Manufacturer substitution
This part replaces 154252201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$23.09 |
18% OFF
Phone Price: $28.09
Dishwasher Filter (replaces 154775401, 154775402)#64

Motor & pump Diagram

Dishwasher filter

Part #154252301
Replaced by #5304506533
?
Manufacturer substitution
This part replaces 154252301. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$23.09 |
18% OFF
Phone Price: $28.09
Dishwasher Heating Element Nut (replaces 154106201, 5303351029)#1B

Motor & pump Diagram

Heating element nut

Part #154106201
Replaced by #154106202
?
Manufacturer substitution
This part replaces 154106201. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.99 |
11% OFF
Phone Price: $8.99
