For Kenmore model 25360602411, the correct water filter is the one listed for that exact model number in the parts diagram and manual. We recommend matching by model first (not by a filter “series” number) to ensure proper fit, flow rate, and leak-free connections.

How to identify the right filter for 25360602411

• Check the filter’s location (inside fresh food compartment, base grille, or inline behind the unit).
• Look for the old filter’s printed part number and compare it to the model’s parts list.
• Confirm whether your refrigerator uses a cartridge-style filter or an inline filter.
• If your unit has no filter housing, it may use an inline filter on the water line instead.
• Use the model’s documentation to confirm the exact replacement.

Use the 25360602411 owner’s manual to find the filter location and replacement notes, and the 25360602411 installation guide for water line and connection details.

Quick compatibility checklist (before you buy)

What to match	Why it matters	What to check
Model number: 25360602411	Ensures correct fit	Model tag inside the refrigerator
Filter mounting style	Prevents leaks and poor sealing	Twist-in, push-in, or inline
Water line setup	Avoids low flow and air in lines	Tubing size, shutoff valve, routing
Post-install purge	Improves taste and clears air	Flush several minutes per manual

Why it matters

Using the wrong filter can restrict water flow to the ice maker, cause leaking at the housing, or reduce filtration performance. Matching the filter to Kenmore 25360602411 keeps the water system operating as designed.

If you are not sure which filter system you have

• If you see a filter cap or housing inside the refrigerator, you likely need a cartridge filter.
• If you do not see a housing, check behind the refrigerator for an inline filter on the water line.
• If you are adding an ice maker kit, confirm whether filtration is required or optional for your setup.

Last updated: January 2026

In a Kenmore top-mount refrigerator like model 25360602411, the upper section is typically called the freezer compartment; it’s the area designed to keep foods frozen and often houses the ice maker (if equipped). See the 25360602411 owner's manual for your exact compartment features.

What you’ll find in the upper (freezer) compartment

Most top-mount freezers include several common components and features:

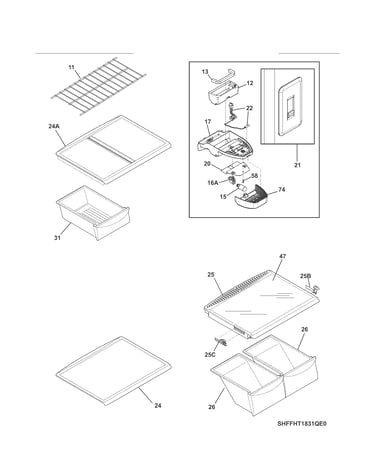

• Freezer shelves or wire racks for frozen food storage

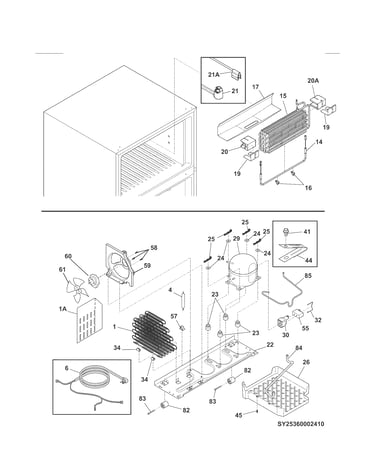

• An evaporator area behind a rear panel (where cold air is produced)
• Air vents that send cold air down to the fresh food section
• A light switch and door seal (gasket) to prevent warm air leaks
• Optional automatic ice maker assembly on some configurations

Freezer vs. refrigerator section: quick comparison

Section	Primary purpose	Typical temperature range
Freezer compartment (upper)	Long-term frozen storage, ice production	0°F to 5°F
Fresh food compartment (lower)	Everyday refrigerated foods	34°F to 40°F

Why the name matters when ordering parts

Using the correct compartment name helps you match the right Kenmore refrigerator parts and diagrams, especially for items that differ between sections.

• “Freezer” parts often relate to frost buildup, fan noise, or ice maker issues
• “Refrigerator” (fresh food) parts often relate to warm temps, crisper drawers, or door bins

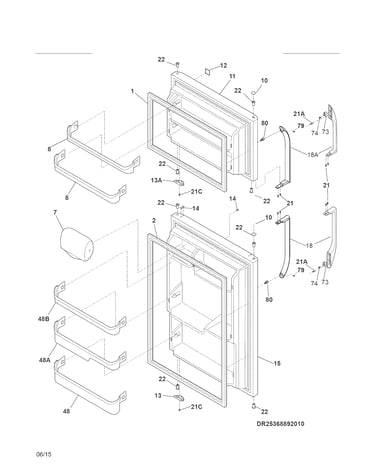

• Door seals are section-specific; for example, a freezer door gasket is not the same as a refrigerator door gasket

Related parts customers often replace

If you’re troubleshooting cooling or storage issues, these model-matched parts are commonly involved:

• Refrigerator ice maker IM116000 (if your unit is equipped)
• Refrigerator defrost heater 242044008 (helps prevent heavy frost on the evaporator)
• Refrigerator motor 242077705 (evaporator fan motor that circulates cold air)

Last updated: January 2026

To replace the water filter in your Kenmore 25360602411 refrigerator, we remove the old cartridge from the filter housing, install the new one fully seated and locked, then flush water through the dispenser to clear air and carbon fines. Use the steps in the 25360602411 owner's manual for the exact filter location and lock style.

Before you start

• If your model has a water dispenser, dispense a few cups of water first to relieve pressure.
• Turn the ice maker off (if installed) to prevent it from cycling during the change.
• Keep a towel handy; a small amount of water can drip from the housing.
• If the filter door is taped shut, remove tape carefully so you do not crack the trim.

Replacement steps (typical Kenmore top-mount process)

1. Open the filter access door or cover (often inside the fresh food compartment).
2. Remove the old filter:
   • Push-button style: press the eject button and pull the filter straight out.
   • Quarter-turn style: rotate the filter counterclockwise, then pull out.
3. Install the new filter:
   • Remove protective caps from the new filter O-rings.
   • Insert the filter and push in firmly; rotate clockwise (if quarter-turn) until it stops.
   • Close the access door.
4. Flush the system:
   • Dispense and discard 2 to 3 gallons of water (or run several minutes) to clear air.
5. Turn the ice maker back on and discard the first batch of ice.

If the filter door or housing is damaged

A taped or broken filter door usually means the housing is not closing or latching correctly. Use this quick check:

What you see	What it usually means	What to do
Door will not stay closed	Latch/tab broken or warped cover	Inspect cover and hinge points; replace the damaged trim if needed
Filter will not seat/lock	Wrong filter type or misalignment	Reinstall, confirm correct cartridge style, check for debris in housing
Leaks after install	O-ring not seated or filter not fully locked	Remove and reinstall; ensure full lock and clean sealing surfaces

Why it matters

A properly installed refrigerator water filter protects the water inlet valve and ice maker from sediment, improves taste and odor, and helps maintain normal water flow so the dispenser and ice maker work consistently.

Last updated: January 2026

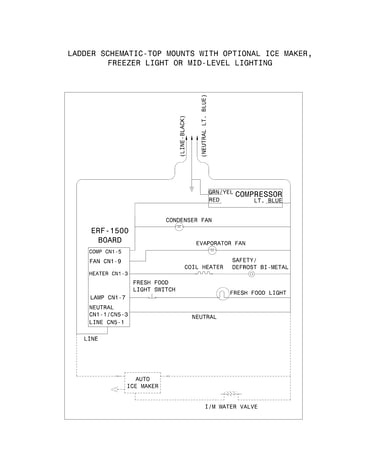

On Kenmore refrigerator model 25360602411, the SY EF (or 5Y EF) code points to a problem in the evaporator fan circuit, which means the freezer evaporator fan is not running correctly or the control is not sensing it. This commonly involves the fan motor, fan blade, wiring, or the electronic control.

What to check first (quick, safe steps)

• Power reset: Unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
• Listen for the fan: With the freezer door closed (door switch held in), you should typically hear the evaporator fan running.
• Look for frost buildup: Heavy frost on the freezer back wall often indicates an airflow or defrost problem.
• Inspect for obstructions: Ice, packaging, or a shifted liner can rub the fan blade.
• Confirm vents are clear: Blocked freezer vents can reduce airflow and trigger temperature issues.

Parts that commonly cause SY EF

If the code returns after a reset, these are the most common causes on a top-mount design like the 25360602411:

Suspected issue	What you may notice	Common fix
Evaporator fan motor failure	Warm refrigerator section, freezer still partly cold, no fan sound	Replace the fan motor
Fan blade damaged or rubbing	Clicking, scraping, intermittent fan noise	Replace the fan blade or clear obstruction
Wiring/connector issue	Fan works sometimes, code appears randomly	Reseat connectors, repair harness
Frosted evaporator restricting airflow	Freezer back wall frosted, weak airflow	Diagnose defrost system

Model-matched parts that may apply include the refrigerator motor 242077705 and refrigerator evaporator fan blade 242219302.

Why it matters

The evaporator fan moves cold air from the freezer to the refrigerator compartment. When the fan circuit fails, temperatures rise, food spoils faster, and the compressor can run longer than normal.

Where to find model-specific diagnostics

Use the 25360602411 owner's manual for the exact fan access steps, wiring routing, and any model-specific error code behavior.
