Model # LAT9734AAM Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag LAT9734AAM washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

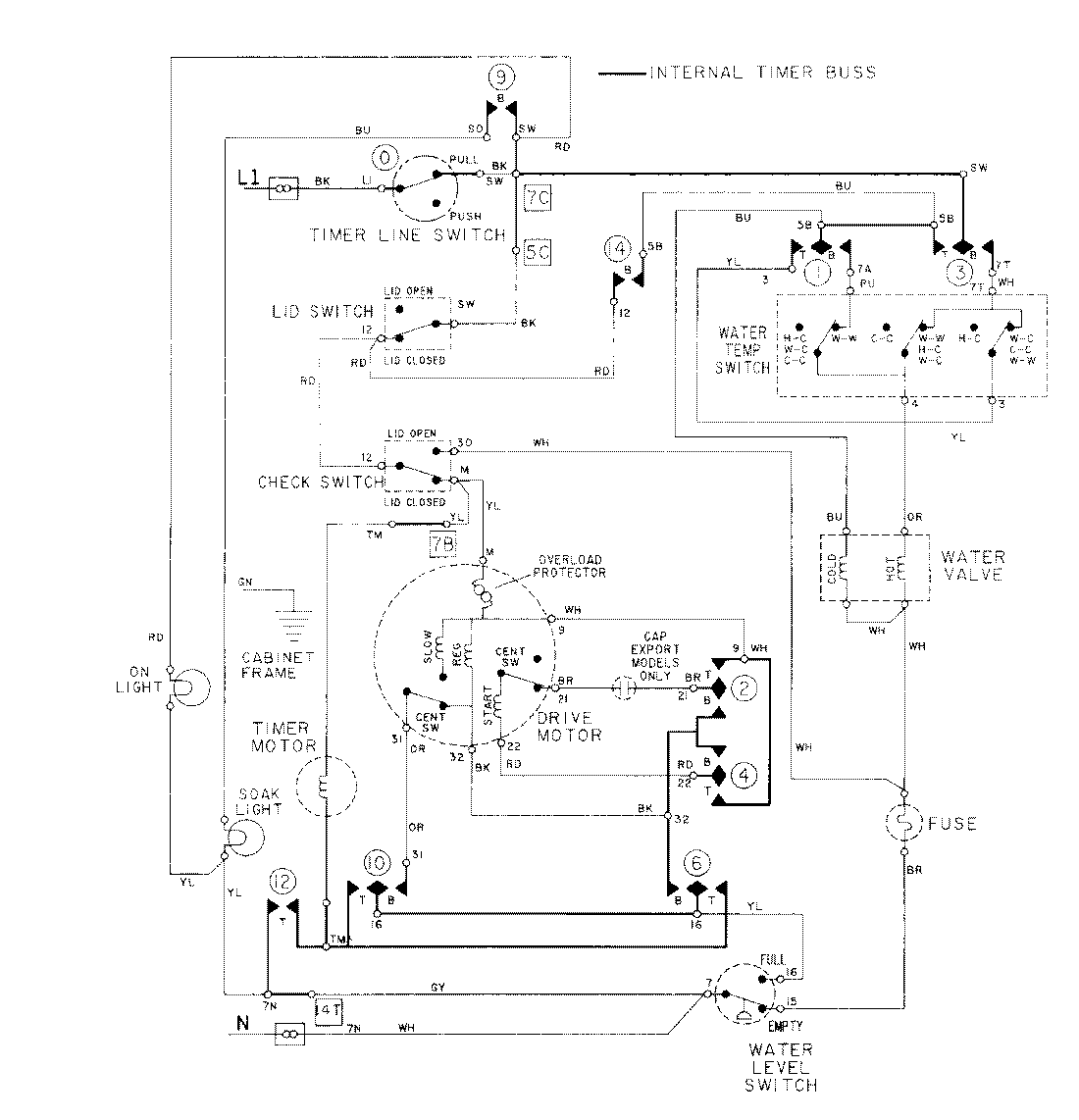

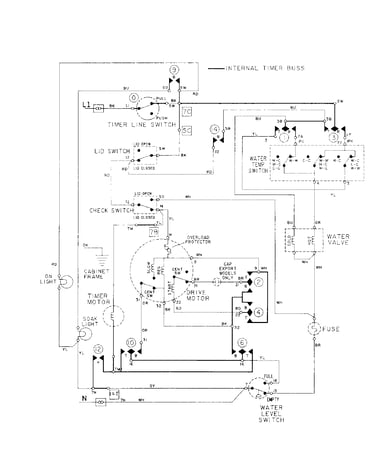

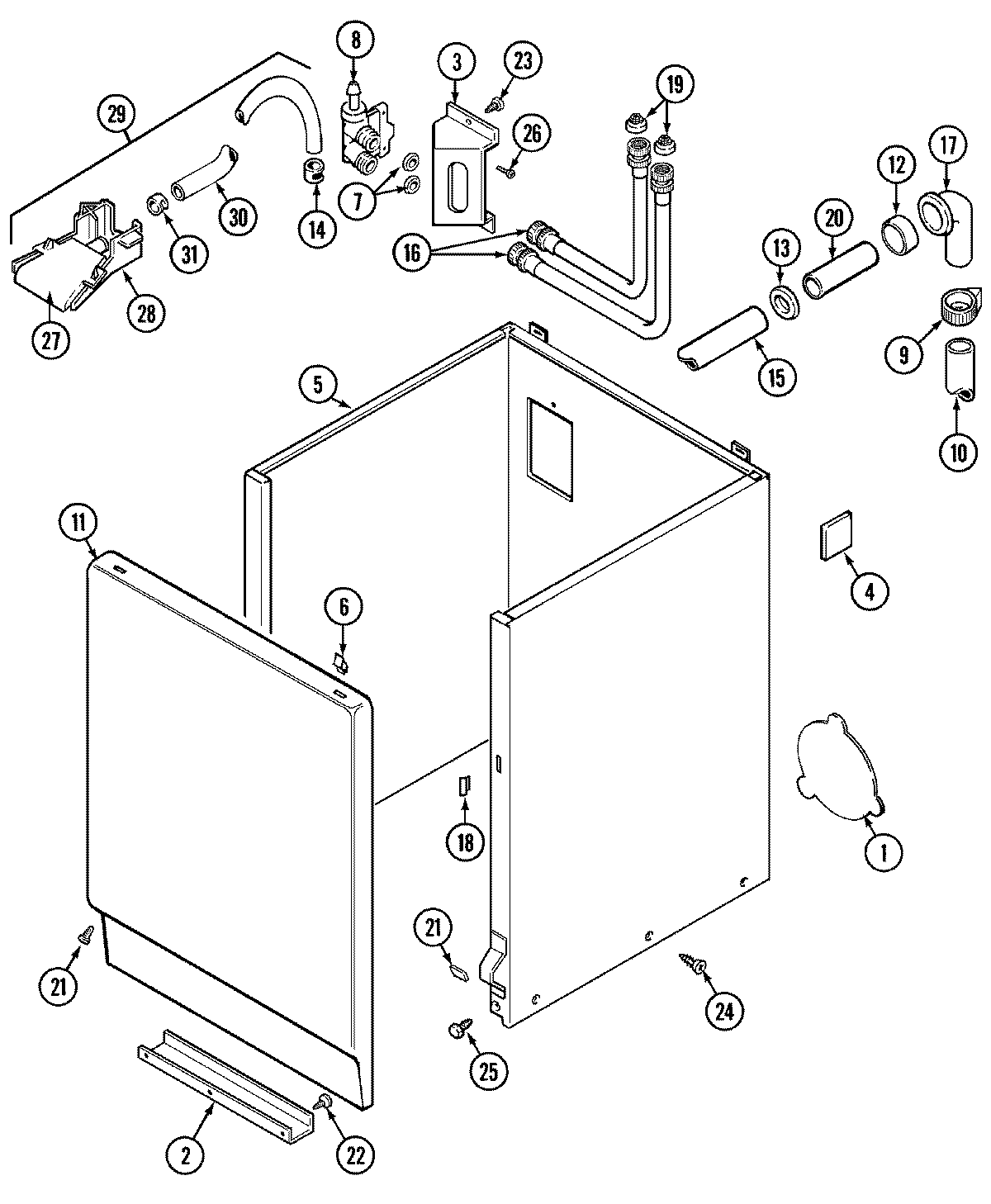

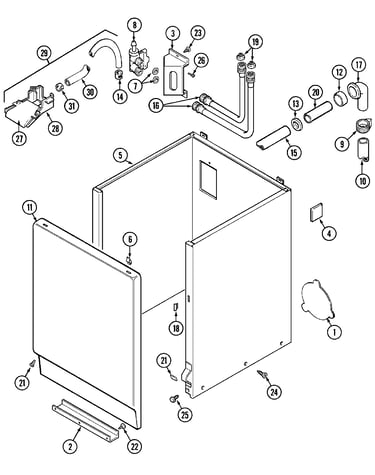

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |

Silastic,adh 058700
#15

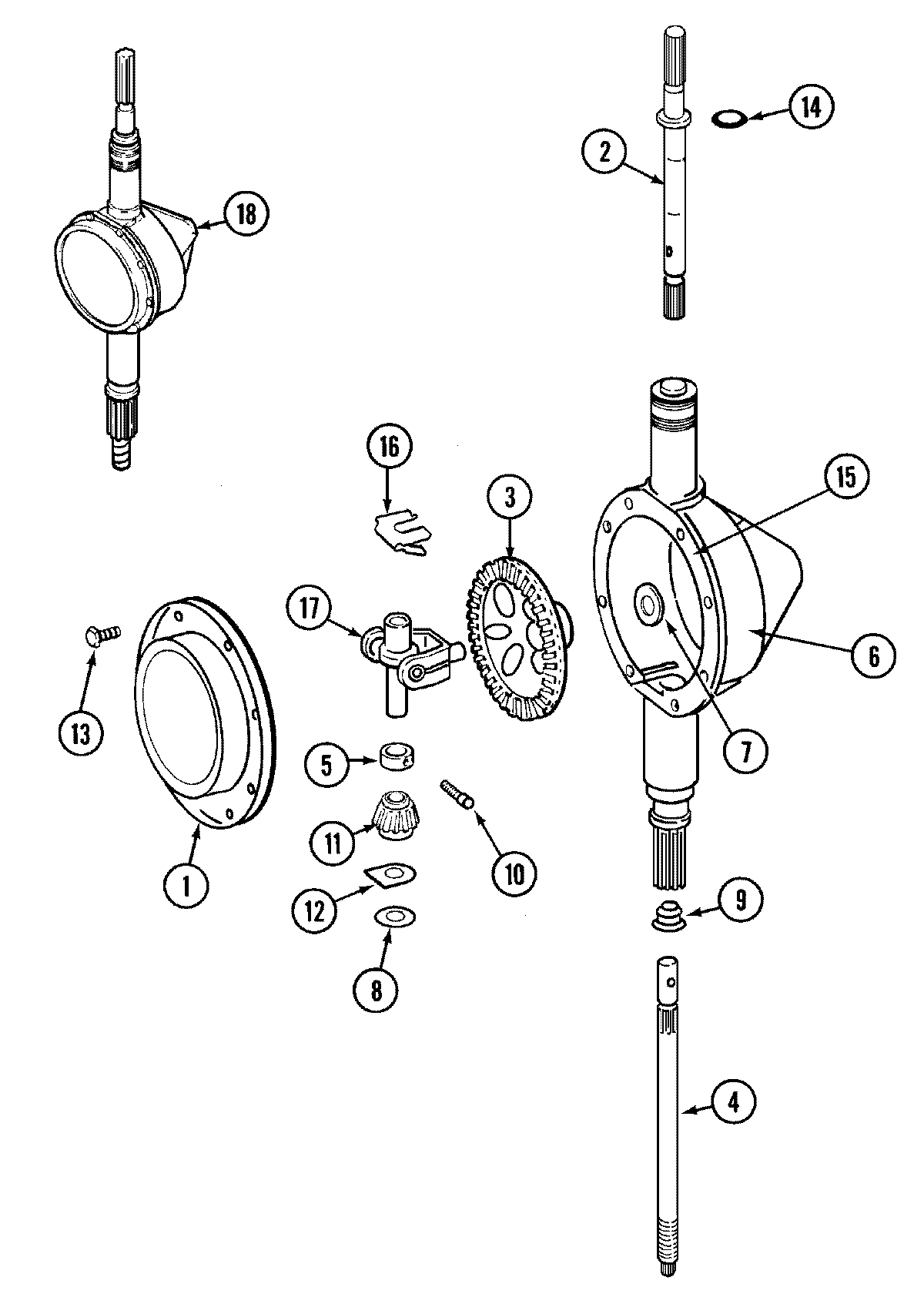

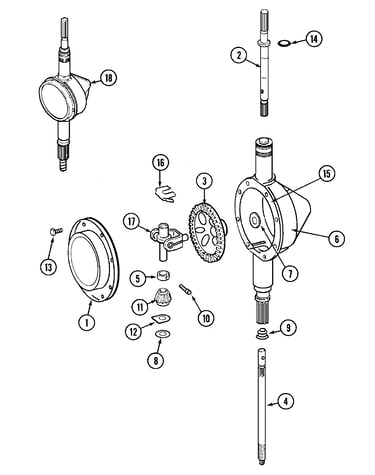

Transmission diagram

Silastic,adh

Part #058700

Replaced by #W10841140

?
Manufacturer substitution
This part replaces 058700. Substitute parts can look different from the original.
BEST SELLER
$14.99
46% OFF MSRP : $28.00
In Stock
Washer Drive Belt 211125
#42

Base diagram

Washer drive belt

Part #211125

Replaced by #12112425

?
Manufacturer substitution
This part replaces 211125. Substitute parts can look different from the original.
BEST SELLER
$45.52
10% OFF Phone Price : $50.52
In Stock
Washer Pump Drive Belt 211124
#41

Base diagram

Washer pump drive belt

Part #211124

Replaced by #12112425

?
Manufacturer substitution
This part replaces 211124. Substitute parts can look different from the original.
BEST SELLER
$45.52
10% OFF Phone Price : $50.52
In Stock
Tub Bearing 200824
#22

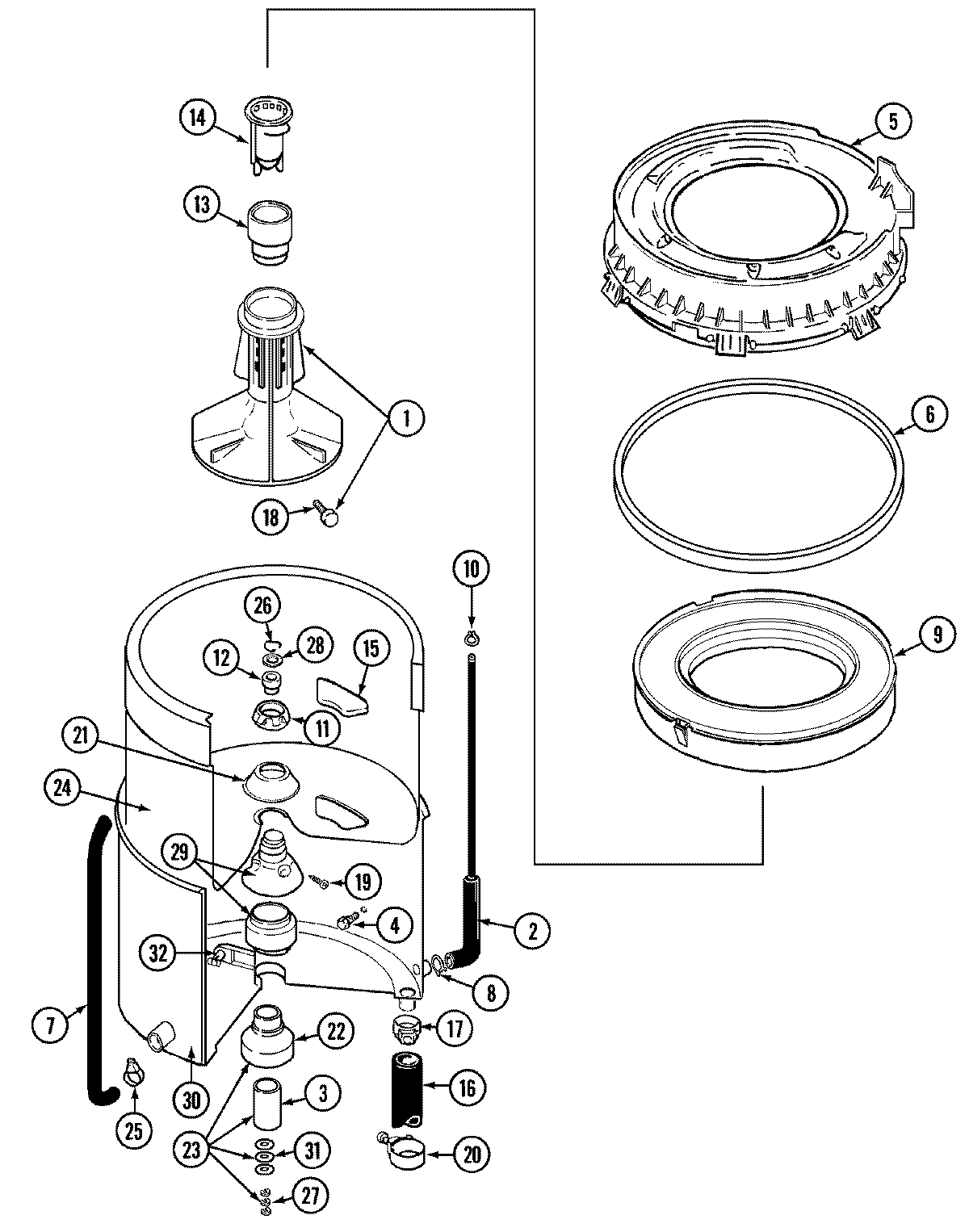

Tub diagram

Tub bearing

Part #200824

Replaced by #6-2040130

?
Manufacturer substitution
This part replaces 200824. Substitute parts can look different from the original.
BEST SELLER
$53.81
30% OFF MSRP : $77.00
In Stock
Tub Bearing 204013
#23

Tub diagram

Tub bearing

Part #204013

Replaced by #6-2040130

?
Manufacturer substitution
This part replaces 204013. Substitute parts can look different from the original.
BEST SELLER
$53.81
30% OFF MSRP : $77.00
In Stock
Pump 202203
#28

Base diagram

Pump

Part #202203

Replaced by #WP6-2022030

?
Manufacturer substitution
This part replaces 202203. Substitute parts can look different from the original.
$82.79
16% OFF MSRP : $99.00
In Stock
Washer Damper Pad Kit (replaces 213072, 213497) 203956
#8

Base diagram

Washer damper pad kit (replaces 213072, 213497)

Part #203956

$45.59
10% OFF Phone Price : $50.59
In Stock
Ball Bearing 200720
#1

Clutch, brake & belts diagram

Ball bearing

Part #200720

Replaced by #WP22003441

?
Manufacturer substitution
This part replaces 200720. Substitute parts can look different from the original.
This item is not returnable
$12.99
13% OFF Phone Price : $14.99
In Stock
Screw 216423
#24

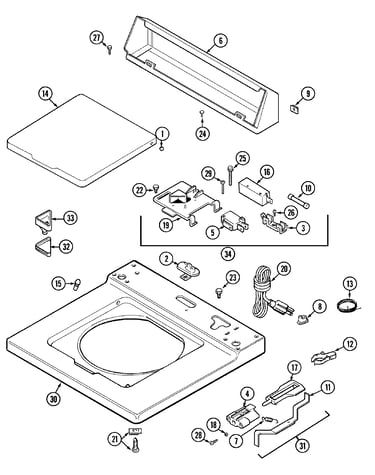

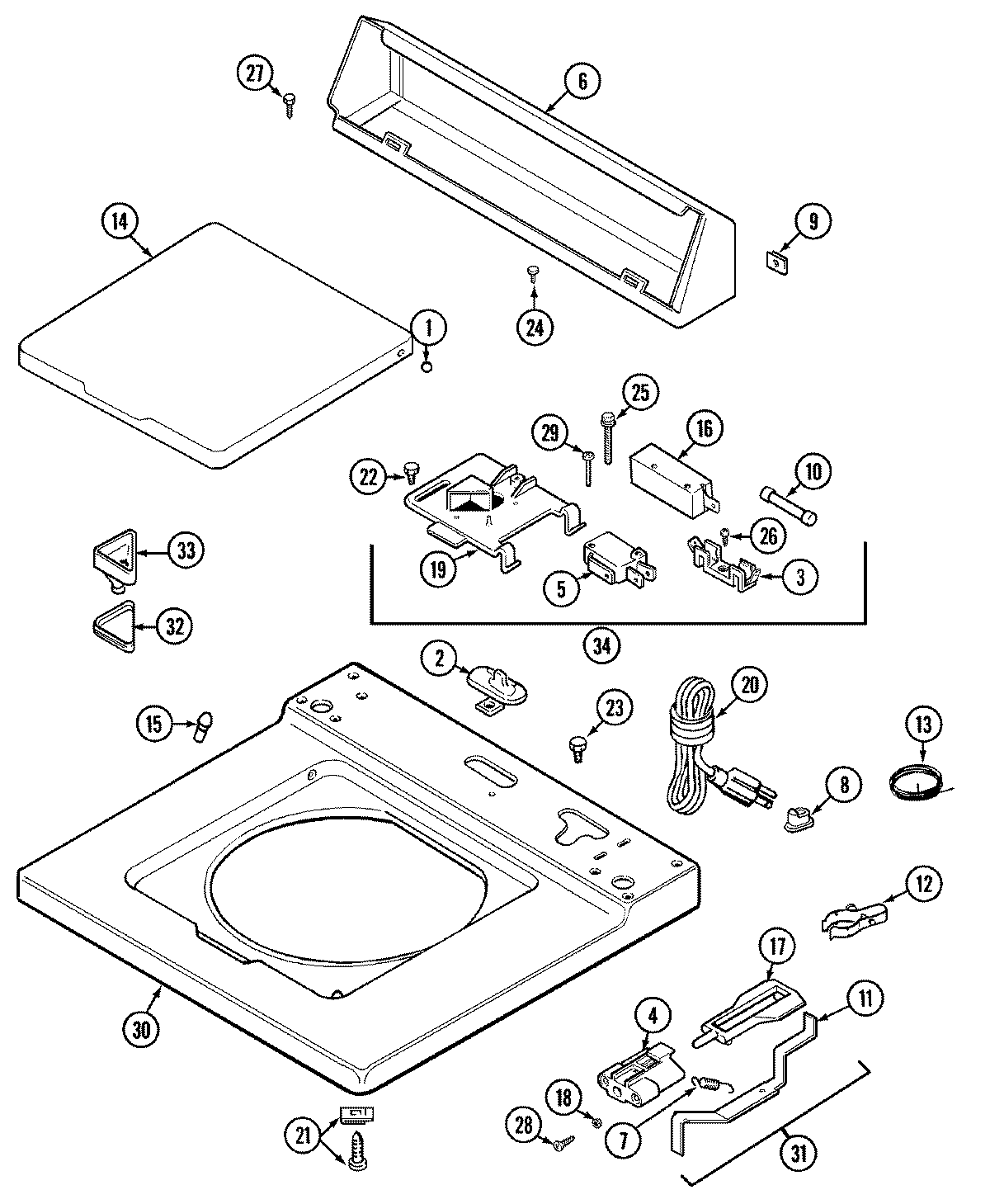

Top diagram

Screw

Part #216423

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 216423. Substitute parts can look different from the original.
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock
Indicator Light Lens 22001215
#7

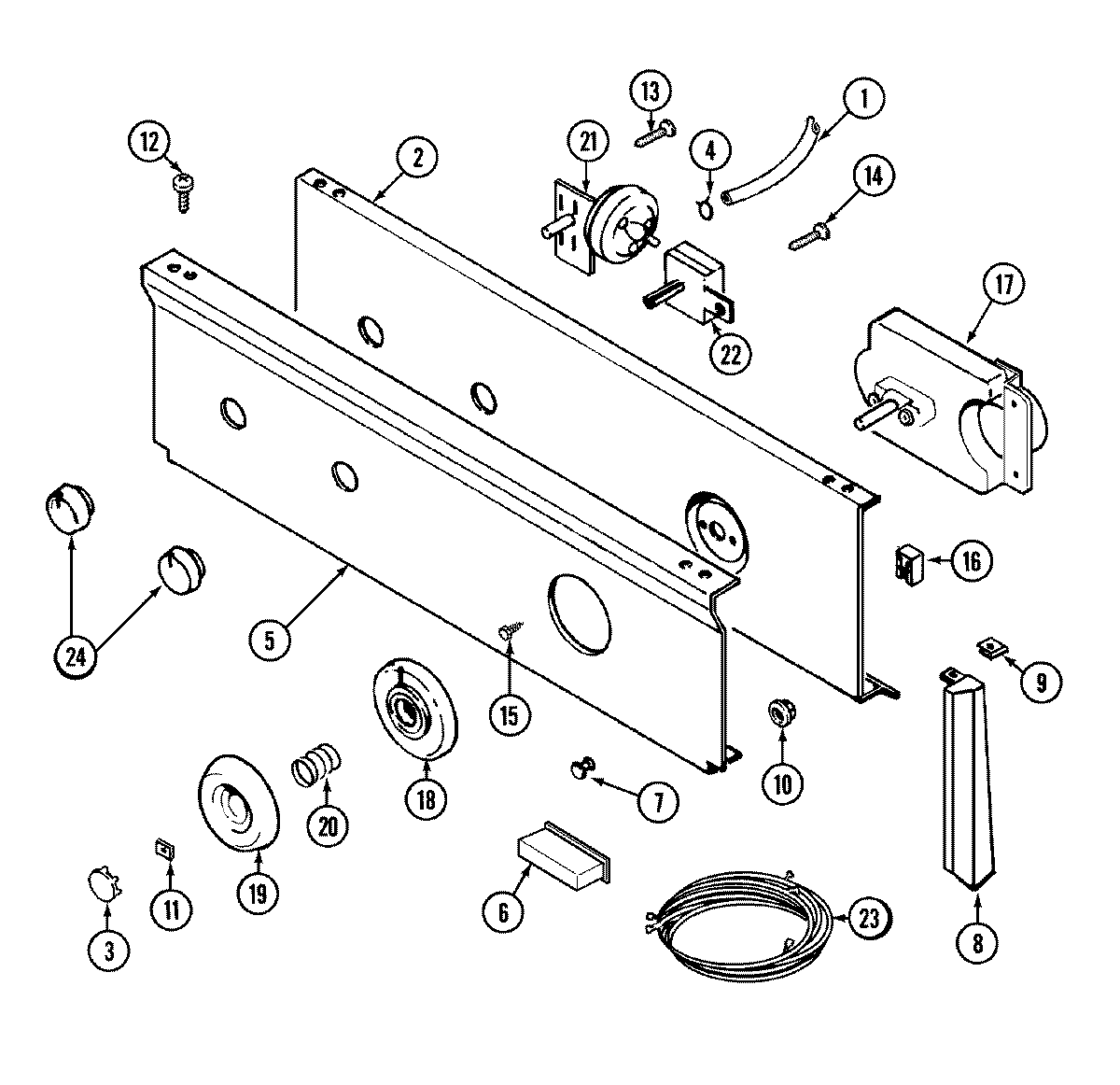

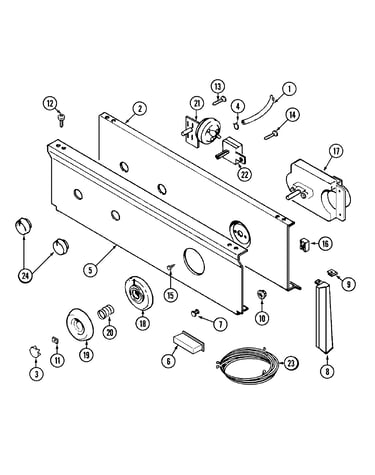

Control panel diagram

Indicator light lens

Part #22001215

Replaced by #WP7730P011-60

?
Manufacturer substitution
This part replaces 22001215. Substitute parts can look different from the original.
This item is not returnable
$4.99
17% OFF Phone Price : $5.99
In Stock
