Whirlpool MH1170XSS4 microwave

Whirlpool MH1170XSS4 microwave Parts

Here are the diagrams and repair parts for Whirlpool MH1170XSS4 microwave, as well as links to manuals and error code tables, if available.

By Schematic

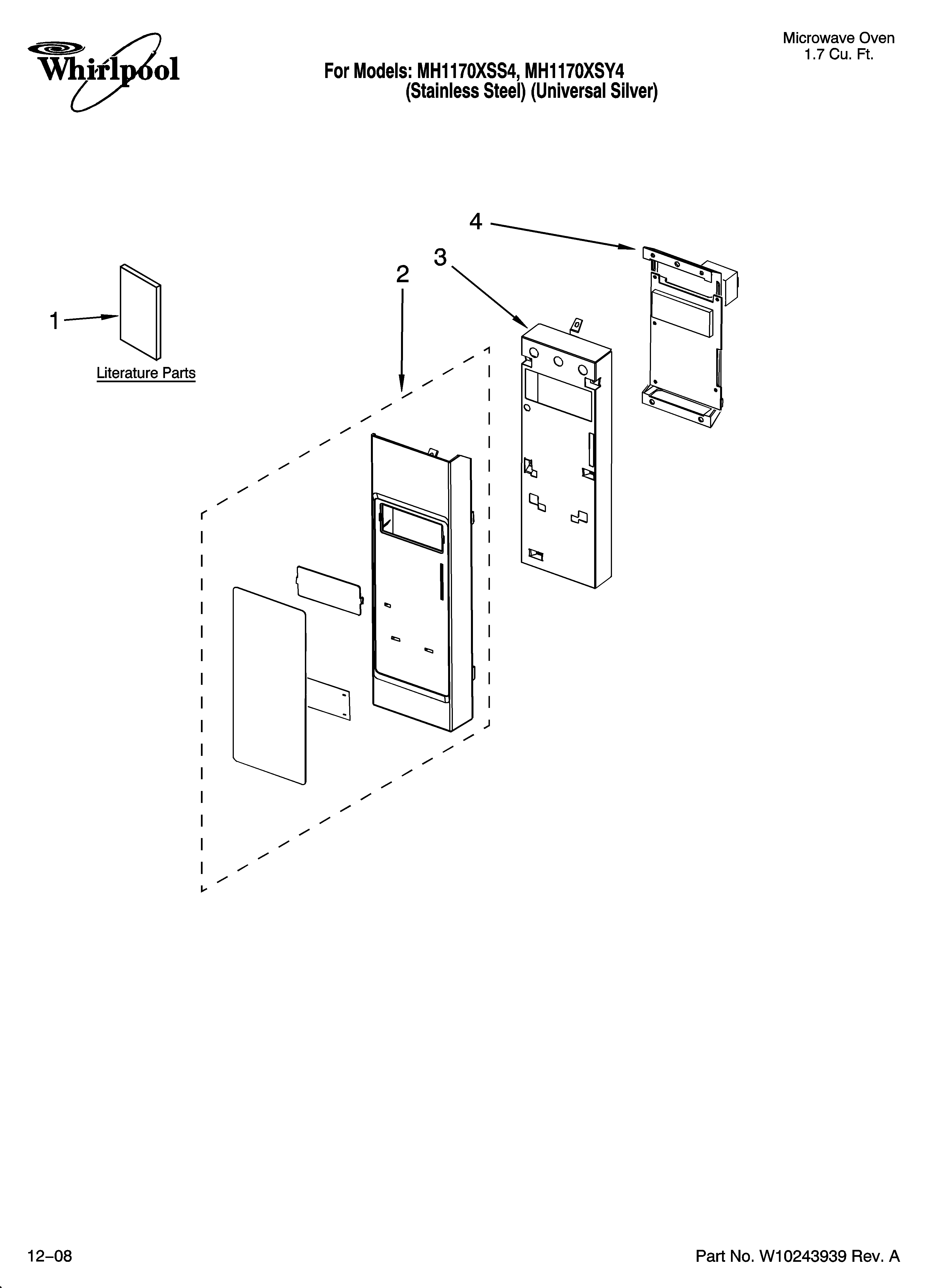

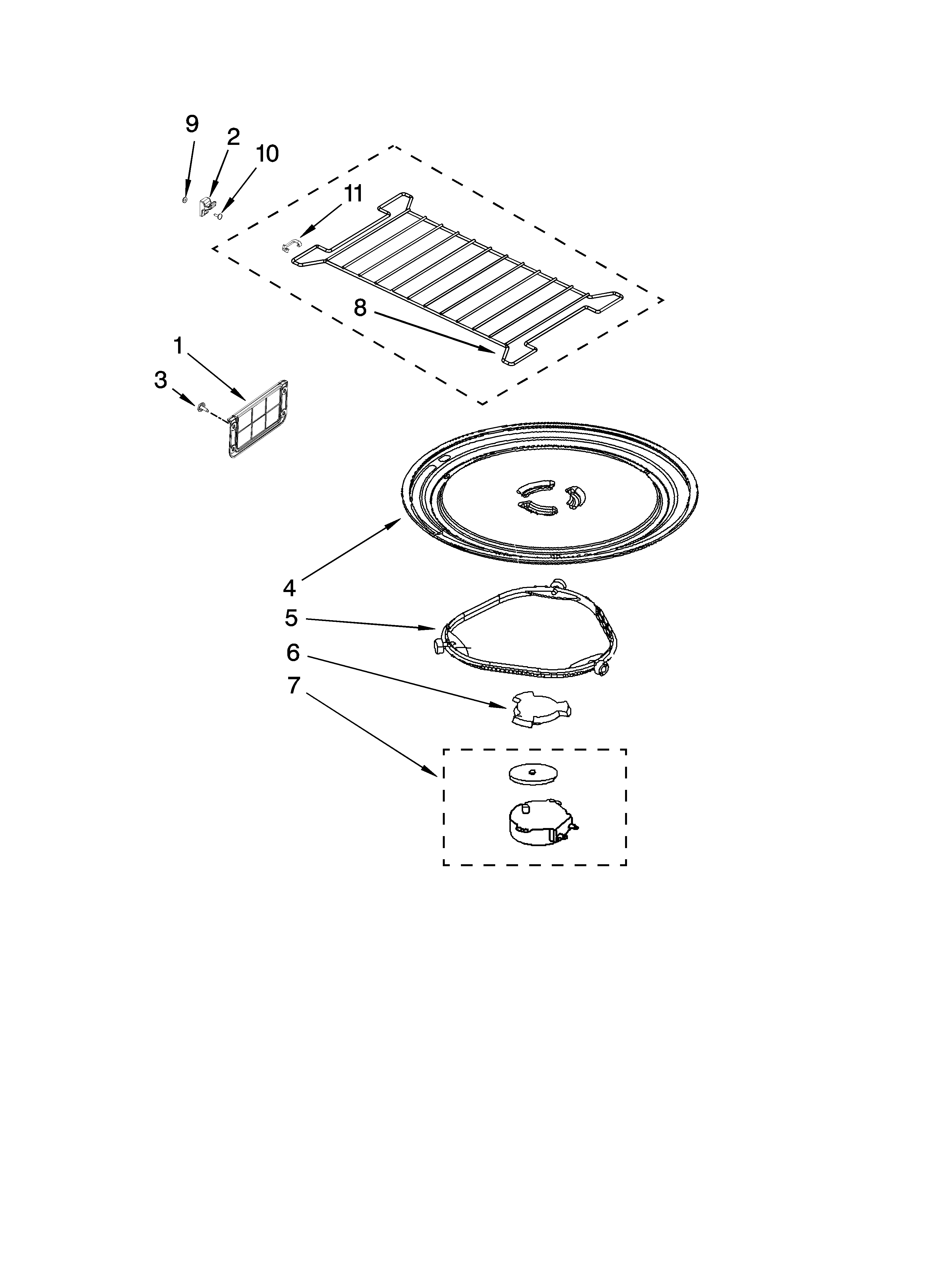

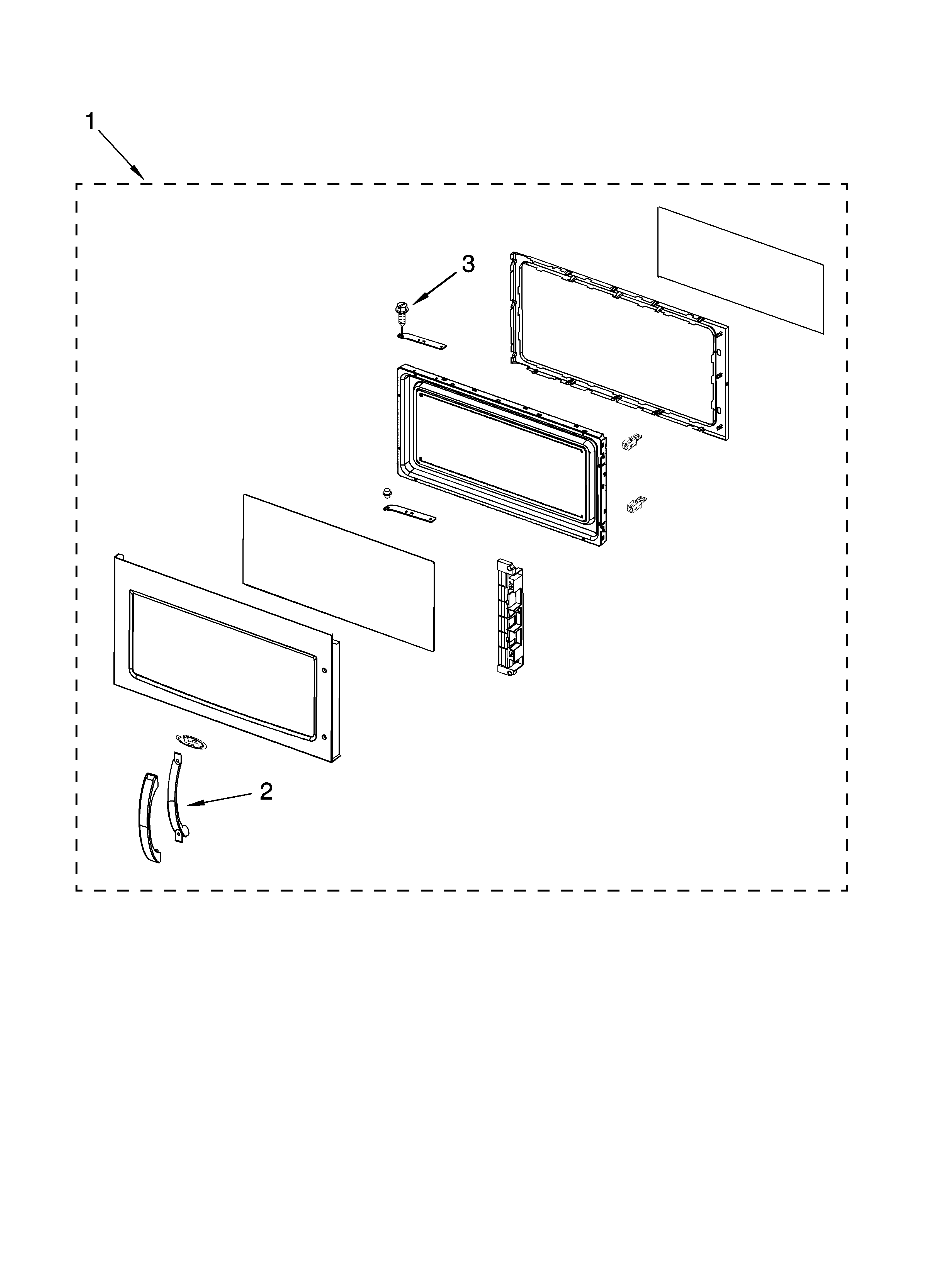

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MH1170XSS4 Microwave

  • Microwave High-voltage Diode for Whirlpool MH1170XSS4 - Part W11256462

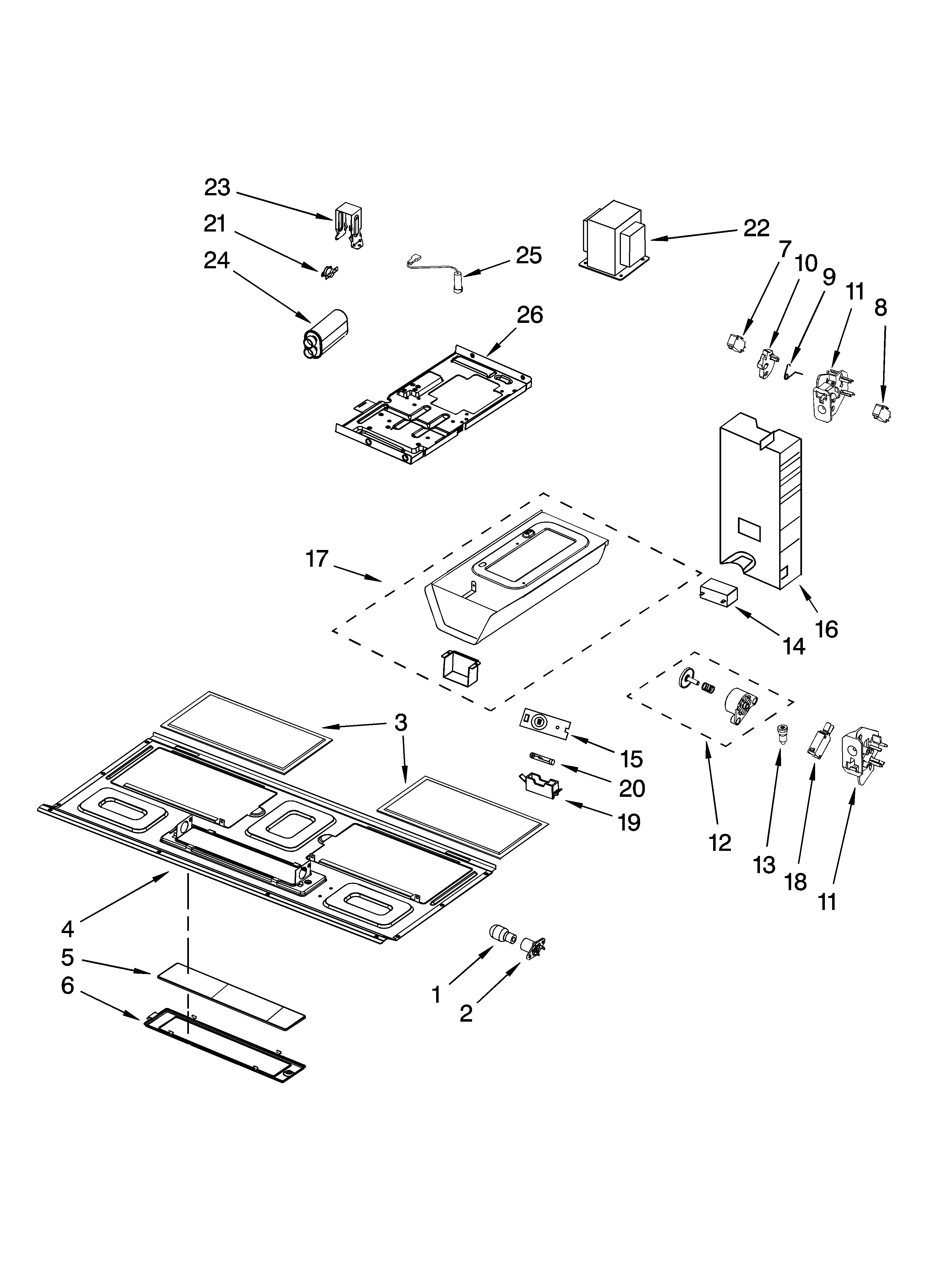

    Interior and ventilation parts diagram

    Diode

    Part #W10163432

    Replaced by #W11256462

    Info Icon
    Manufacturer substitution
    This part replaces W10163432. Substitute parts can look different from the original.
    In Stock
    $26.84
    18% OFF Phone Price : $32.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for Whirlpool MH1170XSS4 - Part W10269458

    Interior and ventilation parts diagram

    Microwave Door Interlock Switch

    Part #W10211973

    Replaced by #W10269458

    Info Icon
    Manufacturer substitution
    This part replaces W10211973. Substitute parts can look different from the original.
    In Stock
    $26.38
    19% OFF Phone Price : $32.38Info Icon
    Minus Item
    Qty
    Plus Item
  • R Ceramic Fu for Whirlpool MH1170XSS4 - Part W11707984

    Interior and ventilation parts diagram

    Microwave Fuse

    Part #W10138793

    Replaced by #W11707984

    Info Icon
    Manufacturer substitution
    This part replaces W10138793. Substitute parts can look different from the original.
    In Stock
    $73.63
    8% OFF Phone Price : $79.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Upper for Whirlpool MH1170XSS4 - Part WP8206419

    Interior and ventilation parts diagram

    Microwave Door Interlock Support, Upper

    Part #8206419

    Replaced by #WP8206419

    Info Icon
    Manufacturer substitution
    This part replaces 8206419. Substitute parts can look different from the original.
    In Stock
    $13.72
    13% OFF Phone Price : $15.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for Whirlpool MH1170XSS4 - Part W10211972

    Interior and ventilation parts diagram

    Microwave Door Interlock Switch

    Part #W10211972
    In Stock
    $36.30
    14% OFF Phone Price : $42.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Lower for Whirlpool MH1170XSS4 - Part WPW10156813

    Interior and ventilation parts diagram

    Interlock

    Part #W10156813

    Replaced by #WPW10156813

    Info Icon
    Manufacturer substitution
    This part replaces W10156813. Substitute parts can look different from the original.
    In Stock
    $8.14
    11% OFF Phone Price : $9.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Louver Motor Cam Plate for Whirlpool MH1170XSS4 - Part W10562613

    Interior and ventilation parts diagram

    Cam Plate

    Part #W10156811

    Replaced by #W10562613

    Info Icon
    Manufacturer substitution
    This part replaces W10156811. Substitute parts can look different from the original.
    In Stock
    $12.85
    13% OFF Phone Price : $14.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Spring for Whirlpool MH1170XSS4 - Part W10156812

    Interior and ventilation parts diagram

    Microwave Door Interlock Spring

    Part #W10156812
    In Stock
    $8.57
    10% OFF Phone Price : $9.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for Whirlpool MH1170XSS4 - Part W10754299

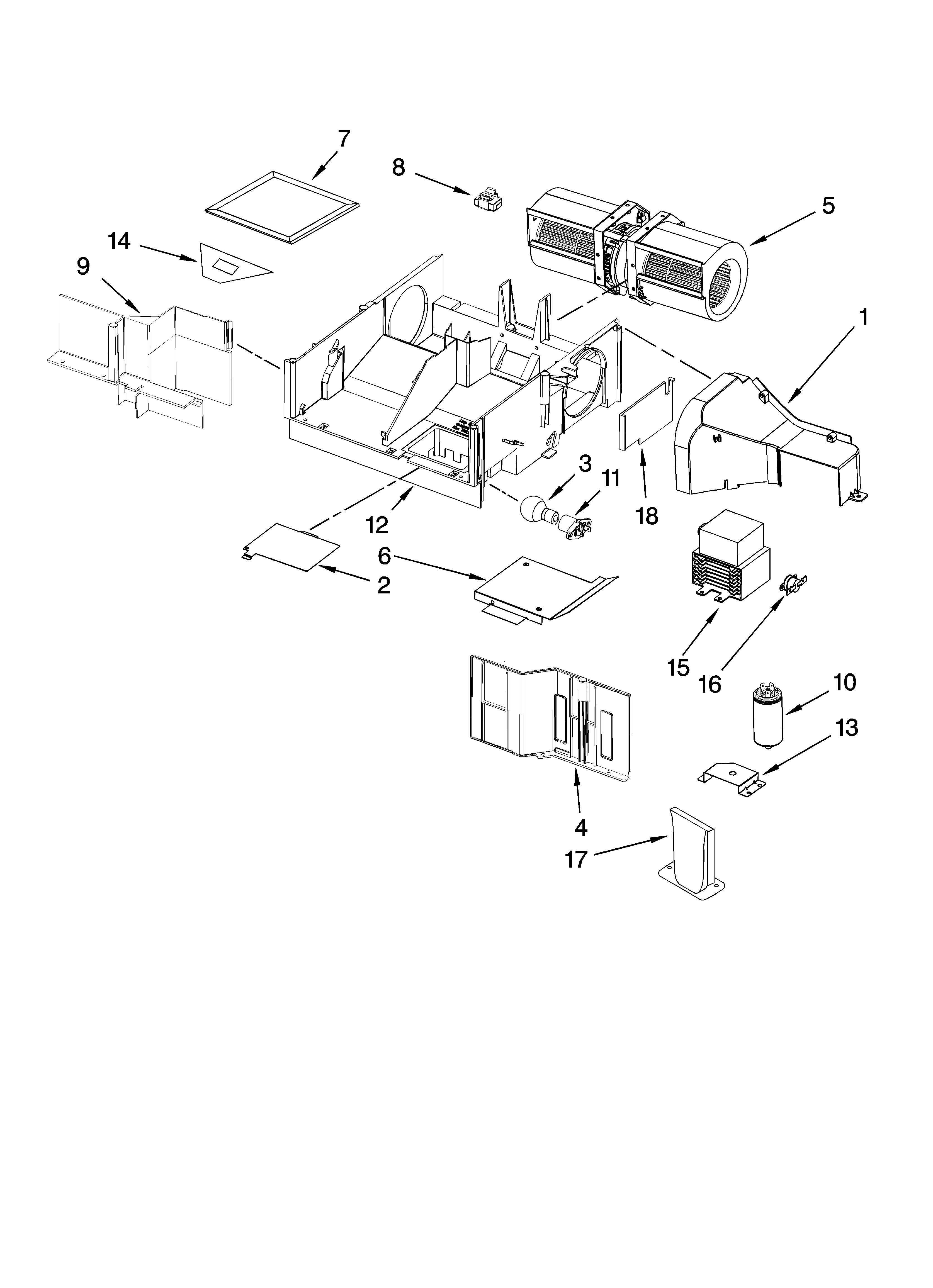

    Air flow parts diagram

    Microwave Magnetron

    Part #W10216360

    Replaced by #W10754299

    Info Icon
    Manufacturer substitution
    This part replaces W10216360. Substitute parts can look different from the original.
    In Stock
    $197.62
    6% OFF Phone Price : $209.62Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Charcoal Filter for Whirlpool MH1170XSS4 - Part 8206230A

    Air flow parts diagram

    Filter

    Part #8206230

    Replaced by #8206230A

    Info Icon
    Manufacturer substitution
    This part replaces 8206230. Substitute parts can look different from the original.
    In Stock
    $12.76
    14% OFF Phone Price : $14.76Info Icon
    Minus Item
    Qty
    Plus Item
