Bottom-Mount Refrigerator

Model # T36IT71NNP/07 Official Thermador refrigerator

Here are the diagrams and repair parts for Official Thermador T36IT71NNP-07 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

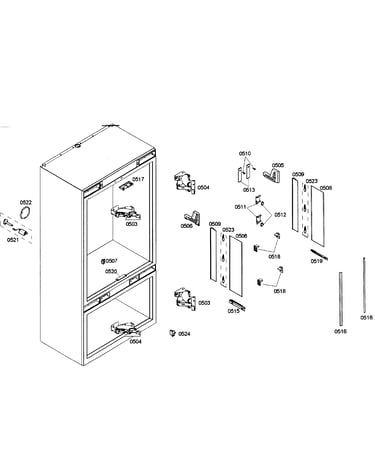

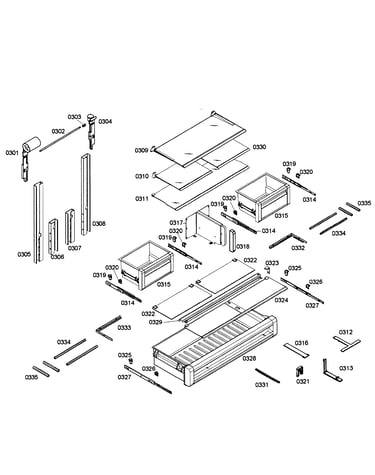

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |
Defrost Sensor 604025
Defrost sensor

Part #604025

Replaced by #00617203

?
Manufacturer substitution
This part replaces 604025. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Lock Clamp 605593
#401

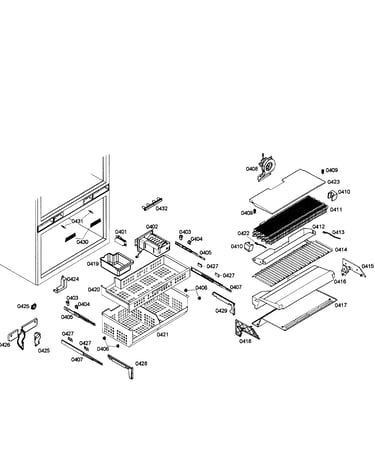

Freezer diagram

Lock clamp

Part #605593

Replaced by #00623375

?
Manufacturer substitution
This part replaces 605593. Substitute parts can look different from the original.
$19.46
In Stock
Refrigerator Door Seal 244576
#224

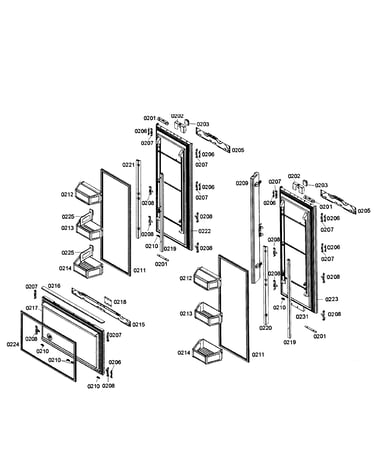

Doors assy diagram

Refrigerator door seal

Part #244576

Replaced by #00710673

?
Manufacturer substitution
This part replaces 244576. Substitute parts can look different from the original.
$74.59 |
7% OFF Phone Price : $80.59
In Stock
Refrigerator Freezer Slide Rail Clip 605962
#427

Freezer diagram

Refrigerator freezer slide rail clip

Part #605962

Replaced by #00605962

?
Manufacturer substitution
This part replaces 605962. Substitute parts can look different from the original.
This item is not returnable
$5.26
In Stock
Clip 603971
Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Upright Freezer Slide Rail Retainer 604665
#403

Freezer diagram

Upright freezer slide rail retainer

Part #604665

Replaced by #00633652

?
Manufacturer substitution
This part replaces 604665. Substitute parts can look different from the original.
This item is not returnable
$8.06
In Stock
Refrigerator Heater Element 244584
#412

Freezer diagram

Refrigerator heater element

Part #244584

Replaced by #00716805

?
Manufacturer substitution
This part replaces 244584. Substitute parts can look different from the original.
$244.38
In Stock
Cover 499853
#658

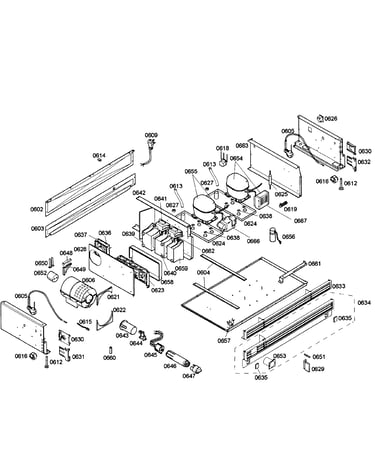

Comppressors diagram

Cover

Part #499853

Replaced by #00499853

?
Manufacturer substitution
This part replaces 499853. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
Back Order
Refrigerator Door Seal 244570
#211

Doors assy diagram

Refrigerator door seal

Part #244570

Replaced by #00710674

?
Manufacturer substitution
This part replaces 244570. Substitute parts can look different from the original.
$80.29 |
7% OFF Phone Price : $86.29
In Stock
Refrigerator Insulation 244559
#102

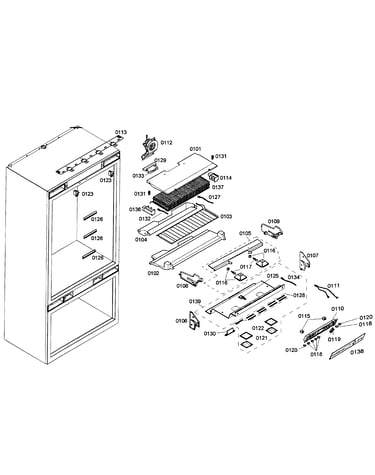

Control panel diagram

Refrigerator insulation

Part #244559

Replaced by #11018805

?
Manufacturer substitution
This part replaces 244559. Substitute parts can look different from the original.
$29.78
In Stock
