How to take the bottom freezer door off a Whirlpool?

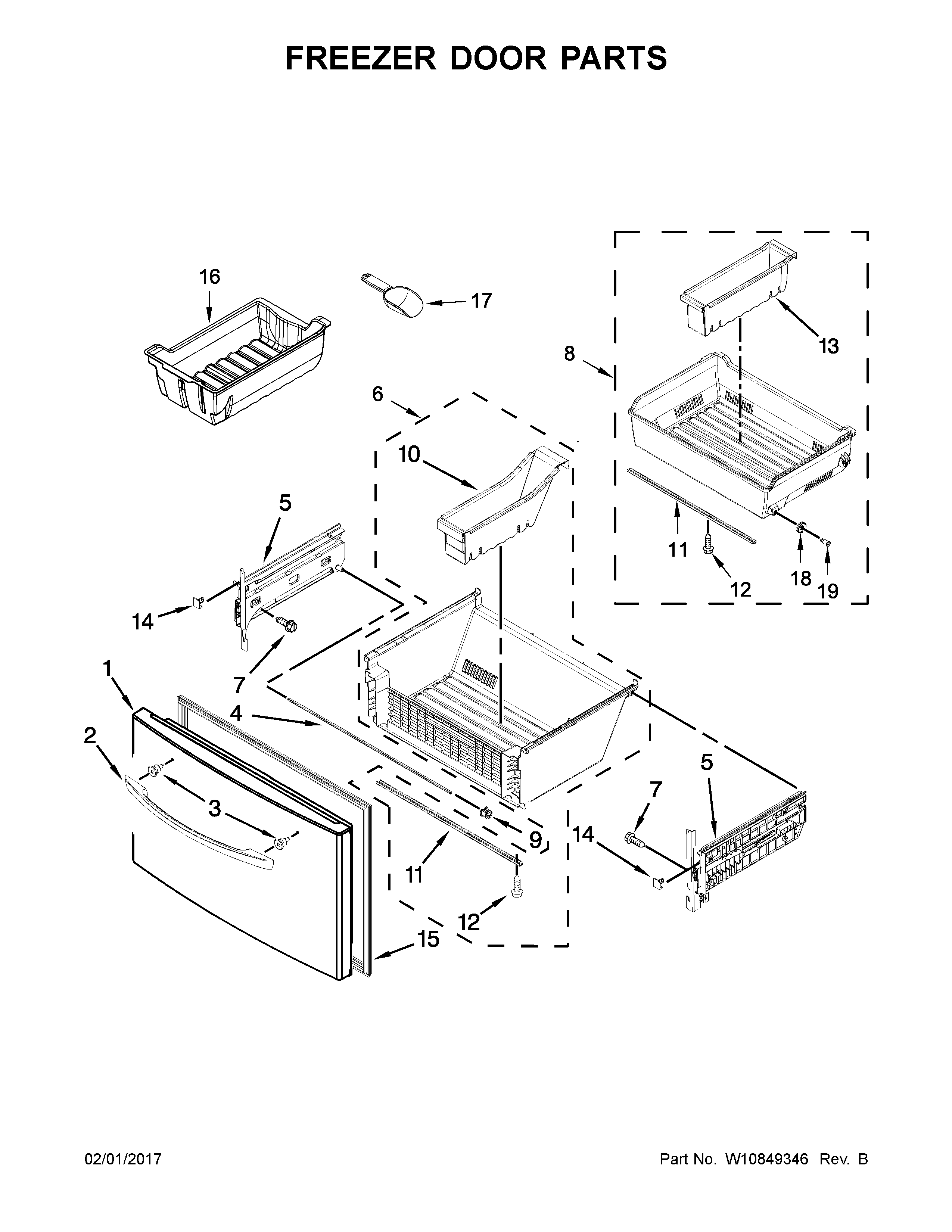

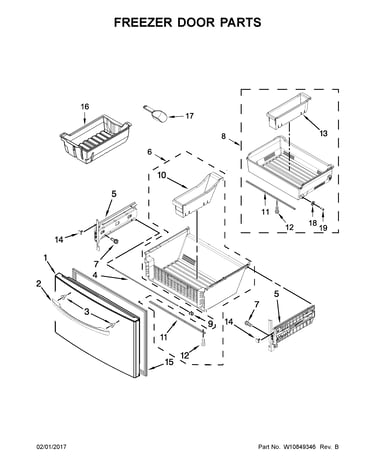

To remove the bottom freezer drawer front on Whirlpool model WRF767SDEM01, open the drawer fully, remove the two top inside screws that secure the drawer front to the glides, then lift up to release the plastic studs from the glide brackets and slide the glides back in. See the WRF767SDEM01 use & care manual for the exact steps and tool size.
- Unplug the refrigerator or disconnect power.
- Remove food from the freezer drawer.
- Use two people; the drawer front is awkward to handle.
- Protect the floor with cardboard if you need to pull the unit out.
- Keep screws in a cup so they do not get lost.
- Open the freezer drawer to full extension.
- Locate the two screws at the top, inside the drawer front (left and right).
- Remove both screws (the manual specifies a 1/4-inch hex driver).
- Lift up on the drawer front to release the plastic studs from the drawer glide bracket slots.
- Slide the drawer glides back into the freezer to keep them out of the way.
- Pull the drawer glides out fully.
- Align the bottom plastic studs with the glide bracket slots.
- Lower the drawer front into place, then reinstall the two top screws.
- Open and close the drawer to confirm smooth travel and a good seal.
| Item | Removed? | Notes |
|---|---|---|
| Freezer drawer front (outer panel) | Yes | Comes off after removing 2 top inside screws |
| Drawer glides/rails | No | Slide back in after the front is removed |
| Baskets/bins | Optional | Remove first if you need more room or less weight |
Removing the drawer front is often necessary to fit the refrigerator through a doorway and it also helps prevent bent glides, broken plastic studs, or a drawer that will not seal and close correctly afterward.
Last updated: January 2026
Why is my Whirlpool bottom freezer not freezing?
If your Whirlpool WRF767SDEM01 bottom freezer isn’t freezing, the most common causes are restricted airflow (blocked vents or frost buildup), dirty condenser coils, a door seal leak, or a cooling system control or fan problem. Start with settings, airflow, and basic maintenance before replacing parts.
- Confirm the freezer set point is 0°F and allow 24 hours after any adjustment.
- Make sure Cooling is On (Cooling Off disables cooling).
- Check that packages are not blocking freezer or refrigerator air vents.
- Verify the freezer drawer closes fully and seals all the way around.
- If the unit was recently installed or moved, allow a full 24 hours to stabilize.
For control steps and recommended temperatures, follow the WRF767SDEM01 use & care manual.
| Symptom you notice | Likely issue | What to do first |
|---|---|---|
| Freezer warm, fridge also warm | Dirty condenser coils, airflow issue, sealed system or compressor/inverter issue | Clean coils; listen for fans; check door sealing |
| Freezer warm, fridge OK | Freezer airflow restriction or defrost issue | Look for frost/ice buildup; check vents |
| Frost/ice buildup in freezer | Door leak or defrost system problem | Inspect gasket contact; reduce door openings |
| No fan sound, temps rising | Evaporator fan or control issue | Inspect for ice blockage; consider fan/control diagnosis |
If airflow is weak or you suspect a fan-related cooling problem, these model-compatible parts may be involved during diagnosis or repair:
- Refrigerator evaporator fan motor assembly W11452196 (moves cold air through compartments)
- Refrigerator electronic control board W10898445 (manages cooling and defrost functions)
- Refrigerator inverter W11087200 (helps drive the compressor on variable-speed systems)
A freezer that can’t hold temperature can lead to food spoilage and forces the compressor to run longer. Fixing airflow restrictions (coils, vents, door sealing) often restores normal freezing without major repairs.
If basic checks don’t help and the freezer temperature stays above 10°F after 24 hours, we recommend scheduling service because sealed system or electronic control issues require specialized tools.
Last updated: January 2026
Why does my Whirlpool freezer keep frosting up?
On Whirlpool model WRF767SDEM01, freezer frost buildup is usually caused by humid air leaking in through the freezer drawer seal or the drawer not closing completely. Less often, heavy frost points to an automatic defrost or airflow issue. Use the WRF767SDEM01 use & care manual for model-specific troubleshooting and settings.
- Confirm the freezer drawer closes fully; remove packages that prevent closure.
- Reduce long or frequent drawer openings (humid air turns into frost quickly).
- Verify the freezer set point is 0°F (the factory recommended setting).
- Keep air vents clear; avoid packing items tightly against the back wall.
- Clean the gasket and the cabinet sealing surface with mild soap and warm water; dry completely.
- Inspect the gasket for gaps, tears, or warping.
If frost returns quickly after you clear it, or the back wall gets heavily frosted and airflow feels weak, the evaporator may be icing over. That can happen when the defrost system is not melting frost on schedule or when airflow is restricted.
Common checks on WRF767SDEM01 include:
- Evaporator fan running and moving air
- Wiring connections to the defrost circuit
- Control initiating defrost cycles
If testing shows the heater is not working, the correct replacement part is the refrigerator defrost heater WP12729128.
| What you notice | Most likely cause | What to do first |
|---|---|---|
| Frost mainly at the drawer opening | Air leak or drawer not closing | Clear obstructions; clean and inspect gasket |
| Heavy frost on back wall, weak airflow | Evaporator iced over | Fully defrost; check fan and defrost system |
| Frost after long openings or humid days | Normal moisture load | Reduce openings; verify temperature settings |
Frost acts like insulation and can block airflow, making the freezer run longer, causing temperature swings, and sometimes reducing ice maker performance.
Last updated: January 2026
