GE GFE28GSKHSS bottom-mount refrigerator Parts

On the GE GFE28GSKHSS bottom-mount refrigerator, the bottom grille (base grille) typically comes off by releasing its retaining clips and pulling it straight outward from the front of the cabinet. If your grille is screw-secured, remove the screws first, then pull the grille forward.

Quick steps

• Unplug the refrigerator (or switch off power at the breaker) for safety.
• Open both fresh food doors for better access.
• Look along the top edge of the bottom grille for clip points.
• Pull the grille straight out toward you using even pressure on both sides.
• If it resists, check for screws at the ends or underneath; remove them, then pull forward.
• Set the grille aside on a towel to avoid scratching the finish.

What to check if it will not come off

• Hidden fasteners: Some versions use Phillips screws at the ends.
• Stuck clips: Press near each clip location, then pull outward again.
• Leveling legs interference: If the grille is catching, verify the front leveling legs are not extended so far that they block removal.

Reinstalling the bottom grille

Line the grille up with the mounting slots, then push it straight in until the clips snap into place. If your grille uses screws, reinstall them snugly (do not overtighten).

Grille style	What you will see	Removal method
Clip-on	No visible screws	Pull straight out to release clips
Screw-secured	Screws at ends/under edge	Remove screws, then pull forward

Why it matters

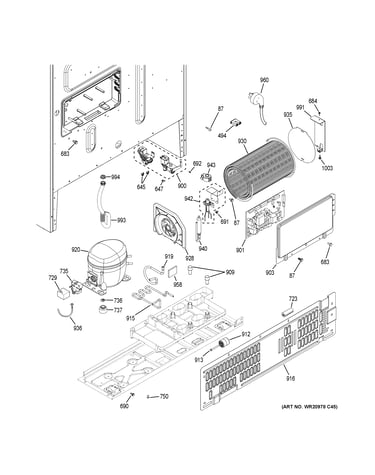

We remove the bottom grille to access and clean the condenser area and to reach components near the base. Keeping that area clear helps cooling performance and can reduce warm temperatures and longer run times.

For model-specific diagrams and access notes, use the GFE28GSKHSS owner's manual.

Last updated: February 2026

The most common issue we see with GE refrigerators like model GFE28GSKHSS is cooling trouble (fresh food section too warm, freezer not holding temperature, or temperatures swinging). In many cases, the root cause is restricted airflow or heat not being removed efficiently, so the refrigerator runs longer and struggles to maintain set temps.

Most common causes to check first

• Dirty condenser coils: Dust buildup reduces heat transfer and raises cabinet temperatures.
• Blocked air vents: Overpacked shelves can block return vents and stop circulation.
• Evaporator fan problem: Weak or failed fan reduces airflow to the refrigerator compartment.
• Defrost system issue: Frost buildup on the evaporator can choke airflow.
• Door not sealing: Warm air leaks in and creates longer run times and moisture.

Quick troubleshooting steps (in order)

1. Confirm settings: Make sure the temperature setpoints are at normal levels (check the owner's manual).
2. Check airflow: Move food away from vents in the fresh food section and freezer.
3. Clean the condenser area: Vacuum coils and the grille area; restore airflow around the unit.
4. Listen for fans: You should typically hear a fan running at times when the compressor is on.
5. Look for frost patterns: Heavy frost on the back freezer panel often points to a defrost or airflow problem.

Symptom-to-likely-cause guide

Symptom	Most likely cause	What to do next
Fresh food warm, freezer OK	Airflow issue, evaporator fan, blocked vents	Clear vents; check fan sound
Both sections warm	Dirty condenser coils, compressor not running, control issue	Clean coils; verify compressor/fans
Temps OK but runs constantly	Dirty coils, door leak, warm room, frequent openings	Clean coils; inspect gasket
Frost buildup in freezer	Defrost problem or door leak	Check door seal; inspect frost pattern

Why it matters

Cooling problems are the most common complaint because they can start with simple airflow restrictions (like blocked vents or dirty coils) and then snowball into food spoilage, heavy frost, and longer compressor run times.

If you’re seeing an error or unusual display behavior, use our GE refrigerator error codes reference to narrow the diagnosis.

Last updated: February 2026

For the GE GFE28GSKHSS bottom-mount refrigerator, the model and serial numbers are printed on a label inside the fresh food (refrigerator) compartment. You will find the label on the left side, near the middle of the compartment; use those numbers when ordering parts or checking specifications in the [owner's manual].

Where to look (quick steps)

• Open the fresh food (upper) refrigerator door.
• Look on the left interior wall of the refrigerator compartment.
• Scan near the middle height of that left wall.
• Find the rating label that lists Model # and Serial #.
• Write both down exactly as shown (letters and numbers).

What the label typically includes

Label item	What it’s used for
Model number (GFE28GSKHSS)	Matching the correct diagrams, parts, and features
Serial number	Identifying the production run for service and warranty records
Electrical ratings	Confirming power requirements and safe servicing

Tips to avoid common mistakes

• Use the full model number, not just “GFE28”.
• Copy characters carefully; S and 5, O and 0 are easy to mix up.
• If the label is hard to read, wipe it gently with a damp cloth and dry it.

Why it matters

GE uses model and serial information to match the correct refrigerator parts (like shelves, door bins, ice maker components, and water filter housing) and to ensure you get the right instructions for your exact configuration.

Last updated: March 2026
