Maytag
Washer

Model #PAV3200AGW Maytag washer

Here are the diagrams and repair parts for Maytag PAV3200AGW washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 155 parts

Washer Agitator Auger

#1

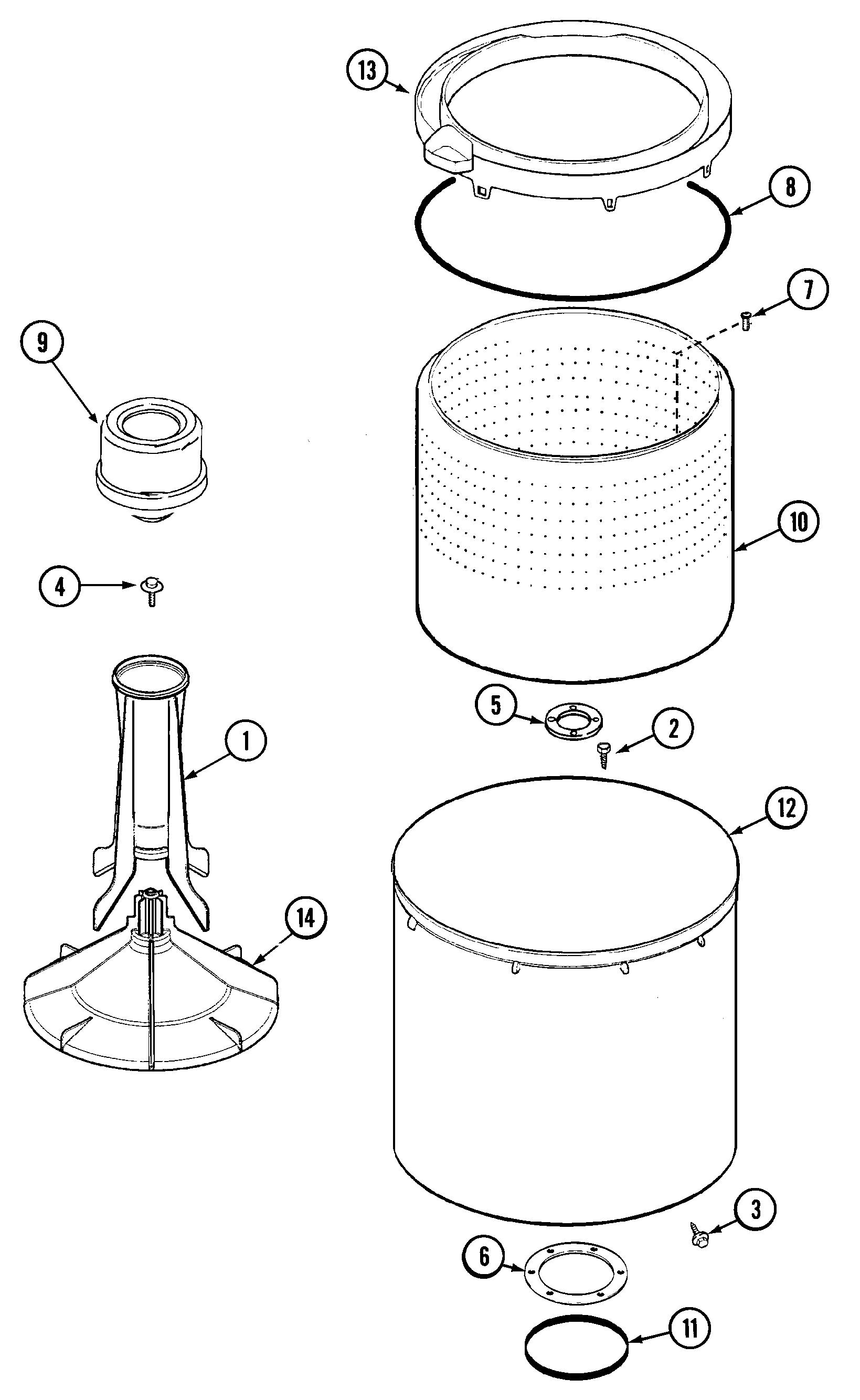

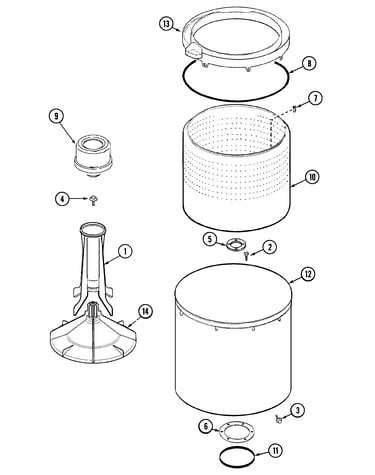

Tub Diagram

Washer agitator auger

Part #21001521
$113.03

In Stock

Washer Leveling Leg Pin

#22

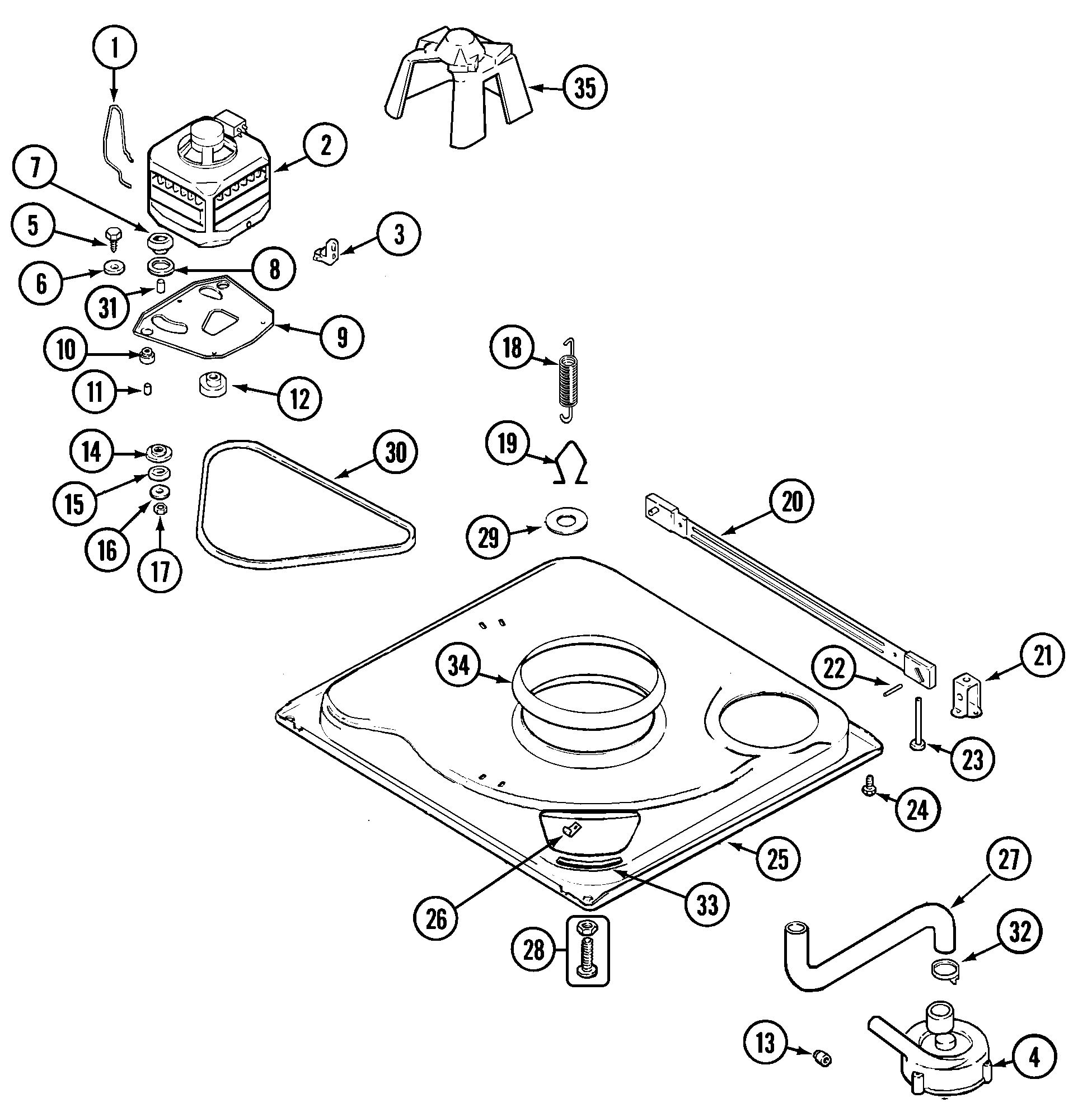

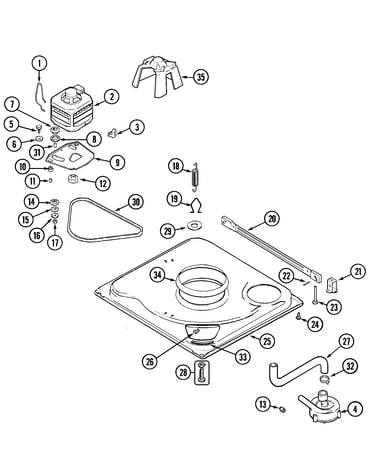

Base Diagram

Washer leveling leg pin

Part #35-2052
This item is not returnable
$5.89

In Stock

Bracket, Sta

#21

Base Diagram

Bracket, sta

Part #35-2046
$26.92

In Stock

Switch Screw

#10A

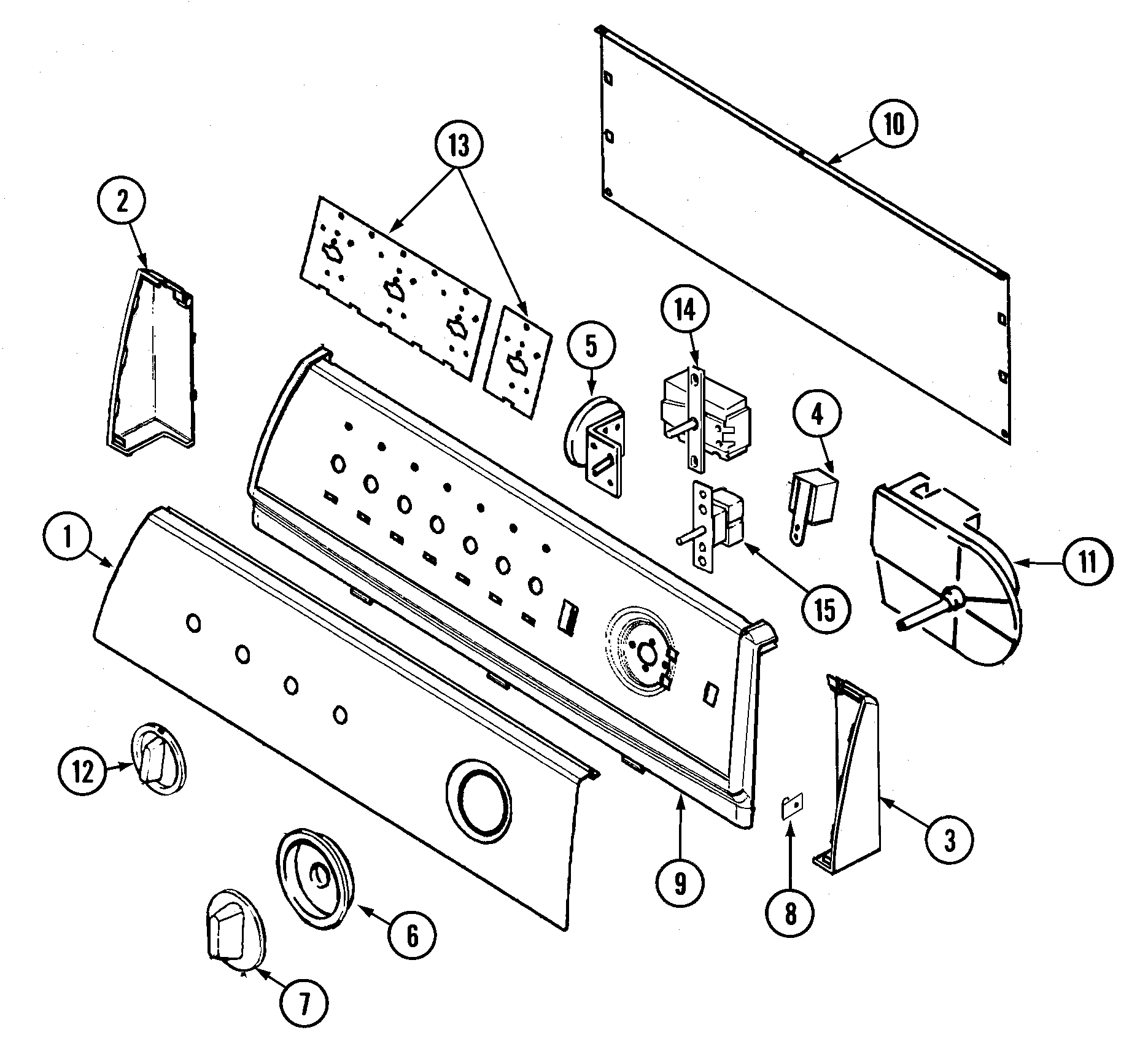

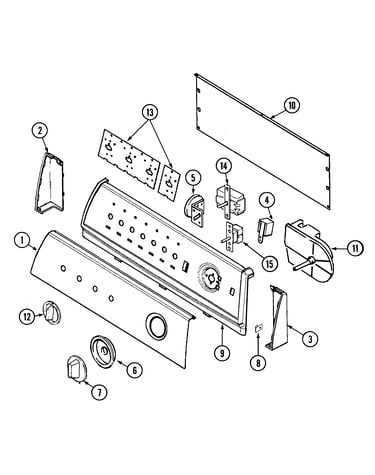

Control panel Diagram

Switch screw

Part #25-3092
This item is not returnable
$4.41

In Stock

Washer Timer Dial Skirt (White)

#6

Control panel Diagram

$51.02 |
10% OFF MSRP:$57.00

In Stock

Flat Washer

#16

Base Diagram

Flat washer

Part #25-7047
$22.33

In Stock

Washer Top Panel Hinge

#2

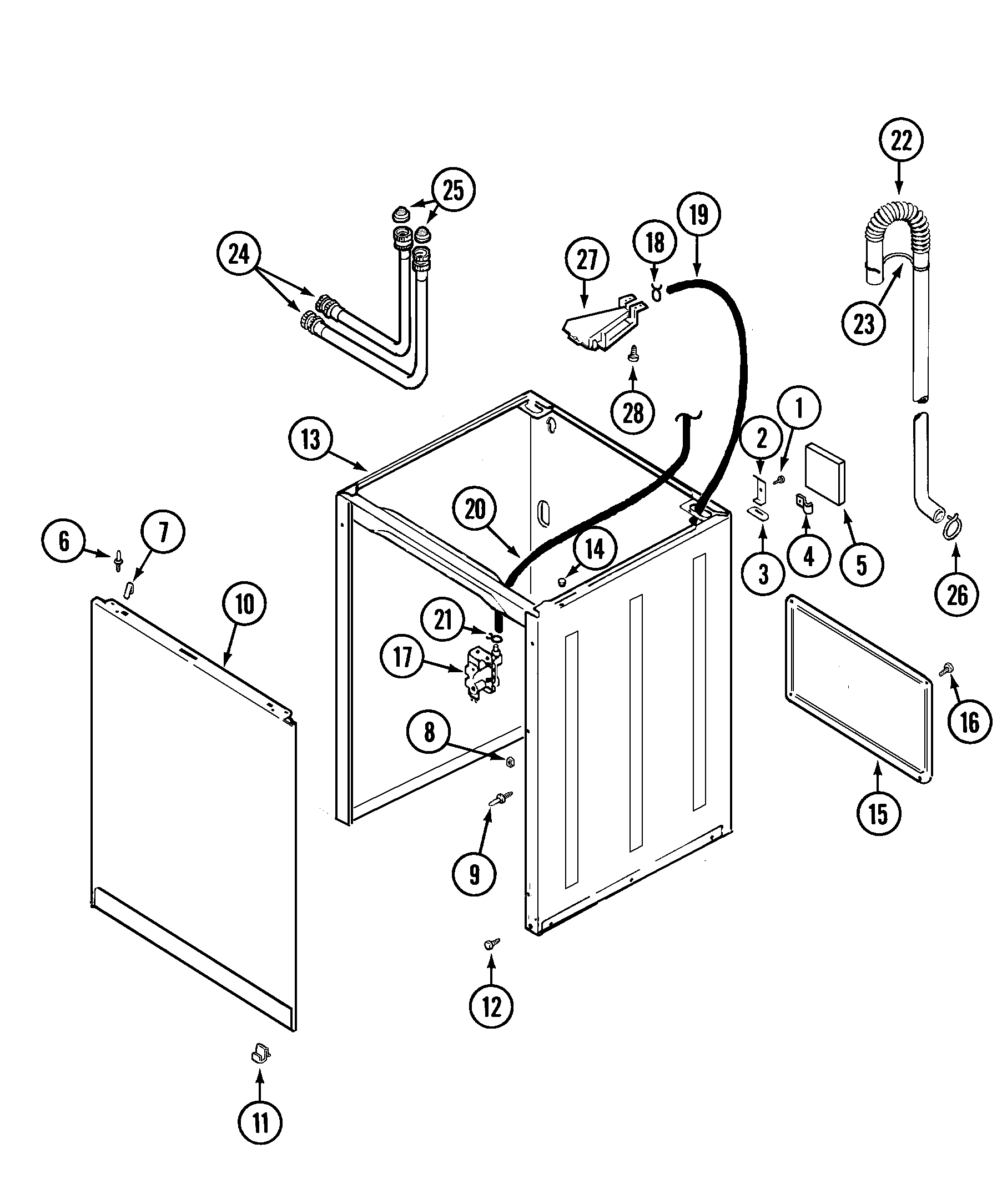

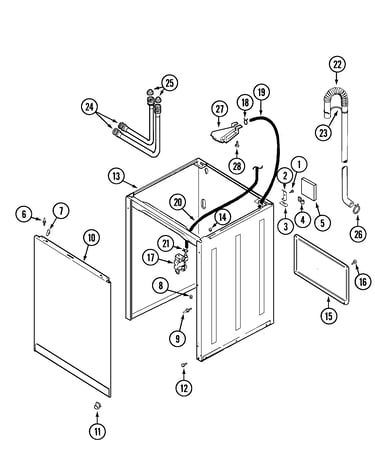

Cabinet Diagram

$17.93 |
10% OFF MSRP:$19.89

In Stock

Wiring Clip

#4

Cabinet Diagram

Wiring clip

Part #25-7027

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer

#18

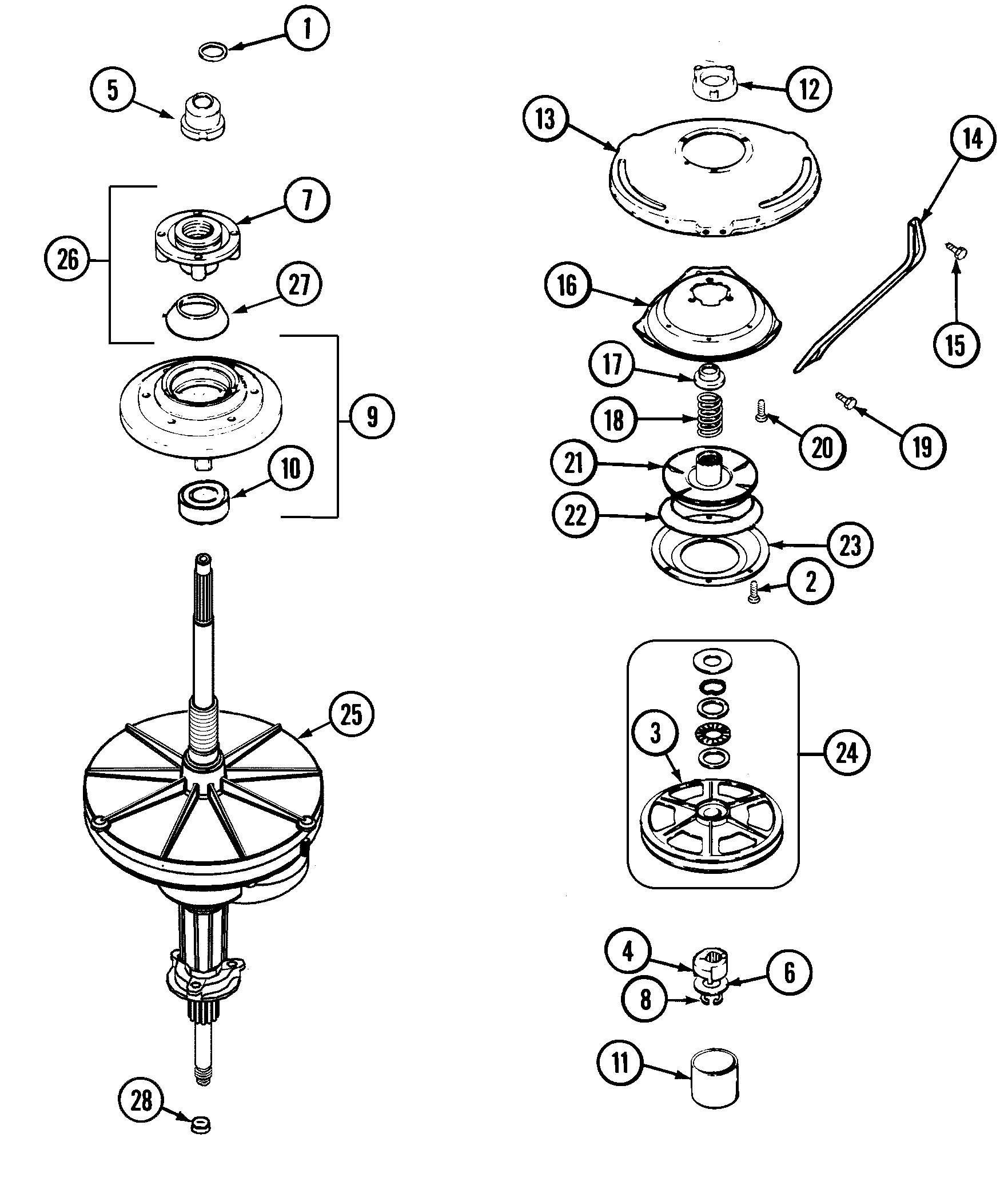

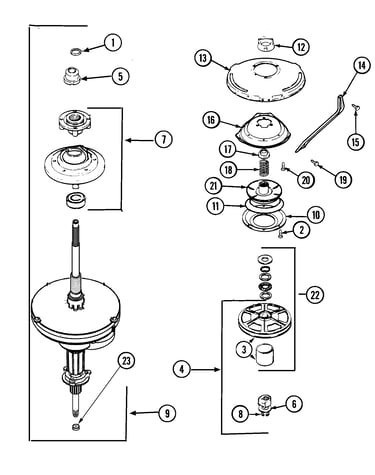

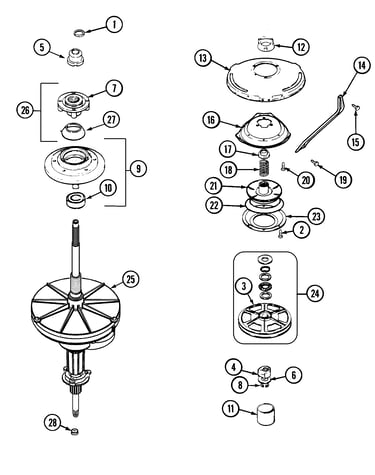

Transmission Diagram

Spring washer

Part #WP21001910
?
Manufacturer substitution
This part replaces 31001285. Substitute parts can look different from the original.
This part replaces 31001285
This item is not returnable
$3.33

In Stock

Washer Motor Isolator

#15

Base Diagram

Washer motor isolator

Part #WP33-9967
?
Manufacturer substitution
This part replaces 33-9967. Substitute parts can look different from the original.
This part replaces 33-9967
This item is not returnable
$1.65 |
25% OFF MSRP:$2.19

In Stock

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
