How to tell GE fridge model?

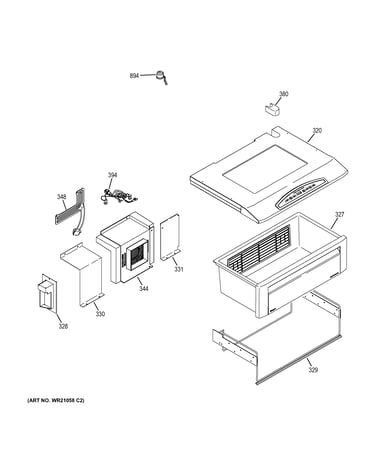

For your GE built-in refrigerator model ZISS360DHASS, the model and serial number are printed on a label inside the fresh food (refrigerator) compartment. On this model, it’s located on the lower right side, beneath the climate control drawer (crisper area). Confirm the location in the owner's manual.
Check these spots in order:
- Inside the fresh food compartment, lower right side
- Beneath the climate control drawer (you may need to pull the drawer out to see the label clearly)
- If the label is hard to read, use a flashlight and wipe dust or condensation off the tag
Record both numbers exactly as shown:
- Model number (example format: ZISS360DHASS)
- Serial number
- Any revision letters or extra characters printed with the model
- Open the fresh food door fully
- Slide out the climate control drawer
- Look along the lower right interior wall for the rating label
- Take a photo for future parts ordering and service reference
The model number identifies the exact GE configuration (doors, dispenser parts, sensors, and wiring). Using the correct model number helps us match the right replacement parts and installation details for your refrigerator.
| Item | What it’s used for | When you need it |
|---|---|---|
| Model number | Identifies the exact refrigerator design | Ordering parts, looking up diagrams, manuals |
| Serial number | Identifies the production unit | Service history, warranty paperwork |
Last updated: February 2026
What is the disadvantage of a side-by-side fridge?
A side-by-side refrigerator like the GE ZISS360DHASS trades wide, uninterrupted shelf space for easy access to both fresh food and freezer sections; the most common disadvantage is narrower compartments that make it harder to store wide items (pizza boxes, party platters) and bulky groceries.

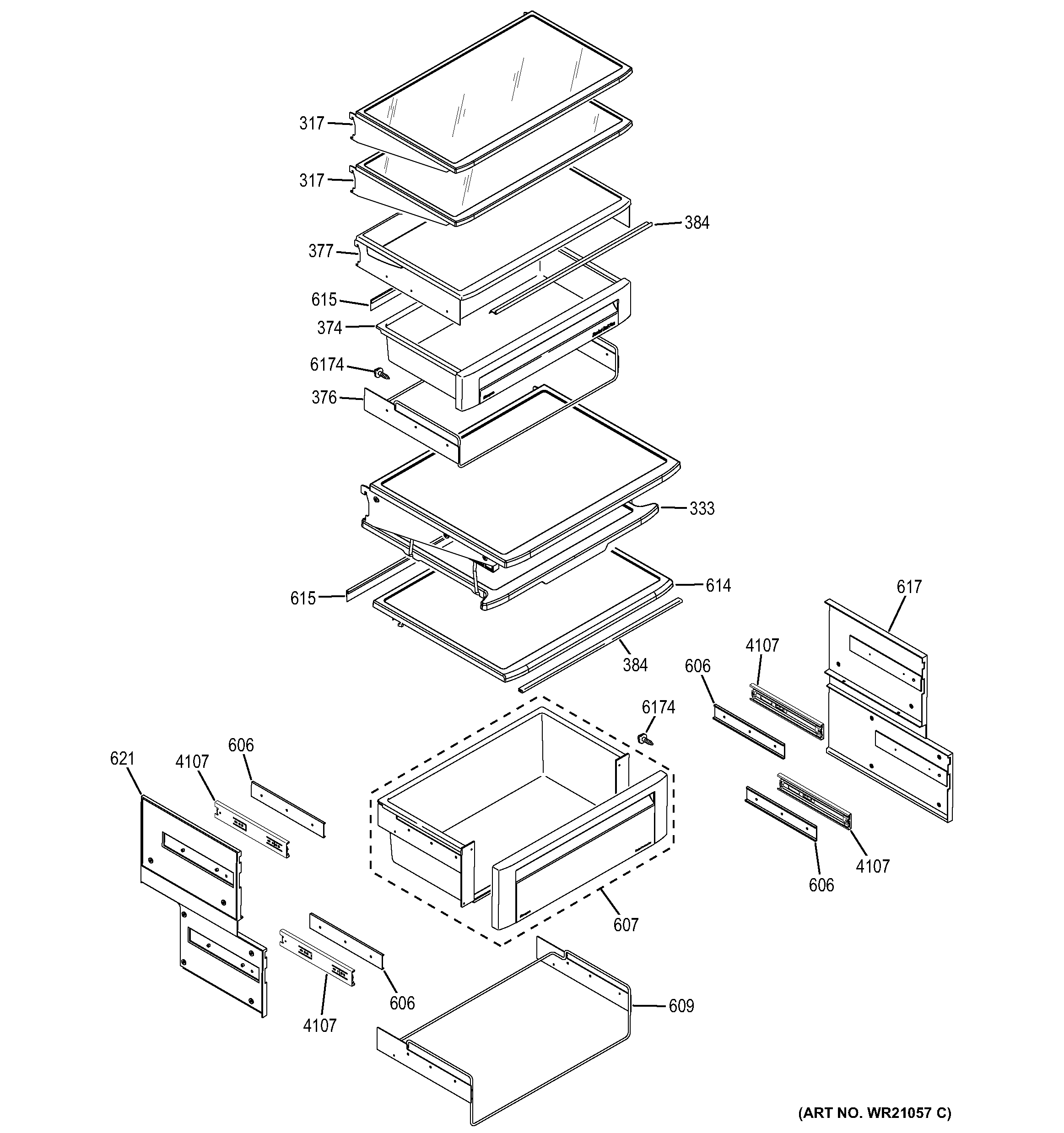

- Narrow shelves and bins: wide containers may not fit without rearranging.
- Less “big-item” flexibility: large roasts, sheet cakes, and oversized produce trays can be awkward.

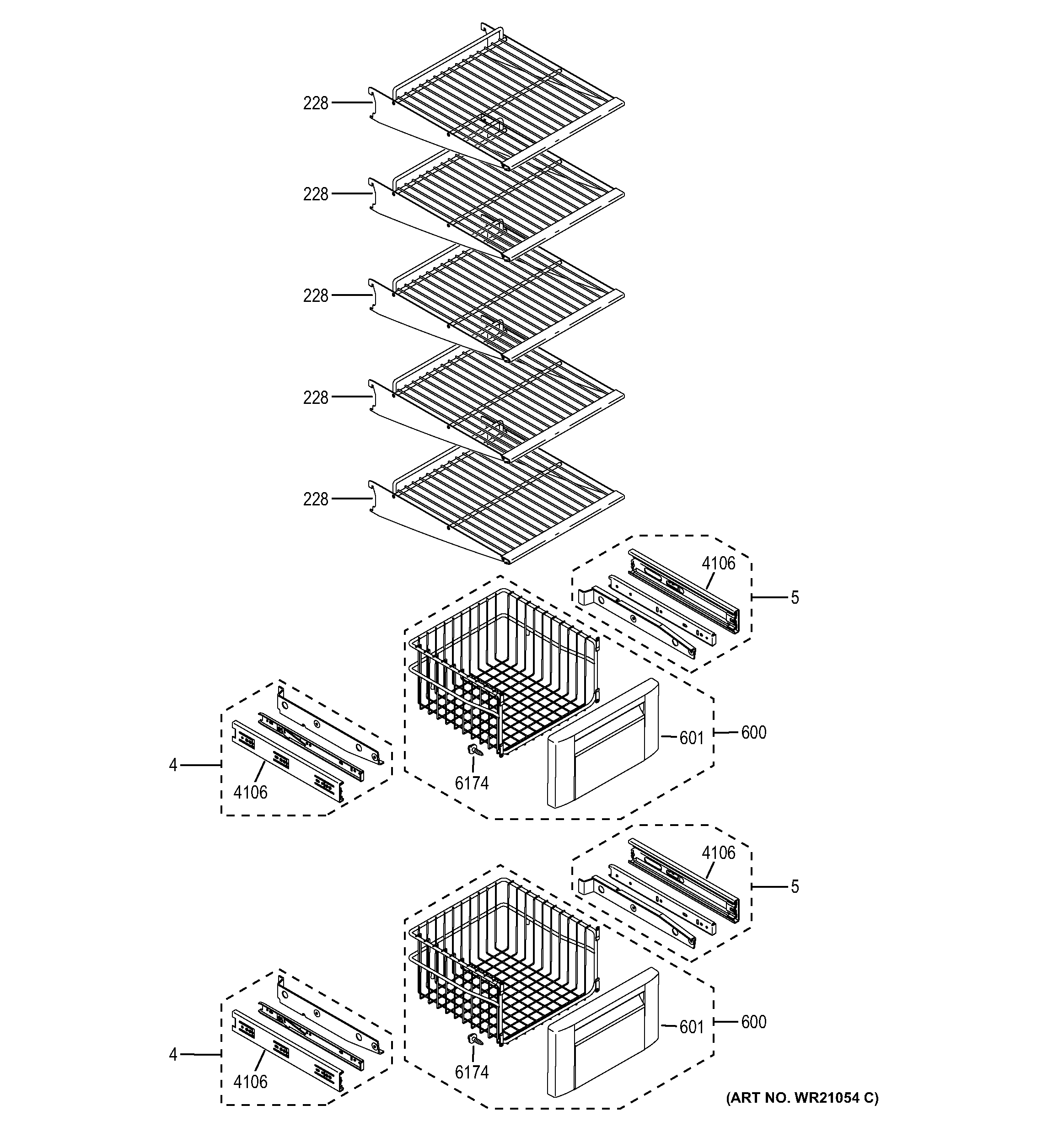

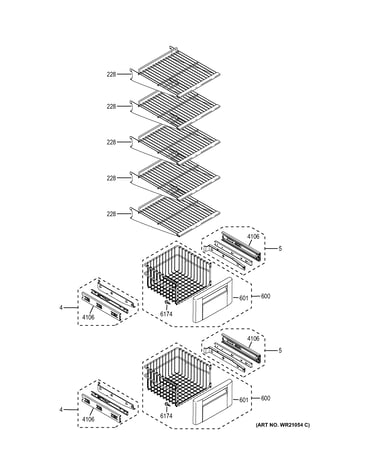

- Freezer space feels tighter: tall, narrow freezer shelves limit stacking bulky packages.
- More door-swing clearance needed: built-in side-by-sides can require planning for cabinet interference and swing space.

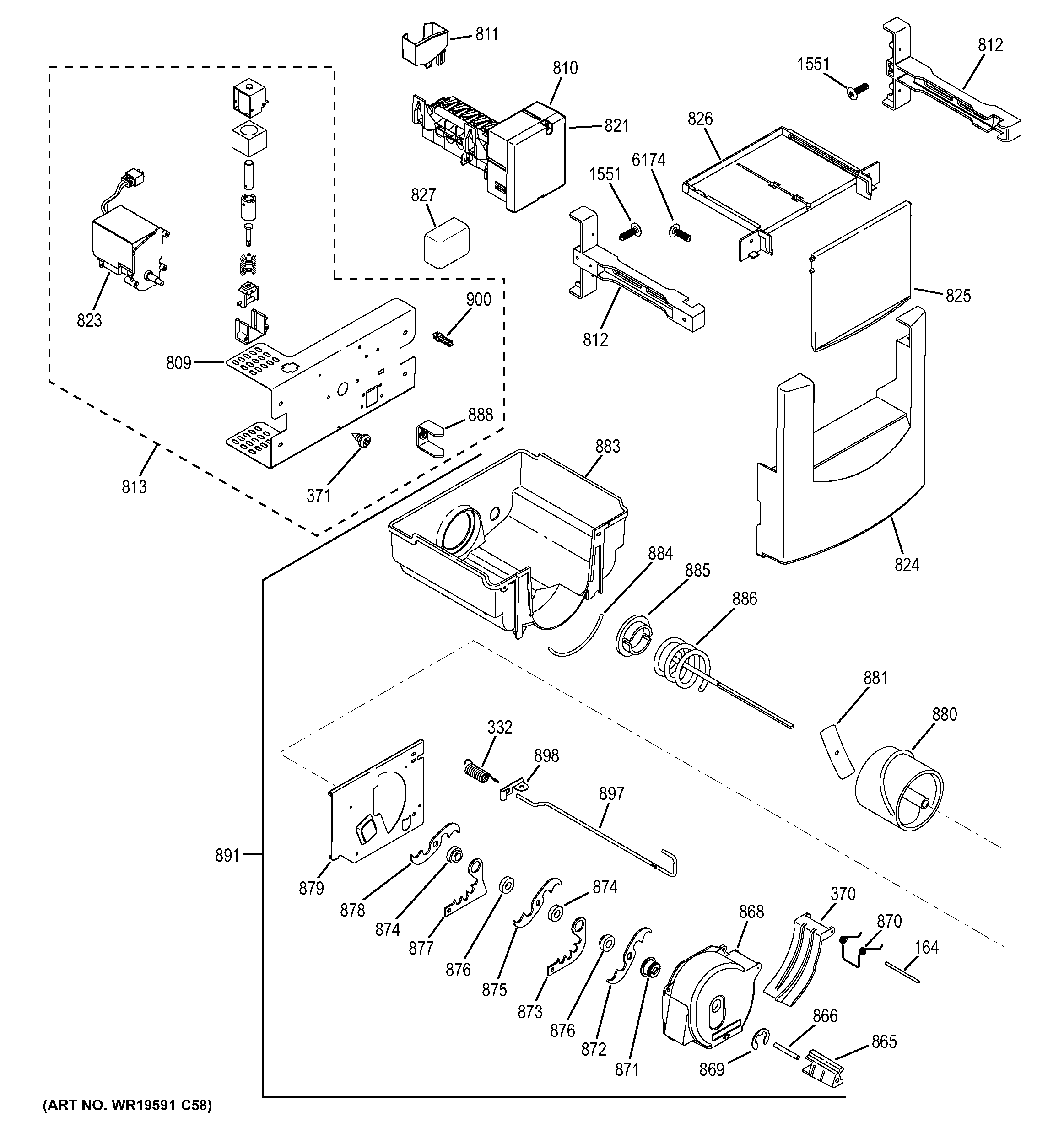

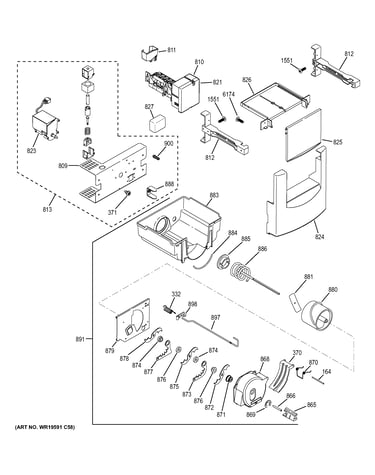

- Dispenser area adds complexity: ice and water dispenser parts can add maintenance points over time.
For built-in side-by-side designs, the installation details can be a practical “disadvantage” if your cabinetry is tight. The installation guide calls out items like overlay panel thickness requirements and door swing clearance; we recommend confirming your cabinet opening and panel plan in the installation guide.
- Confirm door swing clearance before final placement.
- If using custom panels, verify panel thickness and weight limits.
- Plan for trim overlap and potential filler strips with frameless cabinets.
- Keep airflow and service access in mind (do not block vents or access panels).
If your concern is really about dispenser convenience or reliability (not shelf width), start with the basics: replace the water filter on schedule and keep the dispenser area clean.
- Replace the filter with GE refrigerator water filter MWFP when flow slows or taste changes.
- Clean the dispenser cradle and spill shelf periodically.
- Use the control lock when cleaning to avoid accidental dispensing.
| Feature | Side-by-side | French door |
|---|---|---|
| Wide-item storage | Lower | Higher |
| Freezer access | Eye-level shelves | Pull-out drawer |
| Fresh-food visibility | Good | Very good |
| Typical footprint | Similar | Similar |
Most “disadvantages” come down to how you shop and store food. If you regularly store wide platters or large meal-prep containers, the side-by-side layout can feel restrictive; if you want frequent access to frozen foods without bending, it can be a strong fit.
If you need replacement parts for your GE ZISS360DHASS, you can order model-matched parts from the list for this refrigerator, or search by model number on Sears PartsDirect.
Last updated: February 2026
What is the most common problem with a GE refrigerator?
The most common GE refrigerator problem is a cooling complaint (fresh food or freezer too warm, or temperatures not matching the setting). On the GE ZISS360DHASS, the most frequent root causes are airflow and heat-transfer issues (dirty condenser coil, blocked vents, door not sealing) or a fan/sensor problem; use the owner's manual problem solver to narrow it down.
- Confirm the doors fully close; a package can hold the door open.
- Inspect the door gasket for gaps or being out of position.
- Make sure the refrigerator is level; leveling affects door closing and sealing.
- Avoid overstuffing; blocked vents cause warm spots and temperature swings.
- After a power outage or first plug-in, allow 24 hours for temperatures to stabilize.
| Symptom | Most common cause | What to do next |
|---|---|---|
| Fresh food or freezer too warm | Door left open, warm food load, blocked airflow | Reduce load, clear vents, wait 24 hours |
| Temperature not equal to set temp | Recent door openings or recent start-up | Wait 24 hours; recheck settings |
| Long run times or frequent cycling | Normal operation on modern units, especially after start-up | If temps are correct, this is normal |
| Clicking/buzzing sounds | Control relays, icemaker fill valve, ice dropping | Treat as normal unless cooling is affected |
If the basic checks above do not correct the cooling issue, these parts are commonly involved on built-in side-by-side refrigerators like the GE ZISS360DHASS:
- Evaporator fan not moving air: a failed fan motor can cause warm fresh food and uneven temps; see rca refrigerator evaporator fan motor WR60X10185.
- Temperature sensing problems: a faulty sensor can cause temperature swings or incorrect control decisions; see GE profile refrigerator temperature sensor WR55X10025.

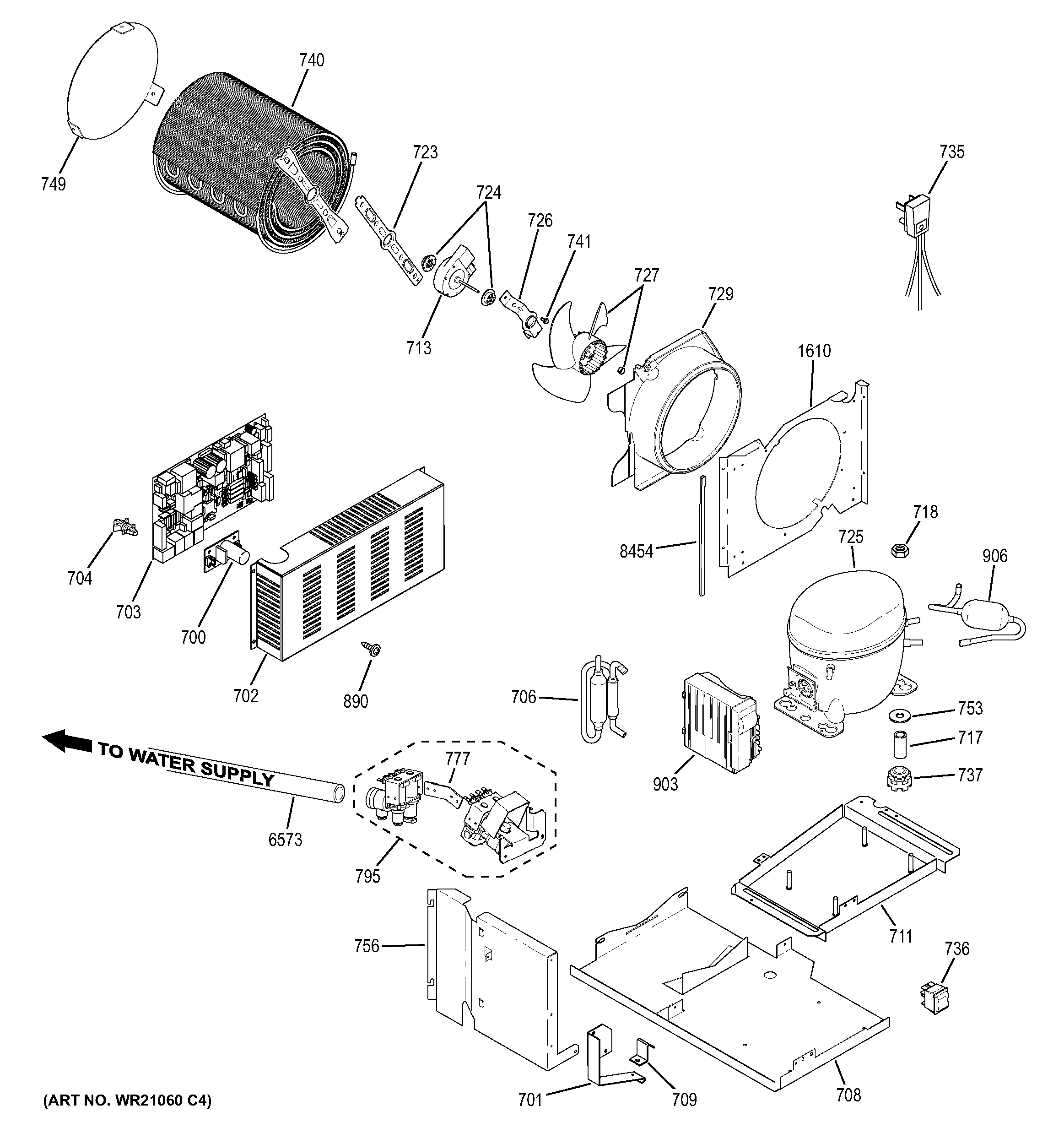

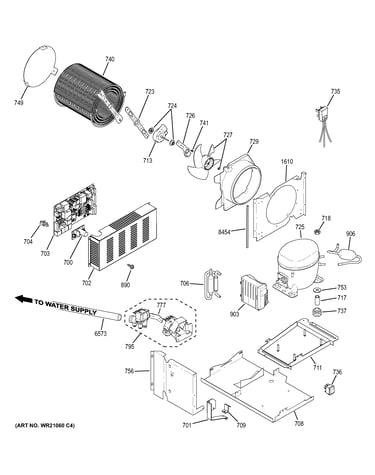

- Heat not leaving the cabinet efficiently: a dirty or restricted condenser area can mimic a sealed-system problem; if the coil itself is damaged, see GE profile refrigerator condenser coil WR84X10022.
Cooling problems are the fastest way to spoil food and overwork the compressor. Fixing airflow, door sealing, and heat transfer early usually restores stable temperatures and reduces run time.
You can order model-specific replacement parts from the parts list for your GE ZISS360DHASS, or search by model number on Sears PartsDirect.
Last updated: February 2026
Does anyone make a 30 inch side by side refrigerator?
Yes; 30-inch side-by-side refrigerators exist, but they are rare compared with 33-inch and 36-inch models. For a built-in GE ZISS360DHASS installation, a true 30-inch replacement usually requires changing the cabinet opening and the installation plan.
Built-in refrigerators are sized to the cutout and clearances, not just the advertised width. We recommend checking these items first:
- Cutout width, height, and depth of the opening
- Door swing clearance and handle projection
- Venting and airflow clearances (top, sides, toe-kick)
- Water supply location (ice maker and dispenser)
- Electrical outlet location and cord reach
For the exact cutout and clearance requirements used for ZISS360DHASS, follow the measurements in the installation guide.
Most side-by-side replacements are easier at 33 inches or 36 inches; built-in side-by-sides are commonly planned around wider openings.
| Width class | Availability | Replacement impact in a built-in opening |
|---|---|---|
| 30-inch side-by-side | Rare | Limited choices; cabinet modifications are common |
| 33-inch side-by-side | Common | More choices; still may not match built-in cutout specs |
| 36-inch side-by-side | Very common | Often the closest match for many built-in layouts |
If you install a narrower refrigerator in a built-in cutout, you can end up with gaps, poor airflow, and alignment issues with surrounding cabinetry. Using the correct cutout dimensions prevents cooling performance problems and cosmetic fit issues.
If your goal is better water and ice quality, replacing the filter is a common first step. The refrigerator water filter MWFP fits this model.
You can order replacement parts from the parts list for ZISS360DHASS, or search by model number on Sears PartsDirect.
Last updated: February 2026
How long does a GE Monogram refrigerator last?
A GE Monogram built-in refrigerator like ZISS360DHASS lasts 15 to 20 years. Reaching 20 years comes down to keeping airflow and temperatures stable, cleaning the condenser area, and staying on schedule with routine items like the water filter listed for this model.
Built-in side-by-side refrigerators are designed for a longer service life than many freestanding units because they use heavier-duty components and are installed for long-term use.
- Expected service life: 15 to 20 years
- Most common life-shorteners: poor airflow, dirty condenser area, and door seal leaks
- Water system upkeep matters for dispenser performance and ice production
- Fan motors and sensors are common wear items over time
These steps reduce compressor run time and help prevent temperature swings.
- Keep the grille and condenser area clean and free of dust
- Make sure interior vents are not blocked by food packages
- Keep door gaskets clean so doors seal tightly
- Replace the water filter on schedule; a clogged filter reduces flow and can affect ice and water performance
- Use the care and cleaning schedule in the ZISS360DHASS owner’s manual
| Category | Examples you may replace | Why it matters |
|---|---|---|
| Routine maintenance | Water filter | Protects water flow and ice and water performance |
| Wear components | Fans, sensors, dispenser parts | Repairs often restore normal cooling and noise levels |
| Major system | Compressor, evaporator, condenser | Biggest impact on remaining service life |
If you are doing routine upkeep, the refrigerator water filter MWFP is a common scheduled replacement for this model. You can also order parts from the model’s parts list or search by model number on Sears PartsDirect.
A refrigerator that runs longer to hold temperature uses more energy and puts extra load on the compressor, evaporator fan, and condenser fan. Preventive maintenance keeps food temperatures steady and extends overall service life.
Last updated: February 2026
