Electric Wall Oven

Model # JT912CF6CC Official GE wall oven

Here are the diagrams and repair parts for Official GE JT912CF6CC wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |

Oven Lamp WB08T10022
#257

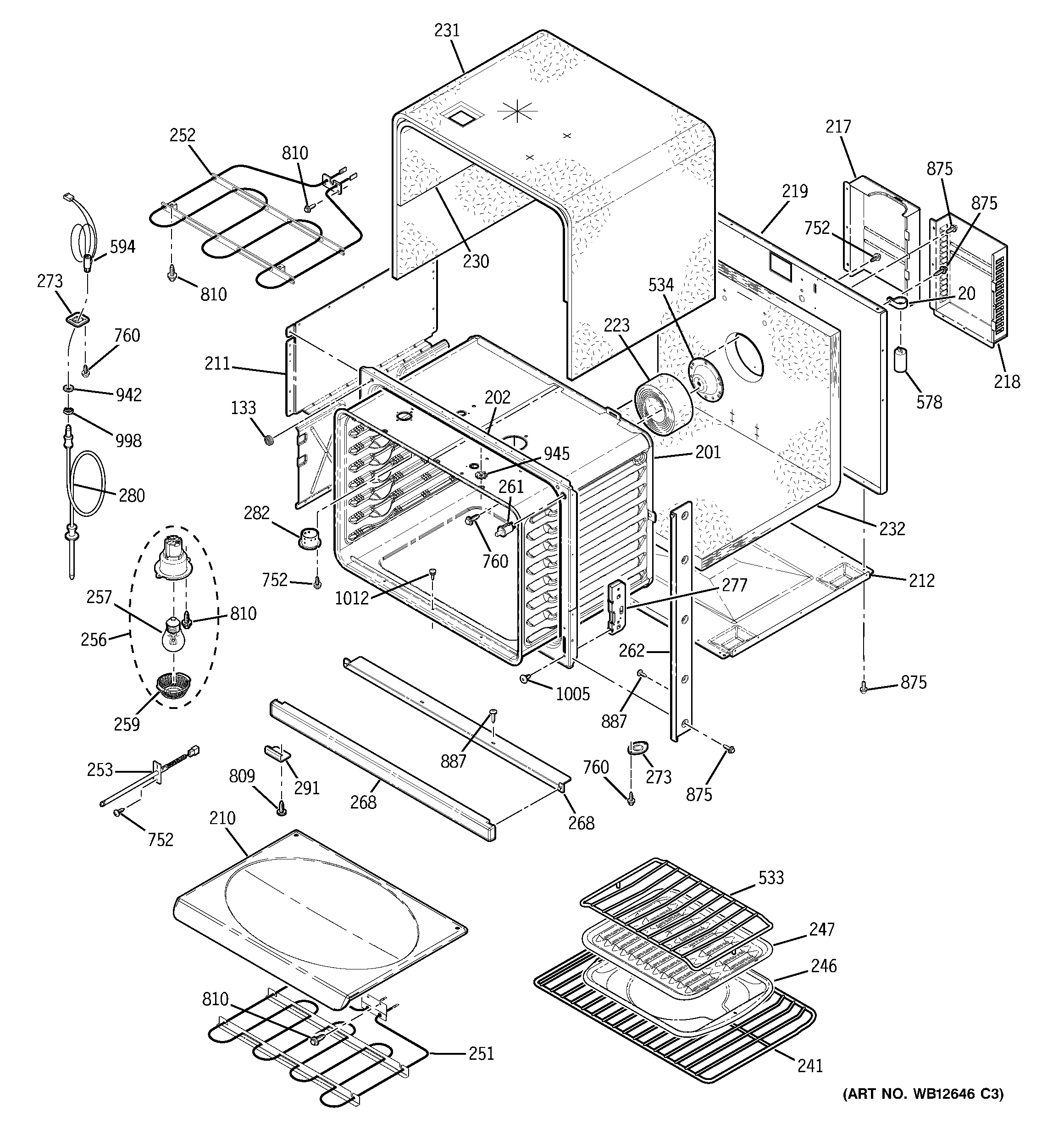

Body parts diagram

Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$15.61
11% OFF Phone Price : $17.61
In Stock
Wall Oven Temperature Sensor WB23T10015
#253

Body parts diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19
16% OFF Phone Price : $31.19
In Stock
Pack Window WB56T10152
#338

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$359.37
$10.00 OFF Phone Price : $369.37
In Stock
Range Bake Element WB44T10055
#251

Body parts diagram

Range bake element

Part #WB44T10055

Replaced by #WB44T10021

?
Manufacturer substitution
This part replaces WB44T10055. Substitute parts can look different from the original.
BEST SELLER
$49.79
9% OFF Phone Price : $54.79
In Stock
Range Oven Meat Probe Sensor (replaces Wb20k5034, Wb20x5034, Wb20x5064) WB20X5050
#280

Body parts diagram

Range oven meat probe sensor (replaces wb20k5034, wb20x5034, wb20x5064)

Part #WB20X5050

Replaced by #WB20T10024

?
Manufacturer substitution
This part replaces WB20X5050. Substitute parts can look different from the original.
BEST SELLER
$52.16
9% OFF Phone Price : $57.16
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

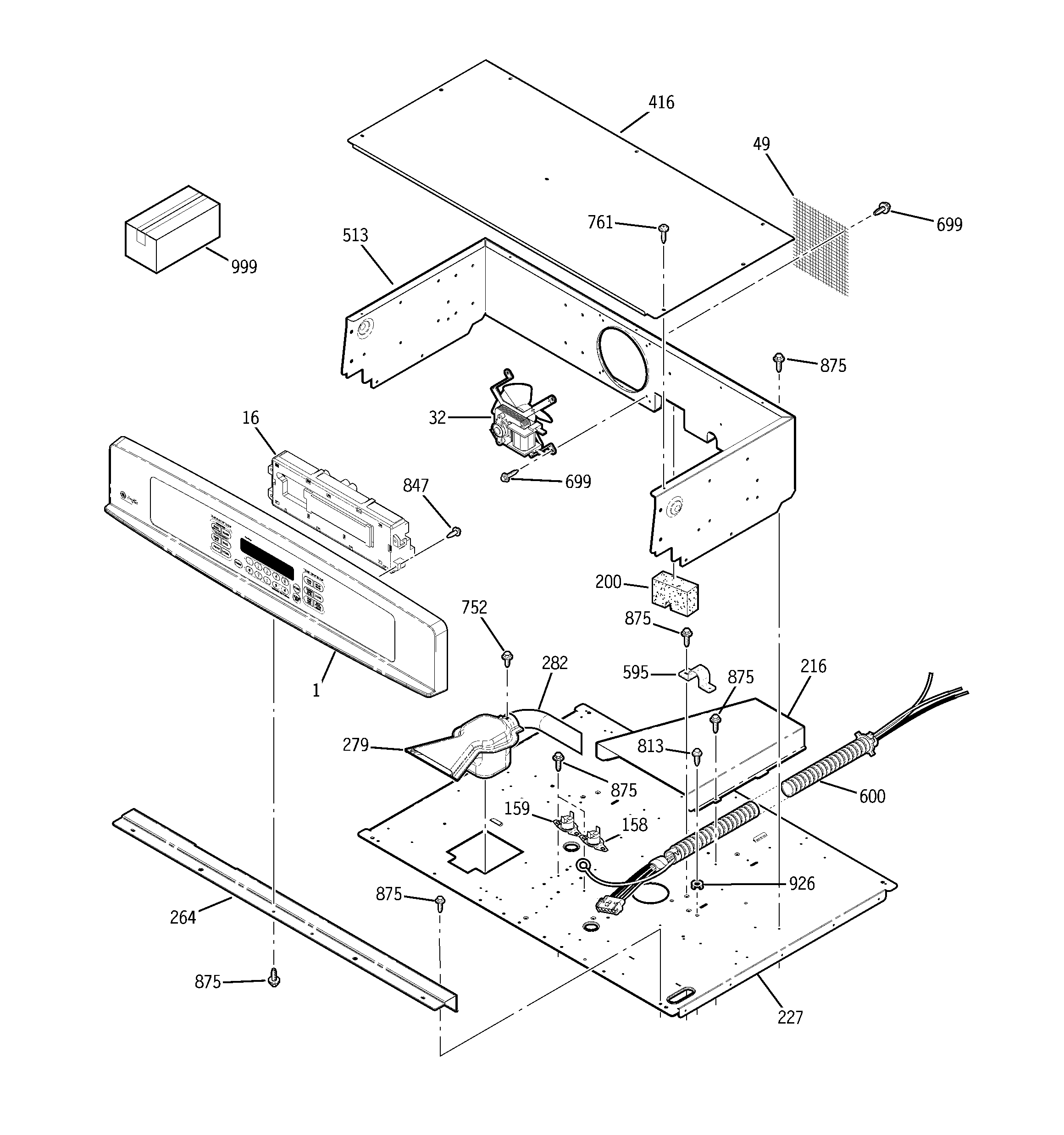

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Range Convection Element (replaces Wb44t10020) WB44T10053
#298

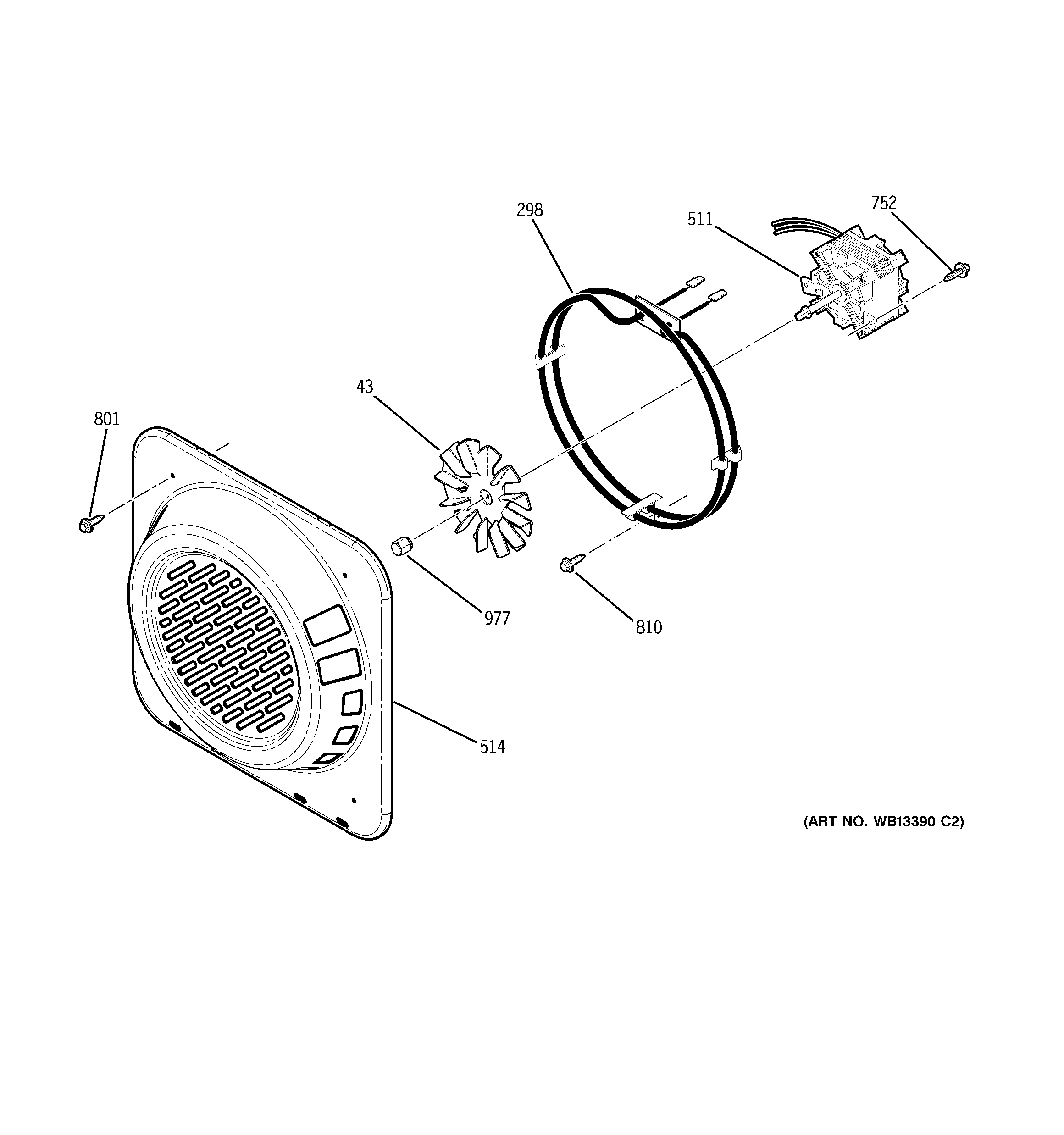

Convection fan diagram

Range convection element (replaces wb44t10020)

Part #WB44T10053

$59.44
8% OFF Phone Price : $64.44
In Stock
Range Broil Element (replaces Wb44k10007) WB44T10043
#252

Body parts diagram

Range broil element (replaces wb44k10007)

Part #WB44T10043

$70.47
7% OFF Phone Price : $75.47
In Stock
Screw, #10-32 X 17/32-in WB01X1253
Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
