Model # WDSCW4 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire WDSCW4 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

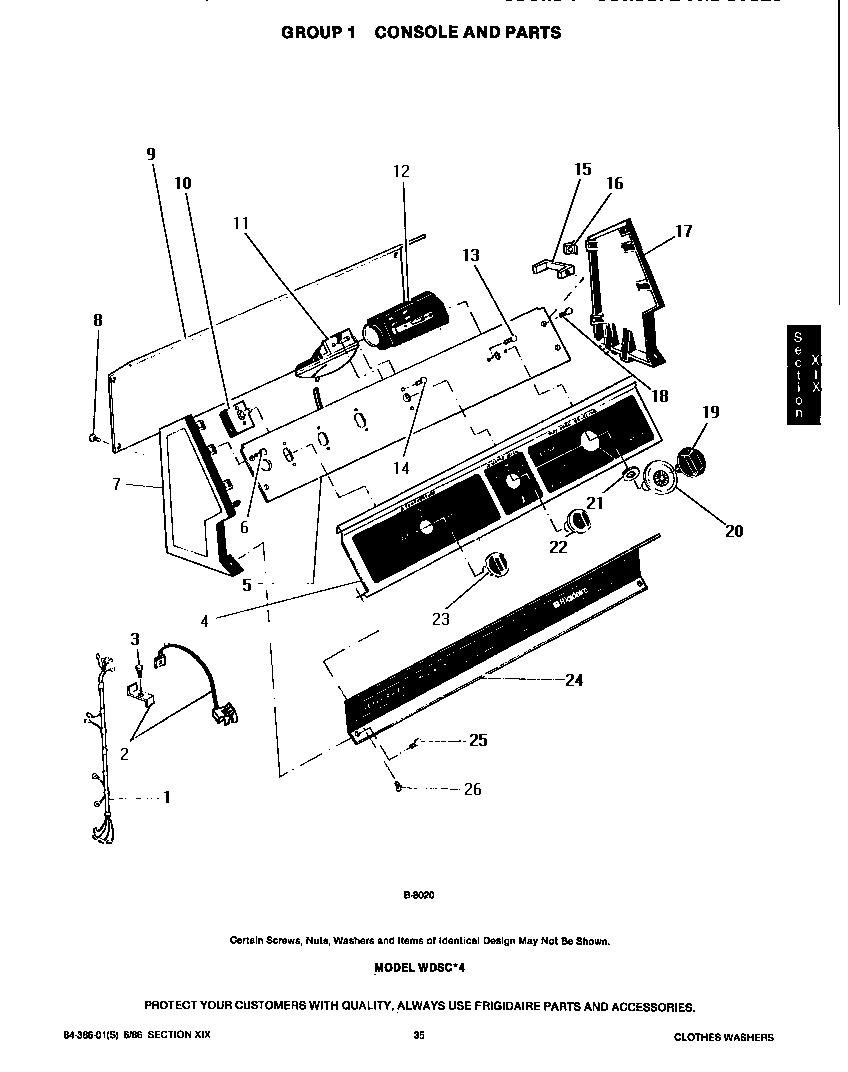

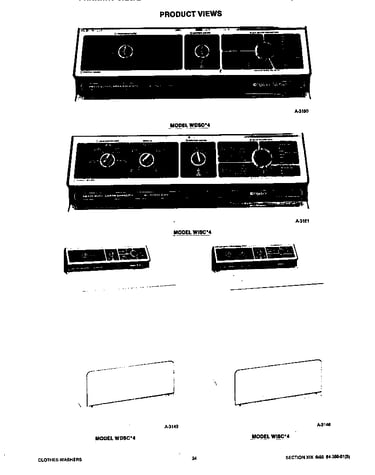

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
H/c Fill Hos 6561384
#13

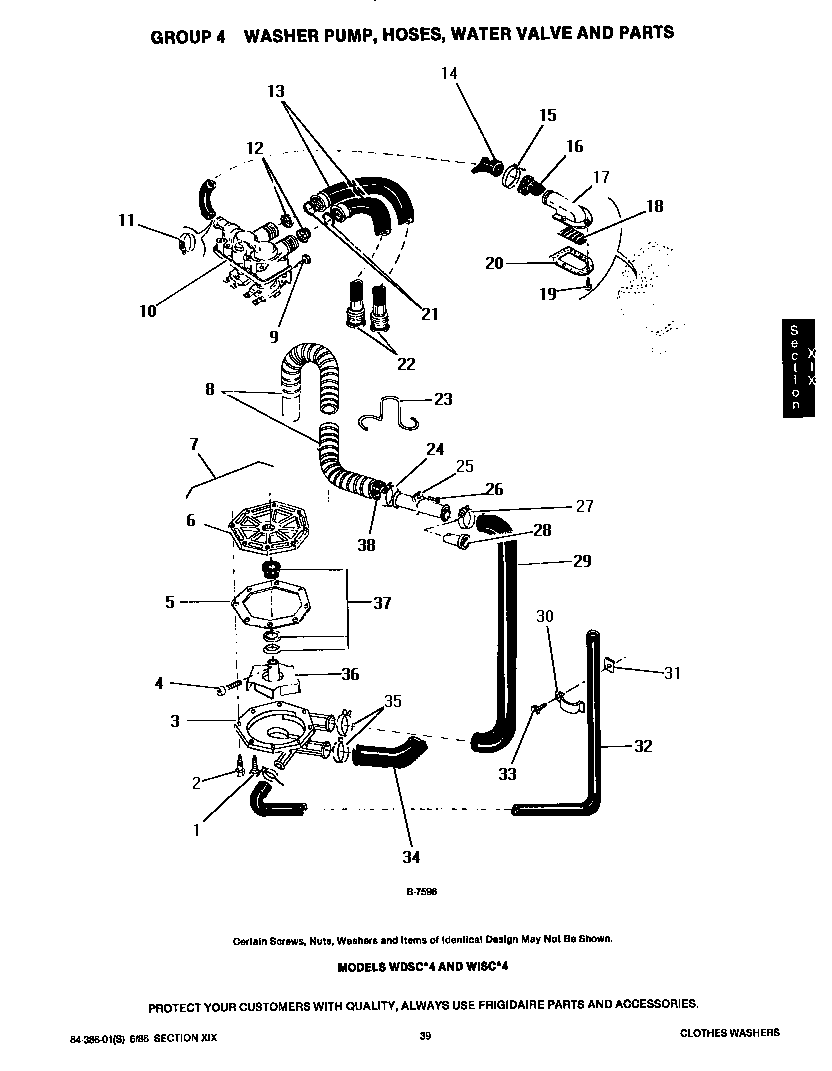

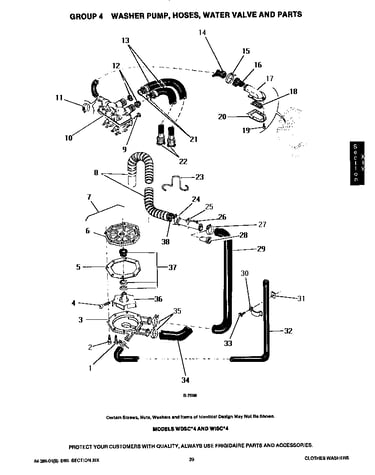

Washer pump, hoses & water valve diagram

H/c fill hos

Part #6561384

Replaced by #5303912532

?
Manufacturer substitution
This part replaces 6561384. Substitute parts can look different from the original.
$70.39 |
7% OFF Phone Price : $75.39
In Stock
Screw, 2-pack 8014909
#6

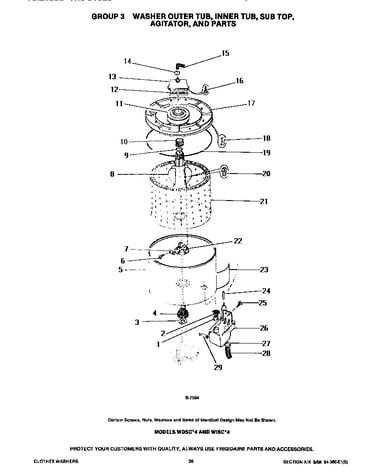

Outer/inner tubs, sub top & agitator diagram

Screw, 2-pack

Part #8014909

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 8015536
#19

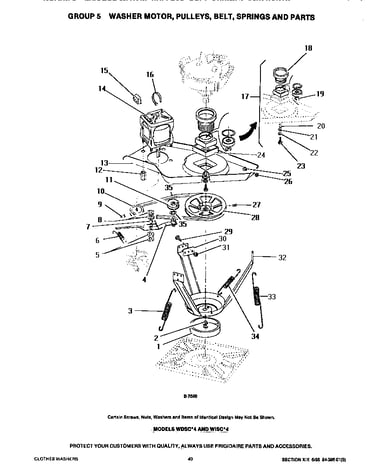

Washer motor, pulleys, belt & springs diagram

Retainer ring

Part #8015536

The manufacturer no longer makes this part, and there's no substitute part

Panel, Access, White 8015494
#43

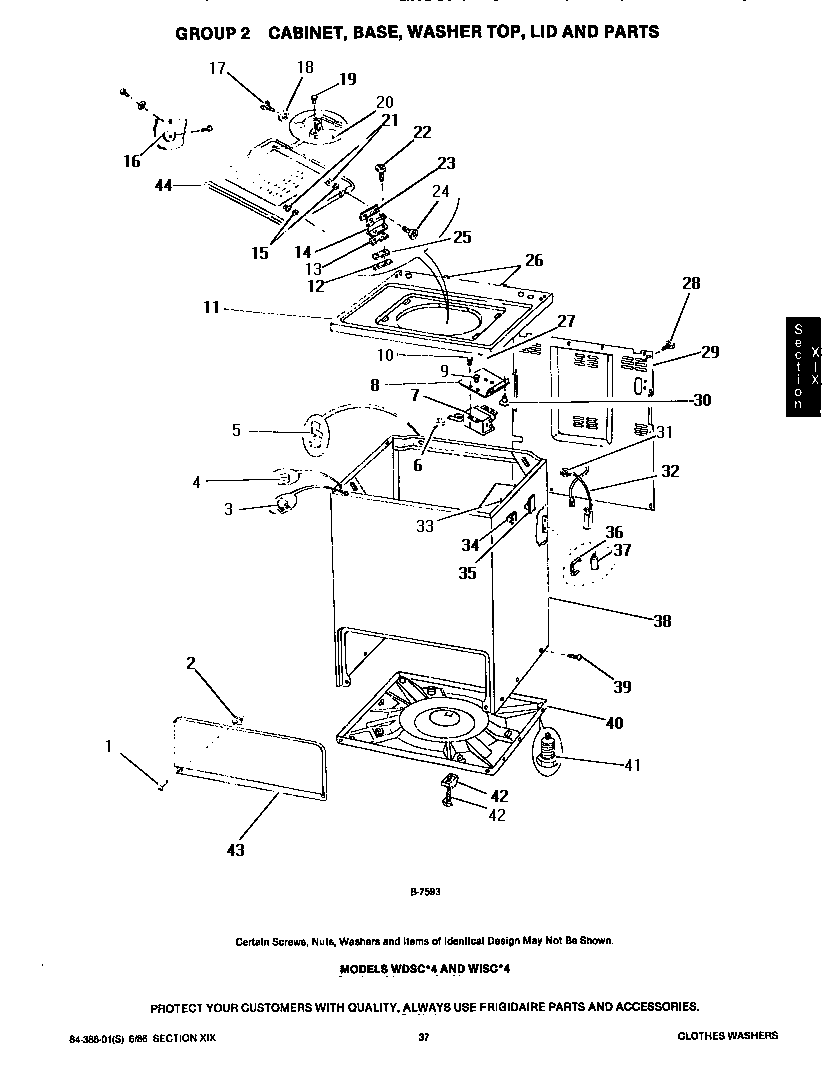

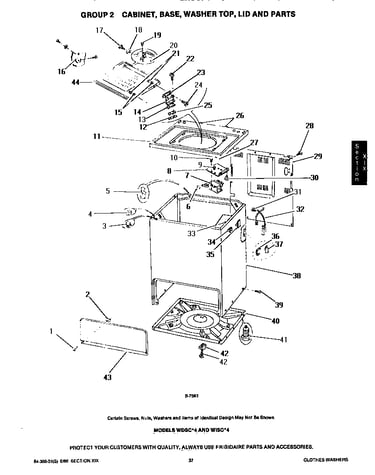

Cabinet, base, washer top & lid diagram

Panel, access, white

Part #8015494

The manufacturer no longer makes this part, and there's no substitute part

Locknut (3) 8002470
#26

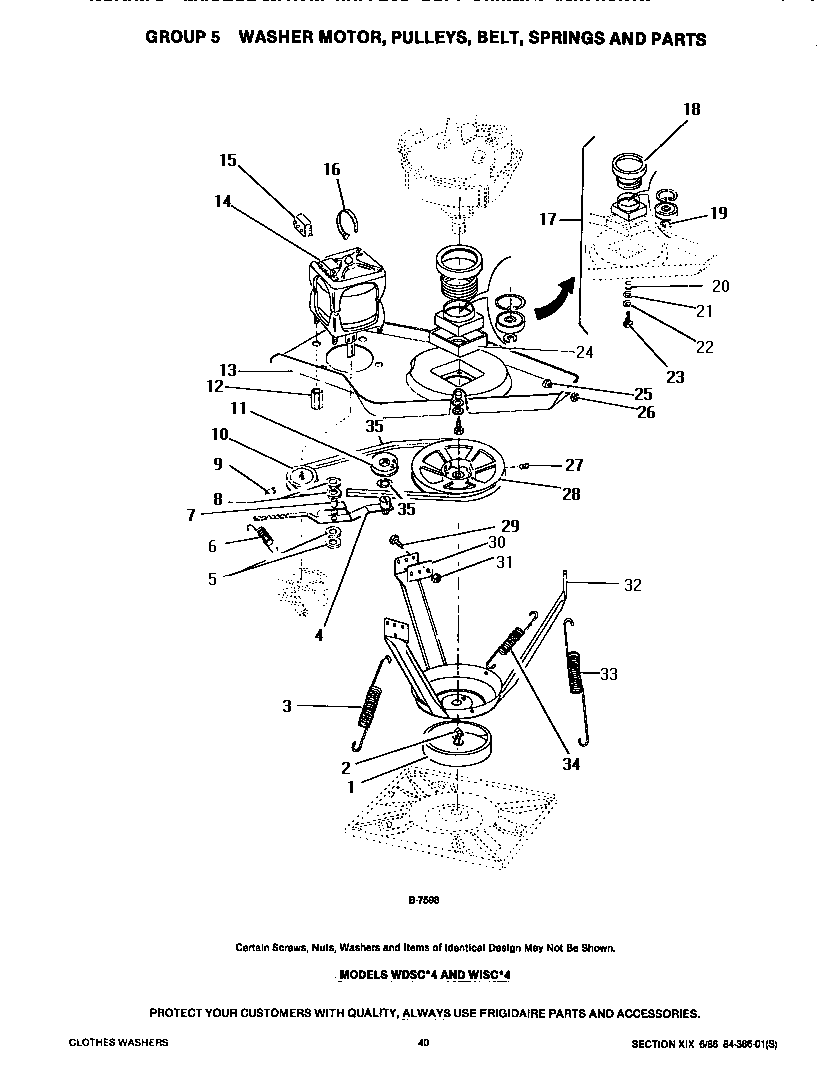

Washer motor, pulleys, belt & springs diagram

Locknut (3)

Part #8002470

The manufacturer no longer makes this part, and there's no substitute part

Hose 8002353
Hose

Part #8002353

The manufacturer no longer makes this part, and there's no substitute part

Clamp 8007731
#15

Washer pump, hoses & water valve diagram

Clamp

Part #8007731

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 8002483
#11

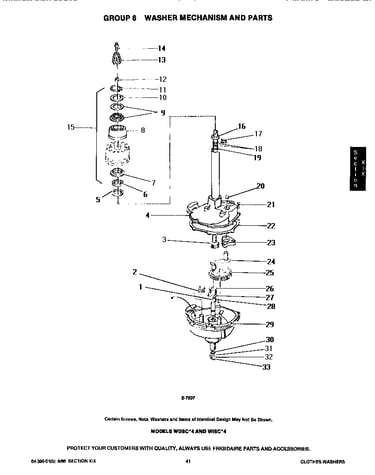

Washer mechanism diagram

Snap ring

Part #8002483

The manufacturer no longer makes this part, and there's no substitute part

Knob (2) 8014340
Knob (2)

Part #8014340

The manufacturer no longer makes this part, and there's no substitute part

Lid Bracket 8015519
#16

Cabinet, base, washer top & lid diagram

Lid bracket

Part #8015519

The manufacturer no longer makes this part, and there's no substitute part
