Model #GBSR3140H7WW Official GE washer
Here are the diagrams and repair parts for GE GBSR3140H7WW washer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

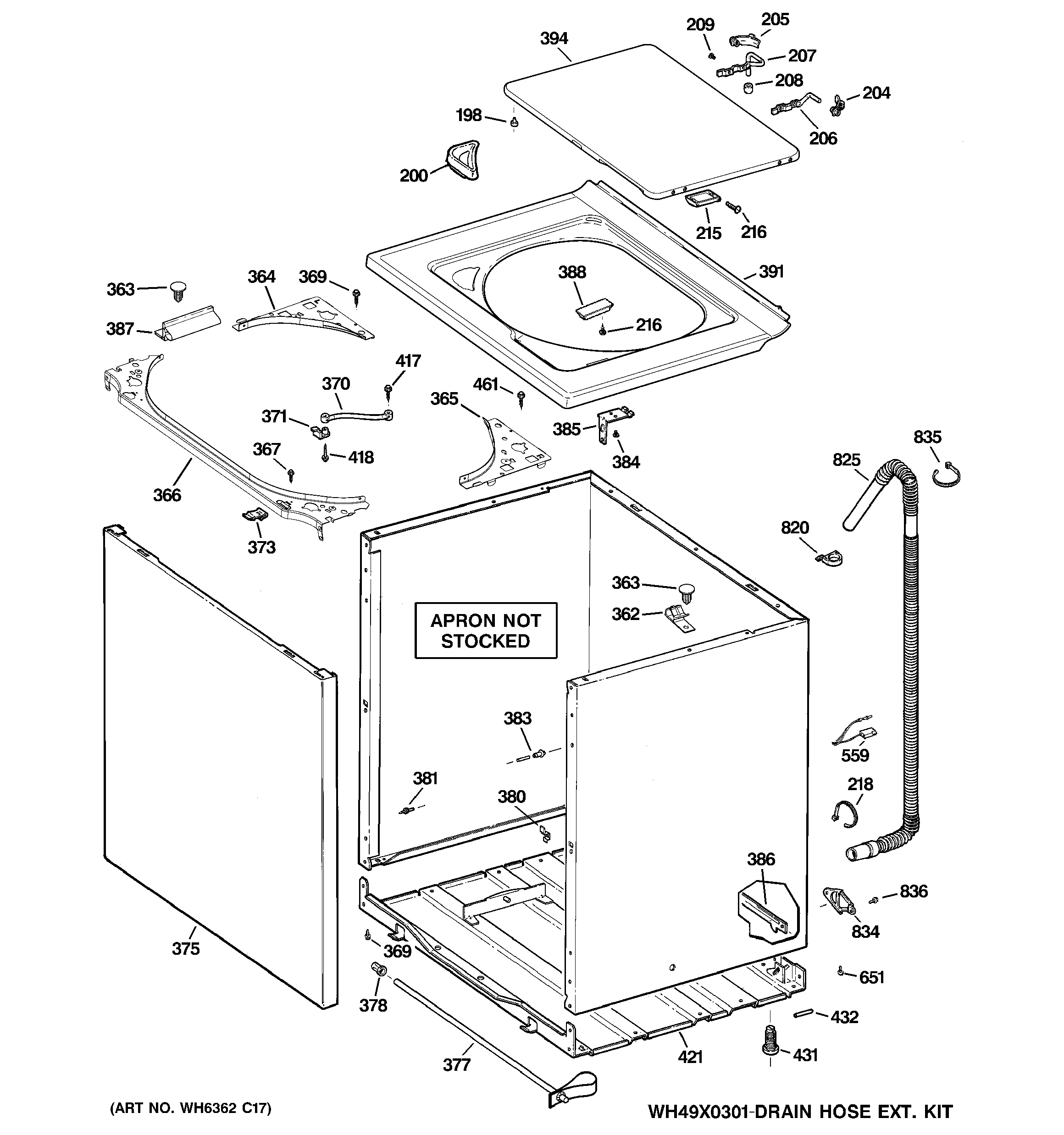

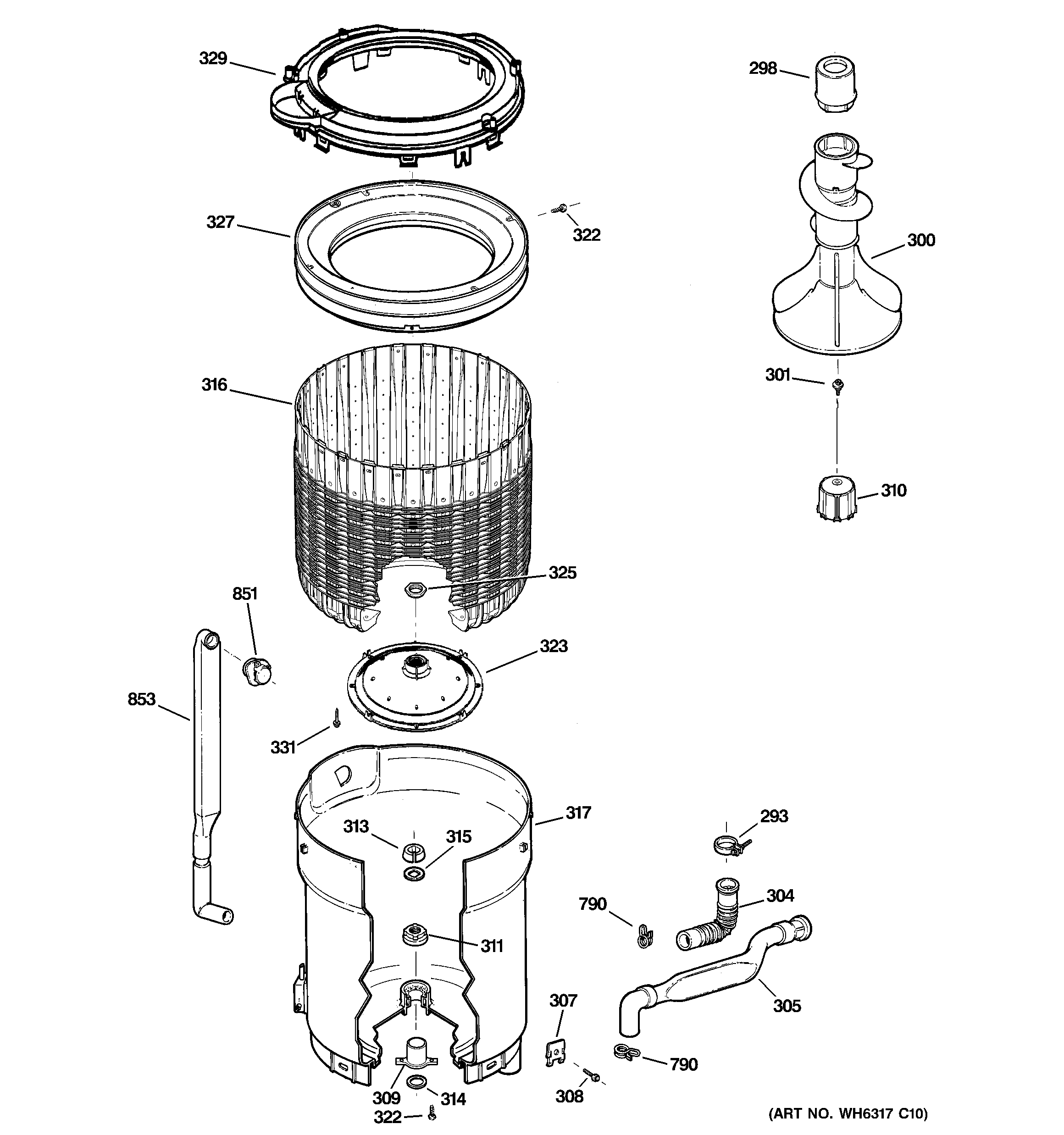

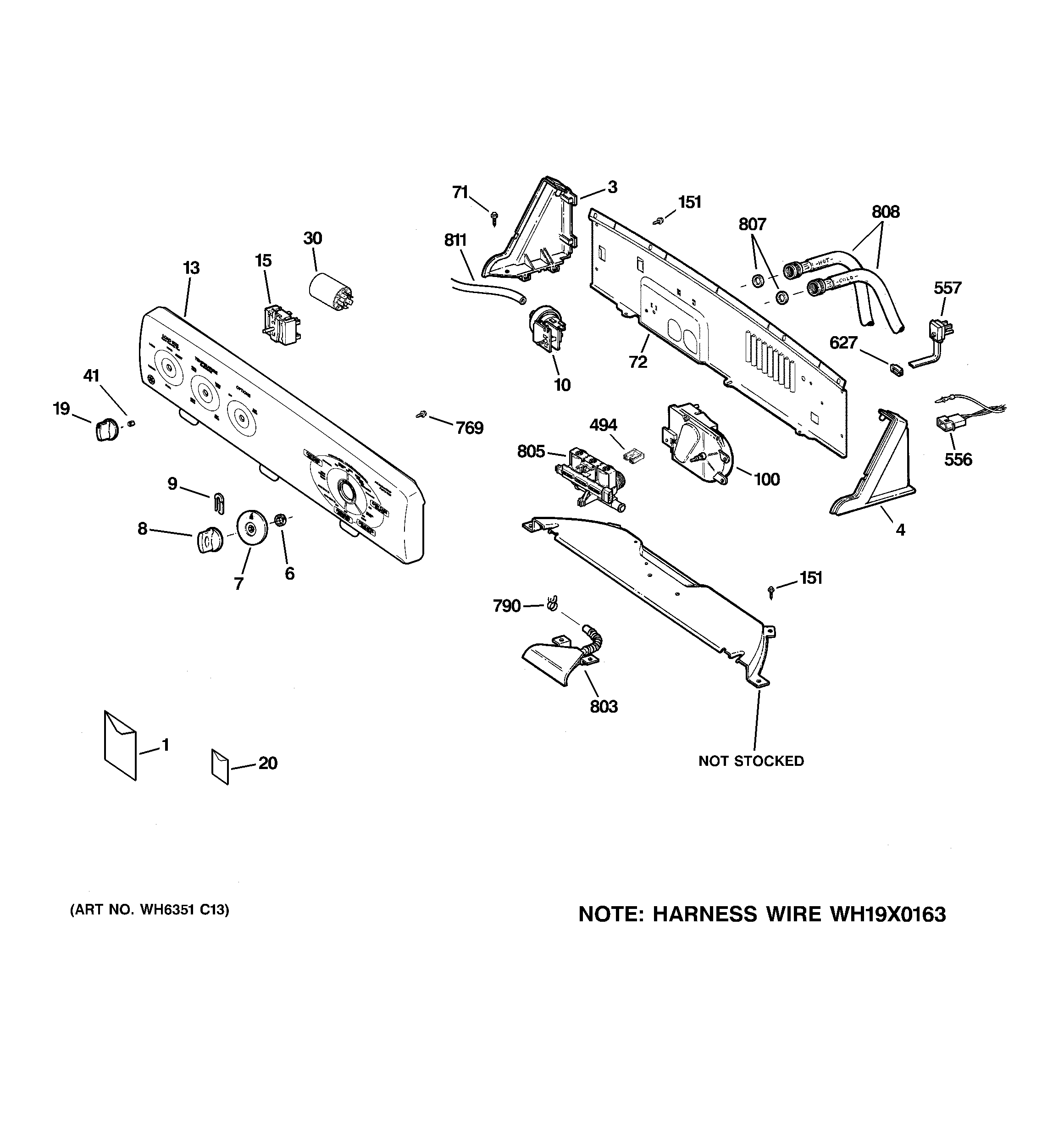

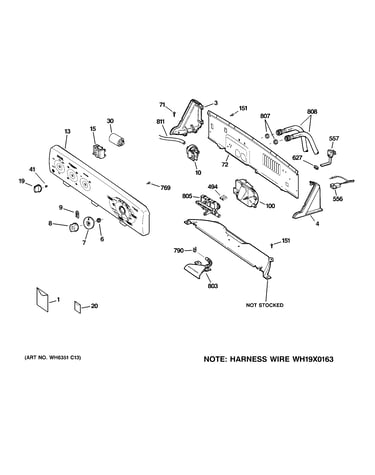

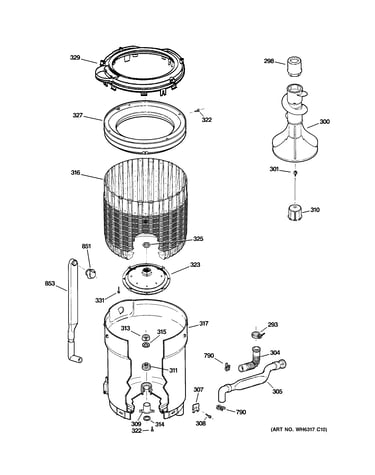

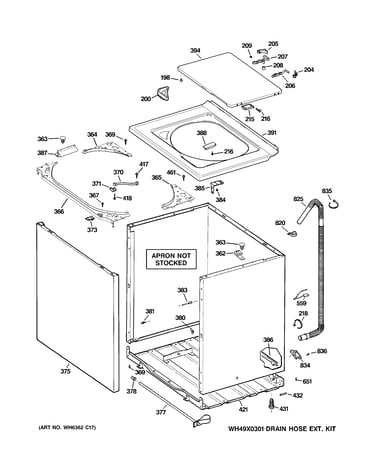

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 119 parts
Split ring
Part #WH02X1195
Replaced by #WH02X10265
?
Manufacturer substitution
This part replaces WH02X1195. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.54 |
15% OFF
Phone Price: $6.54
Tub bearing
Part #WH02X1198
Replaced by #WH2X1198
?
Manufacturer substitution
This part replaces WH02X1198. Substitute parts can look different from the original.
In Stock
$31.18
Washer agitator (replaces wh43x25442)
Part #WH43X10034
In Stock
$59.67 |
10% OFF
Phone Price: $66.52
In Stock
$6.92 |
13% OFF
Phone Price: $7.92
Washer timer knob (replaces wh01x10061)
Part #WH01X10310
In Stock
$7.37 |
12% OFF
Phone Price: $8.37
Washer/dryer control knob and clip
Part #WH01X10460
Replaced by #WE01X20378
?
Manufacturer substitution
This part replaces WH01X10460. Substitute parts can look different from the original.
In Stock
$21.24 |
36% OFF
Phone Price: $33.28
Strap dampng
Part #WH01X10046
Replaced by #WH1X2727
?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
In Stock
$7.90 |
11% OFF
Phone Price: $8.90
Washer tub mounting hub (replaces wh45x10013)
Part #WH45X10027
In Stock
$71.96
Washer external drain hose (replaces wh41x367)
Part #WH41X10096
In Stock
$22.74 |
18% OFF
Phone Price: $27.74
Symptoms common to all washers
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Articles and videos common to all washers
Learn how to fix a washing machine leak
Learn how to fix your broken washing machine
Find out how to clean and flush household appliances once a boil water advisory is lifted.
