Model #917277150 Official Craftsman lawn tractor
Here are the diagrams and repair parts for Craftsman 917277150 lawn tractor, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

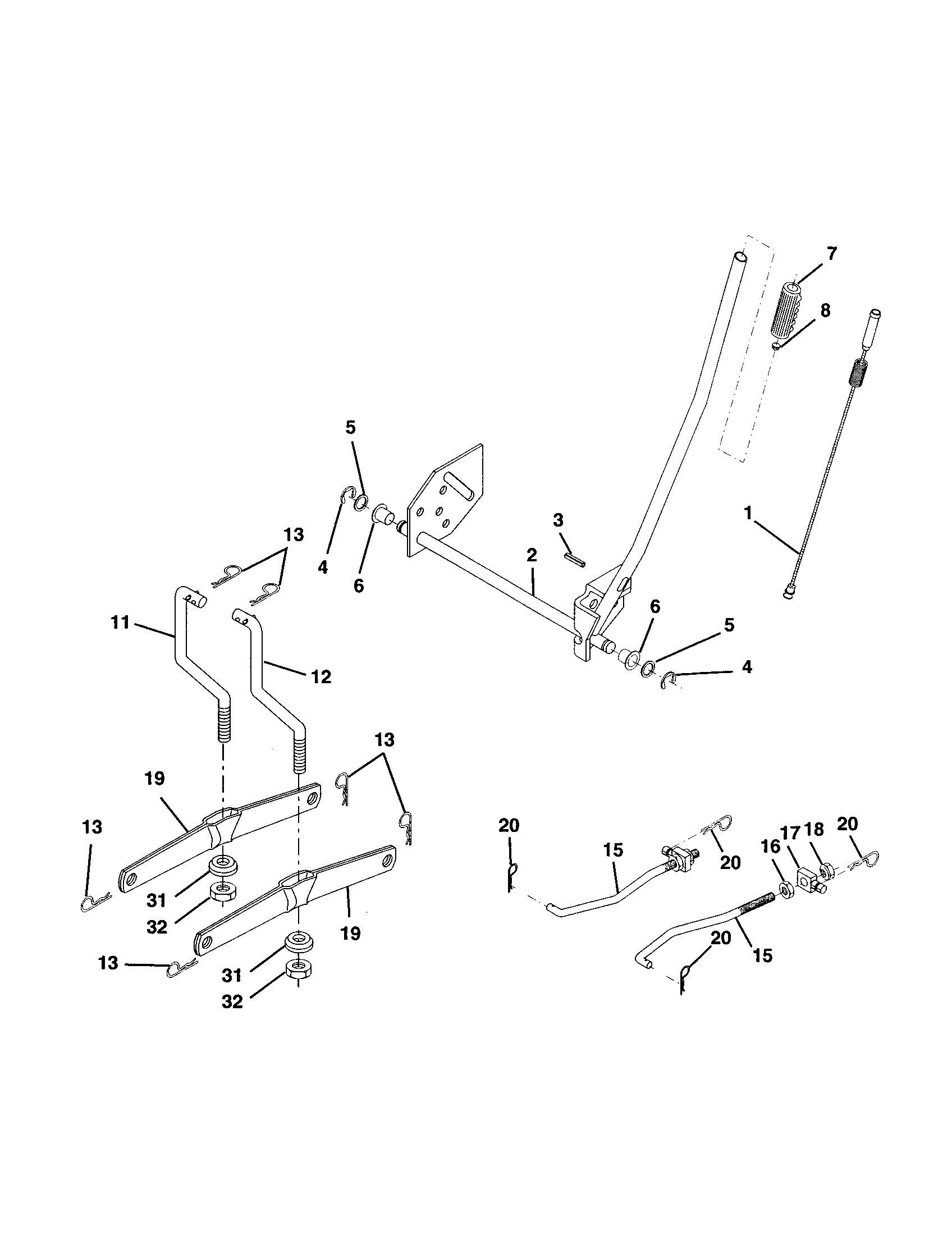

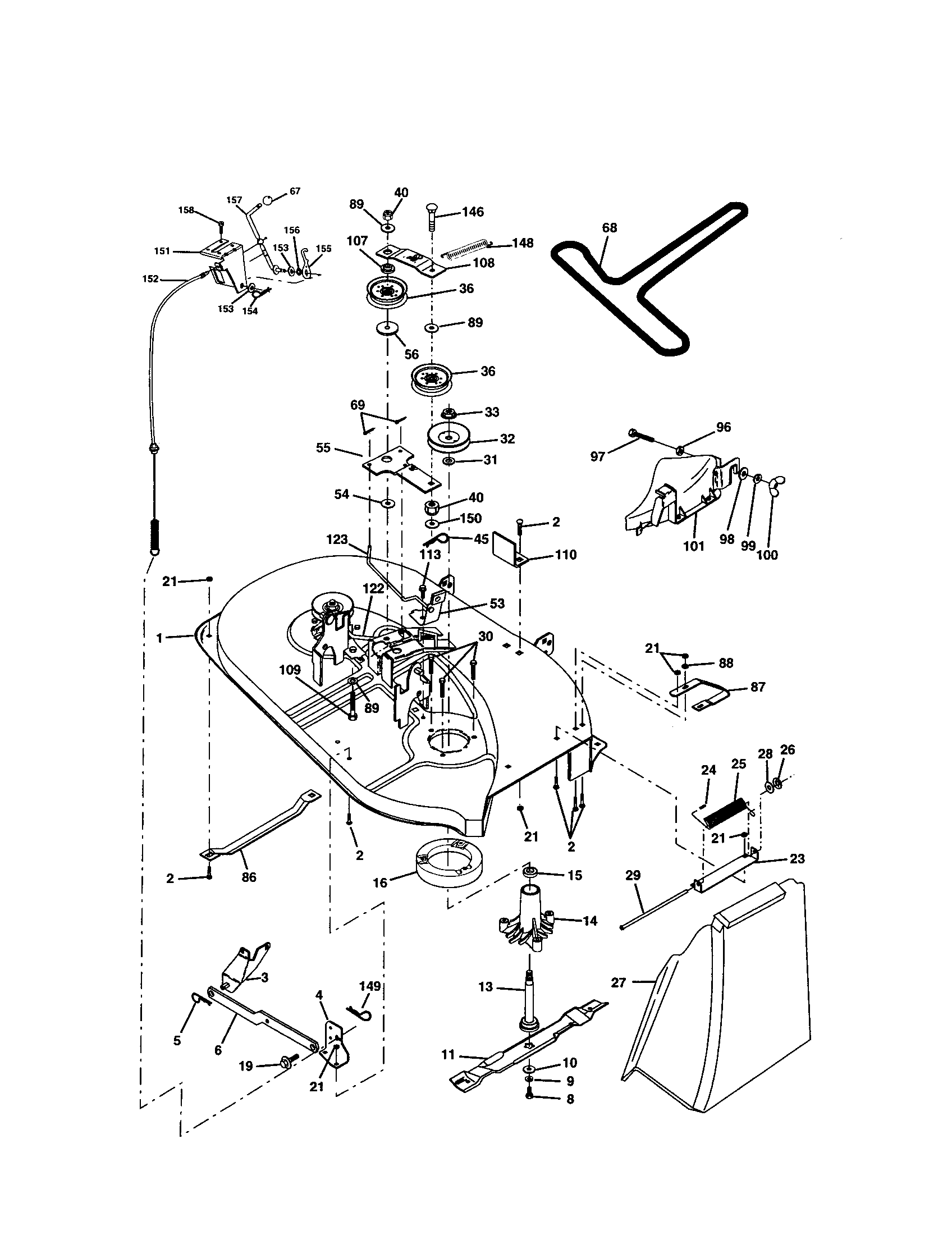

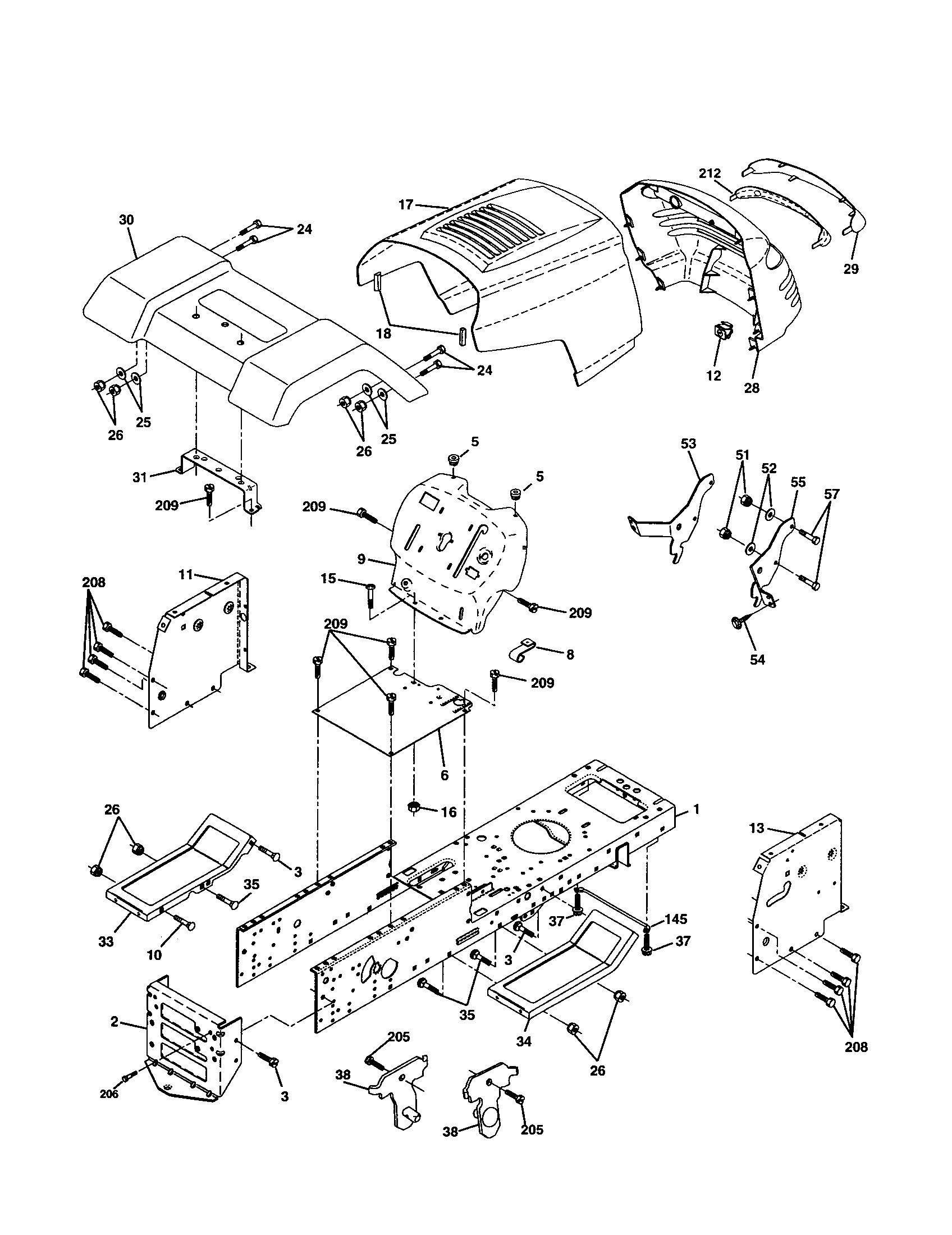

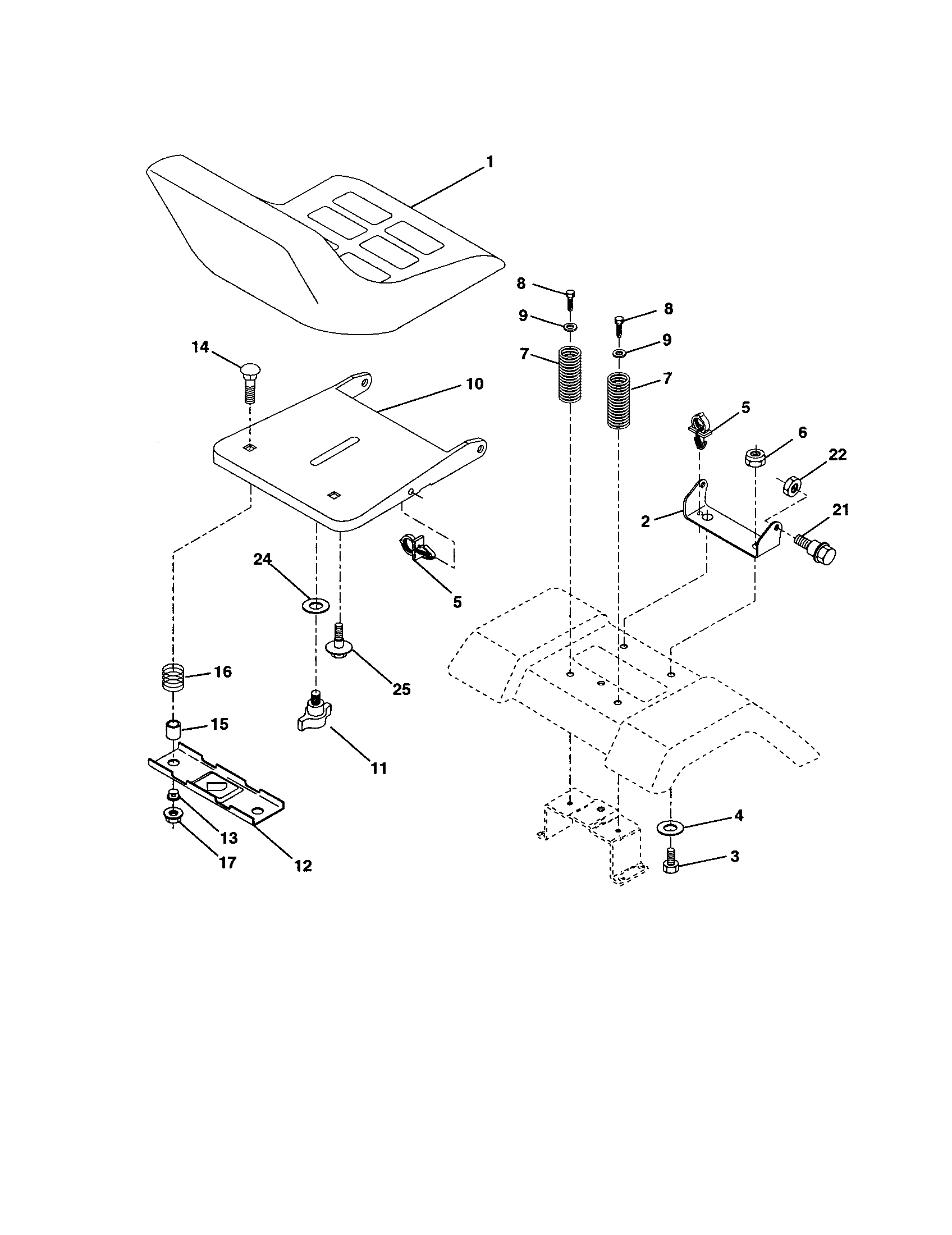

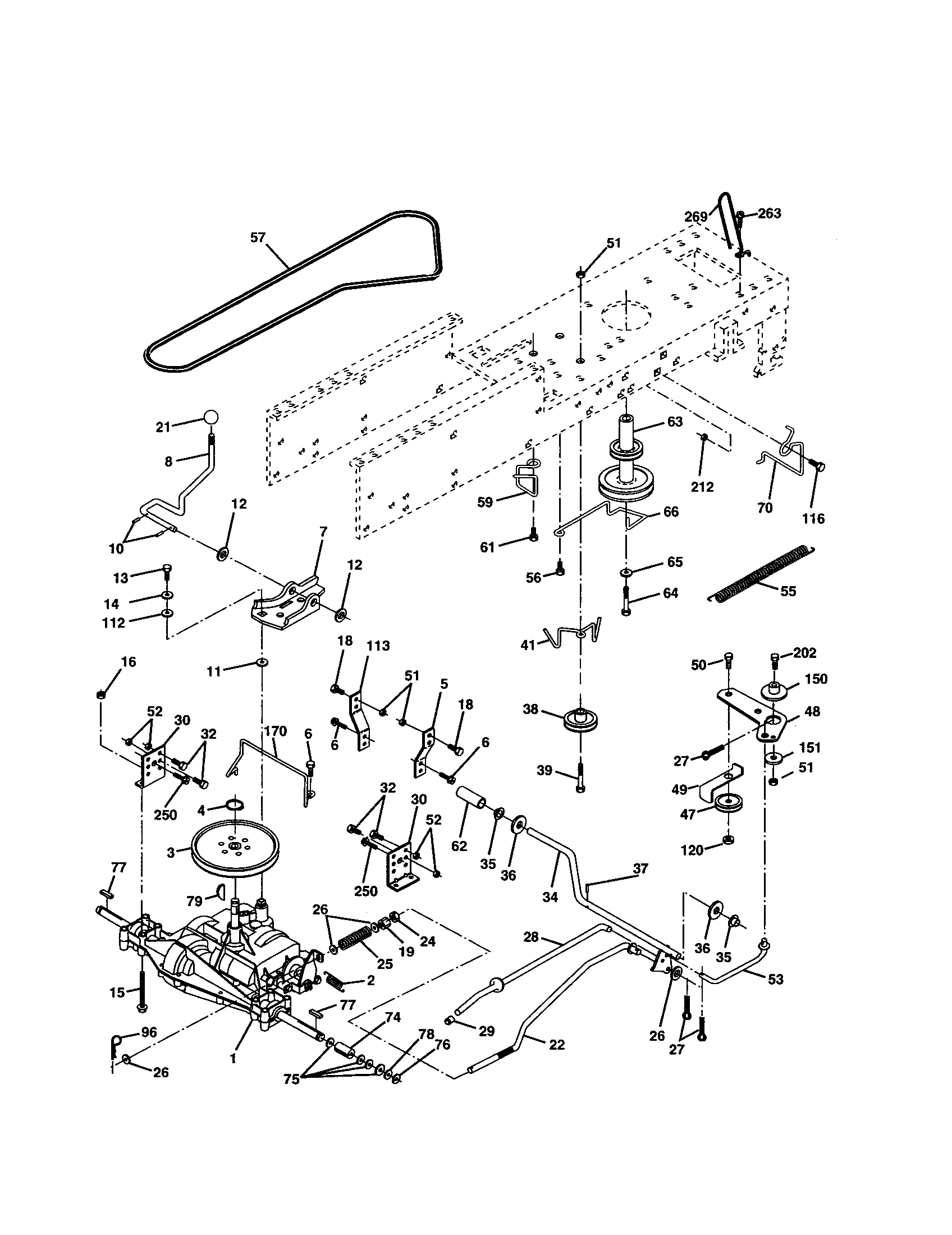

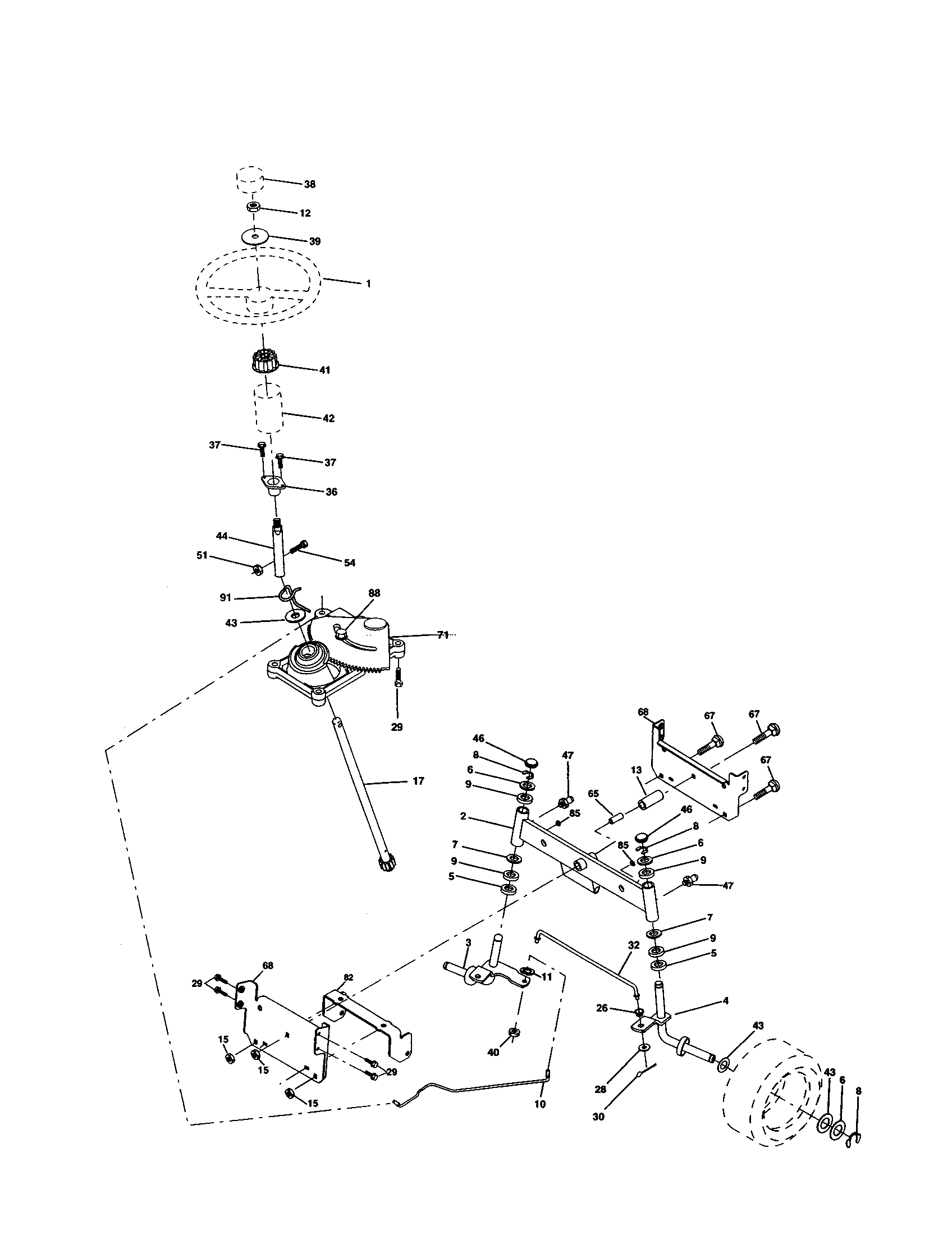

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

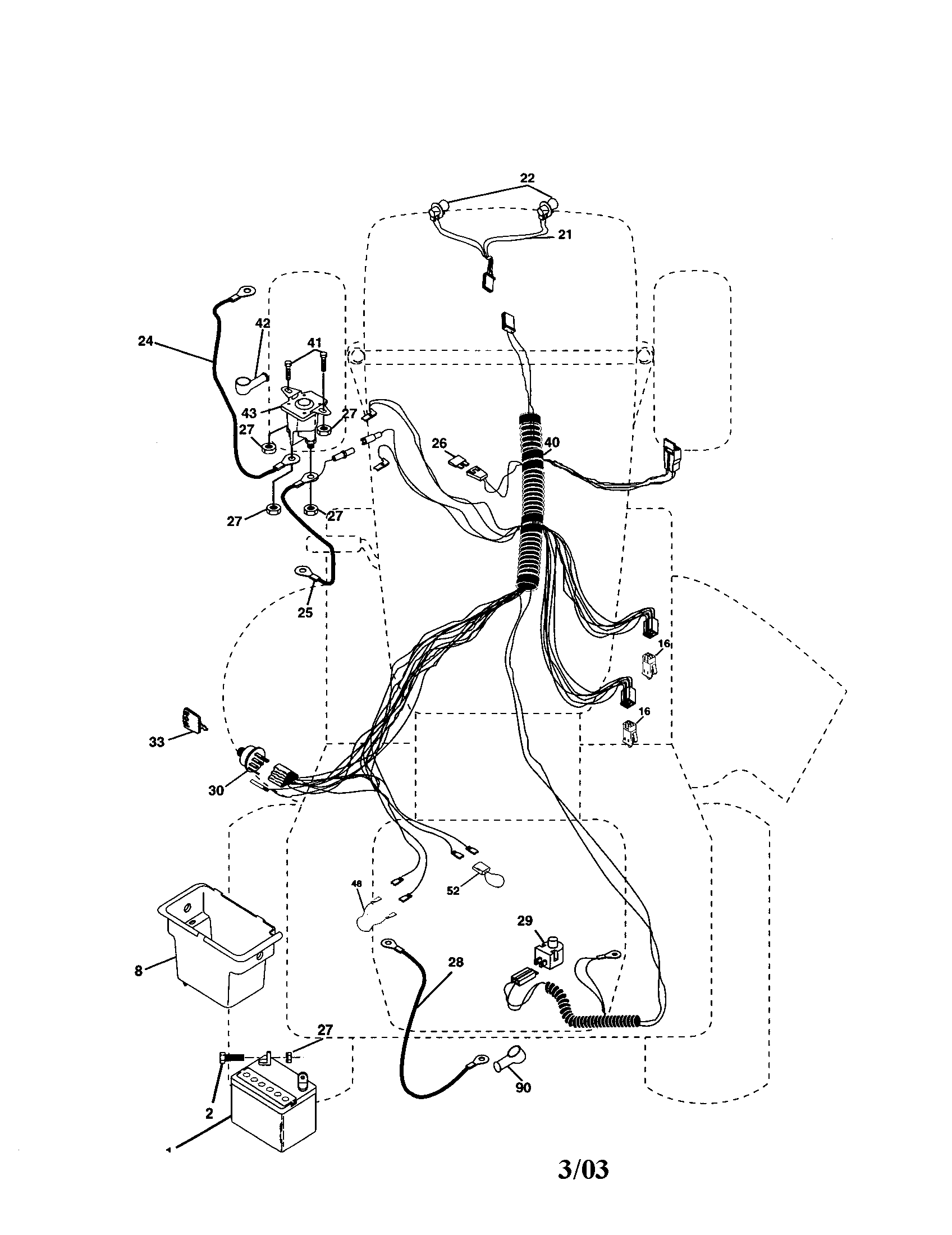

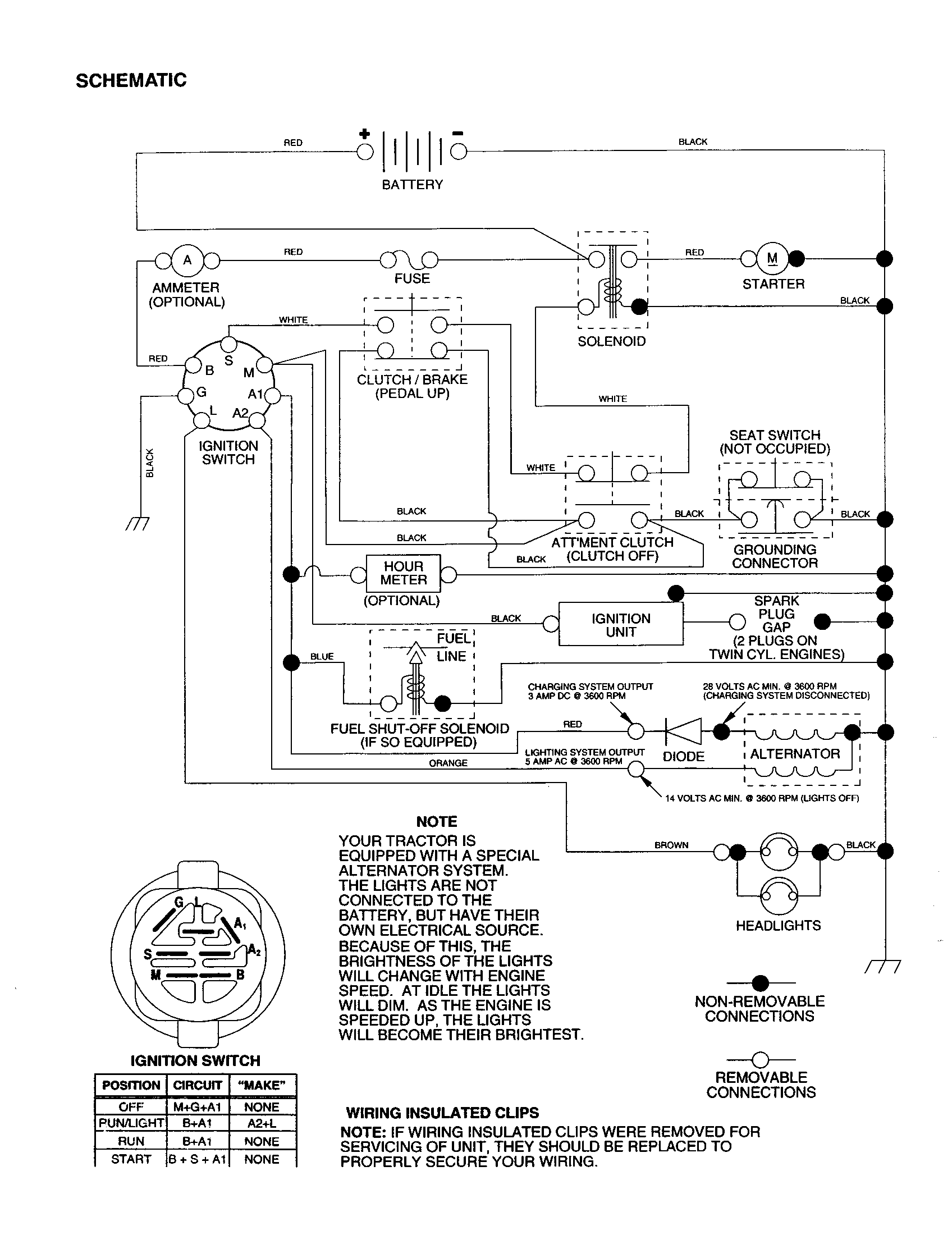

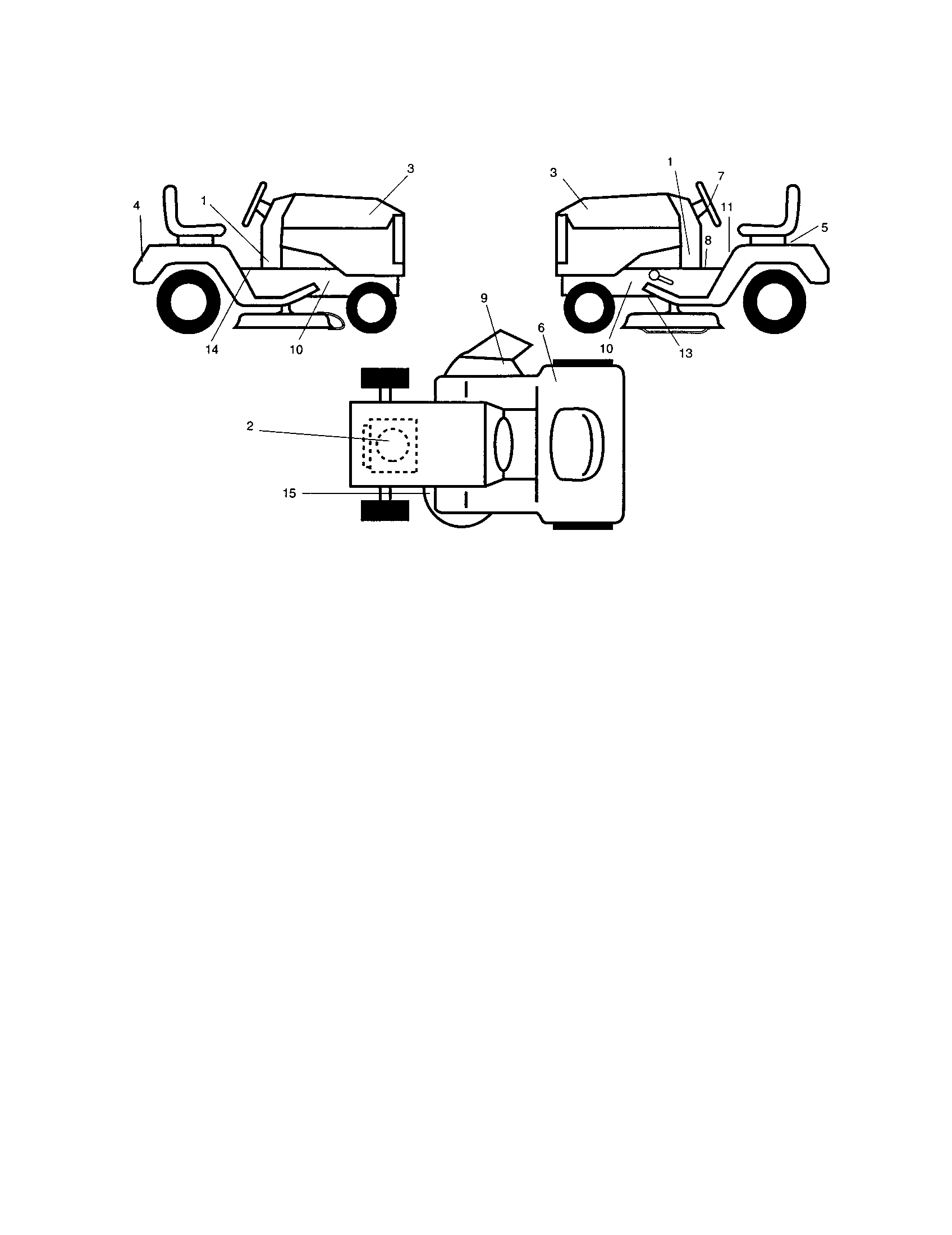

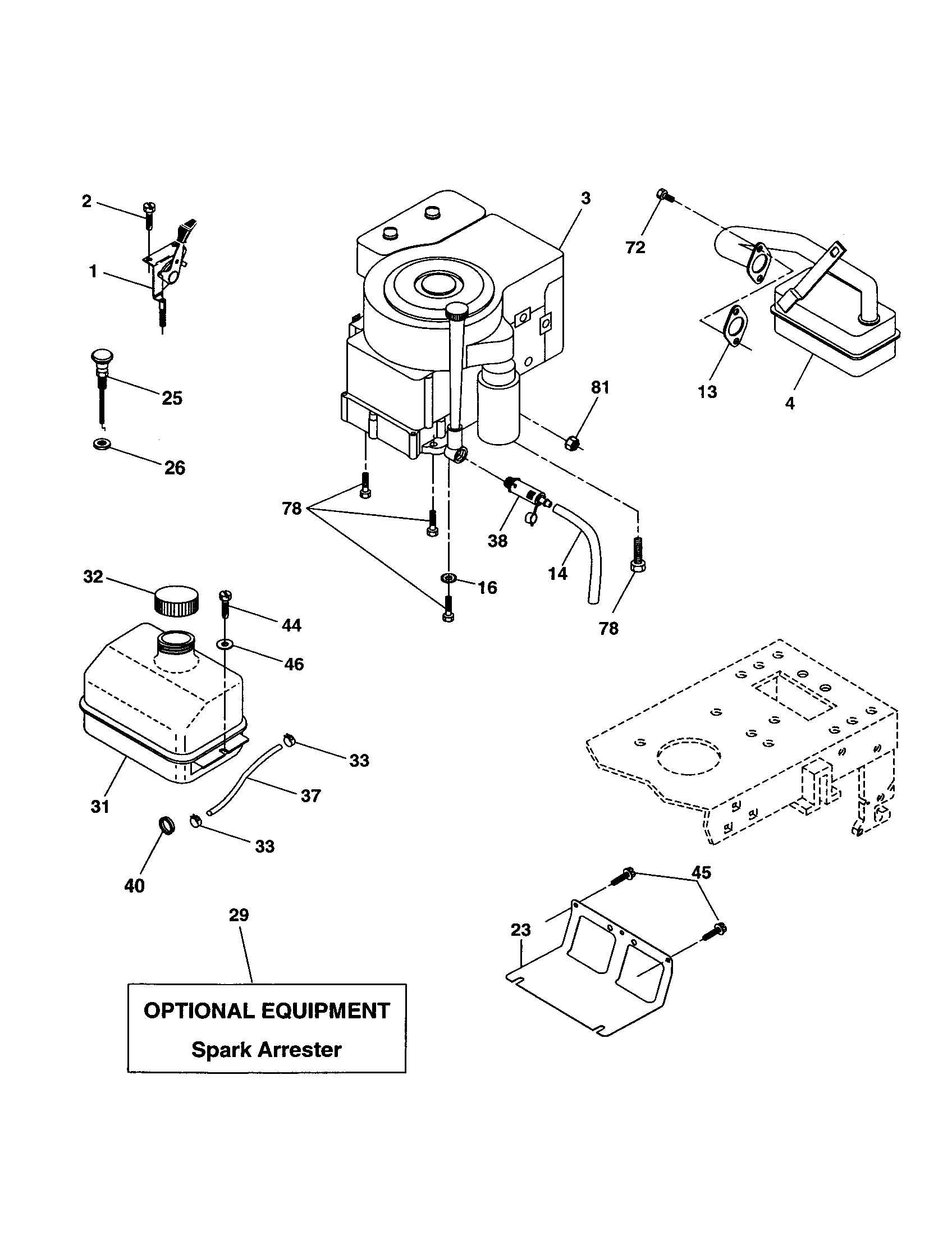

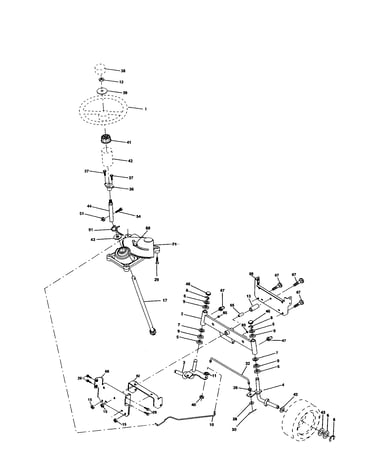

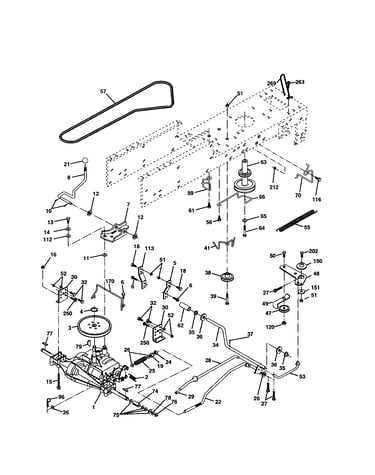

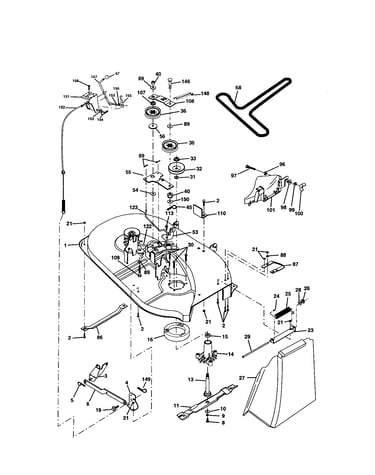

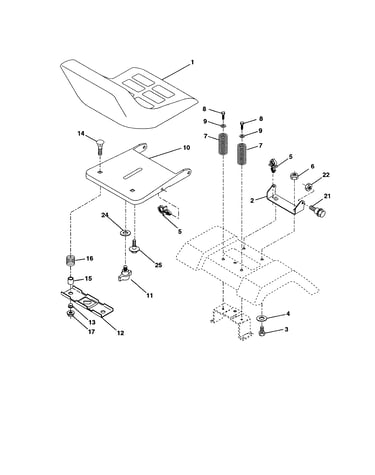

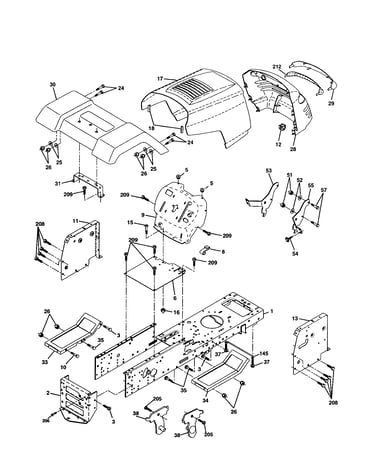

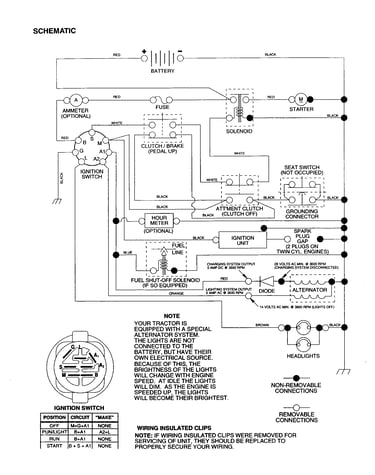

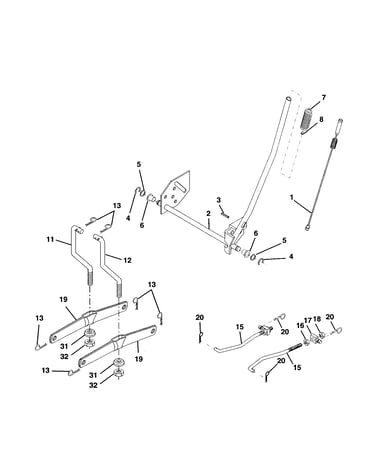

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 457 parts
#NI08
All parts Diagram
In Stock
$44.03 |
34% OFF
MSRP: $66.36
Lawn tractor axle cap
Part #104757X428
Replaced by #532104757
?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.39 |
23% OFF
Phone Price: $4.39
Lawn tractor bolt
Part #173984
Replaced by #584953901
?
Manufacturer substitution
This part replaces 173984. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.81 |
21% OFF
Phone Price: $4.81
Lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)
Part #9040H
This item is not returnable
In Stock
$6.00 |
34% OFF
MSRP: $9.09
Solenoid with brass plunger
Part #178861
Replaced by #532146154
?
Manufacturer substitution
This part replaces 178861. Substitute parts can look different from the original.
In Stock
$23.24 |
18% OFF
Phone Price: $28.24
See All Related Diagrams
Hex flange lock nut
Part #145212
Replaced by #532409149
?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
This item is not returnable
Back Order
$4.53 |
18% OFF
Phone Price: $5.53
Lawn tractor flat blade idler pulley
Part #131494
Replaced by #532173438
?
Manufacturer substitution
This part replaces 131494. Substitute parts can look different from the original.
Back Order
$18.31 |
17% OFF
MSRP: $22.00
Back Order
$6.96 |
54% OFF
MSRP: $15.00
