Whirlpool ED5VHGXMB10 side-by-side refrigerator Parts

The Whirlpool ED5VHGXMB10 is a full-size side-by-side refrigerator. For the exact overall dimensions (height, width, depth) and required installation clearances, use the specification and installation sections in the ED5VHGXMB10 owner's manual and the ED5VHGXMB10 installation guide.

What “big” can mean for ED5VHGXMB10

When customers ask how big a refrigerator is, they usually mean one (or more) of these:

• Overall width to confirm it fits between cabinets
• Overall height to clear overhead cabinets and door hinges
• Overall depth to plan for walkways and door swing
• Clearance requirements for airflow and leveling
• Capacity (cu. ft.) for food storage space

How to measure your refrigerator (quick and accurate)

If you need the size right now (for delivery or a remodel), measure the unit you have:

• Measure width at the widest point (often the doors)
• Measure height from floor to the highest point (include hinges)
• Measure depth from the wall to the front of the doors, then again to the front of the handles
• Leave space behind and above for airflow and to connect the water line (if equipped)

Typical side-by-side size ranges (planning only)

These ranges help with rough planning; always confirm the exact ED5VHGXMB10 specs in the manual/installation guide.

Measurement	Typical range for side-by-side refrigerators	What changes it most
Width	32 to 36 in.	Door style, trim, hinges
Height	65 to 71 in.	Hinges, leveling legs
Depth	30 to 35 in.	Handles, door thickness

Why it matters

Correct dimensions prevent delivery-day surprises, ensure the doors open fully, and help the refrigerator cool properly by maintaining the clearances Whirlpool specifies.

Last updated: February 2026

A side-by-side refrigerator like the Whirlpool ED5VHGXMB10 trades wide, open storage for convenience. The biggest disadvantage is narrower shelves in both the fresh food and freezer sections, so wide items (pizza boxes, party platters, sheet pans) fit poorly compared to top-freezer or French door designs.

Common drawbacks (and what you can do)

• Narrow shelf width: Store wide items on a shelf with one side cleared, or rotate shelves/bins to create a taller, narrower space.
• Less “big-item” flexibility: Large roasts, big casserole dishes, and wide produce trays can be awkward.
• More door opening for full access: You often open both doors to grab ingredients from both sides.
• Freezer organization can feel tight: Long boxes and bulky bags may require more stacking.

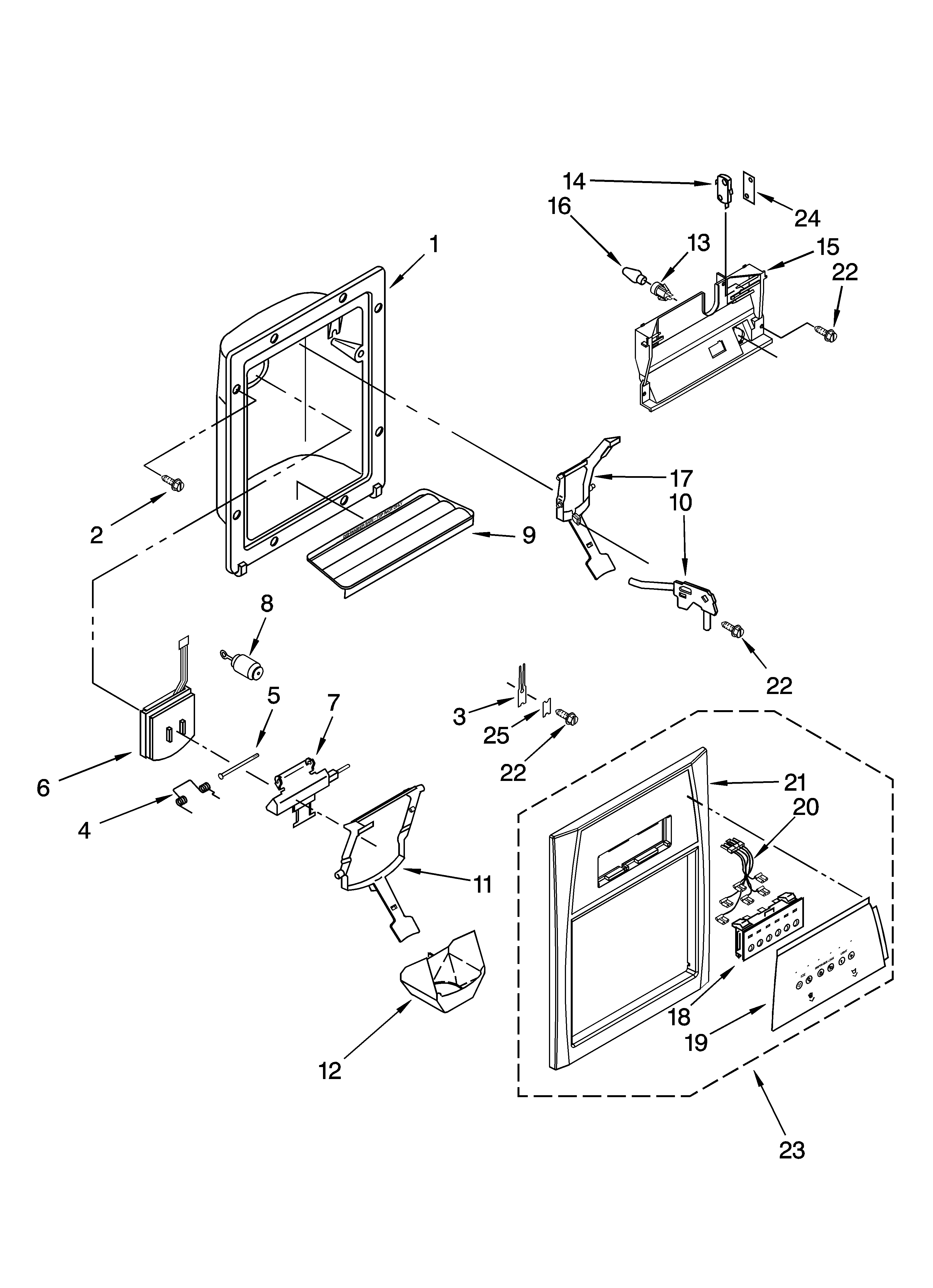

• Dispenser-equipped doors can reduce usable door-bin space: The ice and water system takes up room inside the door.

Side-by-side vs other styles (quick comparison)

Feature	Side-by-side (ED5VHGXMB10 style)	French door	Top freezer
Fits wide items	Fair	Best	Good
Frozen food access	Easy at eye level	Good	Less convenient
Fresh food access	Easy at eye level	Best	Less convenient
Door swing space	Often moderate	Often wider	Often moderate

Why it matters

If you regularly store wide leftovers, pizza boxes, or large serving trays, shelf width becomes the daily frustration point. If you prioritize easy access to both frozen and fresh foods at eye level, a side-by-side is still a strong layout.

Installation and space notes

For safe handling and proper clearances, follow the ED5VHGXMB10 installation guide. It covers key basics such as using two or more people to move the refrigerator and allowing ventilation space around the cabinet.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling issue (warm fridge or freezer), usually caused by restricted airflow or heat not being released properly. On the Whirlpool ED5VHGXMB10 side-by-side, start with condenser coil cleaning, then check the evaporator fan and defrost system using the ED5VHGXMB10 owner's manual.

Most common symptoms and what they usually point to

• Fridge warm, freezer OK: airflow damper issue, blocked vents, or weak evaporator airflow

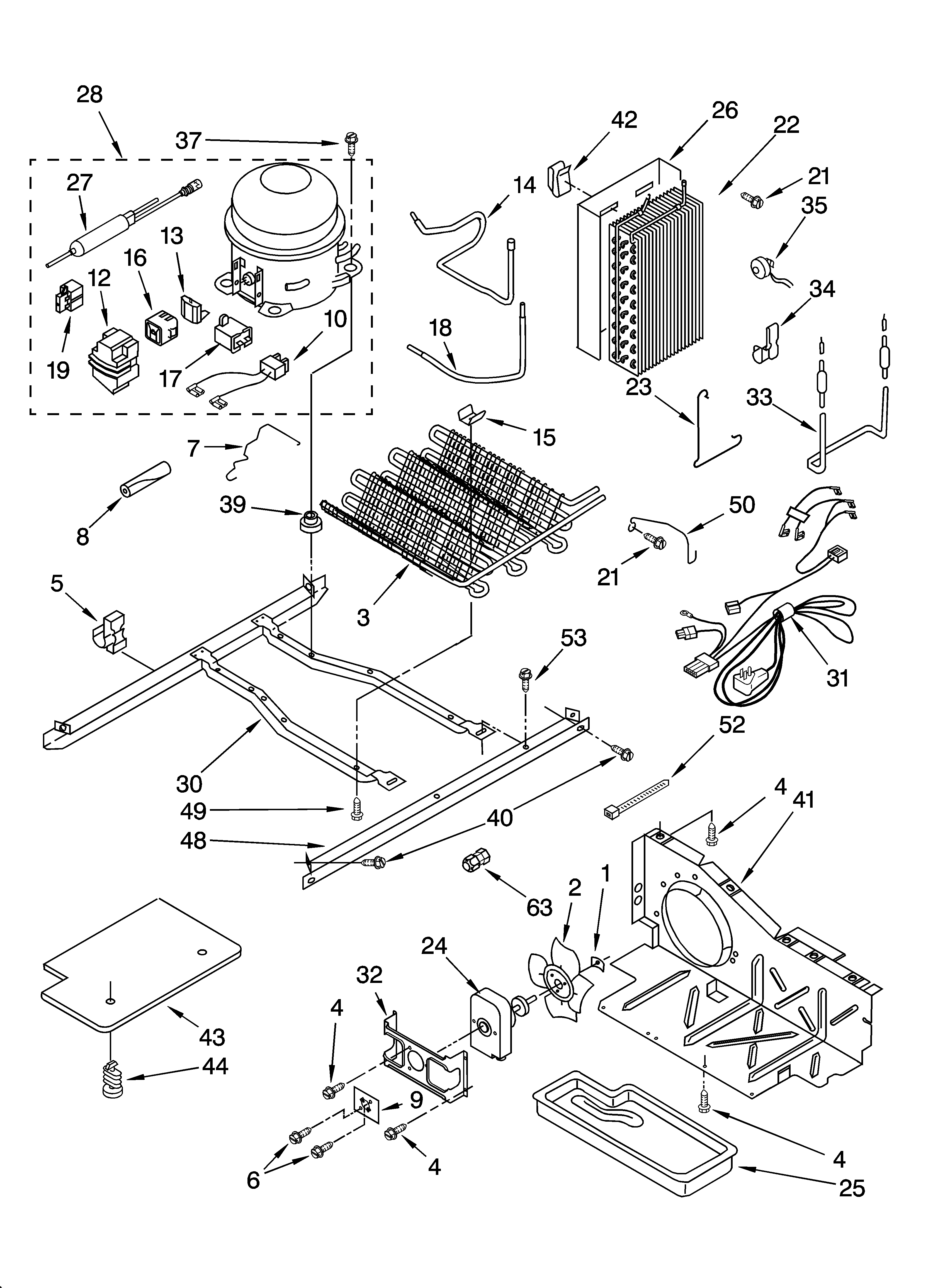

• Freezer warm, fridge warm: dirty condenser coils, condenser fan issue, or sealed system/compressor problem
• Frost buildup on freezer back wall: defrost problem (heater, defrost control, or defrost thermostat)

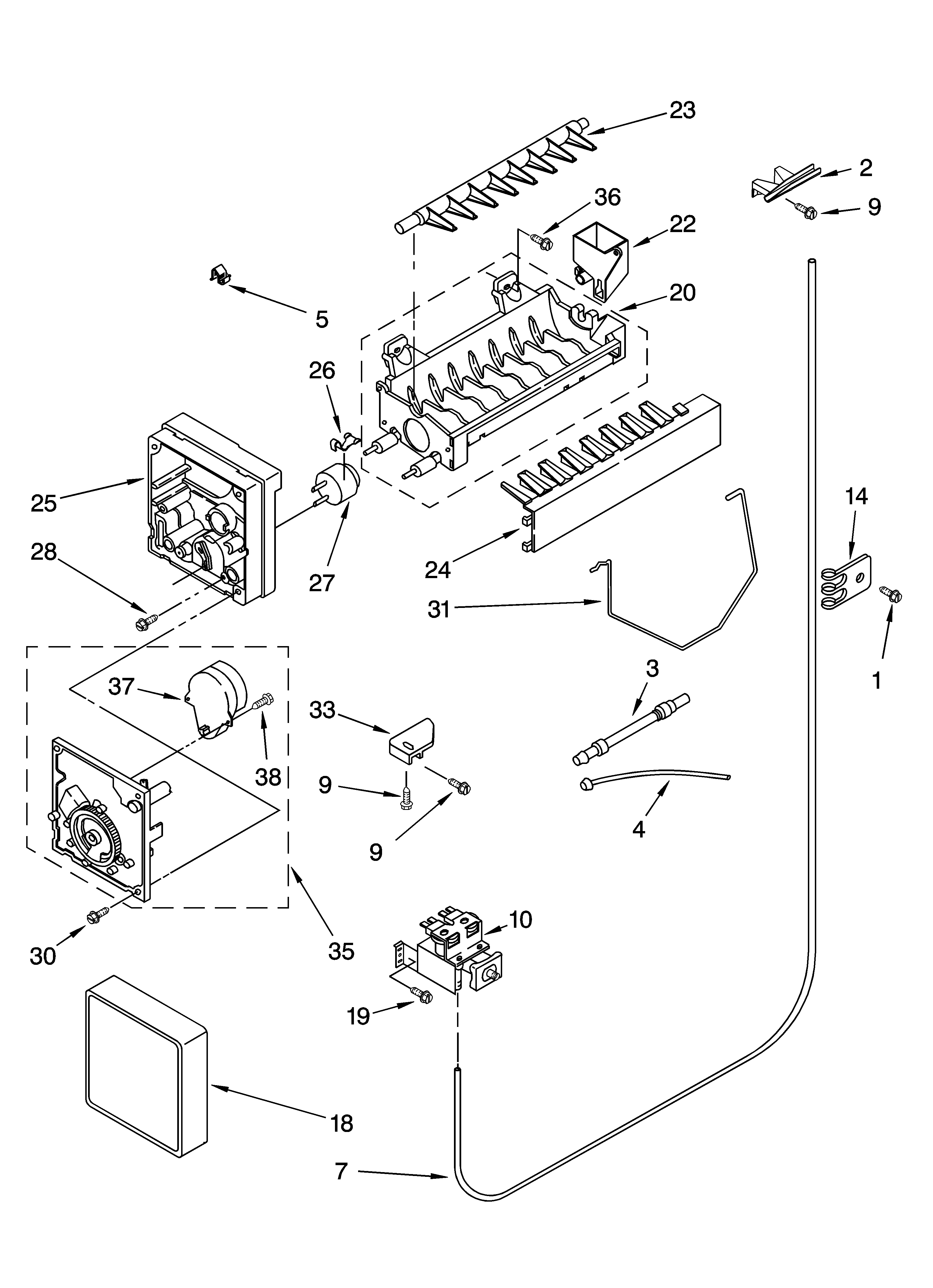

• Ice maker not making ice: water supply issue, inlet valve issue, or ice maker failure
• Water under fridge or in crisper area: clogged/iced defrost drain or a leaking water line

Quick checks we recommend first (in order)

1. Set temps correctly: aim for 37°F in the fresh food section and 0°F in the freezer.
2. Clean condenser coils: dust buildup is a top cause of poor cooling and long run times.
3. Confirm airflow: make sure interior vents are not blocked by food packages.
4. Listen for the evaporator fan: if the freezer is cold but airflow is weak, the fan system is a prime suspect.
5. Look for frost patterns: heavy frost often means the defrost system needs attention.

Parts that commonly solve these problems on ED5VHGXMB10

Problem area	What fails often	Example part for this model
Temperature control	Thermostat not regulating	Refrigerator thermostat WP2198202
Defrost system	Defrost thermostat not opening/closing correctly	Refrigerator defrost bi-metal WPW10225581
Defrost heat	Heater not melting frost	Refrigerator heater WP2323198
Water and ice	Valve not opening or leaking	Refrigerator inlet valve W10408179

Why it matters

Cooling, ice maker, and leak complaints often share the same root causes: airflow restrictions, frost from a defrost failure, or water delivery problems. Catching these early helps prevent food spoilage, ice clumps, and recurring puddles.

For model-specific operating details and maintenance intervals, follow the ED5VHGXMB10 owner's manual.

Last updated: February 2026

Most Whirlpool refrigerators, including the Whirlpool ED5VHGXMB10 side-by-side, typically last 10 to 18 years with normal household use and basic upkeep. Regular maintenance (airflow, clean coils, good door sealing) is what most often separates a 10-year fridge from an 18-year fridge.

Typical lifespan and what affects it

A refrigerator’s life is mainly driven by compressor run time, heat removal, and how well the doors seal.

• Maintenance habits: cleaning condenser coils, keeping vents clear
• Installation conditions: proper clearance and leveling (reduces strain and door leaks)
• Usage patterns: frequent door openings, warm kitchens, overpacking
• Water and ice system care: filter changes and leak prevention
• Part wear items: fans, thermostats, defrost components, ice maker parts

What the ED5VHGXMB10 warranty tells you (useful context)

Your documentation outlines coverage that helps indicate which systems are built for longer service life.

System or item	Typical wear expectation	Warranty context (from documentation)
Sealed refrigeration system (compressor, evaporator, condenser, tubing)	Long-life components	Covered beyond year 1 in the sealed-system period (see manual)
Non-sealed components (fans, controls, ice maker, valves)	More common service items	Generally covered in the first year only
Water filter	Short-life consumable	Limited coverage period noted in manual

For the exact warranty terms and maintenance requirements, use the ED5VHGXMB10 owner’s manual.

How to help your Whirlpool refrigerator reach the high end of the range

These steps reduce compressor workload and prevent common failures.

• Vacuum condenser coils and the grille area regularly
• Keep door gaskets clean; confirm the door closes and seals evenly
• Set temps correctly (commonly 37°F fresh food, 0°F freezer)
• Leave space around the cabinet for ventilation (per install guidance)
• Address ice maker or dispenser issues early to prevent leaks and icing

If you are troubleshooting cooling performance or unusual behavior, the Whirlpool refrigerator error codes guide helps narrow down what to check next.

Why it matters

A refrigerator that runs hotter, leaks air, or has restricted airflow runs longer cycles. That extra run time accelerates wear on the compressor, evaporator fan, defrost system, and temperature controls, shortening overall lifespan.
