Whirlpool WFG550S0HW1 gas freestanding range Parts

For Whirlpool model WFG550S0HW1, the most reliable way to tell whether you have LP (propane) or natural gas is to check the model/serial rating plate on the oven frame behind the top left side of the oven door; it lists the gas types the range is set up to use. Use the flame appearance and your home’s gas supply setup as quick cross-checks. See the installation guide for the gas type and conversion section.

Fast ways to identify your gas type

• Look for a utility gas meter and monthly gas bill: this typically indicates natural gas.
• Look for a large outdoor tank (often 100 to 500+ gallons): this typically indicates LP/propane.
• Check the range rating plate (inside the oven door area): it lists the gas type(s) approved for the range.
• Watch burner flames: a strong blue inner cone is normal; LP flames often show a slight yellow tip.
• Check your paperwork: installer notes, home inspection report, or prior appliance conversion records.

What the WFG550S0HW1 installation instructions say

This Whirlpool gas freestanding range is factory set for natural gas. If your home uses propane, the range must be converted using the procedures in the installation guide, and the conversion must be performed by a qualified installer/technician.

Quick comparison

Check	Natural gas (NG)	LP/propane (LP)
Home supply	Utility meter, gas bill	Outdoor tank, delivery service
Range setup	Factory setting on this model	Requires conversion
Flame look	Distinct blue inner cone	Blue with slightly yellow tip

Why it matters

Using the wrong gas setup can cause poor baking performance, weak ignition, soot, or unsafe combustion. Correct gas type and proper conversion help your oven burner igniter and gas pressure regulator operate as designed.

Last updated: February 2026

For a Whirlpool WFG550S0HW1 gas freestanding range, the fastest way to get the correct part number is to first confirm the model number and serial number on the appliance ID label, then use that exact model to look up the part in the parts list. On this model, the label is on the upper-left side of the front frame.

Step 1: Find the model and serial number label

Use the appliance ID label information to avoid ordering the wrong hinge, igniter, or control.

• Turn the range off and let it cool completely.
• Open the oven door.
• Look at the upper-left side of the front frame (the frame around the oven opening).
• Write down the model number and serial number exactly as shown.
• Match the model number to WFG550S0HW1 before searching parts.

For diagrams and label location details, use the WFG550S0HW1 owner's manual.

Step 2: Use the model number to identify the correct part number

Once you have WFG550S0HW1 confirmed, use the parts diagrams to find the part name and then the manufacturer part number.

• Find the section that matches the part area (oven door, burner/ignition, control panel).
• Match the diagram callout number to the parts list.
• Record the manufacturer part number (for example, W10299224) and the Sears PartsDirect part ID (for example, WPW10299224).
• Compare your old part visually (shape, mounting holes, connector style) before ordering.

Example: how part IDs and part numbers relate

What you see	What it means	Example
Part name	Description of the part	Range oven door hinge
Part number	Manufacturer number	W10299224
Part ID	Sears PartsDirect identifier	WPW10299224

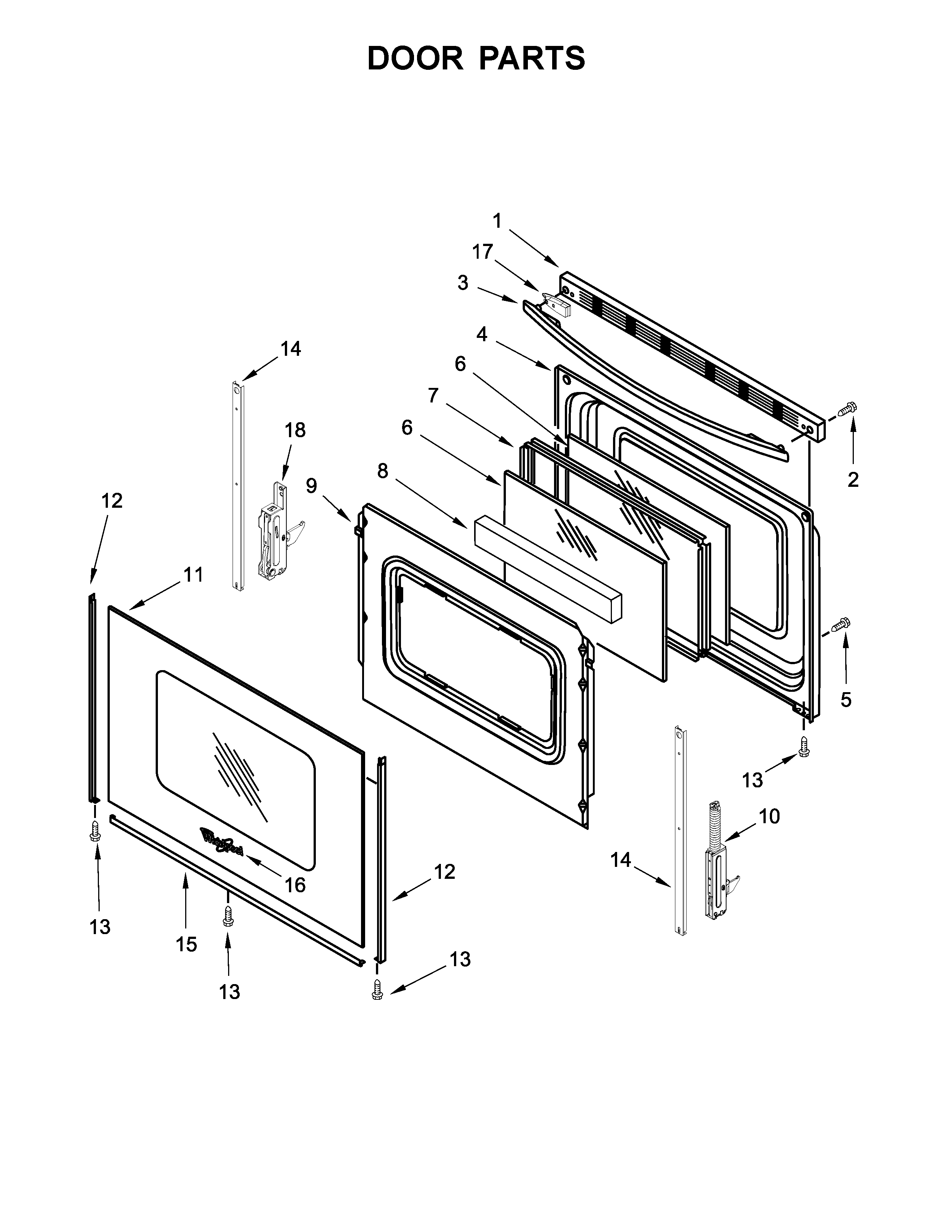

If you are replacing an oven door hinge on this model, the range oven door hinge WPW10299224 is one of the listed hinge options for WFG550S0HW1.

Why it matters

Whirlpool ranges often have similar-looking parts across different models; using the exact model number from the frame label prevents mismatched parts, repeat repairs, and return delays.

Last updated: February 2026

For a Whirlpool WFG550S0HW1 gas freestanding range, replacing an igniter typically costs $150 to $300+ with professional service (parts plus labor). If you do the repair yourself, the cost is usually the price of the igniter part only, and the installation steps and safety checks are outlined in the WFG550S0HW1 installation guide.

What changes the price most

• Which igniter you mean: surface burner spark ignition vs. oven bake/broil igniter
• Labor and trip charge: the biggest difference between DIY and service
• Diagnosis time: intermittent ignition can add time
• Access difficulty: some ranges require more disassembly to reach the igniter
• Related parts needed: wire connectors, screws, or a control component if ignition is not being triggered

Typical cost breakdown

Scenario	What you pay for	Typical total
DIY replacement	Part only	Usually far less than service (often under $100 for the part)
Pro service	Part + labor + service call	Commonly $150 to $300+
Complex ignition issue	Part(s) + extended labor/diagnosis	Can exceed $300

Quick checks before you buy parts

1. Confirm the symptom

• Surface burner: clicking/sparking but no flame, or no spark at all
• Oven: no ignition when set to bake/broil

2. Verify the ignition behavior

• Whirlpool ranges use electronic ignition; sparking occurs when a knob is in the “LITE” position and when the oven is set to a cooking mode (details in the WFG550S0HW1 installation guide).

3. Rule out simple causes

• Burner cap seated correctly and ports not clogged
• Gas supply valve fully open
• Power present (electronic ignition needs electricity)

Parts that are commonly involved

If the oven is not lighting, an oven igniter is a common fix; for surface burners that will not spark, the ignition system components are often involved.

Symptom	Common suspect part
Oven burner will not ignite	Range oven burner igniter WPW10333842
No spark on multiple surface burners	Spark module or wiring (model-specific options vary)

Why it matters

A weak or failed igniter can prevent the burner from lighting reliably, which leads to long preheat times, uneven cooking, or no heat at all. Getting the right diagnosis first helps you avoid buying the wrong part and paying for repeat labor.

Last updated: February 2026

On a Whirlpool WFG550S0HW1 gas freestanding range, the most important “faulty part” warning signs are burner ignition problems, abnormal flames, and any gas odor. Some clicking and a brief “whoosh” at ignition can be normal, but persistent symptoms point to cleaning, adjustment, or repair. See the installation guide for gas-safety steps.

Red-flag symptoms (stop using the range)

• Gas smell near the range or in the kitchen
• Burners that will not light or keep going out
• Repeated ignition clicking that does not stop after the flame is established
• Yellow, lazy, or uneven flames on bake/broil or surface burners
• Nothing operates (no heat, no display response) when you try to use the range

What’s normal vs. not normal

Some sounds and behaviors are expected on this model.

Symptom	Often normal	Often a problem
Clicking during ignition	Clicks for a few seconds until flame is detected	Clicking continues after flame is on
“Pop” from gas valve	Single pop as valve opens/cycles	Repeated loud popping with poor heating
Flame color	Mostly blue with steady shape	Yellow/noisy flames, soot, or lifting flames

Quick checks we recommend (safe, no disassembly)

• Confirm the range is plugged into a grounded outlet and the breaker is on.
• Make sure the main gas shut-off valve and regulator shut-off are fully ON.
• If it’s first use or the gas was off, purge air by lighting one surface burner for up to a minute.
• Clean clogged burner ports and dry the burner cap and base completely.
• If the oven is in Self-Clean, surface burners may not operate; end the cycle and retry.

Parts commonly involved when symptoms persist

If cleaning and basic checks do not help, these model-matched parts are common suspects:

• Ignition issues: module-spark W11162730
• Oven won’t light or heats poorly: range oven burner igniter WPW10333842
• Burner sparking problems at the burner: electrode WPW10515459

Why it matters

Abnormal flames and ignition problems affect cooking performance and can signal a gas-supply, ignition, or conversion issue. Gas leaks also cannot always be detected by smell, so following the safety steps in the installation guide protects your home and helps you decide when to stop and call for service.

Last updated: February 2026

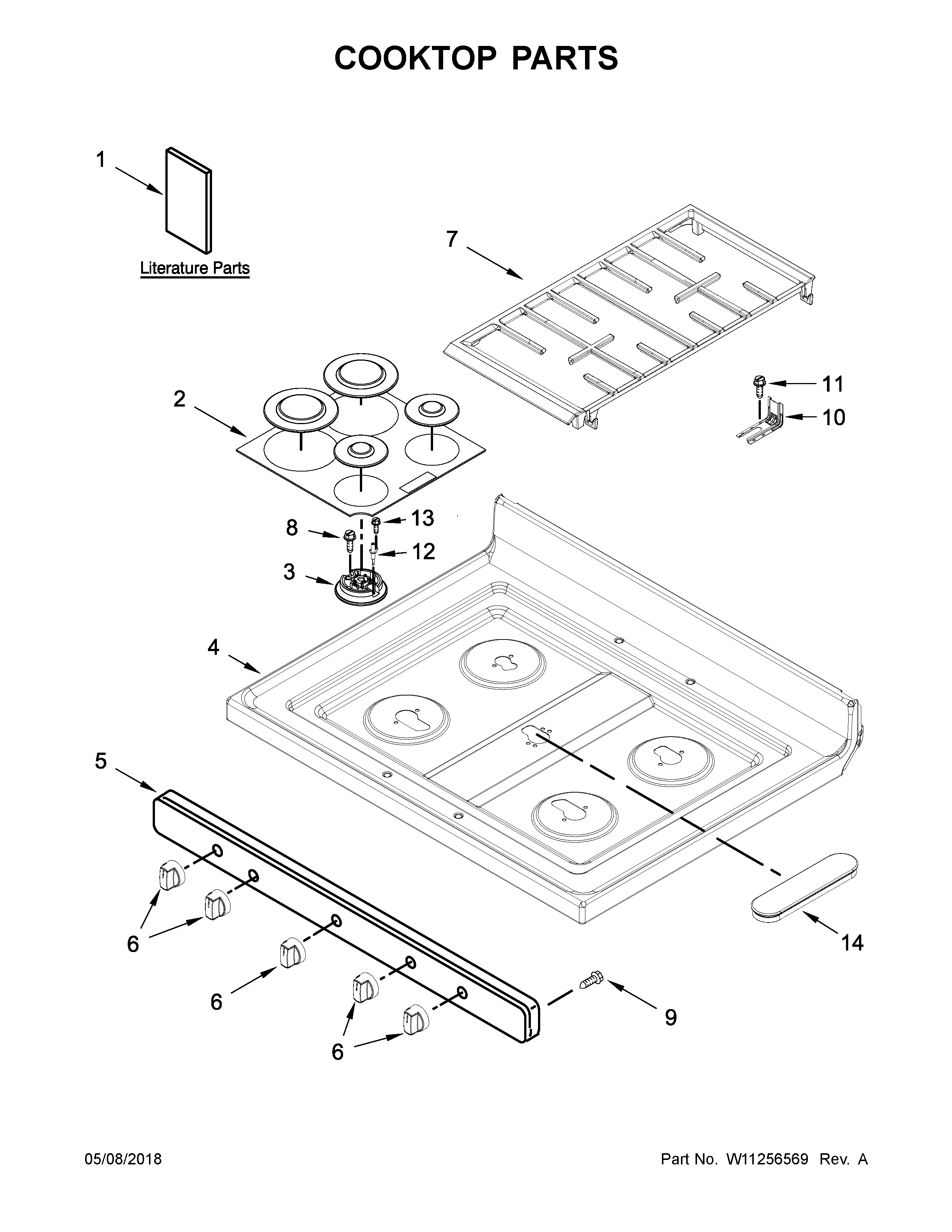

To remove the cooktop (main top) on a Whirlpool WFG550S0HW1 gas freestanding range, we shut off power and gas first, then lift the cooktop after removing the burner parts and any retaining screws so the spark wires and orifice holders are not damaged. Use the WFG550S0HW1 installation guide for the exact fastener locations.

Safety first (gas and electrical)

• Turn the range off and let all surfaces cool completely.
• Shut off the gas at the manual shutoff valve (closed position).
• Unplug the power cord or switch off the breaker (spark ignition uses electricity).
• Protect the countertop and cooktop finish with a towel or cardboard.
• If you smell gas at any point, stop and keep the gas valve closed.

Cooktop removal steps (typical for this Whirlpool design)

1. Remove grates and burner caps.
2. Remove the burner bases (they are commonly held by screws).
3. As you remove burner bases, keep the orifice spud holders supported so they do not drop or twist.
4. Carefully free the spark wires from the cooktop openings; do not pull on the wire itself.
5. Remove any cooktop retaining screws (location varies by revision).
6. Lift the cooktop up and off, then set it aside on a protected surface.

Tool and handling checklist

Item	Why we use it
Phillips screwdriver	Burner base and cooktop screws
Nut driver set	Common fastener sizes on ranges
Masking tape	Helps label spark wires and protect edges
Towel/cardboard	Prevents scratches while the top is off

Reinstall tips (avoid ignition problems)

• Route spark wires back through the correct openings before lowering the cooktop.
• Make sure burner bases sit flat and screws are snug (not over-tightened).
• Confirm burner caps are centered; misalignment causes uneven flames and clicking.

Why it matters

Removing the top gives access to the spark electrodes, orifice spuds, and gas tubing. Handling the spark wires and orifice holders gently prevents no-spark issues, gas leaks, and burner misfires.

Last updated: February 2026

On the Whirlpool WFG550S0HW1 gas freestanding range, the most commonly replaced parts are ignition and door-wear items (igniters, electrodes, hinges, and door seals) plus convenience parts like the oven light bulb and racks. These parts see the most heat, movement, and daily use.

Most common replacement parts for this model

These are frequent wear items we see replaced on ranges like WFG550S0HW1:

• Oven burner igniter (no bake heat, slow ignition): range oven burner igniter WPW10333842
• Surface burner electrode (clicking, weak spark, burner not lighting): electrode WPW10515459
• Oven door hinges (door won’t close evenly, heat leaks): range oven door hinge WPW10299224 and range oven door hinge WPW10299227
• Door seal (heat loss, longer preheat, uneven baking): door seal W11542153
• Oven light bulb (light out): light bulb 8009
• Oven rack (warped, rusted, hard to slide): range oven rack W11520287

Quick symptom-to-part guide

Symptom	Most likely part to check first	What you’ll notice
Oven won’t heat or takes too long to light	Oven burner igniter	No glow or delayed ignition
Burner won’t light but you hear clicking	Electrode	Spark is weak or misdirected
Oven door doesn’t shut tight	Door hinge or door seal	Gaps, heat escaping, loose door
Oven light doesn’t work	Light bulb	No interior light with light switch

What to check before you order a part

We recommend these quick checks to avoid replacing the wrong component:

• Confirm the issue happens on multiple settings (Bake, Broil, or specific burner).
• Inspect for visible damage (cracks in an electrode, torn gasket, bent hinge).
• Make sure burner caps and grates are seated correctly after cleaning.
• For oven light issues, follow the safe replacement steps in the WFG550S0HW1 owner’s manual.
• If the range shows an error code, match it using Whirlpool freestanding range error codes.

Why it matters

Ignition parts (igniters and electrodes) directly affect whether gas lights reliably, and door parts (hinges and seals) control heat retention. Replacing these common wear items restores normal preheat time, stable temperatures, and safer operation.

Last updated: February 2026

On our Whirlpool WFG550S0HW1 gas freestanding range, a cooktop igniter usually stops working because the burner cap is misaligned, the igniter tip is dirty or wet, power is missing to the range, or the spark system (electrode wiring, spark module) is failing. All burners may click, but only the selected burner should light.

Quick checks we recommend first

• Confirm the range has power (plugged in, breaker on); the igniters need electricity to spark.
• Turn the knob to Ignite/LITE and listen: clicking means the spark system is trying to fire.
• Remove the grate and reseat the burner cap so it sits flat on the burner base and aligns correctly.
• Dry the burner area completely if it was recently cleaned or had a boil-over.
• Clean the igniter area and burner ports gently; spills and cleaners can block ignition.

What the symptoms usually mean

What you see/hear	Most likely cause	What to do next
No clicking on any burner	No power to range or failed spark module	Check power first; then consider spark module (red) WPW10475149
Clicking on all burners but one burner will not light	Mis-seated cap, clogged ports, wet igniter area	Reseat cap, dry, clean ports
Clicking and sparking but no flame	Gas supply off or burner not getting gas	Verify gas shutoff valve is open; try another burner
Weak/erratic spark at one burner	Dirty/cracked electrode or wiring issue	Inspect and replace electrode WPW10515459 if damaged

Safe troubleshooting steps (in order)

1. Set all knobs to OFF.
2. Lift off grates and burner caps; clean and dry the burner base, cap, and ports.
3. Reinstall the cap carefully; misalignment is a top cause of “no ignition.”
4. Try lighting again; the flame should light quickly when the knob is held at Ignite/LITE.
5. If the burner still will not light, compare spark strength to other burners; a single weak burner points to an electrode issue.

Why it matters

A properly working electronic ignition system lights gas quickly and consistently. When ignition is delayed, gas can build briefly before lighting, which increases odor, flare-ups, and uneven cooking.

For model-specific burner and ignition details, follow the WFG550S0HW1 owner’s manual.

Last updated: February 2026

For the Whirlpool WFG550S0HW1 gas freestanding range, the model and serial number are printed on the product identification label located on the upper-left side of the front frame. Use that exact model number when ordering parts and when following procedures in the WFG550S0HW1 owner’s manual.

How to locate the model and serial label

Use this quick checklist to find it fast:

• Open the oven door fully
• Look at the front frame around the oven opening (the frame the door closes against)
• Focus on the upper-left area of that front frame
• Find the label that lists Model and Serial
• Copy the model number exactly (letters and numbers)

What to write down (and why)

Record both numbers so we can match the correct Whirlpool parts, diagrams, and troubleshooting steps.

Label item	What we use it for	What it looks like
Model number	Correct part fit and diagrams	WFG550S0HW1
Serial number	Service and production reference	A longer mix of letters and numbers

Common mistakes to avoid

• Don’t shorten the model number (avoid using only “WFG550”)
• Don’t swap similar characters (0 vs O, 1 vs I)
• If you’re replacing door hardware, confirm the model first so you get the correct hinge style, such as the range oven door hinge WPW10299224

Why it matters

Whirlpool ranges that look similar can use different oven igniters, electronic controls, and door parts. The full model number ensures the replacement part and repair instructions match your exact WFG550S0HW1 configuration.

Last updated: February 2026
